MONSTER SERIES - Very Big Vault Doors

Heavy Duty Vault doors for storm shelters and safe rooms

Monster Series - Large Commercial & Residential Vault Doors for Tornado Shelters, Storm Shelters, Walk-In Safe Rooms. Built to Exceed FEMA 320, 361 and ICC-500 Standards

Vault Doors and Safe Room doors made in USA

Very Big Vault Doors - The Monster Series

Factory Direct Sales and Delivery!

Very Large Vault Doors for Commercial or Residential Installation -
The Monster Vault Door
Button

Double the Steel Double the Strength.

4-Way - 4"x1½" Fully Rotating Locking Bolts

Standard on Monster Vault Doors

CLICK FOR FREE QUOTE

Very Large Heavy Duty Vault Doors

The Monster wide frame super size vault door stands seven foot tall, five feet wide with a 2" Steel Stepped Door and weighing in at well over 3000 pounds, this really is a "Monster Vault Door". Size alone sets this enormous American Made Vault Door in a class all of it's own.

Vault Pro designed the Monster Vault Door specifically to provide the highest level security and fire protection.

Multiple Heavy Duty Hinges along with a 1/2" Solid Steel Stepped Frame allow the 2" Solid Steel Stepped Door to swing smoothly. The 4-way bolt locking system includes 22 - 1½" locking bolts to make cutting impossible. Our Titan Quadruple +1 Relocking System and 1" Solid 60+ Rockwell Hard-plate will work to defend against both drill and punch attacks. Interior quick release handle is standard.

With Vault Pro's reputation for exacting specifications and tolerances, the Monster Vault Door is no slouch. The Monster hand fit Step System Door fits to within 1/16" of the Monster Step Frame to seal on at least five points for the most pry proof vault door available in today's market. In addition to dual Palusol® Gaskets between the door and frame, Multiple layers of X-Rate fireboard and 2300° Ceramic Fire Blanket are used to make the Monster Vault Door the most Fireproof Vault Door in it's class with over 2 hour protection.

If Ballistic Resistance is your concern, rest assured. Virtually nothing is getting thru the Monsters 2" solid steel front plate. Call for details: 800-299-6929

CALL FOR FREE QUOTE

CLICK TO CALL (M-F 7AM-7PM)

vault doors and shelter doors made in USA

Vault Door Model Quick Comparison Chart

Model Detail Specifications

Model	Professional	Executive	Elite	Atlas	Titan	Monster
Door	1/4" Plate Steel	1" Composite Steel Door	2" Step System Door	2" Step System Door with 1/2" Solid Steel Front Plate	2" Step System Door with 1" Solid Steel Front Plate	7' x 5' 2" Solid Steel Stepped Door
Frame Thickness	1/4" Solid Steel	1/4" Solid Steel	1/4" Solid Steel	1/4" Solid Steel	1/2" Solid Steel Frame	1/2" Solid Steel Frame
Fire Rating	40 Minute	1 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket
Number of Locking Bolts	14 4" x 1" Locking Bolts. Active Bolts Fully Rotating	18 4" x 1" Locking Bolts. Active Bolts Fully Rotating	18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
Lock Type	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial
Hard Plate	1/4" Solid 60+ Rockwell Hard Plate	1/2" 60+ Rockwell Hard plate	1/2" 60+ Rockwell Hard plate	3/4" 60+ Rockwell Hard plate	1" 60+ Rockwell Hard plate	1" 60+ Rockwell Hard plate
Internal Release	Yes	Yes	Yes	Yes	Yes	Yes
Re-Locker	Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan)	Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish
Gloss and Custom Finish Available	Yes	Yes	Yes	Yes	Yes	Yes
Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware
Warranty	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime
Country of Origin	United States	United States	United States	United States	United States	United States
State of Origin	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California
Starting Price 80" x 30" (Frame Depth 5" to 8")	$3,033	$3,685	$4,530	$6,253	$7,966	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 35" (Frame Depth 5" to 8")	$3,588	$4,081	$5,040	$6,889	$8,720	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 40" (Frame Depth 5" to 8")	$4,122	$4,592	$5,551	$7,467	$9,507	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 45" (Frame Depth 5" to 8")	$4,654	$5,001	$6,038	$8,204	$10,267	Min. Size 7'x5' Call for Free Quote

NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.

Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.

We Are Big Vault Door Manufacturers
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's

Click images to enlarge.

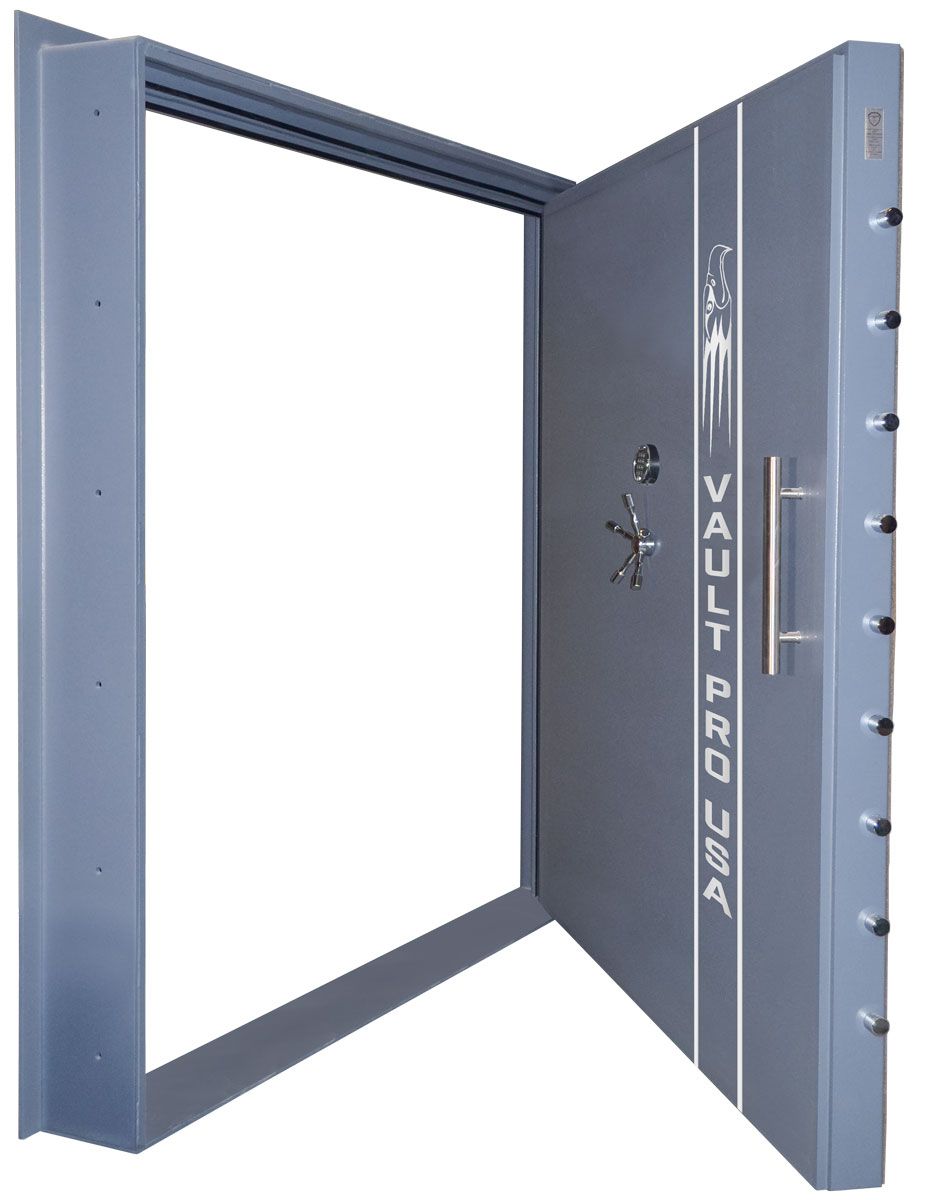

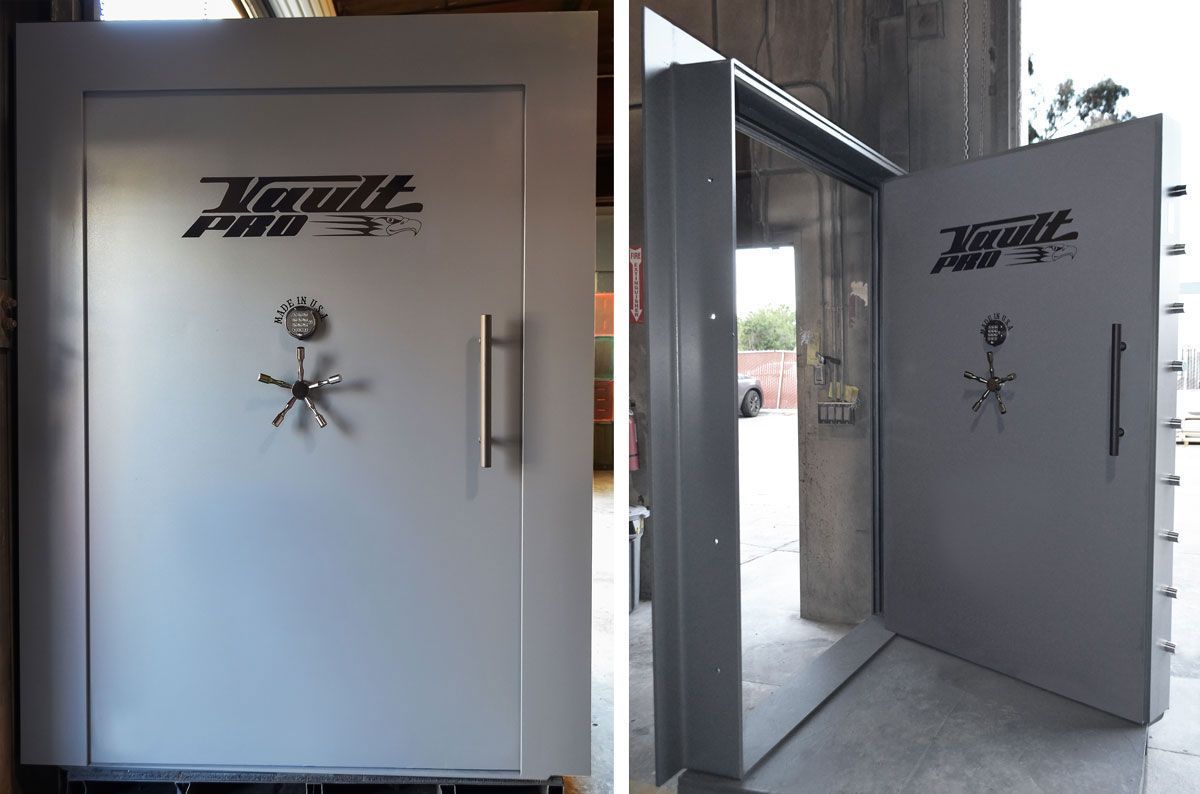

80 x 64 in. Monster in-swing vault door. Shown face on closed and open position.
Button
This heavy duty Monster vault door is mounted on four dual radial bearing hinges rated at 2000lb. ea.
Button

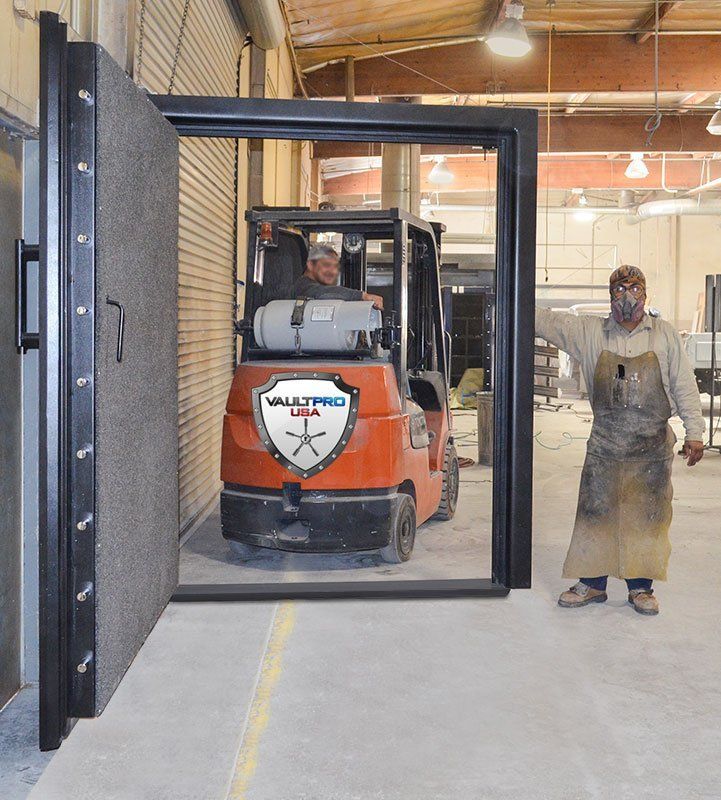

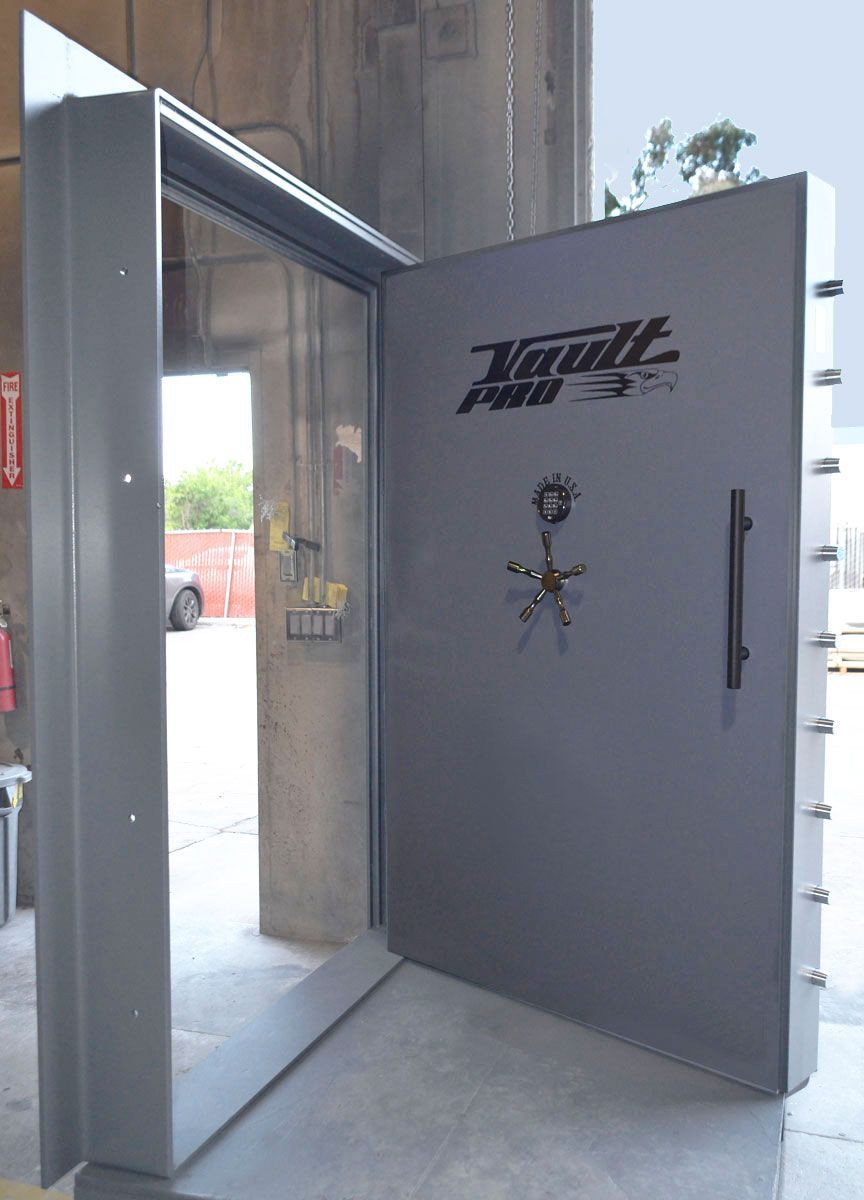

You can drive a forklift through this Monster vault door.
Button
City skyline

Monster Vault Door with 2" Solid Steel Front Plate, 2" Step-System Door - Overall Door Thickness 6¼”
Button

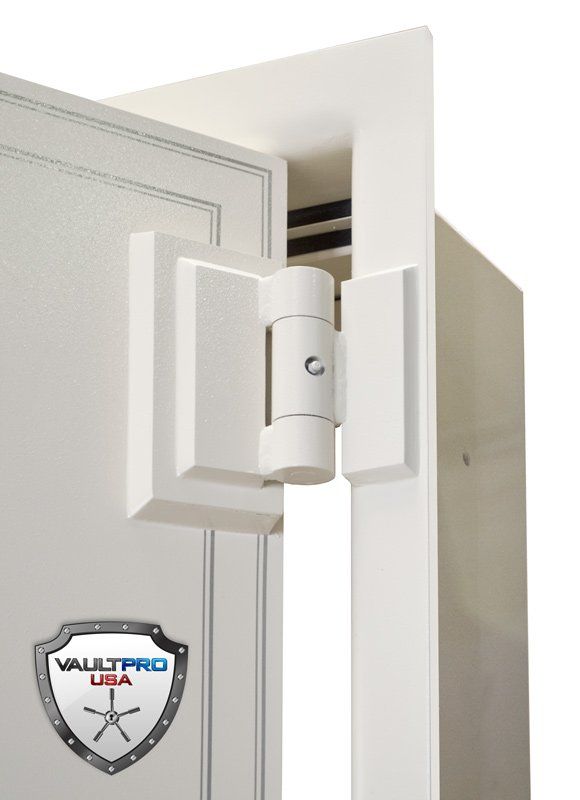

The Monster door is supported on 6"x6" Dual Thrust, Dual Radial Bearing, 2000lb. Capacity each, Heavy Duty Hinge System on 1/2" Solid Steel Frame.
Button

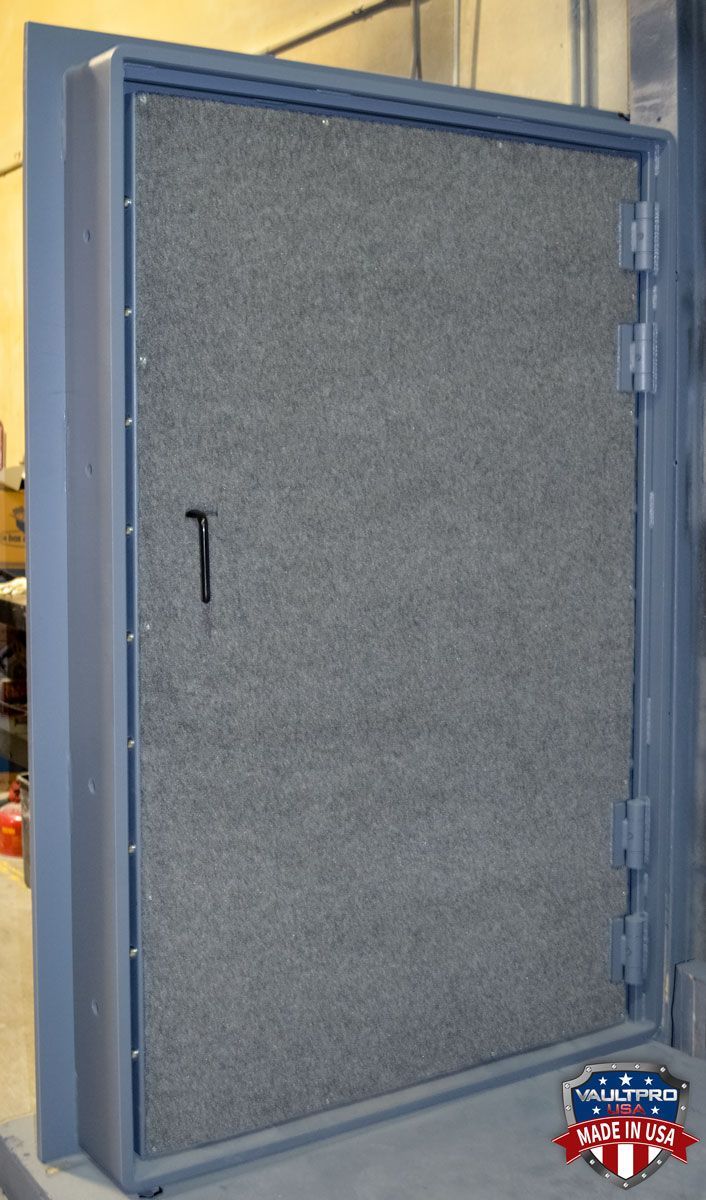

Monster vault door with quadruple hinges, each rated at 2,000 lb. capacity.
Button

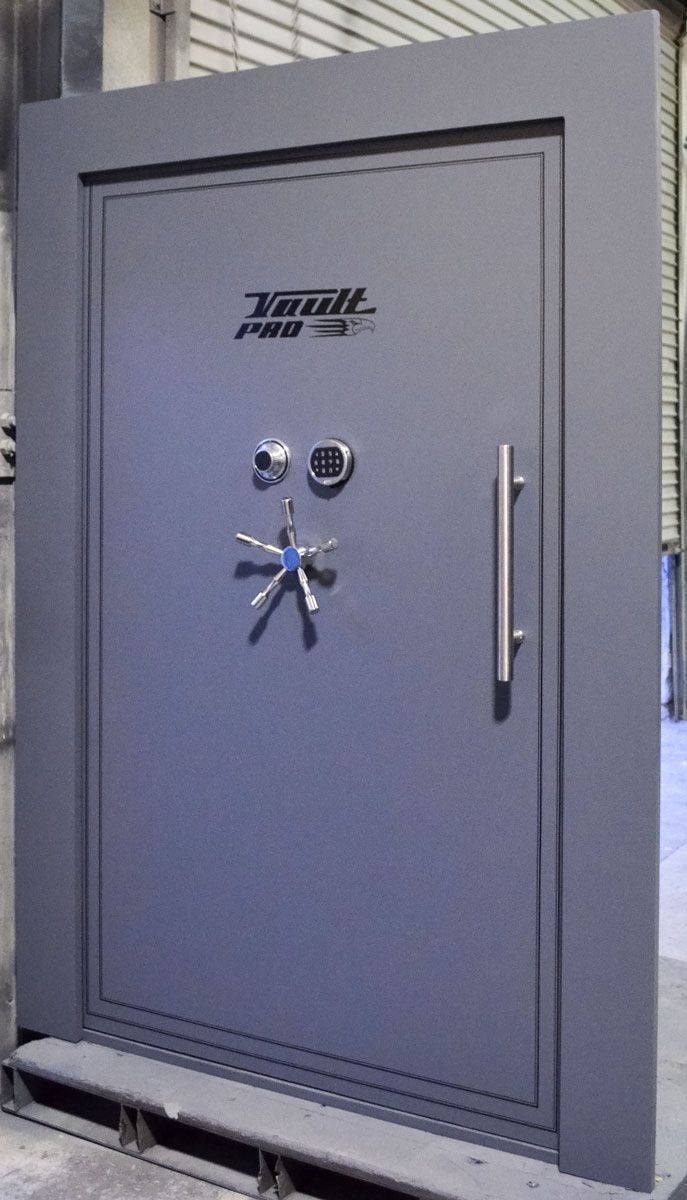

Monster vault door with dual locking system.
Button

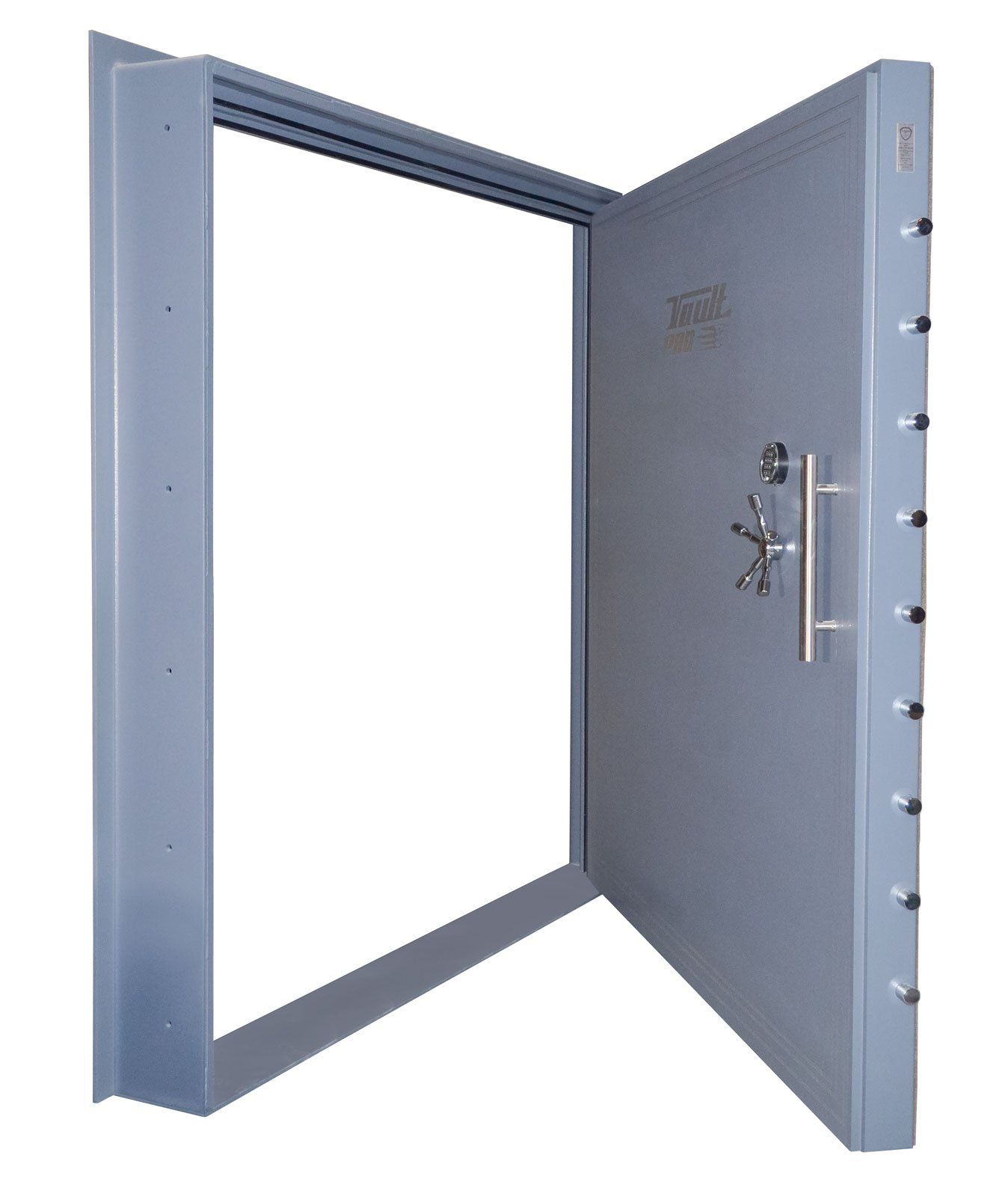

Oversize Monster In-swing vault door. Wide enough to drive a car through.
Button

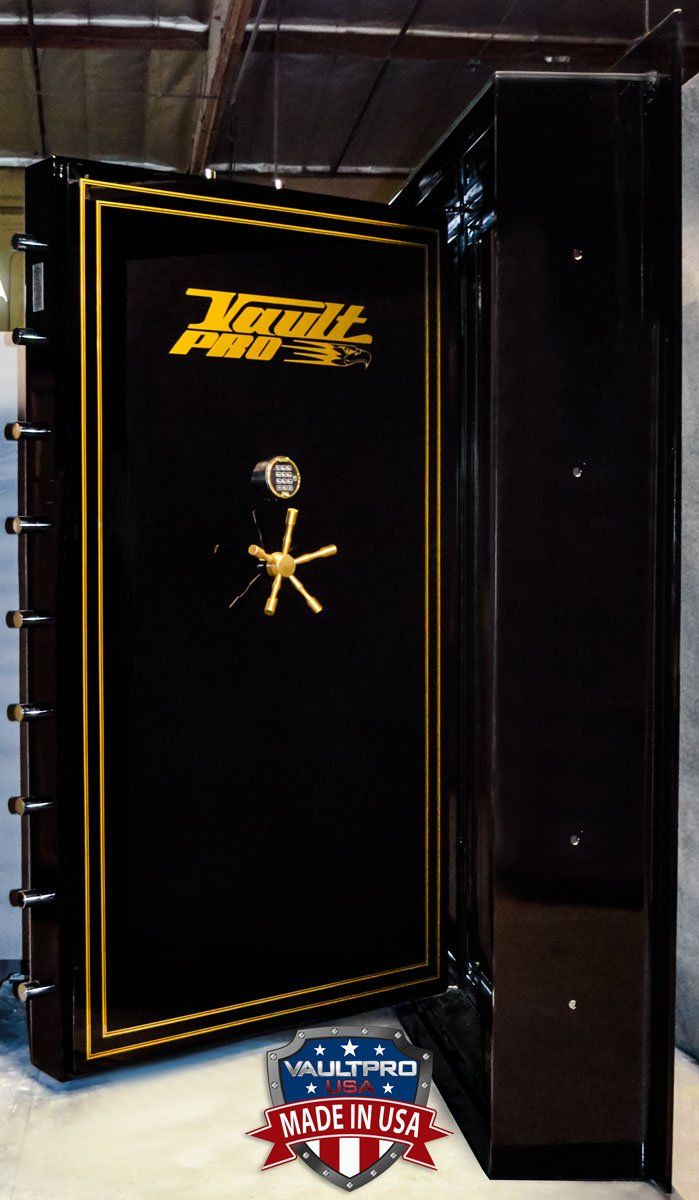

Monster vault door in custom black gloss finish.
Button

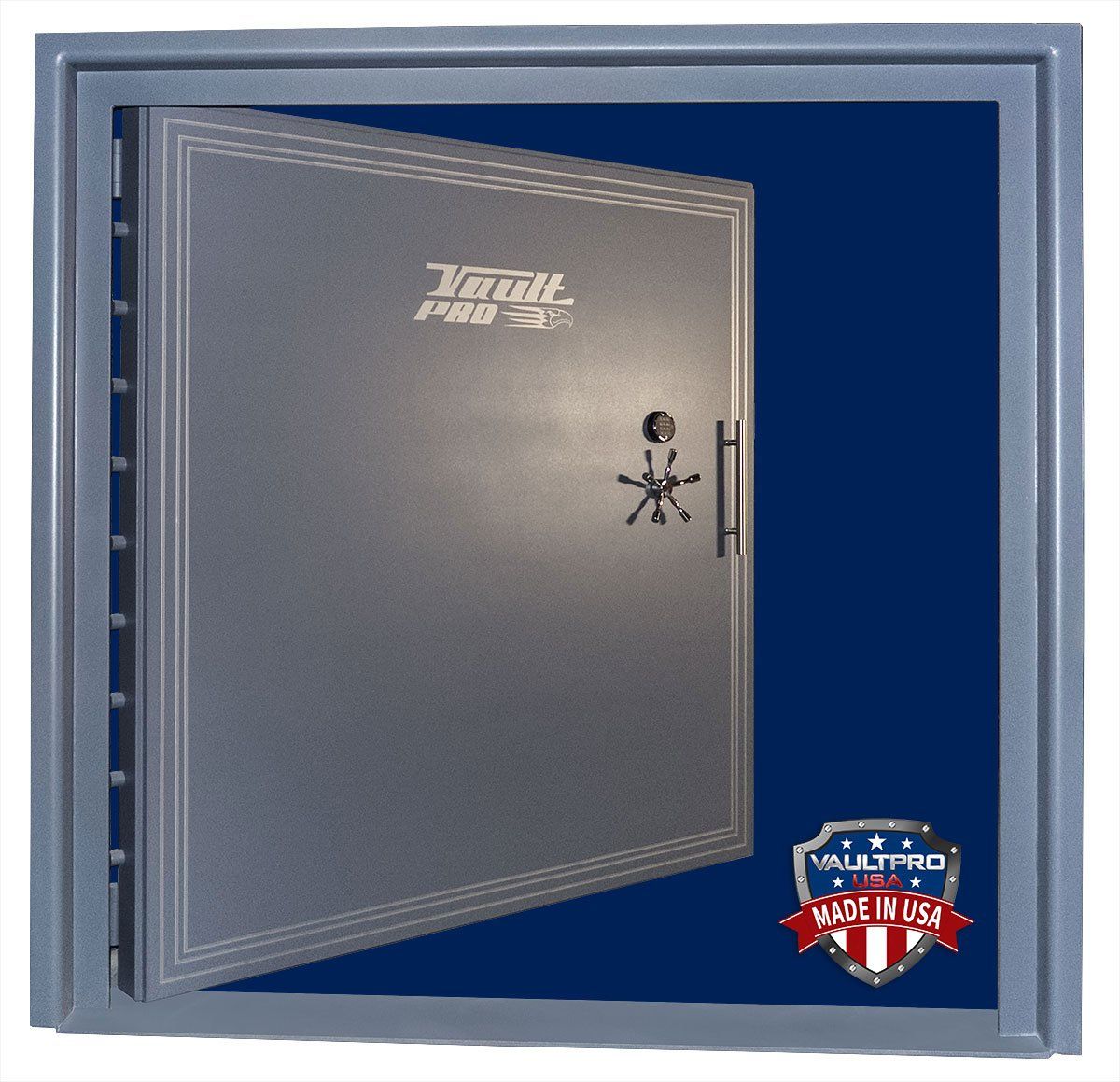

Massive Monster vault door designed to allow car to drive through.
Button

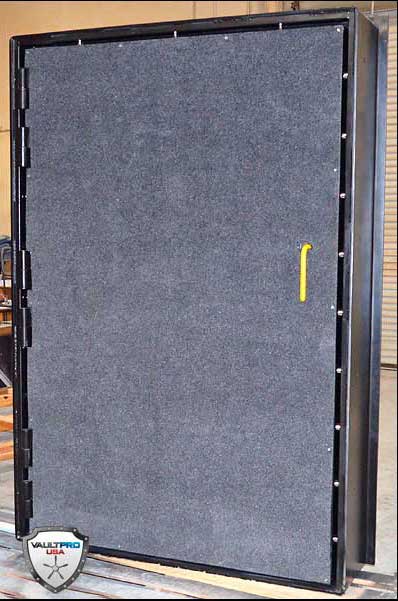

Monster door back with carpeted door panel and internal release handle.
Button

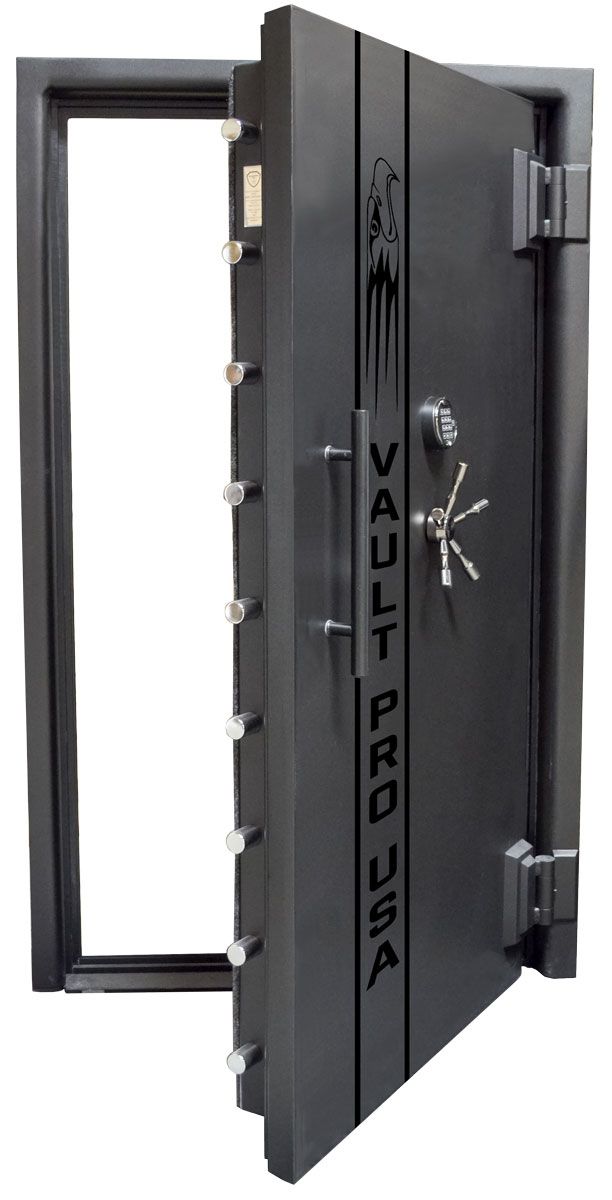

Custom Monster outswing vault door with four heavy duty hinges.
Button

Monster Series Vault Door Standard Features

2” Solid Steel Front Plate
2” Solid Steel Stepped Door - Overall Door Thickness 6¼”
1/2” Solid Steel Frame
3" Wide Front Flange
Two Hour Fire Door
Dual Palusol® Heat Activated Expandable Gaskets
2300° Ceramic Fire Blanket
NEW! 4-Way 22-Active Bolt Locking System
4” x 1-1/2” Fully Rotating Locking Bolts
Sargent & Greenleaf, U.L. Listed, Group 2, Spy-Proof Lock with Locking Dial
1” 60+ Rockwell Hard plate
Internal Release
Hinges - Heavy Duty 6" x 6" Dual Thrust, Dual Radial Bearing Hinges, 2000 lbs. Load Each
Titan Quadruple +1 Re-locking System Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy - Gloss, Premium and Custom Finishes Available
Choice of Silver, Gold or Black matching hardware
Custom Sizes Available - Call: CLICK TO CALL

Standard and Optional Colors and Finishes

Vault Door Finishes

Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy

Gloss paint finish, marine grade paint finish and custom colors avaialable. Call for more information and free quote: CLICK TO CALL

Monster Series Vault Door Specifications

Door: 2" Step System Door with 2" Solid Steel Front Plate - Overall Door Thickness 6¼”
Frame Thickness: 1/2" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Locking Bolt System - 4-Way - Fully Active
Number of Locking Bolts: 22 - 4" x 1½" Locking Bolts Fully Active Bolts, Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock with locking dial
Hard Plate: 1" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Quadruple +1 Re-locking System Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Matte Finish: Black, Gray, Brown, Burgundy or Dark Green
Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

American made vault doors special promotion. 50% off custom two stage gloss finish with purchase of any step system vault door by Vault Pro USA

Monster Series Vault Door Factory Direct Pricing

80" x 30" - 8" to 12"

(depth to match wall thickness)

Clear Thru Space:

25" Out-swing

23" In-Swing

FACTORY DIRECT PRICE

$12,644

80" x 35" - 8" to 12"

(depth to match wall thickness)

Clear Thru Space:

30" Out-swing

28" In-Swing

FACTORY DIRECT PRICE

$14,285

80" x 40" - 8" to 12"

(depth to match wall thickness)

Clear Thru Space:

35" Out-swing

33" In-Swing

FACTORY DIRECT PRICE

$15,485

80" x 45" - 8" to 12"

(depth to match wall thickness)

Clear Thru Space:

40" Out-swing

38" In-Swing

ADA Accessible Vault Door

FACTORY DIRECT PRICE

$17,285

80" x 50" - 8" to 12"

(depth to match wall thickness)

Clear Thru Space:

45" Out-swing

43" In-Swing

ADA Accessible Vault Door

FACTORY DIRECT PRICE

$18,845

Need A Bigger Vault Door?
We Are Custom Specialists. Any Size, Any Configuration.

IN-SWING OPTION (Any Door) ADD $650

In-Swing frame depth must be 7½" or larger

Options and Accessories for Vault Doors

Installation Instructions (PDF opens in new tab)

Vault Pro Standard Finishes and Premium Gloss Finishes

Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching pinstripe and hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

Standard Black Texture Finish
Button
Standard Brown Texture Finish
Button
Standard Gray Texture Finish
Button
Standard Dark Green Texture Finish
Button
Standard Burgundy Texture Finish
Button

Premium Gloss Finishes

Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
