If something should block your main door or primary exit while you are inside a safe room/storm shelter, a secondary means of egress could be the difference between life and death. Vault Pro’s all American Made Pro Escape Hatches are built to match the security level and fire protection of your Vault Pro Shelter Door. Emergency Pro Escape Hatches can be either in or out-swing hinged and can even open vertically for egress at the top of a ladder. Vault Pro’s Emergency Escape Hatches are made to open from the inside only but can be configured to open from the outside as well. Ask one of our Vault Pro’s for details.
Emergency Escape Hatches
Wall Hatches | Roof Hatches | Floor Hatches
For Safe Rooms and Storm Shelters
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's
We Are the Manufacturer - We Ship Emergency Escape Hatches USA Made Factory Direct to You
What is an Emergency Pro Escape Hatch and do I need one?
An Emergency Escape Hatch is an exit used when the primary means of escape or exit from a shelter or safe room are blocked, unusable or unavailable. Every Storm Shelter Safe Room should have an Emergency Pro Escape Hatch.
Vault Pro has designed and engineered several different types of escape hatches that can be used in tornado storm shelters, safe rooms and underground bunkers. Scroll through the page for more information on our escape hatches.
Vault Pro Hatches are built to exceed FEMA 320, 361 and ICC-500 recommended standards.
Double the Steel - Double the Protection
Vault Pro Emergency Escape Hatches are built to
Exceed FEMA 320, 361 and ICC-500 recommended standards.
FEMA Standards vs. Vault Pro Elite and Executive Hatches
FEMA 631, Drawing No. MS-02, Page 16 of 18, Door #1 & #2
FEMA Door #1
| FEMA Door #1, Construction of 14 GA skin door as follows: | ELITE HATCH DOORConstruction of 2" Composite steel door(Includes both 3 GA and 10 GA Skin) as follows: |
| 1. 14 GA Vertical Steel Stiffeners (Dec. equiv .0747) | 1. 10 GA Vertical Steel Stiffeners (Dec. equiv 0.1345) |
| 2. Closer Reinforcement | 2. 10 GA full perimeter channel along the door edges (Dec. equiv 0.1345) |
| 3. 7-gauge Hinge Reinforcement (Dec. equiv .1793) | 3. 3 GA Hinge Reinforcement |
| 4. Reinforced Lock Boxes | 4. 7 GA Closer Reinforcement (dec. equiv 0.1345) |
| 5. Additional 14-gauge skin attached to door with 1/4" x 1 1-1/4" self tapping screws w/hexagon washer heads spaced at 6" O.C. along perimeter and 12" O.C. in the field. (14 GA skin Dec. equiv .0747) |
5. 3 GA skin attached to door with 2" stitch welds every 6" along perimeter and every 12" in the field |
| 6. 2ea. 5/8" Layer Gypsum as composite | |
| 7. 10 GA Ribs (Dec. equiv .1345) | |
| 8. 10 GA Door Front Backing (Dec. equiv .1345) * both 3 GA Front Skin & 10 GA Back Skin w/10 GA Ribs & Gypsum composite make up the 1" front plate of door. |
|
| 9. Dual Step door & Frame sealing on dual Palusol gasket & Gypsum composite make up the 1" front plate of door. |
FEMA Door #2
| FEMA Door #2, Construction of 12 GA skin door as follows: | EXECUTIVE SERIES HATCHExecutive Hatch, Construction of 1" Composite steel door (includes both 3 GA and 10 GA Skin) as follows: |
| 1. 12 GA Vertical Steel Stiffeners (Dec. equiv .1046) | 1. 10 GA Vertical Steel Stiffeners (Dec. equiv 0.1345) |
| 2. 12 GA full perimeter channel along the door edges (Doubled at door edges -- Dec. equiv when doubled .1092) |
2. 10 GA full perimeter channel along the door edges (Dec. equiv 0.1345) |
| 3. 7 GA Hinge Reinforcement (Dec. equiv .1793) | 3. 3 GA Hinge Reinforcement |
| 4. 7 GA Closer Reinforcement (Dec. equiv .1793) | 4. 7 GA Closer Reinforcement (Dec. equiv 0.1793) |
| 5. 12 GA skin attached to door with 1/4" x 1 1-1/4" self tapping screws w/hexagon washer heads spaced at 6" O.C. along perimeter in the field. (12 GA skin Dec. equiv .1046) |
5. 3 GA skin attached to door with 2" stitch welds every 6" along perimeter and every 12" in the field |
| 6. 5/8" Layer Gypsum as composite | |
| 7. 10 GA Ribs (Dec. equiv .1345) | |
| 8. 10 GA Door Front Backing (Dec. equiv .1345) * both 3 GA Front Skin & 10 GA Back Skin w/10 GA Ribs & Gypsum composite make up the 1" front plate of door. |

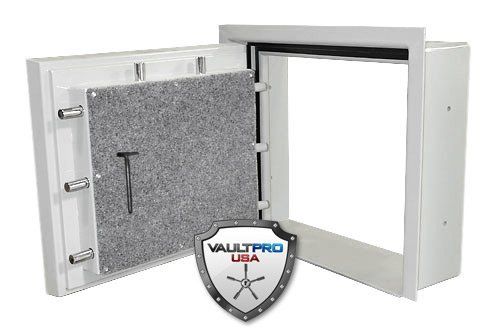

Vault Pro 36” x 36” Wall Hatches
Description: Vault Pro’s 36” x 36” American Made Wall Hatch are the ideal solution for easy egress from shelter or safe room should primary door become blocked by debris from a storm or other cataclysmic event.
Click images to enlarge.
Pro Wall Hatch Factory Direct Pricing
Executive Pro Wall Hatch:
1/4" Front Plate, 1" Composite Steel Door, Palusol® gasket, 65 min. fire, 10-bolt locking system with 1" locking bolts, internal release. Depth can be up to 8". *Weight 455lbs.: $2,019.00
In-swing Hinged. *Weight 470lbs.: $2,255.00
Elite Pro Wall Hatch:
1/4" Front Plate, 2" Step System Door, dual Palusol® gaskets, 120 min. fire, 10-bolt locking system with 1 1/2" x 4" locking bolts, internal release. Depth can be up to 8". *Weight 485lbs.: $2,135.00
In-swing Hinged. *Weight 576lbs.: $2,379.00
Atlas Pro Wall Hatch:
1/2" Front Plate, 2" Step System Door, dual Palusol® gaskets, 120 min. fireproofing, 10-bolt locking system with 1 1/2" x 4" locking bolts, internal release.
Depth can be up to 8". *Weight 575lbs.: $2,669.00
In-swing Hinged. *Weight 715lbs.: $2,975.00
Standard colors available: Black or Gray. Custom colors optional.
*Weight may vary due to frame depth.

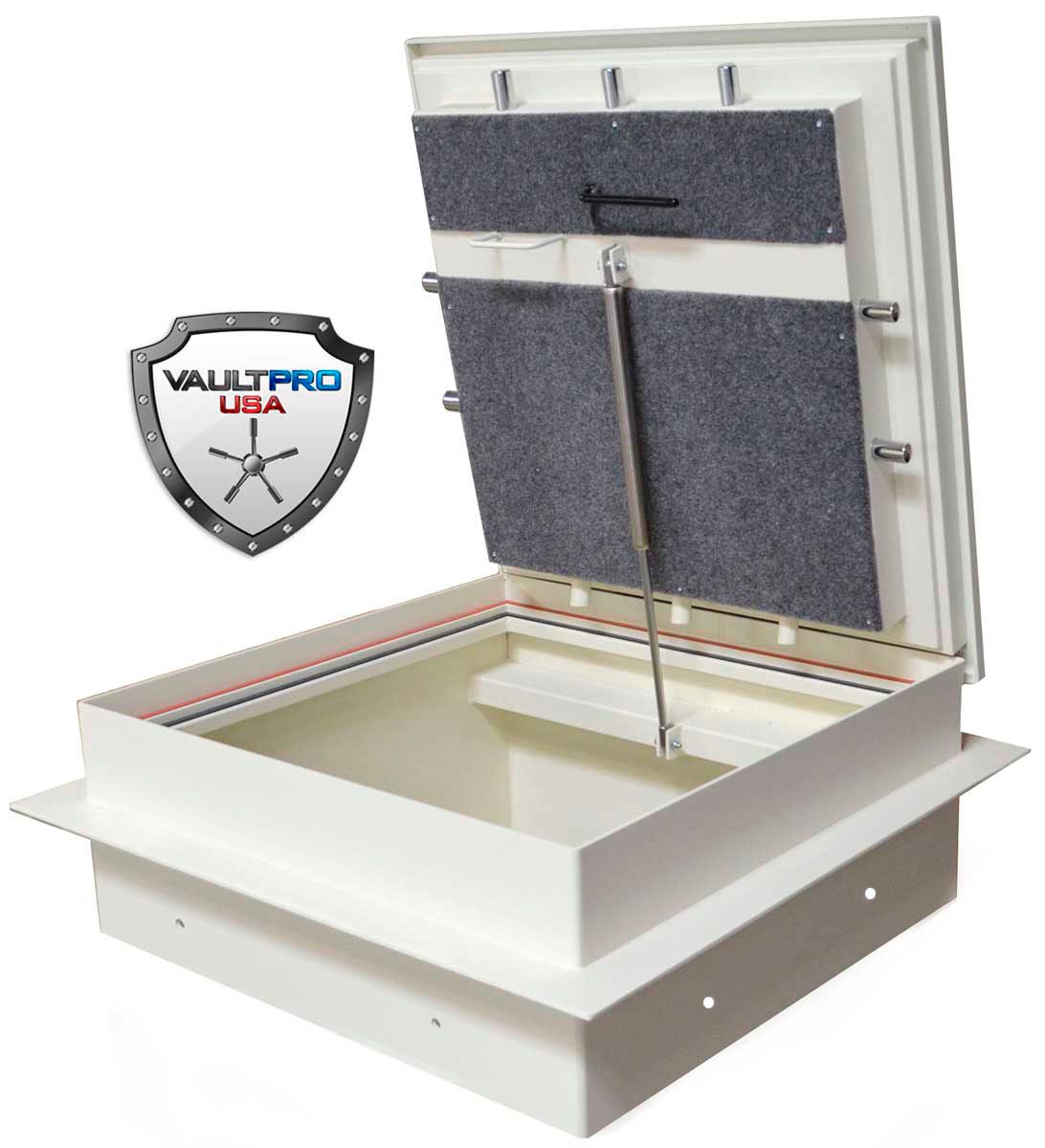

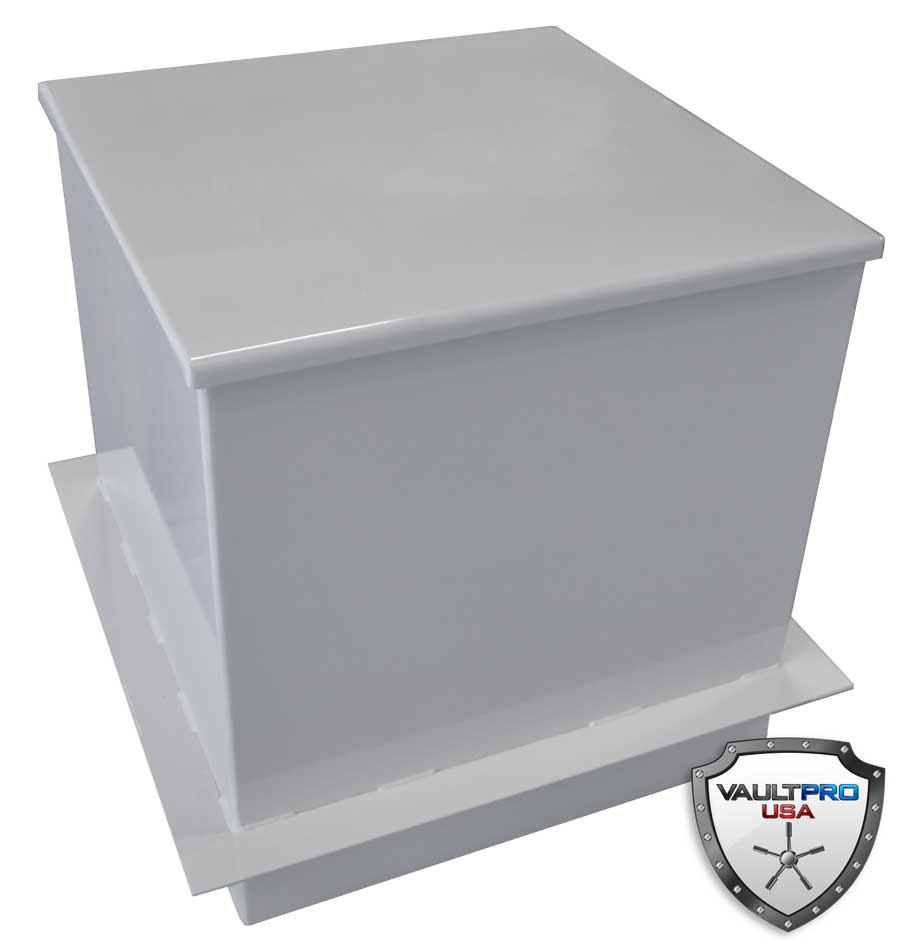

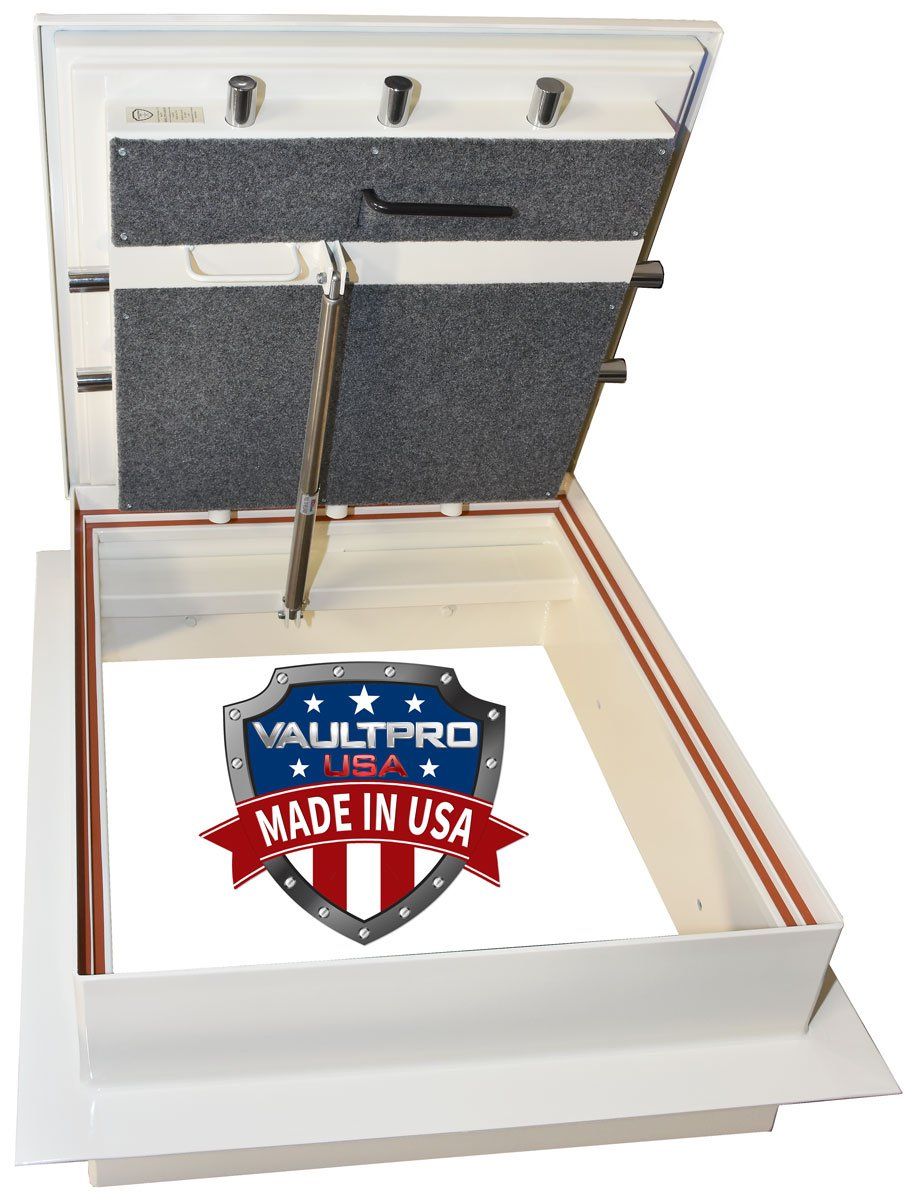

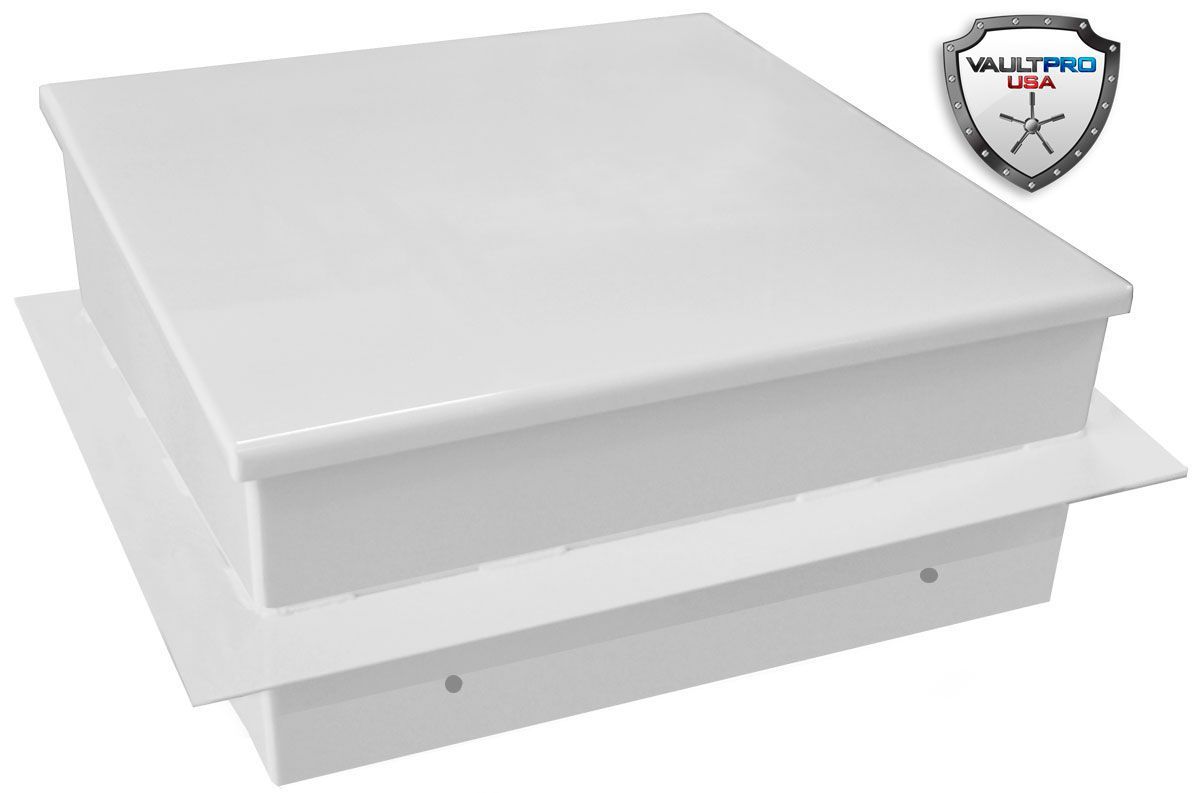

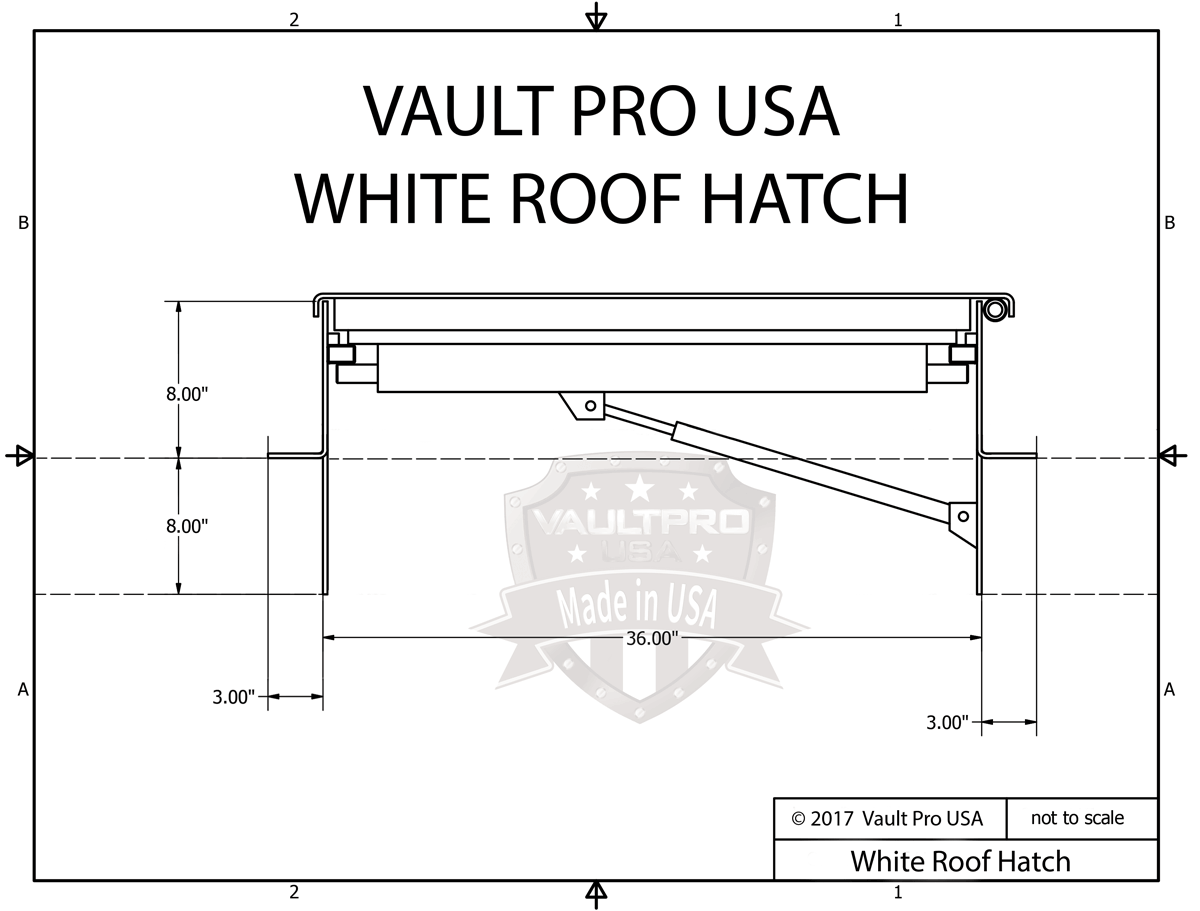

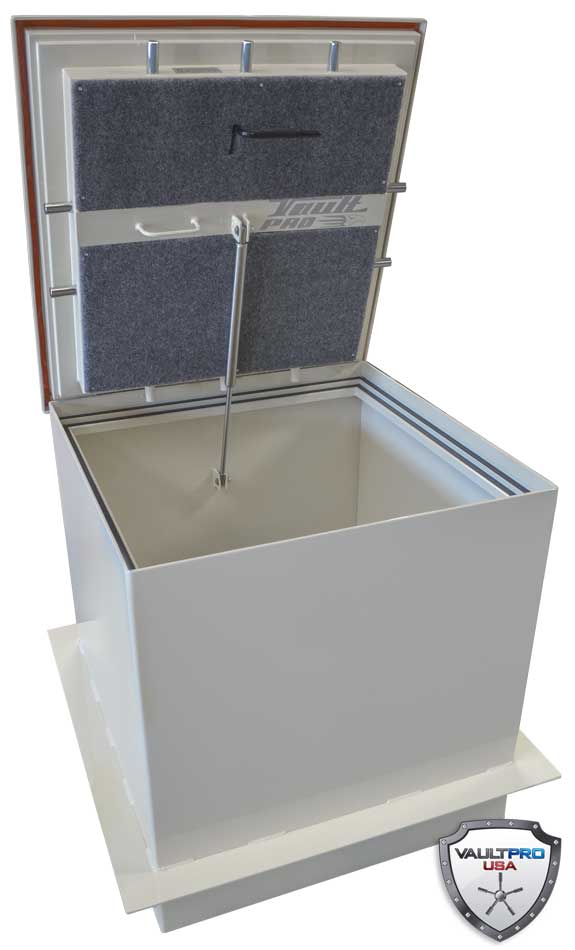

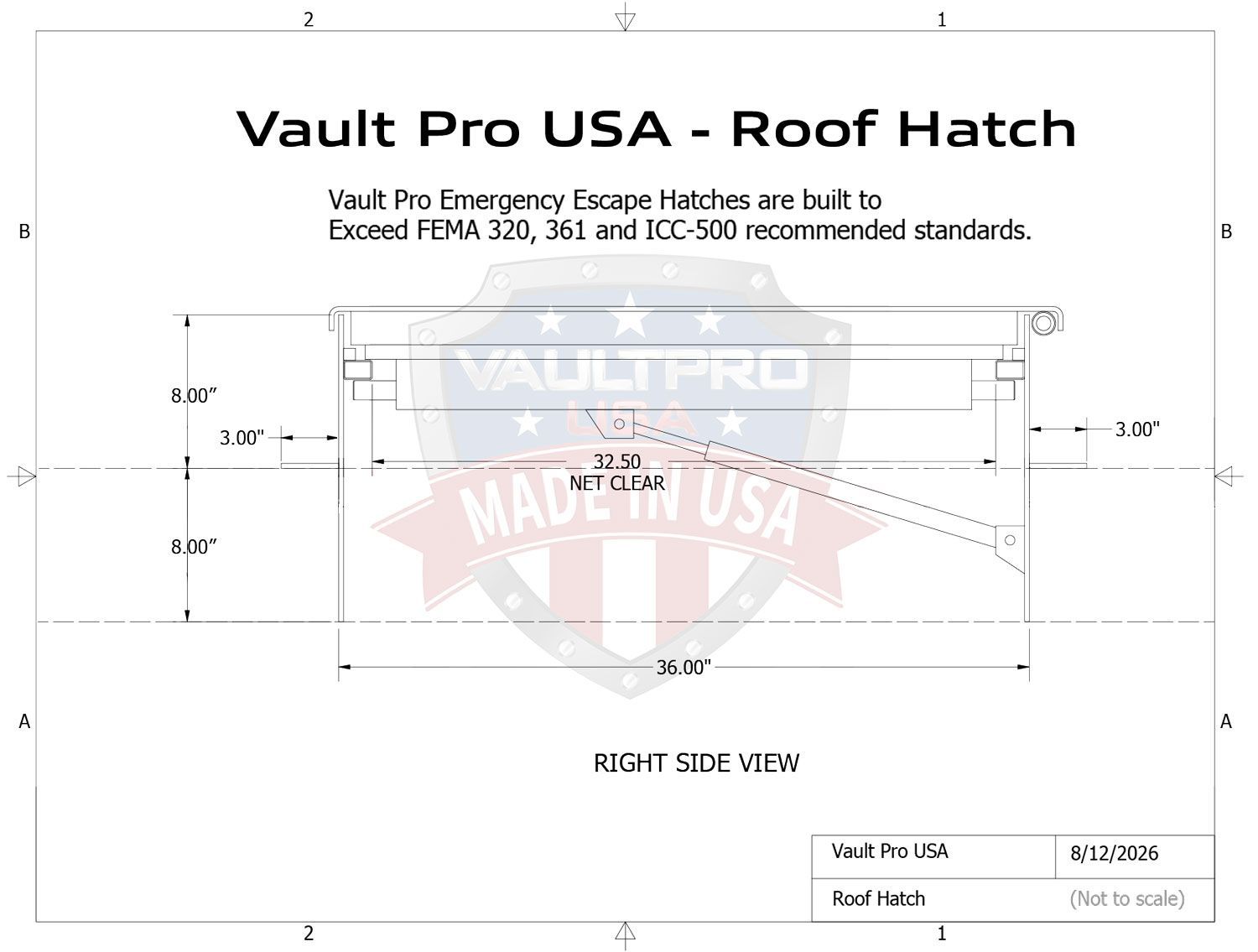

Vault Pro 36” x 36” Roof Hatch
Description: Vault Pro’s 36” x 36” American Made Roof Hatch (steel with Wimbledon White Marine Grade finish) provides safe and easy roof access on your building.
Click images to enlarge.
Vault Pro 36” x 36” Roof Hatch
Features:
- Made in the U.S.A.
- 2" Step-System Door
- 30” x 30” Inside Measurement (clear-thru space)
- Steel: 3-gauge (1/4”) steel construction
- Finish: Wimbledon White Marine Grade Polyurethane
- Color: High Reflective White
- Cover formed 3-gauge steel with ceramic thermal insulation, stiffened to withstand a live load of 120 psf with a max deflection of 1/250 the span.
- Curb wall and sub roof insert mounting flanges come pre-punched with 5/8-inch holes for ultimate hold down strength.
- Insulation: Ceramic (2300°) Fiber Blanket & 5/8” X-Rate Fireboard sealed in 3-gauge steel cover door for ultimate resistance to heat & cold temperatures.
- Gasket: Dual Siliconized Rubber gasket double seals cover to base
- Gas Shock: Heavy Duty Stainless Steel (American Made)
- Hold Open Tube: Heavy Duty Stainless Steel (American Made)
- Locking: 10ea. 1½” x 4” Locking Bolts (3-way active)
- 120 psf for lengths in closed and locked position
- Warranty Five Years
Pro Roof Hatch Factory Direct Pricing
Roof Hatches
Compressed Gas Shock System
Elite Roof Hatch
36" width x 36" depth, 2" Step-System Door, Siliconized Rubber Gasket,
10-bolt locking system, internal release, White Marine Grade Finish,
Compressed Gas Shock, American Made: $3,979.00
***provides 30" x 30" clear-thru opening***
*Weight 645lbs.
*Weight may vary due to frame depth.

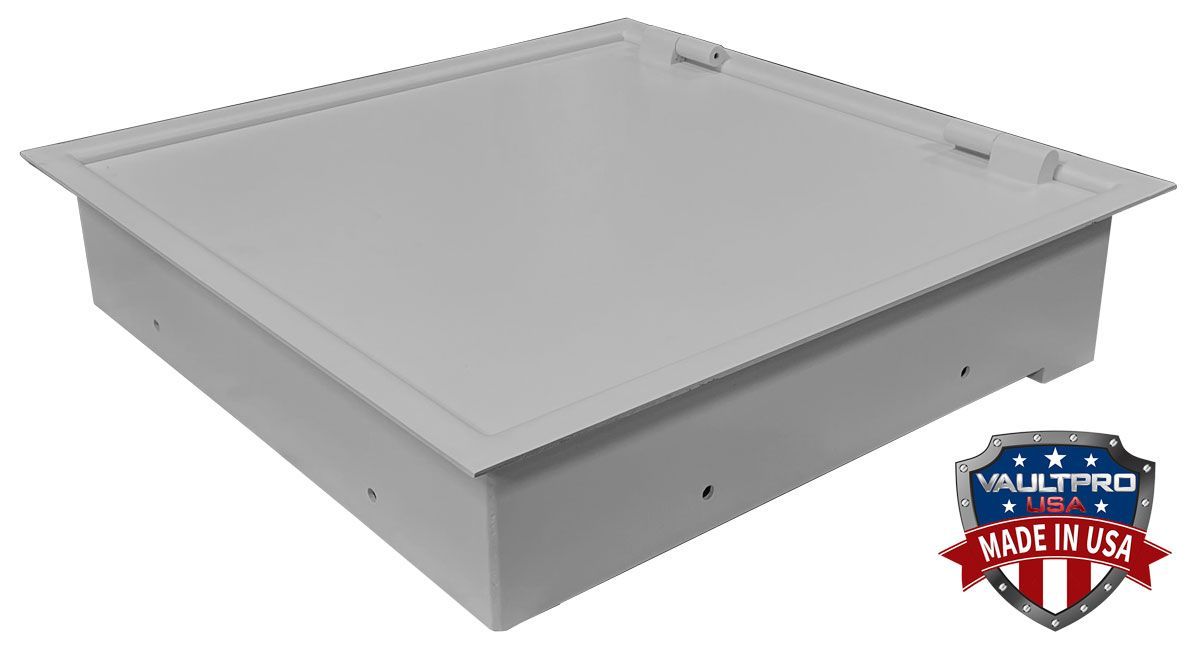

Vault Pro 36” x 36” Flat Floor Hatch
Description: Vault Pro’s 36” x 36” American Made Flat Floor Hatch (steel with textured finish) provides safe and easy deck access from basement or below deck.
Click images to enlarge.
Floor Hatch Features:
- Made in the U.S.A.
- 36” x 36” Outside Measurement (40” x 40” including flange)
- 30” x 30” Inside Measurement (clear thru space)
- Steel: 3-gauge (1/4”) steel construction
- Step-System Door Seals on Multiple Levels for High Security
- Finish: Textured Latex Industrial
- Color: Black or Gray - Custom Colors Optional
- Cover formed 3-gauge steel with ceramic thermal insulation, stiffened to withstand a live load of 120 psf with a max deflection of 1/250 the span.
- Sub Floor insert comes pre-punched with 5/8-inch holes for ultimate hold down strength.
- Insulation: Ceramic (2300°) Fiber Blanket & 5/8” X-Rate Fireboard sealed in 3-gauge steel cover door for ultimate resistance to heat & cold temperatures.
- Gasket: Dual Palusol® gasket double seals cover to base for ultimate fire protection.
- Gas Shock: Heavy Duty Stainless Steel (American Made)
- Hold Open Tube: Heavy Duty Stainless Steel (American Made)
- Locking: 10ea. 1½” x 4” Locking Bolts (3-way active)
- 120 psf for lengths in closed and locked position
- Warranty Five Years
Pro Floor Hatch Factory Direct Pricing
Gas Shock Assisted Vertical Opening Floor Hatches
Gas Shock Assisted Vertical Opening Hatches
Elite Floor Hatch:
2" Step System Door, dual Palusol® gaskets, 120 min. fire, 10-bolt locking system with 1 1/2" x 4" locking bolts, internal release. Depth can be up to 8". *Weight 515lbs.: $2,625.00
*Weight may vary due to frame depth

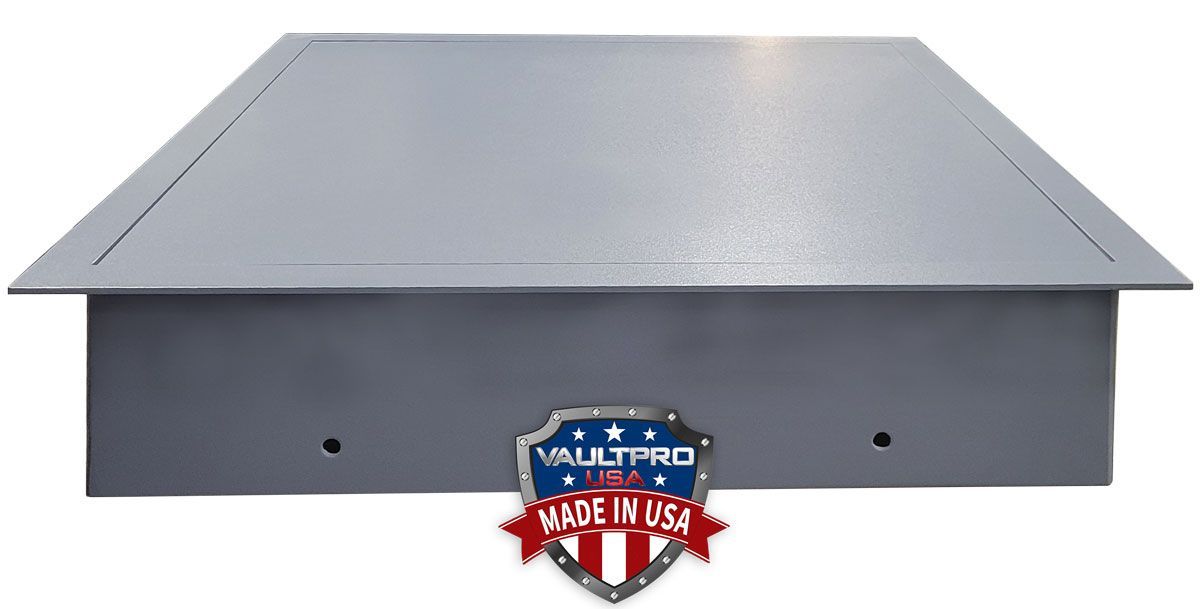

NEW - Vault Pro 36” x 36” Flat Floor Hatch
Description: Vault Pro’s 36” x 36” American Made Flat Floor Hatch (steel with textured finish) provides safe and easy deck access from basement or below deck.
Click images to enlarge.
Elite Flat Floor Hatch Features:
- Made in the U.S.A.
- Internal Hinges Lay Flat Hatch Door
- 36” x 36” Outside Measurement (40” x 40” including flange)
- 30” x 30” Inside Measurement (clear thru space)
- Steel: 3-gauge (1/4”) steel construction
- Step-System Door Seals on Multiple Levels for High Security
- Finish: Textured Latex Industrial
- Color: Black or Gray - Custom Colors Optional
- Cover formed 3-gauge steel with ceramic thermal insulation, stiffened to withstand a live load of 120 psf with a max deflection of 1/250 the span.
- Sub Floor insert comes pre-punched with 5/8-inch holes for ultimate hold down strength.
- Insulation: Ceramic (2300°) Fiber Blanket & 5/8” X-Rate Fireboard sealed in 3-gauge steel cover door for ultimate resistance to heat & cold temperatures.
- Gasket: Dual Palusol® gasket double seals cover to base for ultimate fire protection.
- Gas Shock: Heavy Duty Stainless Steel (American Made)
- Hold Open Tube: Heavy Duty Stainless Steel (American Made)
- Locking: 10ea. 1½” x 4” Locking Bolts (3-way active)
- 120 psf for lengths in closed and locked position
- Warranty Five Years
Pro Floor Hatch Factory Direct Pricing
Gas Shock Assisted Vertical Opening Floor Hatches
Gas Shock Assisted Vertical Opening Hatches
Elite Flat Floor Hatch:
2" Step System Door, dual Palusol® gaskets, 120 min. fire, 10-bolt locking system with 1 1/2" x 4" locking bolts, internal release. Depth can be up to 8". *Weight 515lbs.: $3,140.00

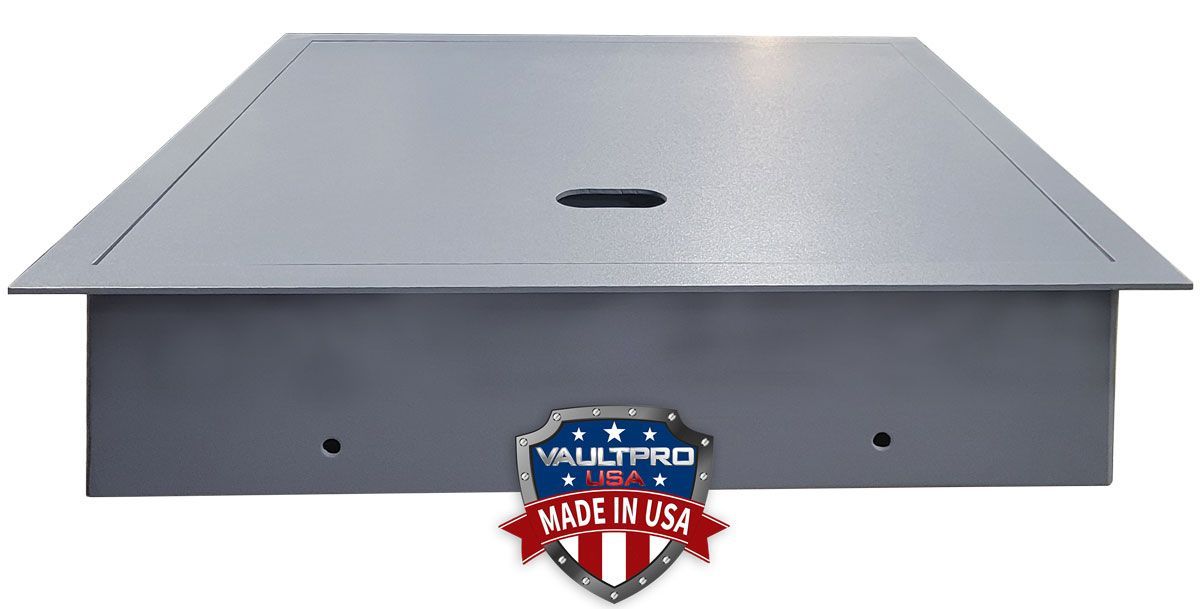

Optional cutout grip for opening hatch from top: $239.00
*Weight may vary due to frame depth

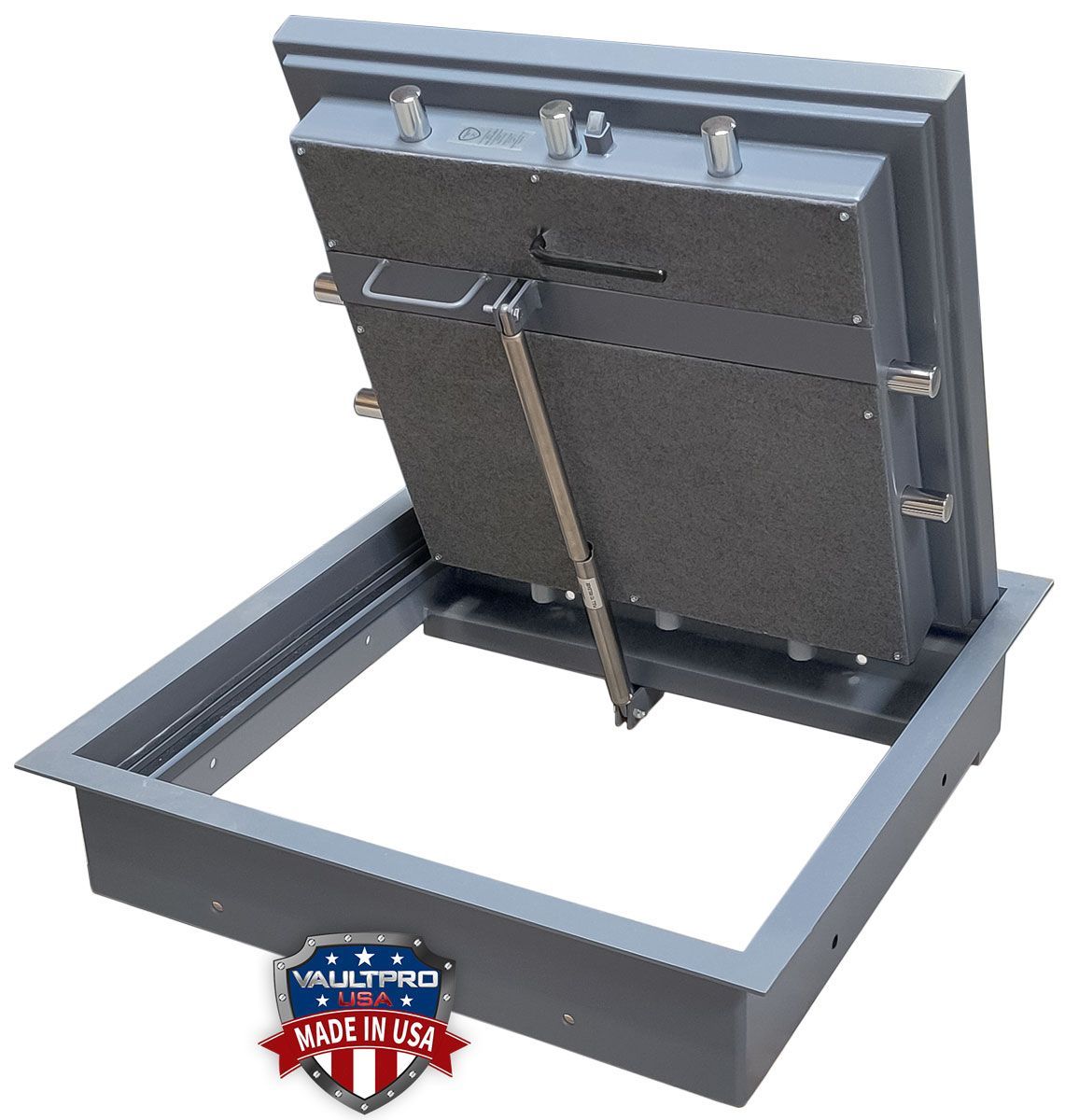

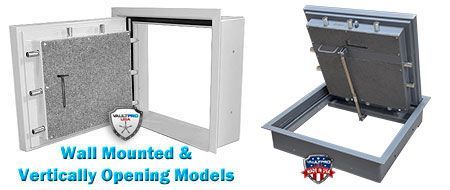

Vertical opening Flat Floor Escape Hatch with gas shock system
Get added security with an Emergency Escape Hatch for your Storm Shelter Safe Room.

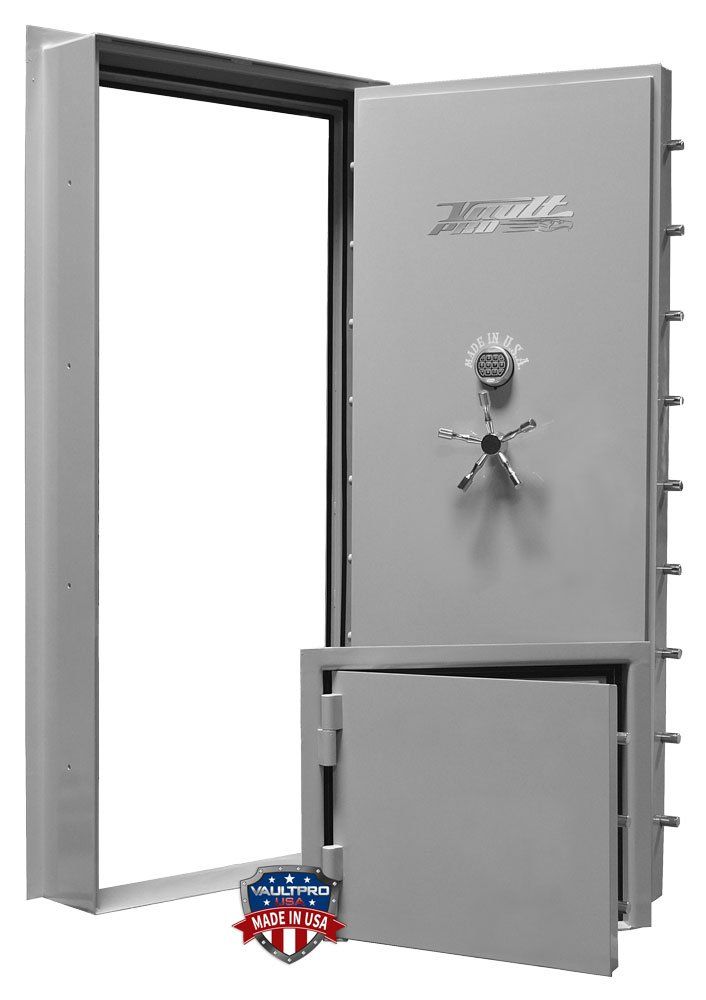

Quick Exit Package
For Safe Room, Storm Shelter or Walk-In Shelter
Add an Emergency Escape Hatch for additional peace of mind.

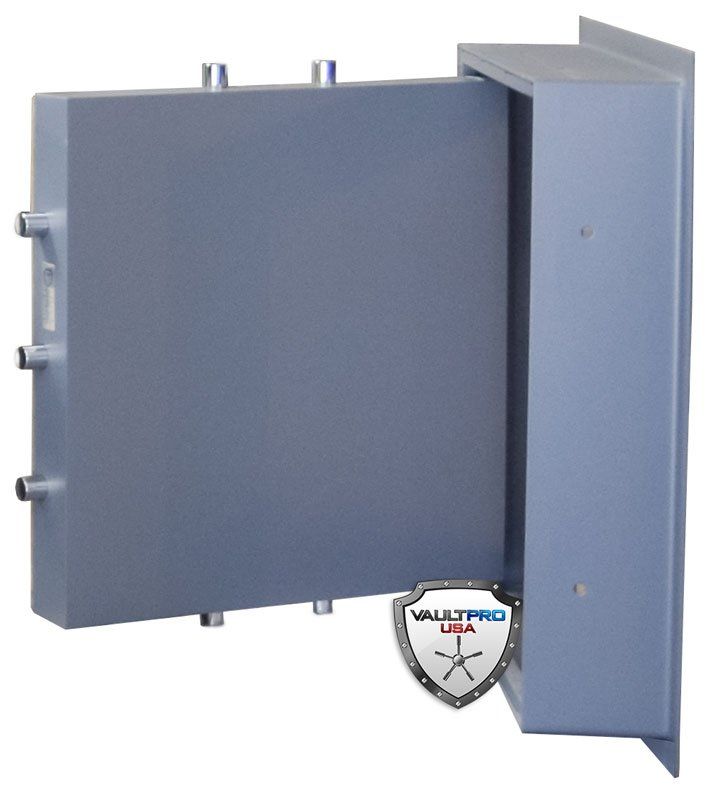

Safe Room Emergency Escape Wall Hatch
with Inside Quick Release handle.
Elite flat lay floor hatch. Shown with standard internal release and gas assist shock.

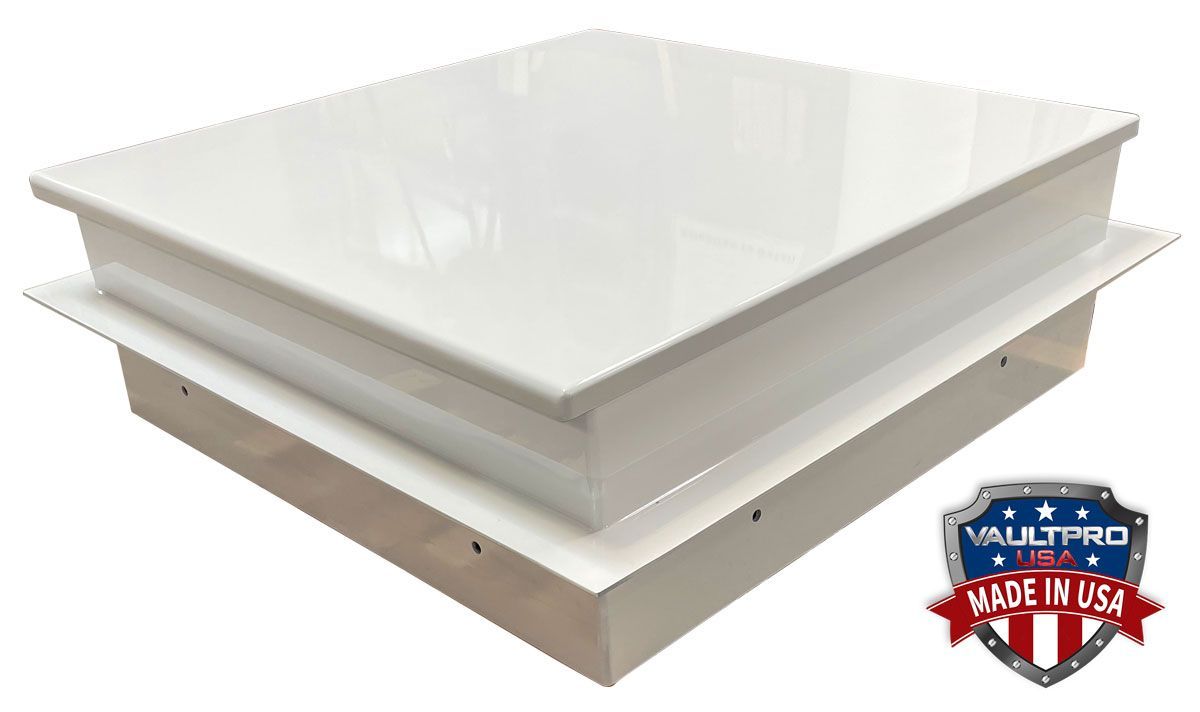

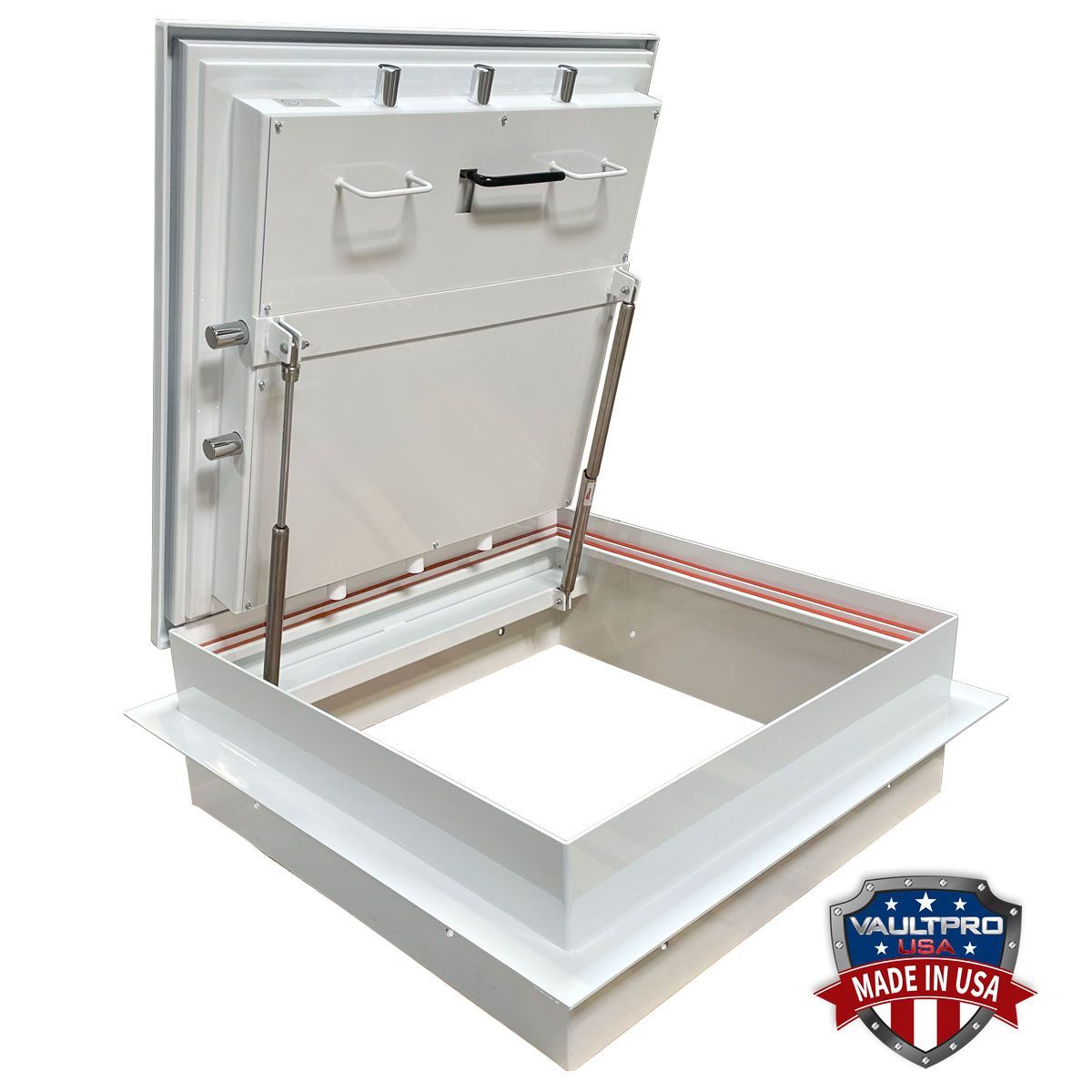

Custom Size Roof Hatch with Internal Release and Gas Shock Assist

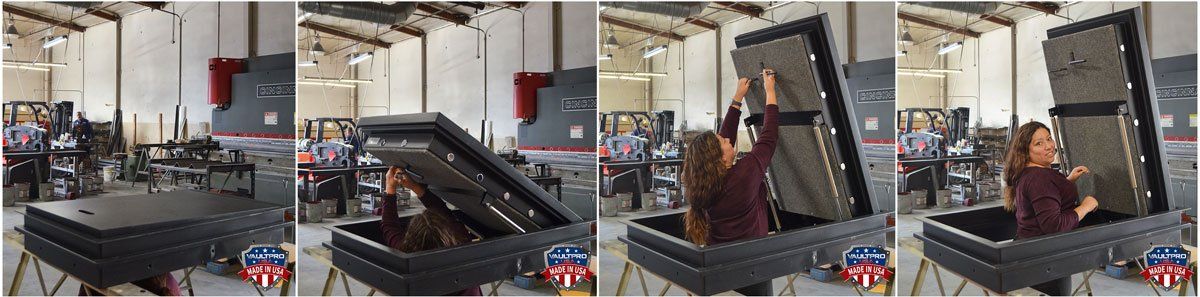

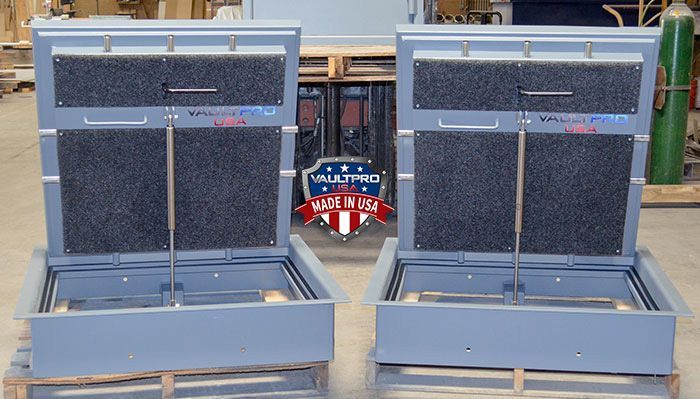

Custom Gas Shock Assisted
Vertical Opening Floor Hatch
Click on image below to enlarge.
This gas shock assisted custom vertical escape hatch allows the hatch door to be opened or closed very easily.
If you are building a safe room, storm shelter or walk-in vault or have the means to alter an existing one, you should consider a secondary means of egress. If for any reason something should block your primary exit while you are inside, a second means of escape could mean your life. Vault Pro will build an all American Made Emergency Pro Escape Hatch to match the security level and fire protection of your Vault Pro Vault Door. Emergency Pro Escape Hatches can be in-swing or out-swing hinged and can even open vertically at the top of a ladder with the assistance of gas shocks. Most Emergency Pro Escape Hatches are made to open only from the inside however, outside opening is available. Call for more details and a FREE QUOTE: CLICK TO CALL

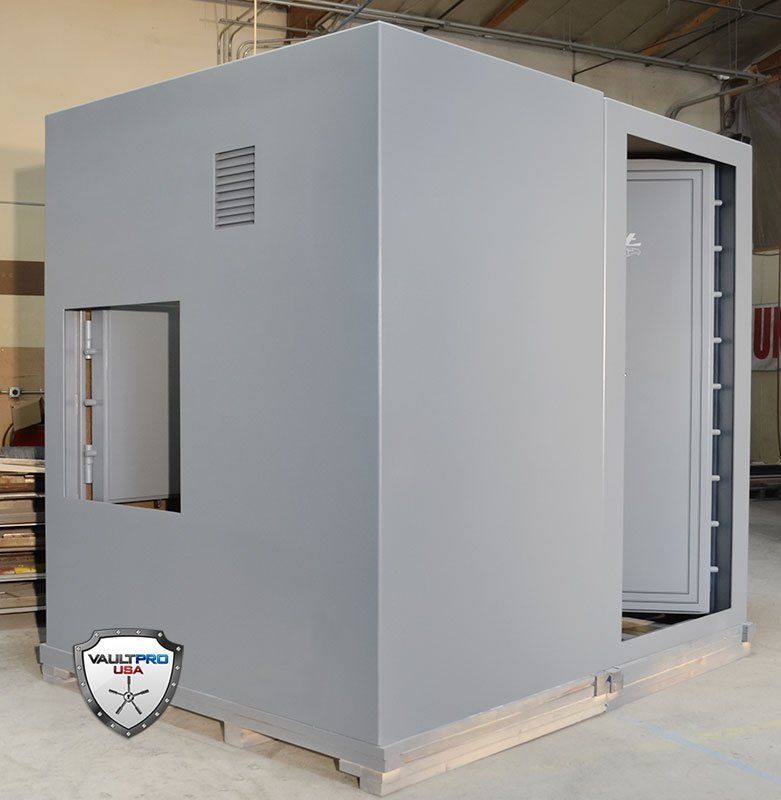

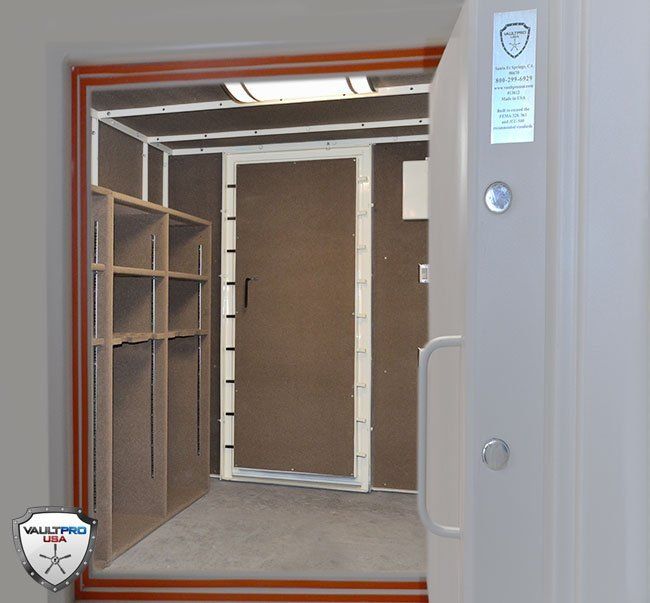

Emergency Pro Escape Hatch Installed in Safe Room
Click on images below to enlarge.
Adding an Emergency Pro Escape Hatch to your shelter safe room provides additional security and ease of exit should main exit become blocked by debris.
How Does Vault Pro Build Emergency Pro Escape Hatches?

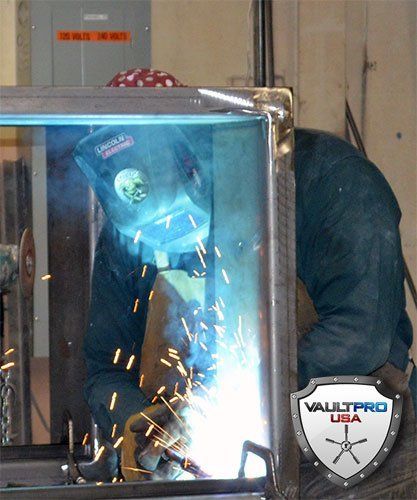

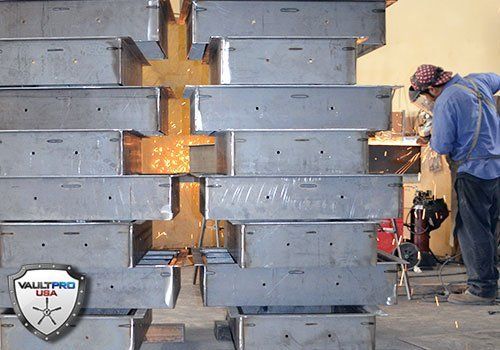

We start with Prime Grade American Steel that is cut and bent to exacting specifications to match the client’s requirements. Frames for the emergency hatches are squared before they are full seam welded and reinforced with backing for locking bolts and ¾” step systems.
The doors begin as hand cut and custom fit ¼” steel fronts that are also reinforced with guide rails and step systems to perfectly match the frame. After adding appropriate fire insulation, the locking mechanism and internal releases are installed using very heavy duty steel guides. The door is then hinged to the frame using Vault Pro’s own 1¼” diameter seamless ¼” tubing and ¾” solid cold rolled steel bar to far exceed any stresses the door may encounter.

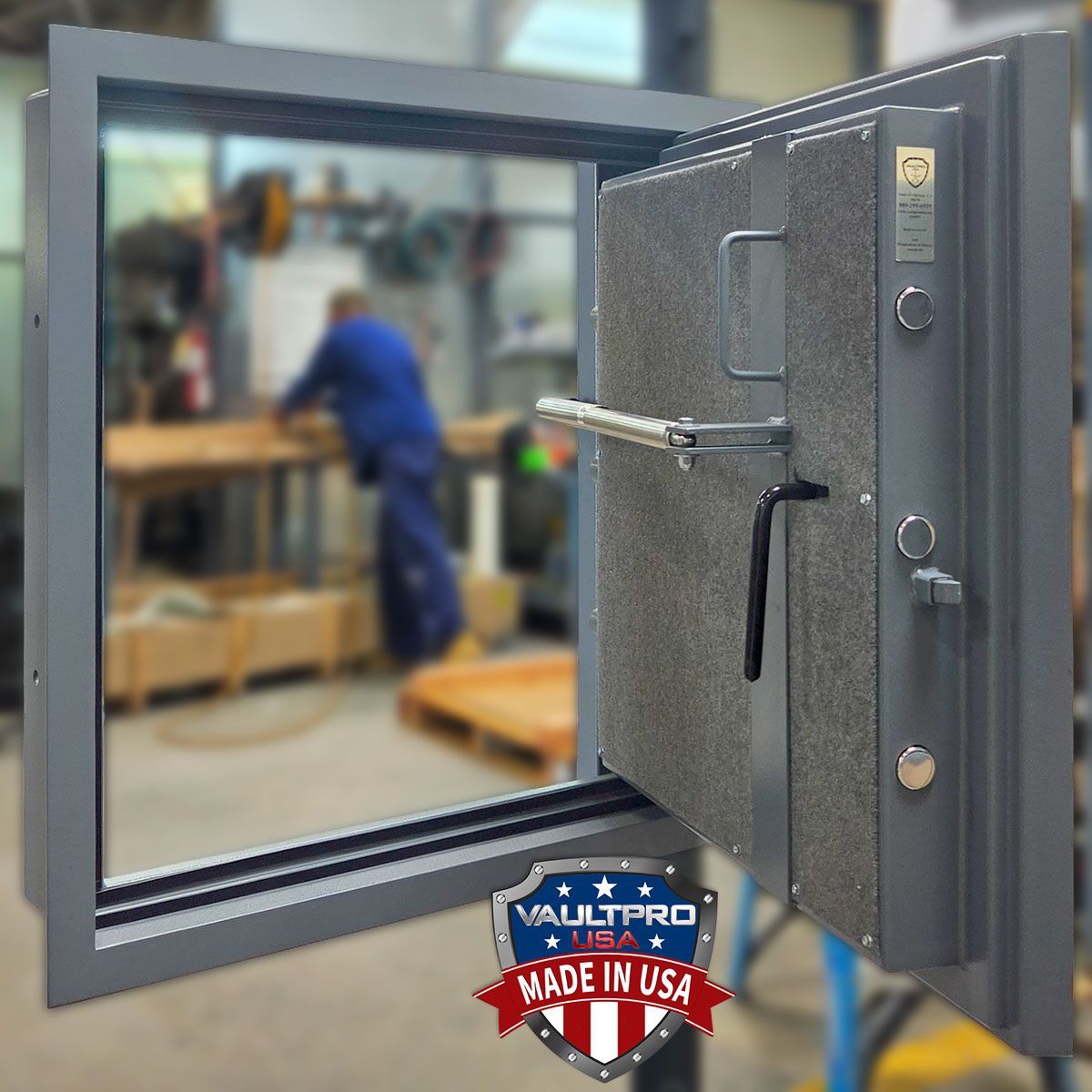

After quality inspection for fit and function, the Pro Escape Hatches are painted, fit for gaskets and final inspected before being packed for shipping.

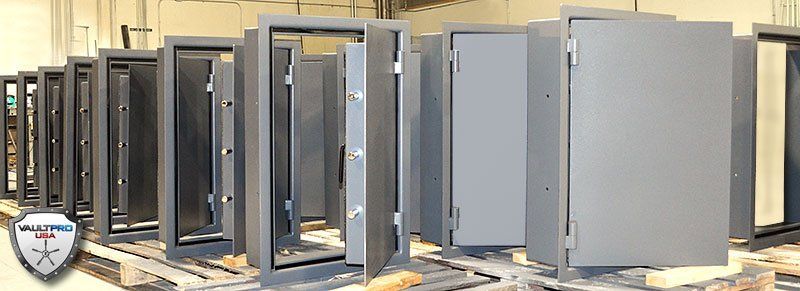

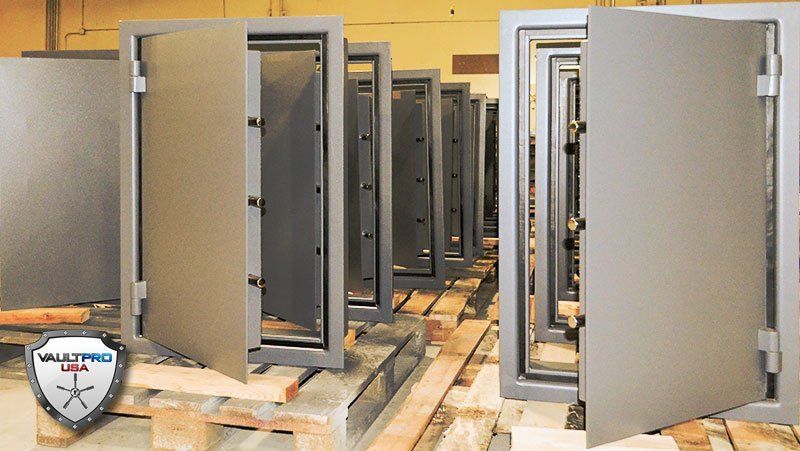

Hatches Ordered for a Government Facility Ready for Delivery.

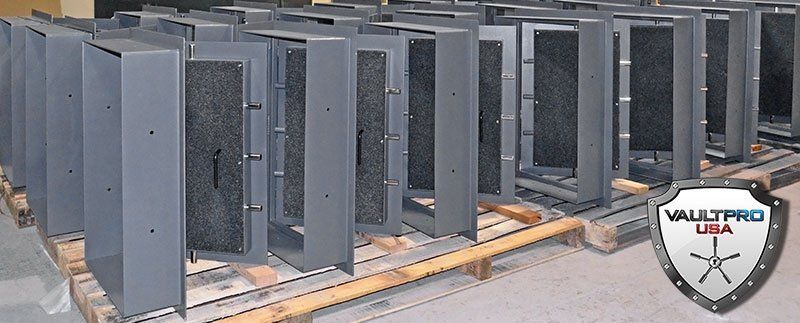

Emergency Pro Escape Hatches Feature Eight Locking Bolts with Internal Release System.
All Vault Pro Hatches are built to exceed the FEMA 320, 361 and ICC-500 recommended standards and are simple to install and easy enough to use that a five year old can operate them in the case of an emergency.
Emergency Pro Escape Hatches are manufactured 100% in America, by Americans and can be custom sized to fit any existing opening, poured in concrete and built to match any wall thickness.
We look forward to working with you and providing you with the very best all American Made Emergency Escape Hatches available.
Vault Pro Hatches can be equipped with NBC seals for nuclear, biological and chemical protection.
Blast resistant hatches available, call for details. Call our Vault Pro’s with any questions and receive a free quote - CLICK TO CALL
