Introducing the American Eagle Series Safes—premium, American-made safes designed for your security. This series features unique attributes and is proudly manufactured in the USA by skilled workers. Our safe doors, made from high-quality steel, are balanced on adjustable hinges and securely seal against a robust frame. The door is locked with 4" x 1½" independently rotating bolts, offering resistance to cutting attempts, while the narrow door gap prevents pry attacks. Enhanced security includes a U.L. listed lock, a 1" thick hard plate, and quadruple relockers. The 5½” thick door offers fire protection with a 2300° ceramic fire liner and multi-layer fireboard, ensuring 2 hours of fire resistance.
American Eagle Series Safes
Top-Tier Safes. Strength and Security. Made in the USA

American Eagle Safes
Safes and Gun Safes > American Eagle Safes
American Eagle Series Safes - Top of the Line Features & Specifications
Security & Strength
- 1/4" bent body construction
- 2" step-system door with 1/4" outer steel and 1/4" inner steel liner
- 4-way fully active bolt locking system
- 4" x 1½" rotating locking bolts
- Sargent & Greenleaf Group 2 spyproof lock
- Titan quadruple +1 Re-locker
- Convertible shelving with gun racks
Fire Protection
- 2 hour fire 1650°
- Dual Palusol® expanding gaskets for heat/ smoke seal
Convenience Package Included
- L.E.D. lighting - factory installed
- Electrical outlet
- Dehumidifier
Customization
- Standard matte finishes + gloss/custom options
- Choice of hardware colors
- Lock Options

AE-740 On Sale - Take $825 OFF! | AE-730 On Sale - Take $615 OFF! - Limited Time SALE
American Eagle Series Safes Factory Direct Pricing
| Model | Safe Size | Weight | Long Gun Capacity* | Factory Direct Price |
|---|---|---|---|---|

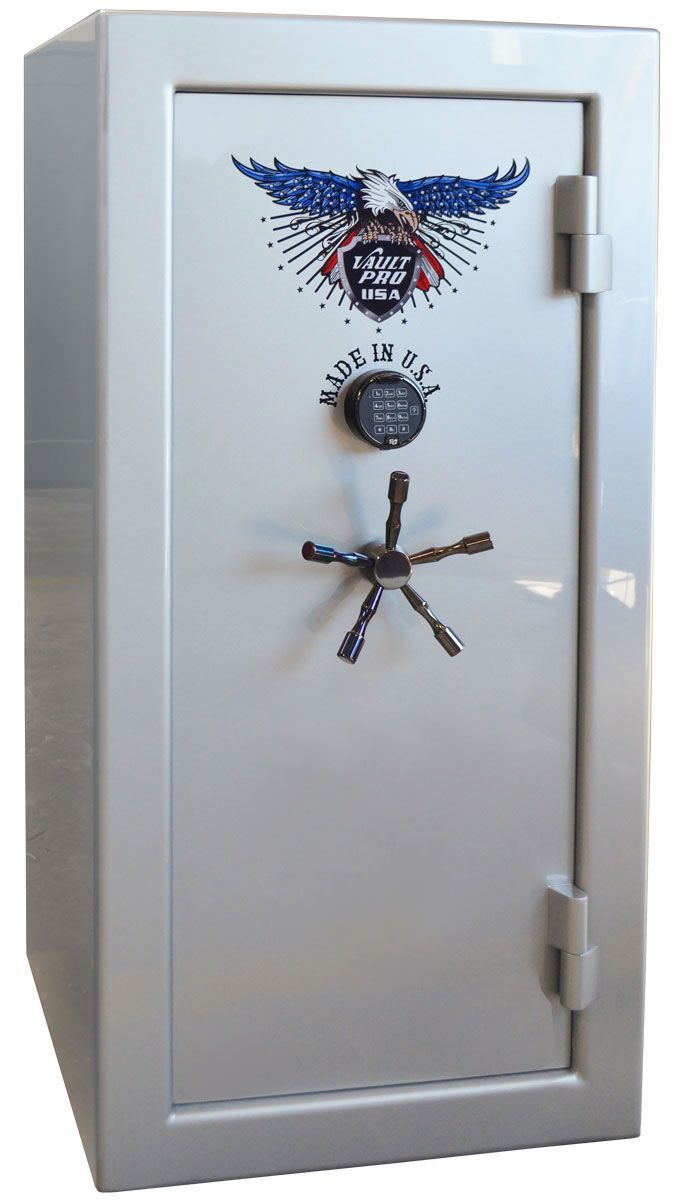

| AE-630 | 60"H x 30"W x 28"D | 1,265 lbs | 24 | $6,121 |

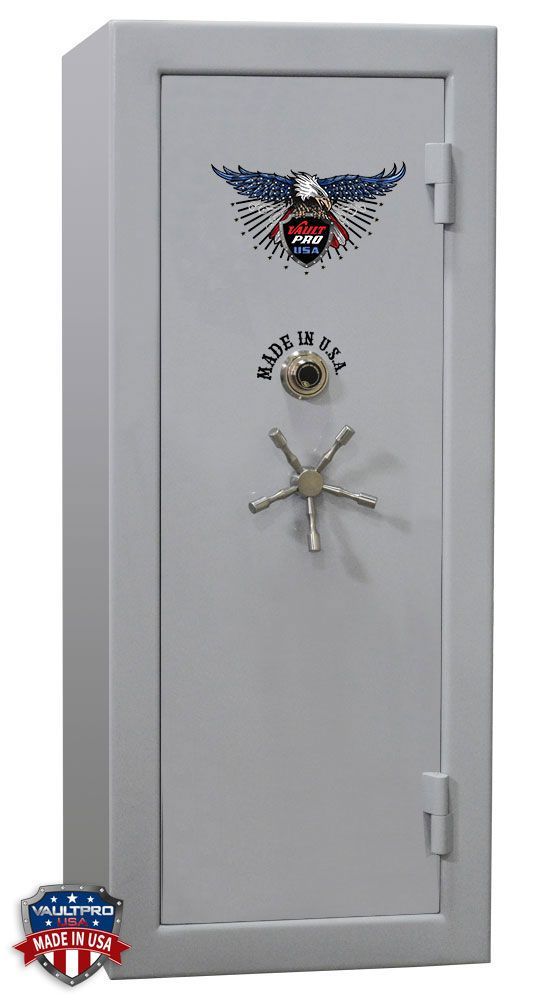

| AE-730 | 72"H x 30"W x 28"D | 1,460 lbs | 24 | $6,838 |

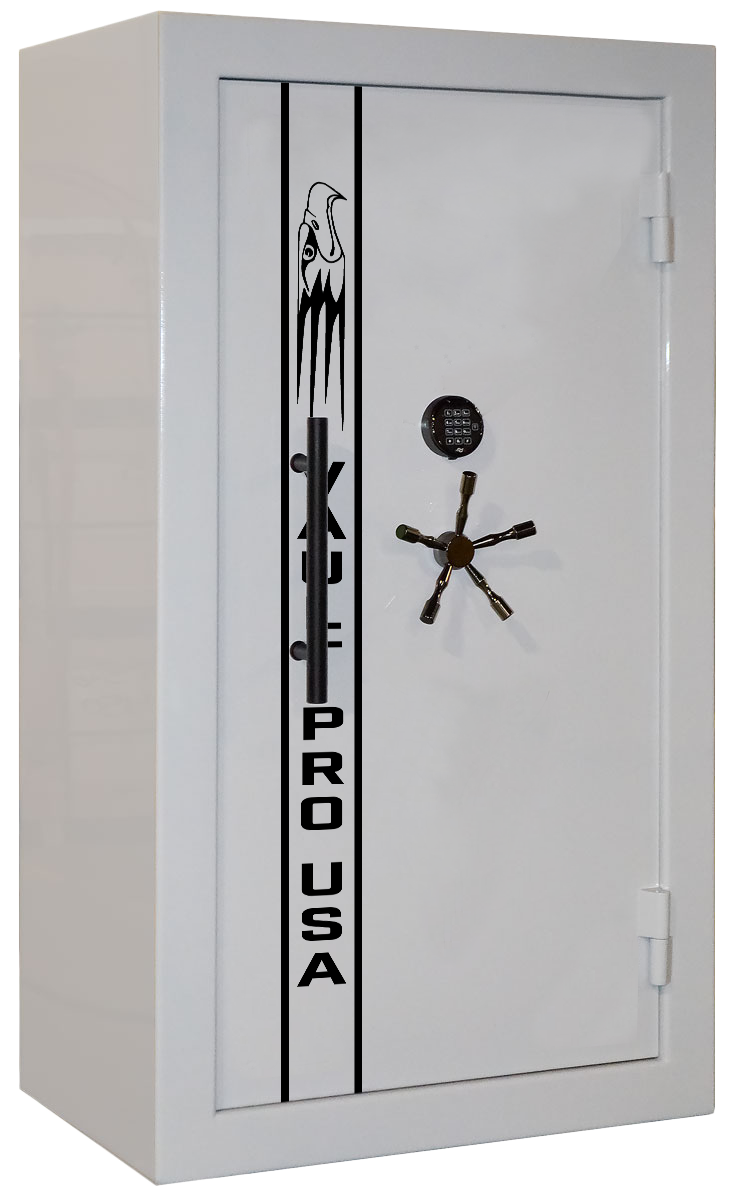

| AE-640 | 60"H x 40"W x 28"D | 1,515 lbs | 34 | $7,889 |
| AE-740 | 72"H x 40"W x 28"D | 1,750 lbs | 34 | $9,123 |

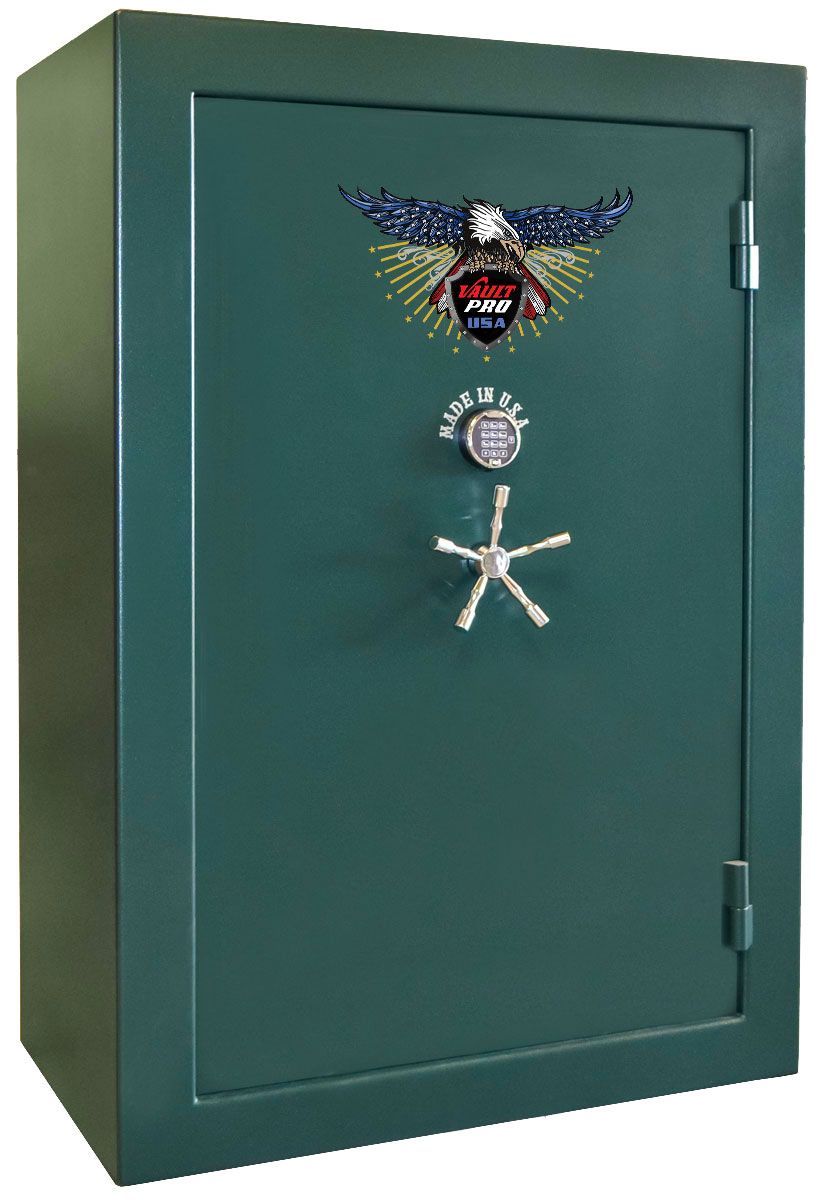

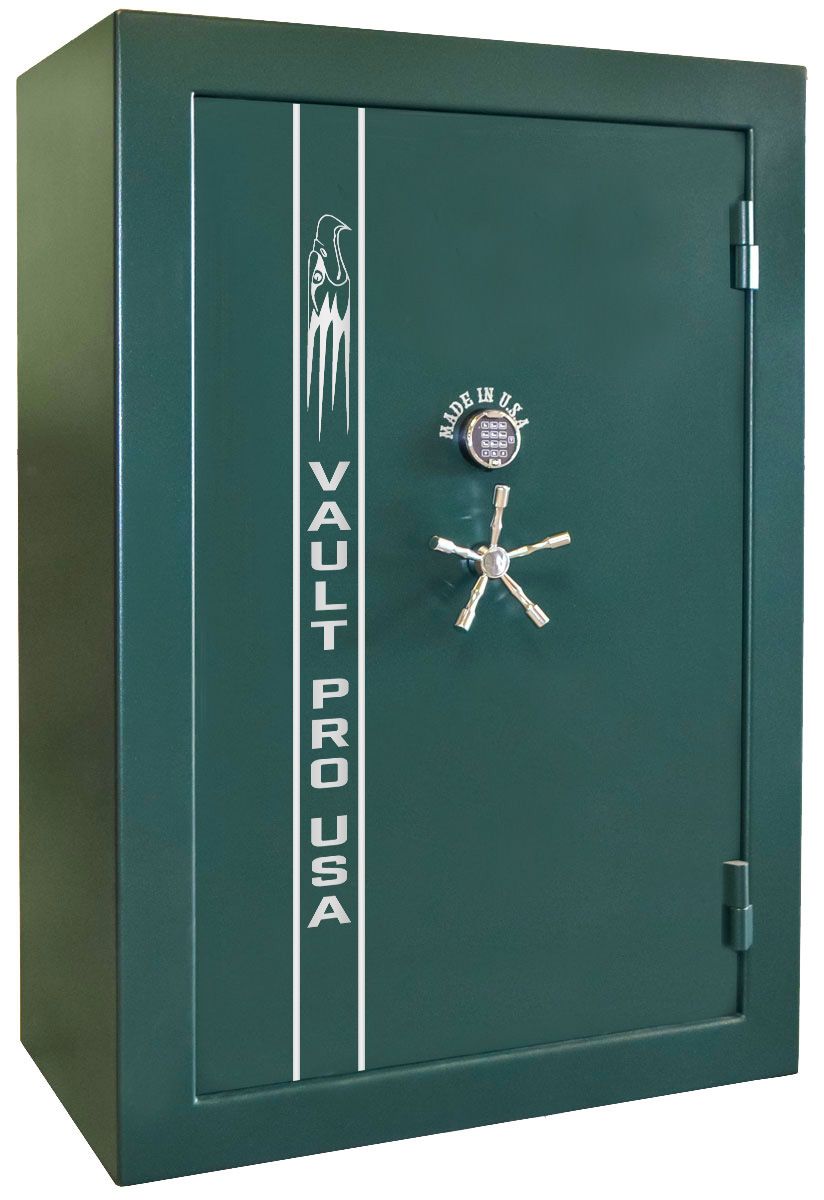

| AE-750 | 72"H x 50"W x 31"D | 2,120 lbs | 45 | $10,739 |

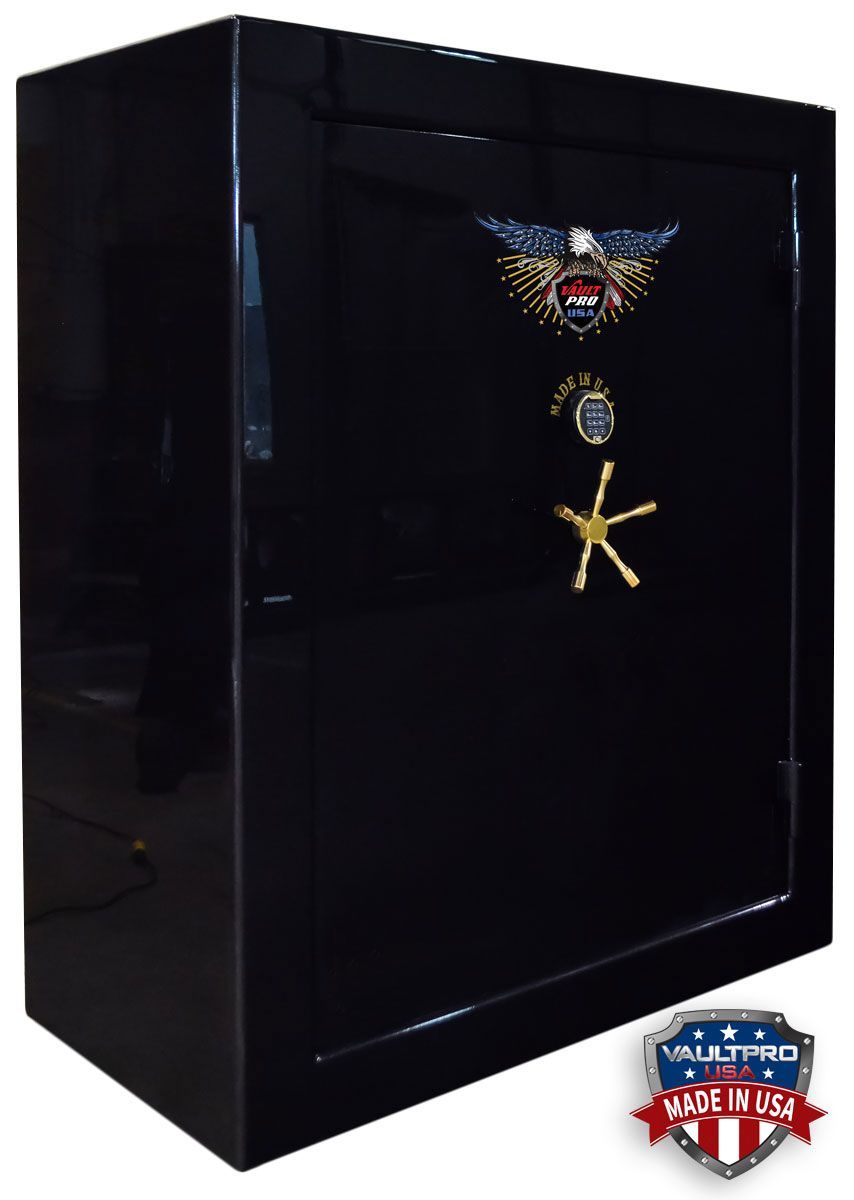

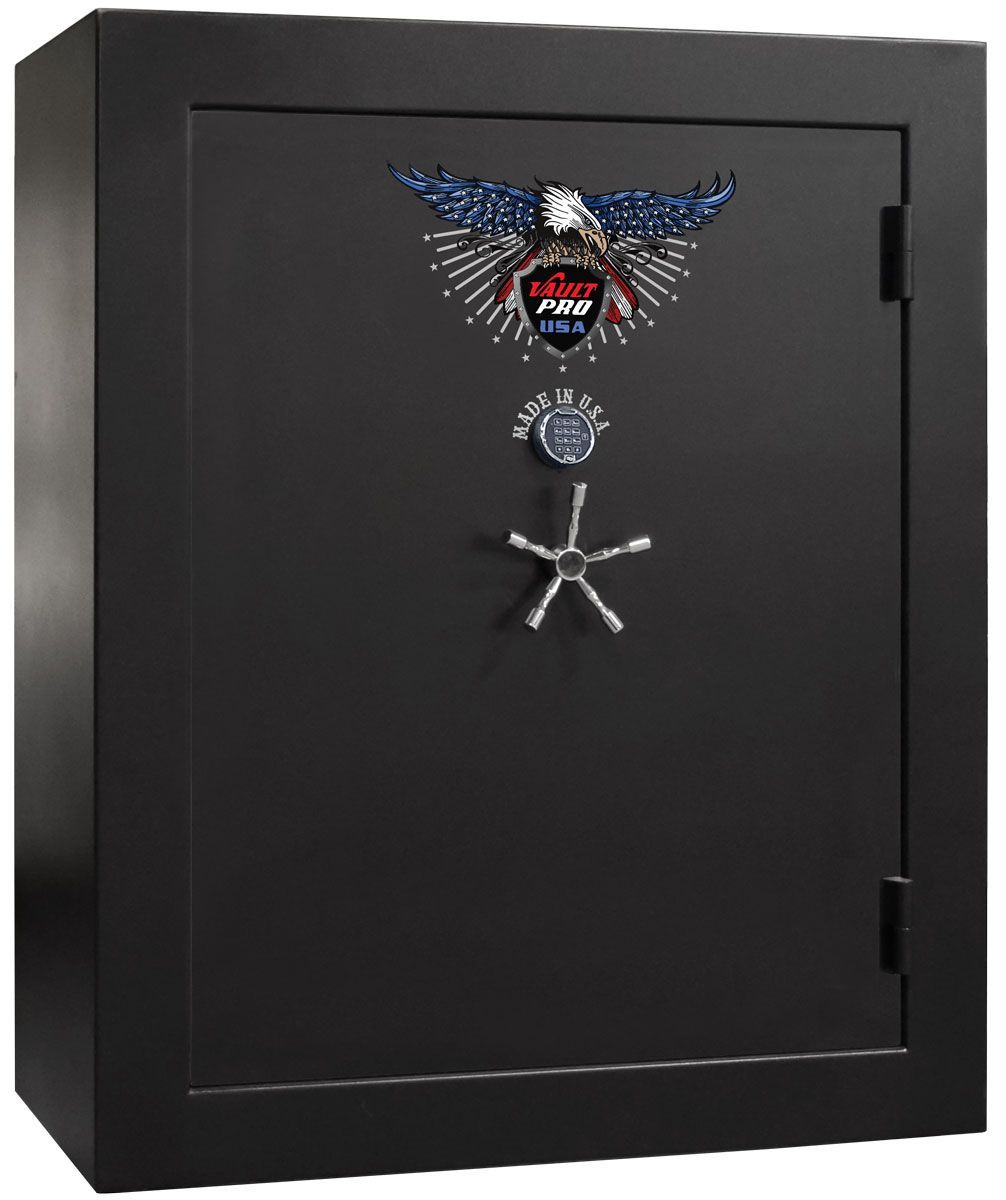

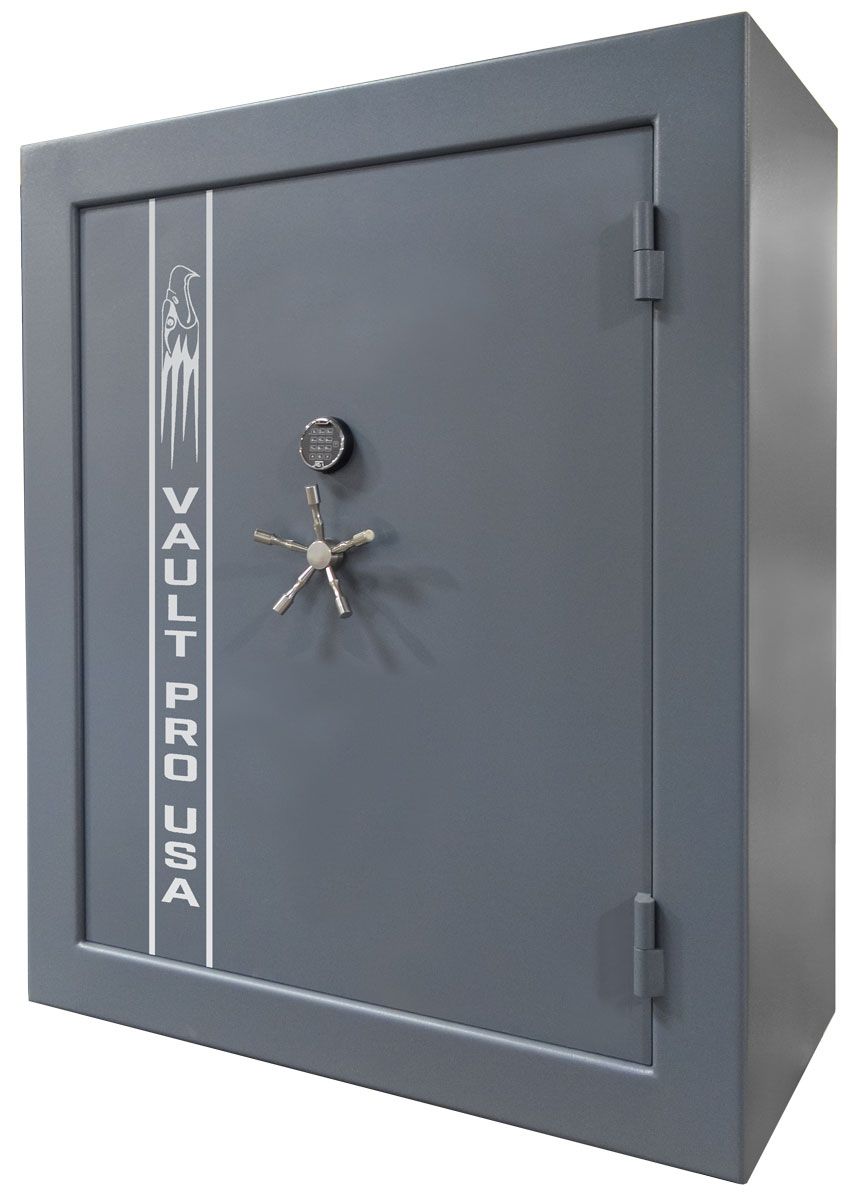

| AE-760 | 72"H x 60"W x 33"D | 2,575 lbs | 60 | $12,029 |
| AE-762 (double door) | 72"H x 60"W x 33"D | 2,850 lbs | 60 | $13,973 |
Standard depth includes handle. *Please note: Long gun capacity may vary depending on safe configuration, size of guns and scopes.
American Eagle Specifications
Security Features
| Safe Security Rating | Built to Exceed all United Laboratories Residential Security Container (RSC-8M10) Specifications. |
| Door Type | 2" Composite, Double Step System Door with 1/4" Front Plate & Inner Steel. |
| Door Thickness | 5½" total Thickness, 2" Composite, Double Step System Door. |
| Door Bar / Bolt Sides | 4-Way Acitve Locking Bolts, All Active & 360° Rotating |
| Hinges | Adjustable Ball Bearing Hinges |
| Body Steel Thickness | 3 Gauge/.250 (True 1/4"), 3-piece Body |
| Total Body Thickness | 2.75" Steel and Fireboard |
| Lock | UL Listed, Sargent & Greenleaf™ |
| Lock Type | Upgraded S&G™ 6730 Spy-Proof mechanical lock (with keyed locking dial) standard, with optional upgrade to Sargent & Greenleaf Spartan/Titan (E.M.P. Resistant) electronic Digital Lock. |
| Relocker Type | Brass Arm Relocker installed inside lock & Dual Heavy Duty Titan Spring Loaded Relockers (3 total relockers). |
| Locking Mechanism Type | Dual Cam-Drive with redundant activation for smooth, steady and jam free locking bar & locking bolt movement. |
| Bar / Bolt Type | 1½ x 4 Inch Military Style/Round Locking Bars/Bolts |
| Bar / Bolt Protector Type | 3/4" solid steel step system bolt protection (5/8" x 5/8" solid steel locking bar backed by a 1/8" gasket support). |
Fire Protection
| Fire Rating | 120 Minutes @ 1880 Degrees |
| Fire Temp | 1880 Degrees Fahrenheit with 15 minute ramp up |
| Fire Minutes | 120 Minutes |
| Layers | 4 Layers X-Rate Fireboard in ceiling, floor & all walls, Ceramic (2300°) Fire Blanket & 3 Layers X-Rate Fireboard in door |
| Door Seal | Dual Heat-Activated, Expanding Palusol™ Gaskets |
Style & Funcionality
| Fabric Type | Rontex™ (Gray or Tan) |
| Upholstery | Fully Upholstered |
| Handle Style | 5-Spoke Elegant |
| Interior Type | Convertible |
| Interior Lighting | Motion Activated L.E.D. Lighting system (American Made) |
| Interior Electrical Outlet | Dual Gang Electrical Outlet for Chargers and Dehumidifiers |
| Dehumidifier | Helps Protect Firearms and Electronics from Excess Humidity |
Model details by Size

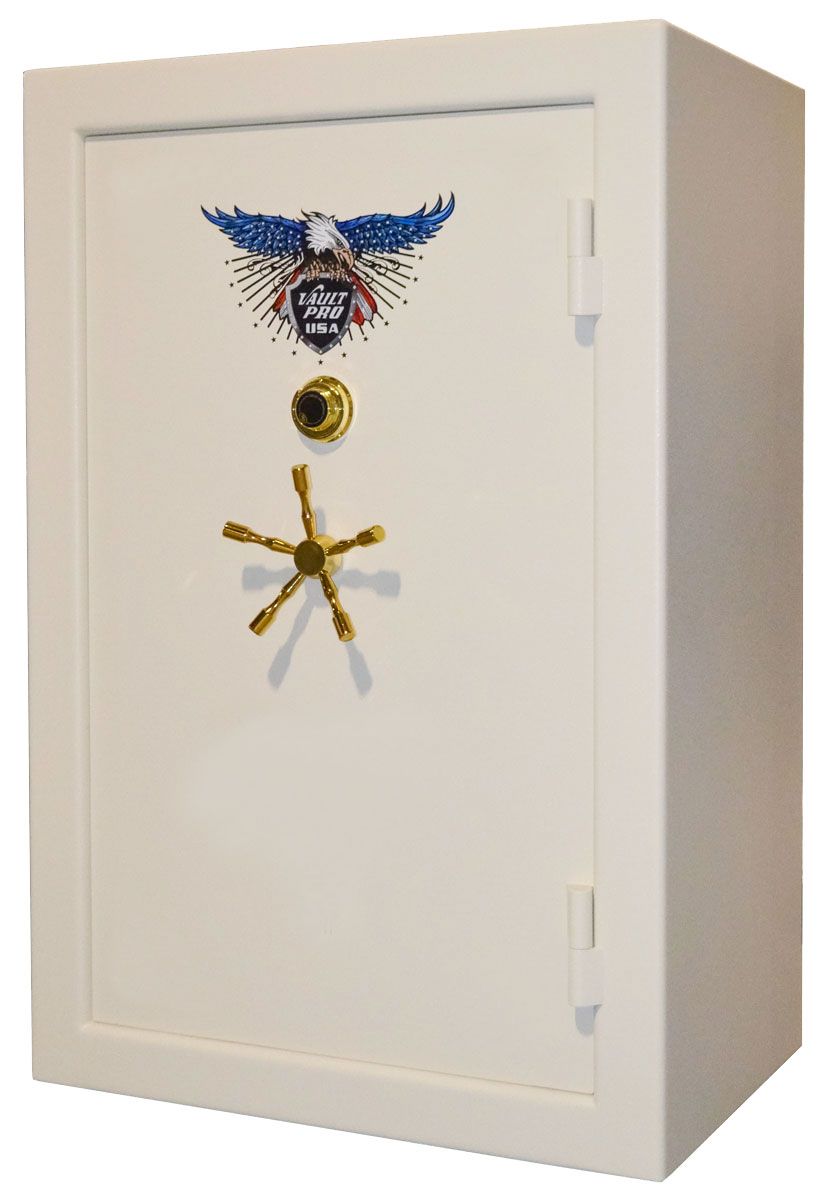

| Model | American Eagle 630 | American Eagle 640 | American Eagle 730 | American Eagle 740 | American Eagle 750 | American Eagle 760 | American Eagle 762 |
| Bar / Bolt Count | 12 | 14 | 16 | 18 | 18 | 18 | 36 |
| *Long Gun Storage | 24 | 34 | 24 | 34 | 45 | 60 | 60 |
| Dimensions H x W x D
(Depth includes 5-Prong Handle) |
60" x 30" x 28" | 60" x 40" x 28" | 72" x 30" x 28" | 72" x 40" x 28" | 72" x 50" x 31" | 72" x 60" x 33" | 72" x 60" x 33" |
| Min. Body Depth(with 5-Prong Handle Hub Only) | 26.25" | 26.25" | 26.25" | 26.25" | 28.5" | 30.5" | 30.5" |
| **Min. Doorway Width
Clearance to Deliver Safe |
26.75" | 26.75" | 26.75" | 26.75" | 29" | 31" | 31" |
| Exterior Height | 60" | 60" | 72" | 72" | 72" | 72" | 72" |
| Exterior Width | 30" | 40" | 30" | 40" | 50" | 60" | 60" |
| Exterior Depth
(Includes handle spokes) |
28" | 28" | 28" | 28" | 31" | 33" | 33" |
| Footprint
(Width x Depth) |
30" x 25" | 40" x 25" | 30" x 25" | 40" x 25" | 50" x 29" | 60" x 30.5" | 60" x 30.5" |
| Exterior Cubic Feet
(Safe body only) |
26.1 | 34.7 | 31.3 | 41.7 | 58.3 | 77.5 | 77.5 |
| Interior Height | 53.75" | 53.75" | 66.25" | 66.25" | 66.25 | 66.25 | 66.25 |
| Interior Width | 24.25" | 34.25" | 24.25" | 34.25" | 44.25" | 54.25" | 54.25" |
| Interior Depth | 16" | 16" | 16" | 16" | 19" | 21.5" | 21.5" |
| Interior Cubic Feet | 12.1 | 17.1 | 14.9 | 21.1 | 32.2 | 44.7 | 44.7 |
| Weight | 1265 lbs. | 1460 lbs. | 1515 lbs. | 1750 lbs. | 2120 lbs. | 2575 lbs. | 2850 lbs. |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price
(Textured Finish) |
AE-630 $6,121 |
AE-640 $7,889 |
AE-730 $6,838 |
AE-740 $9,123 |
AE-750 $10,739 |
AE-760 $12,029 |
AE-762 $13,973 |
| Starting Price
(Gloss Finish) |
$6,865 | $8,656 | $7,725 | $10,089 | $11,896 | $13,223 | $15,218 |
*PLEASE NOTE: Gun capacity may vary depending upon size of guns and scopes.
**Certain delivery companies can deliver through a smaller door by removing the handle hub and lock housing, or by removing the door.
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
Looking for a safe that fits your exact space?
We're custom safe specialists — built to your size, layout and security needs. Call now to discuss your options. 800-299-6929

AE-760 owner. "Vault Pro builds an unbeatable product at any price, and they provide an impeccable level of customer service throughout the entire process. I would unhesitatingly recommend them and their products."
John B.
Customization options & Standard Features
Our Eagle series safes are built for easy installation and full customization, with multiple finish options, color choices, and locking systems available. Whether you need a clean, standard look or a fully tailored solution, we'll help configure the right safe for your project. Click the buttons below to explore standard features and discover available colors and options.
LOCKING OPTIONS

The Best Vault Doors Deserve the Best Factory Installed Locks.
All vault doors come standard with an S&G Group II dial lock. We also offer additional high end lock solutions from S&G and Securam.
- SAFE LOGIC BACKLIT is a very reliable and robust safe lock system ideal for most applications. It features SECURAM’s rugged stainless steel construction.
- S&G DIGITAL LOCK - For the fastest most efficient and reliable entry into your safe or vault, Sargent & Greenleaf Digital Locks are simply the best American Made U.L. Listed Group I Digital Locks available.
- S&G AUDIT LOCK 2.0 - Audit Lock 2.0 combines easy-to-access and detailed audit functions with the enhanced security and flexibility you need in a medical, commercial or retail safe lock solution. Please note that Audit Lock 2.0 requires S&G’s Audit Lock software.
- SAFELOGIC EXTREME - EMP-Proof Redundant Electromechanical Safe Lock. The SafeLogic Xtreme is a highly advanced electromechanical safe lock system that offers EMP protection. Access assured. Safe Logic Xtreme features push button code access for everyday use PLUS Spin Dial access when situations demand it.
- ProLogic Smart - The ProLogic Smart Safe Lock features revolutionary technology that enables advanced remote control and management, redefining security for your valuables.
- ScanLogic Basic Fingerprint accessible lock. Fast 1 second fingerprint access, sensor quickly reads your fingerprint in any position and automatically unlocks.
- ScanLogic Optical The Scan Logic Optical is a very reliable and robust biometric safe lock system ideal for commercial applications. The Scan Logic Optical features SECURAM's rugged stainless steel construction, LCD screen, and optical fingerprint authentication.
- ScanLogic SMART - True Remote Capability with optional Smart Hub. Use your smartphone and our SECURAM Guard app to remotely control and manage your safe lock. Unmatched security and convenience. Securam Smart Locks provide seamless integration allowing you remote capabilities that let you change codes, add or delete user codes, receive alerts, and view audit events with ease.
HARDWARE OPTIONS

Standard and popular hardware features.
- Standard 5-prong bankers style wheel is available in brass plated (gold), chrome, and black chrome.
- Optional Solid Brass or Stainless Steel 5-prong handle.
- Low Profile L-Shape flat handle available in place of standard 5-prong handle on any of our safes or vault doors if requested at time of order: No Charge.

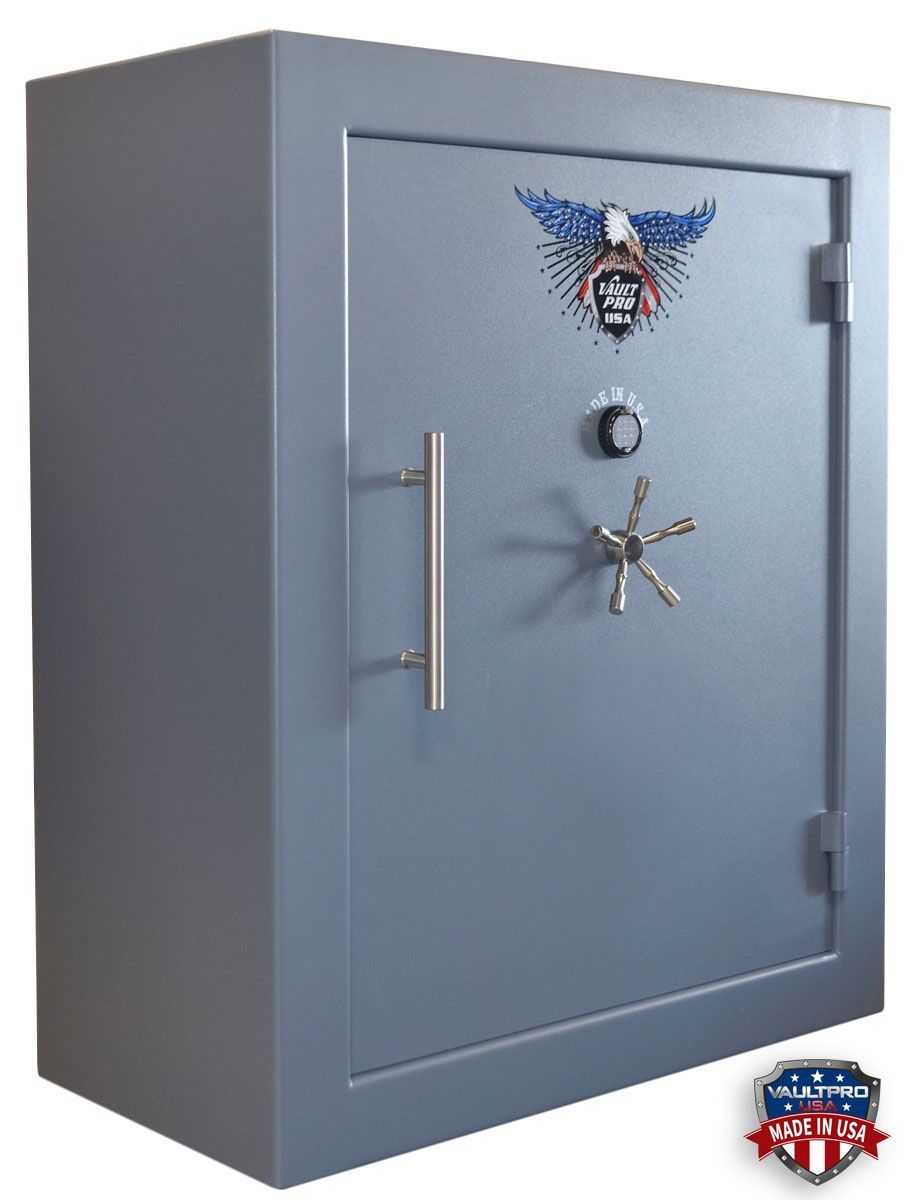

- Stainless Steel Pull Handle - Available in gold, silver or black chrome color.
- Lighting and Electrical Package - factory installed.
- Dehumidifier
Call for additional information: 800-299-6929
COLORS & FINISHES

Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

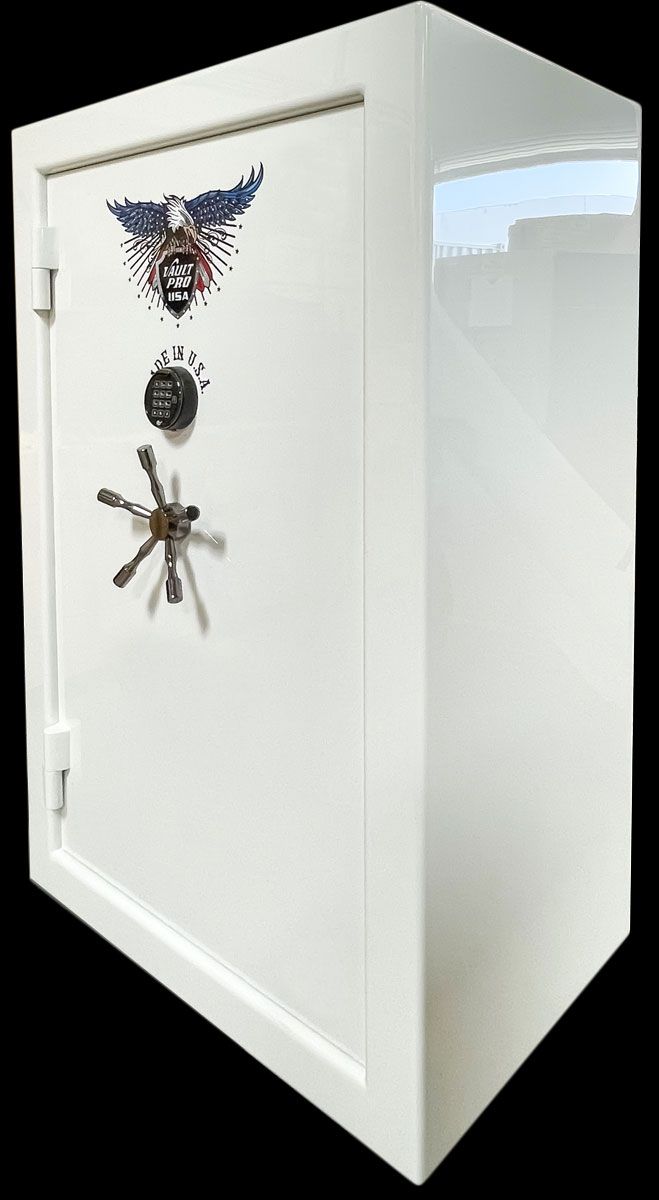

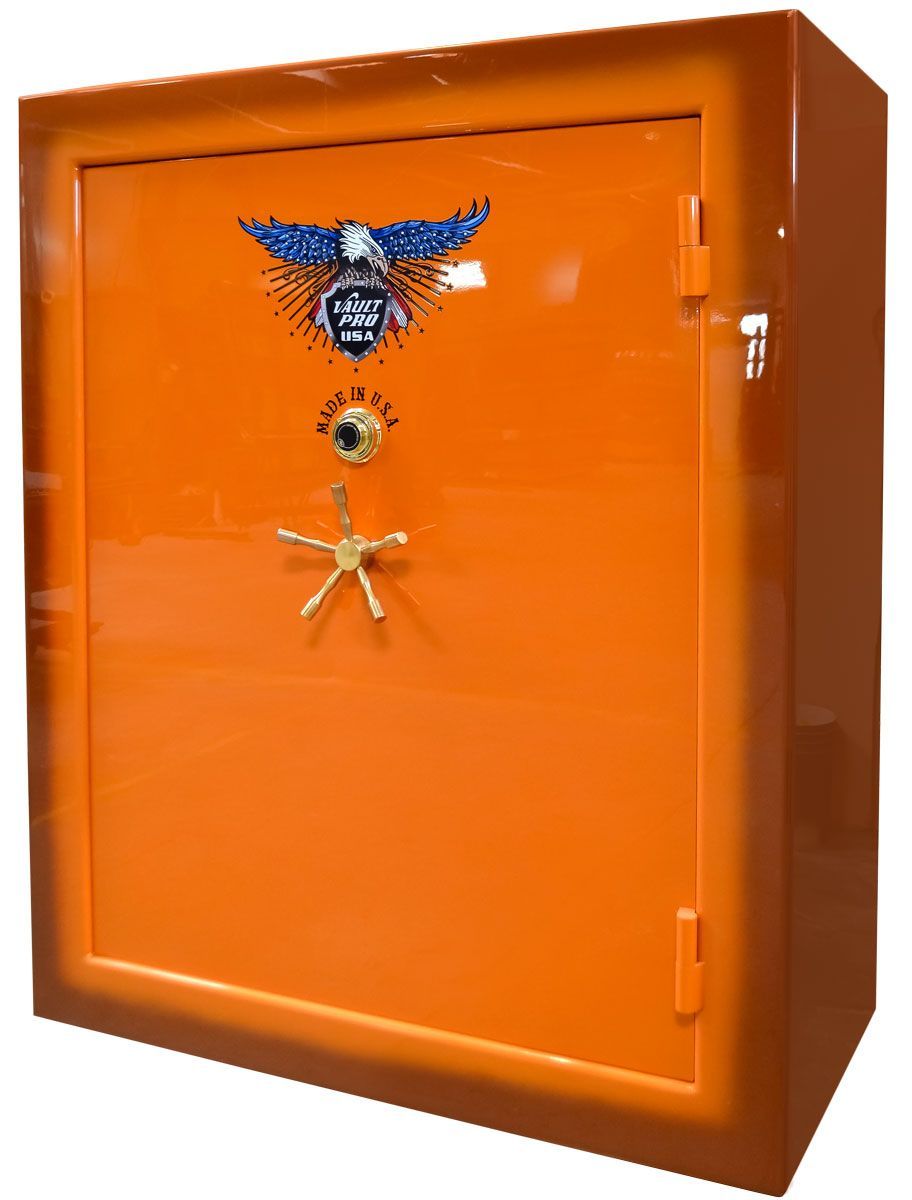

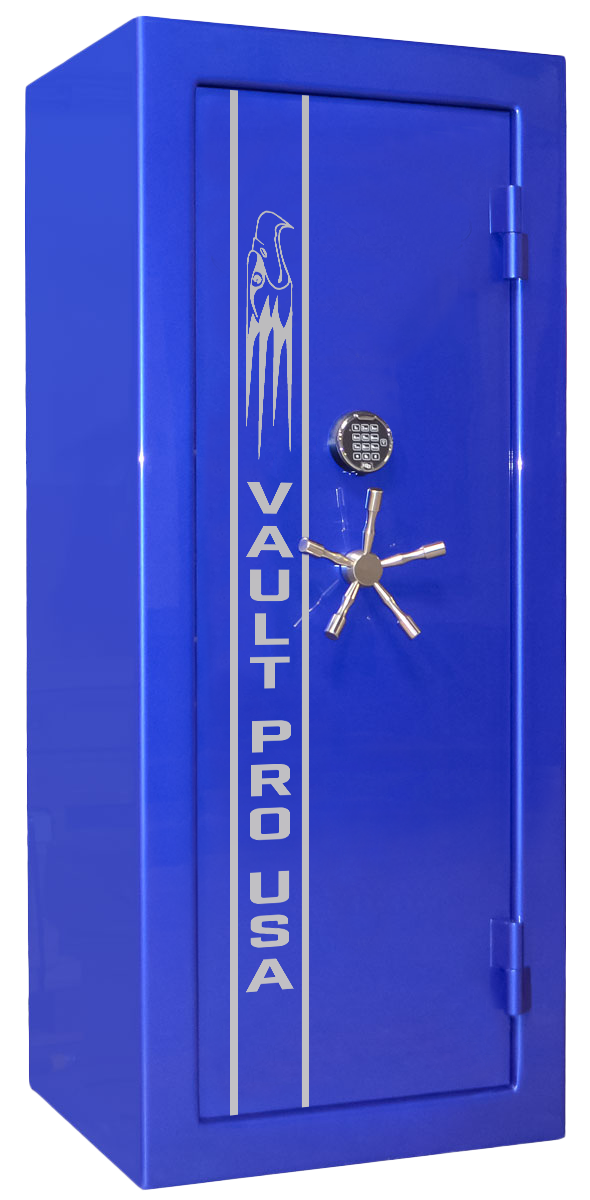

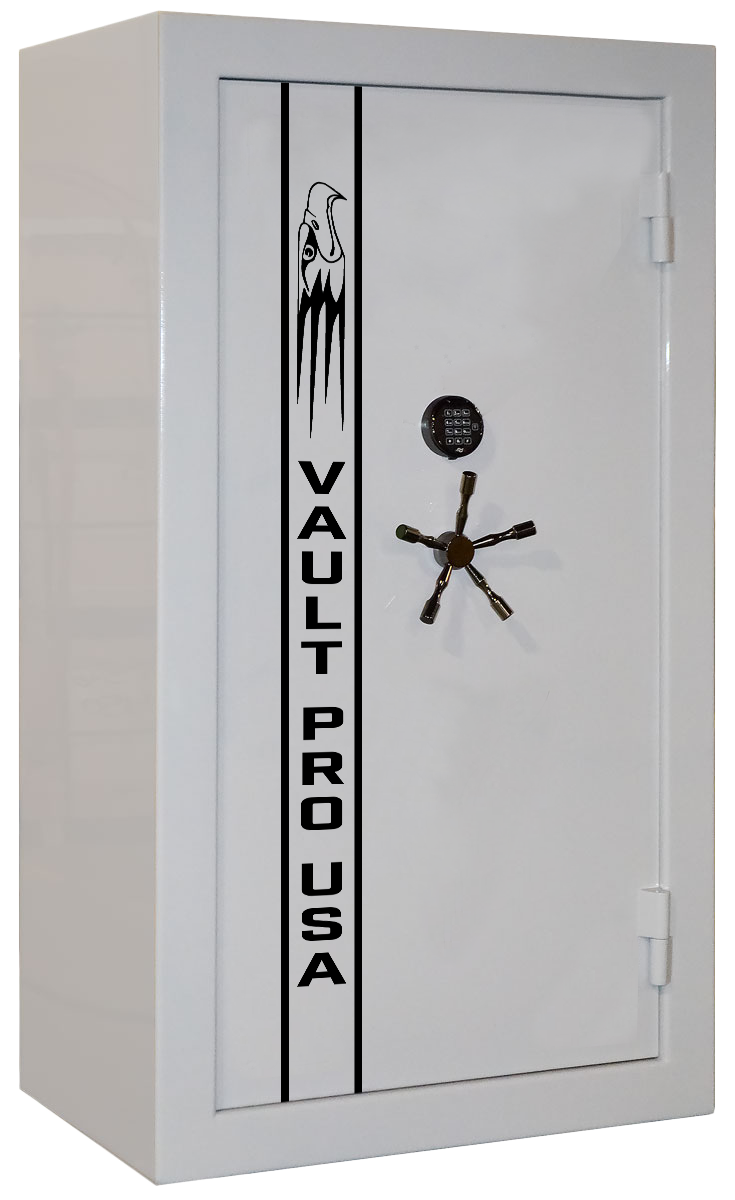

Premium Gloss Finishes
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium gloss pricing available on our Safes Options page.
AMERICAN EAGLE SAFES STANDARD FEATURES

American Eagle Safes Standard Features
- Vault Pro Safes are Proudly Made in Santa Fe Springs, California
- Full Length & Continuous Welded Seams
- Built to exceed UL Residential Security Container Specifications
- Built to exceed Department of Justice standards

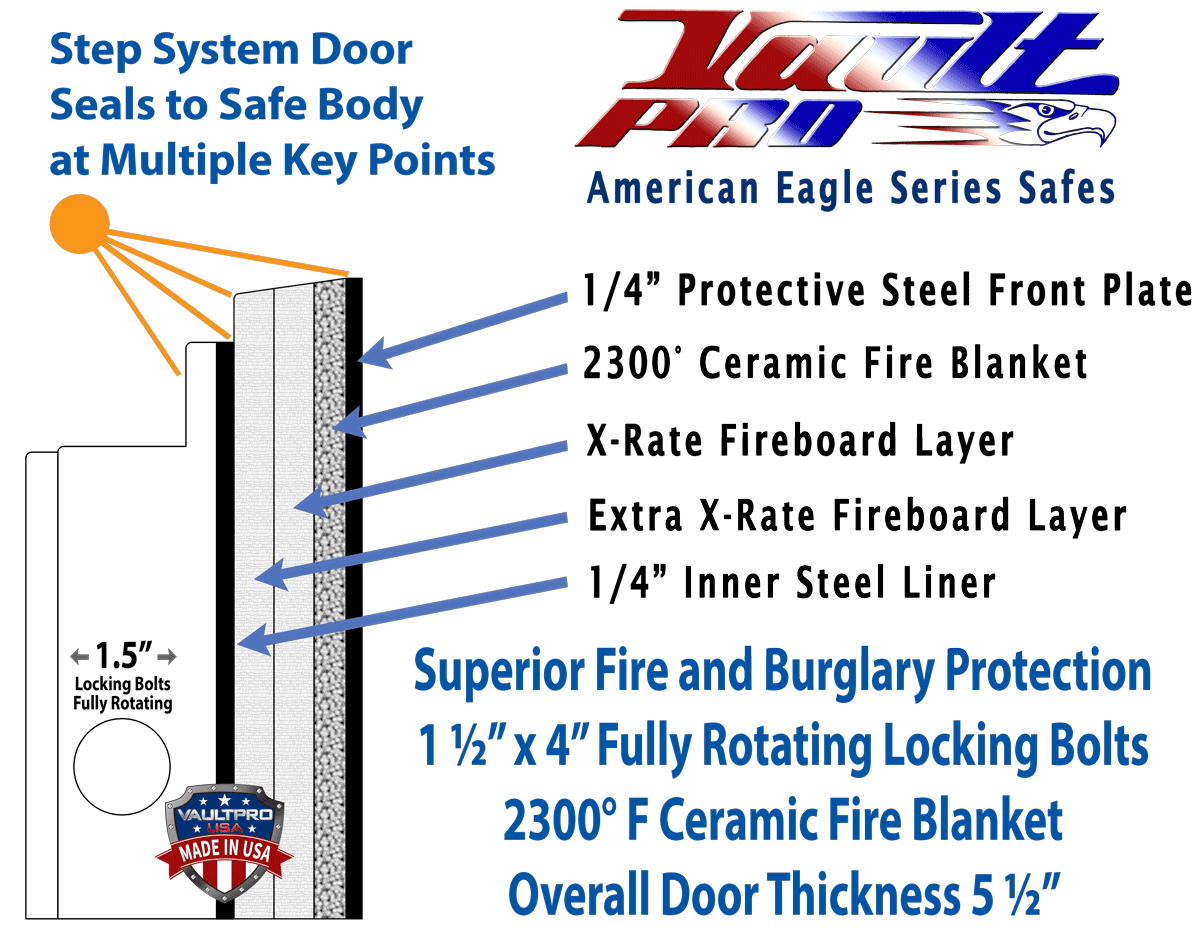

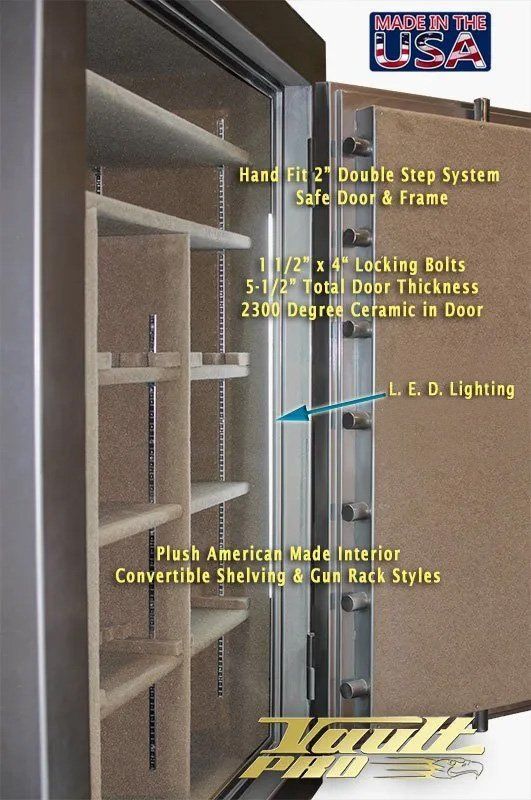

Hand Fit 2” Double Step System Safe Door & Frame
- 5½” Total Door Thickness
- 1/4" Protective Steel Front Plate
- 1/4" Inner Steel Door Liner
- Gap between safe door & frame is only 1/16”
- Dual Palusol® Gaskets (Double Seals Door in Fire)
- Adjustable Ball Bearing Hinges
- Left-Hinged or Right-Hinged Available
Four Way Active Bolt Safe Locking System
- U.L. Listed, American Made Group II Mechanical Lock (Digital Locks available)
- 4" x 1½” Locking Bolts
- 4-Way Dual Cam Drive Active Bolt Locking System
- 360° Independently Rotating Bolts
- Vault Pro Bolt Detent System
- Bolts lock behind a ¾” Protective Stepped Frame
- 1" 60+ Rockwell Hard Plate
- Titan Quadruple +1 Re-locker (Brass Arm & 4 ea. Titan Re-Locker)
- Solid Brass or Solid Stainless Steel Handle
Superior Fire Protection
- 120 Minutes at 1880°
- 2300° Ceramic Fire Blanket in Door
- Bent Body Construction with Full Length & Continuous Welded Seams
- 2300° Ceramic Fire Blanket in Body
- 3-layers of X-Rate Fireboard in Body
- Dual Palusol® Heat Activated seals between door and frame enlarges up to 7 times its size during a fire, sealing out heat and smoke
L. E. D. Lighting & Electrical System
- L.E.D. Interior Lighting Factory Installed
- Electrical Outlet Factory Installed
- Golden Rod Dehumidifier: Protects guns, electronics, artwork & valuables in your gun vault from moisture

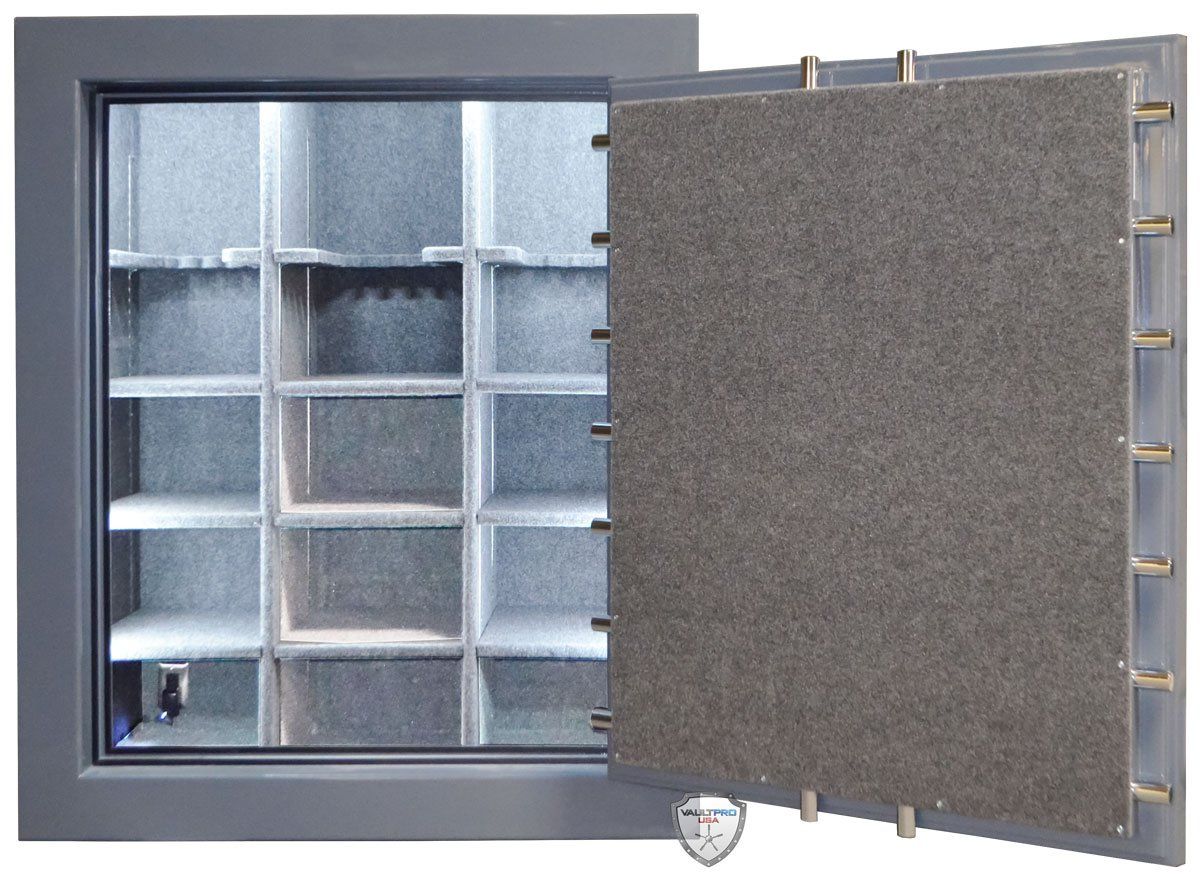

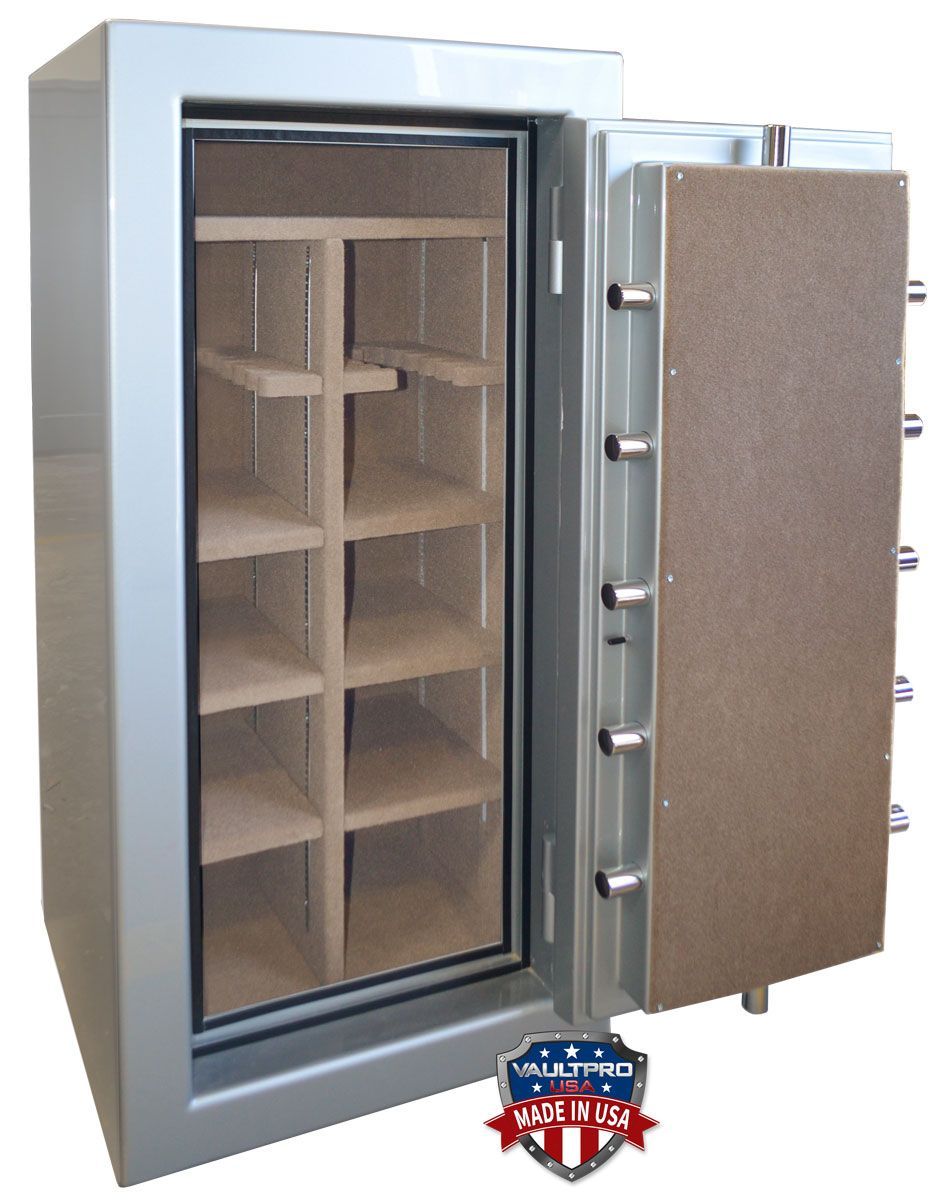

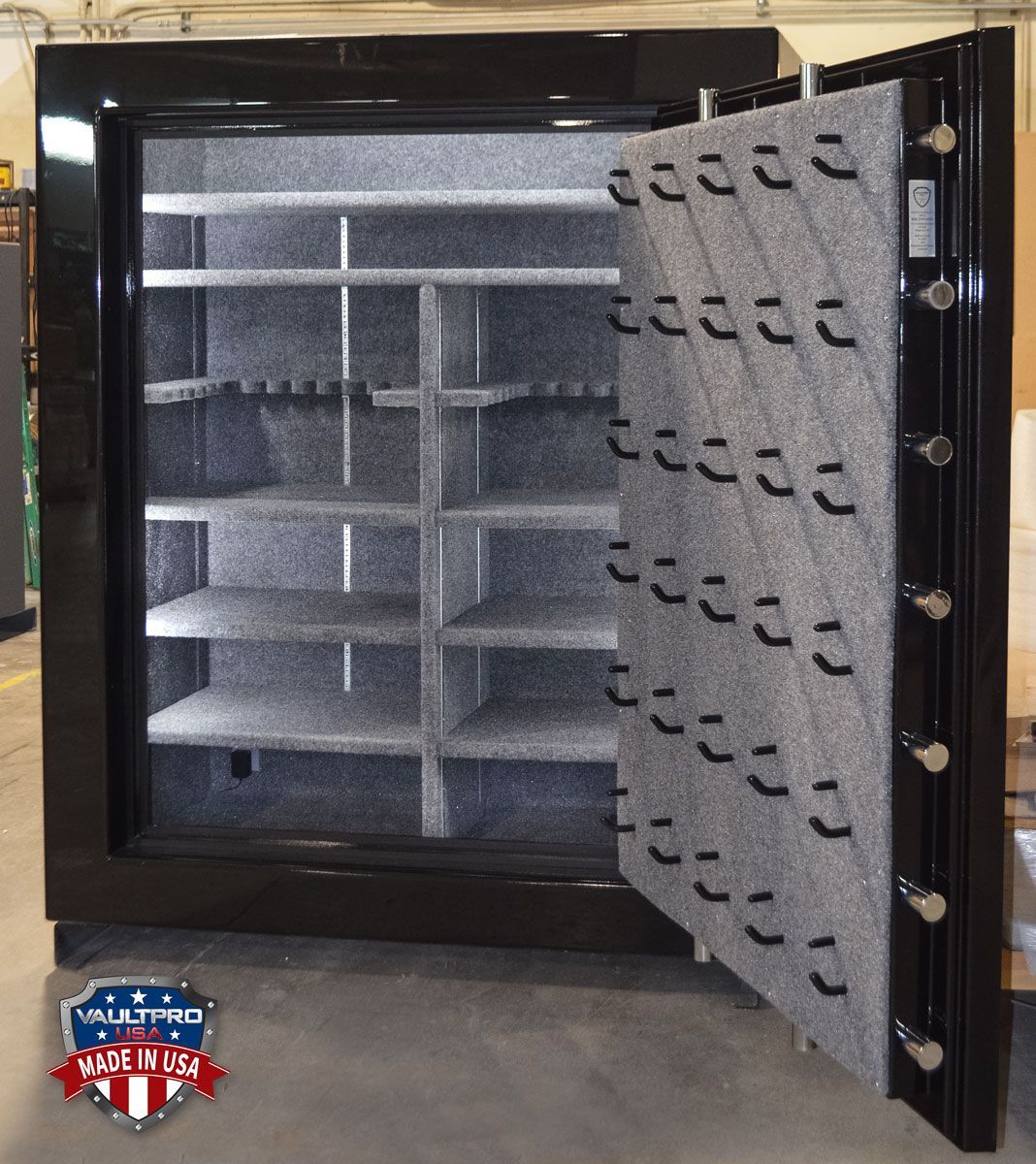

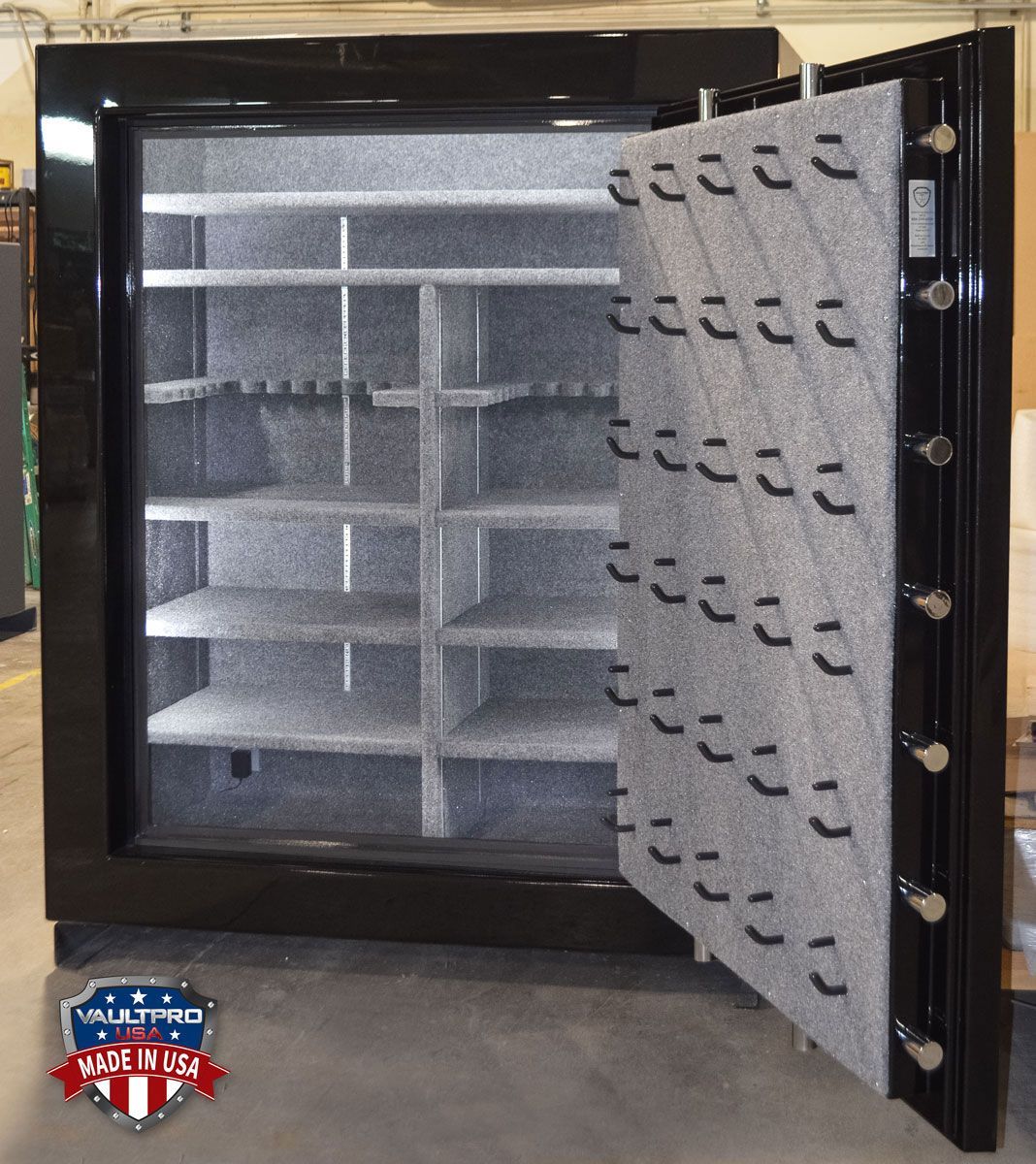

3 in 1 Convertible Interior
- Plush Interior
- Convertible Shelving with 2 Gun Rack Styles
American Eagle Series Safe Colors

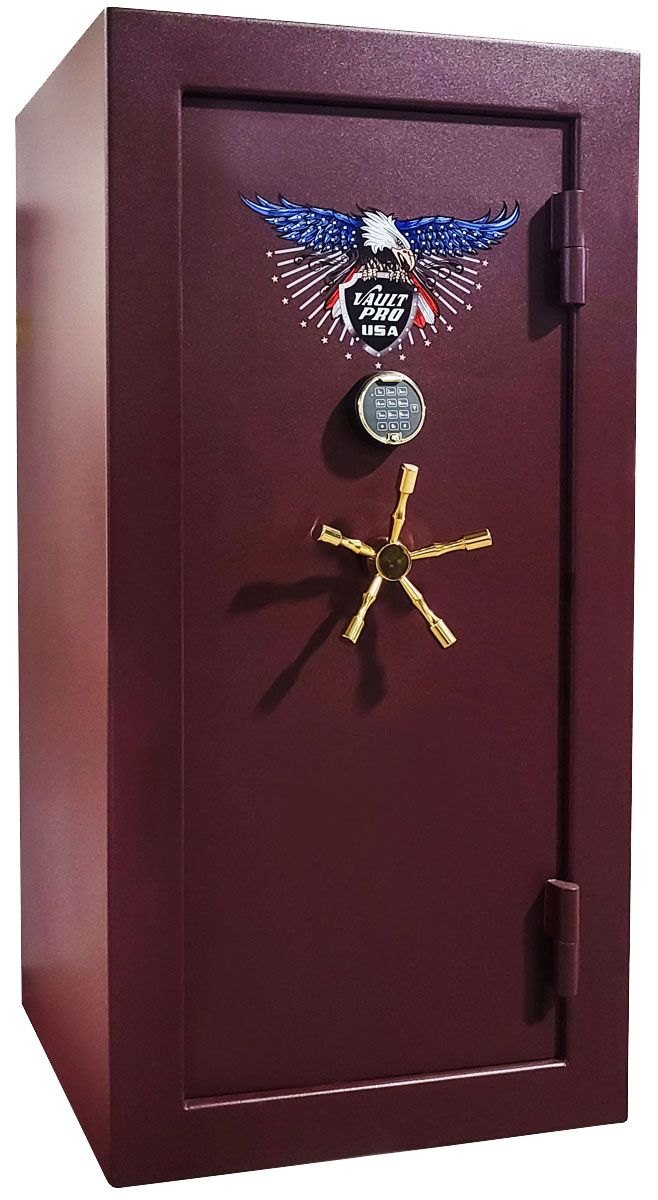

- Textured: Black, Brown, Gray, Dark Green and Burgundy
- Premium Dual-Stage Gloss and Custom Finishes Available
Lifetime Warranty
- Break-in
- Fire
SAFE FAQ
Q. What is the best type of gun safe
- When buying a gun safe it is important to purchase the best gun safe for the job of protecting your guns from burglars and keep firearms out of the hands of children and others who should not have access to them. There are a number of factors one should consider when purchasing a gun safe for home or business. What type and how many guns will you be storing? Most individuals make the mistake of purchasing a gun safe that is too small to properly store their guns, or don’t consider future purchases. If you plan to store mostly handguns there are many options available that will allow you to store a large number of handguns and still allow quick access to them in case of emergency. Handguns can be stored in their boxes or holsters on shelves. Pistol trees are very useful for storing handguns on the inside of your safe door. Long guns require additional consideration. Scopes and longer barreled rifles and shotguns require more vertical and horizontal space. Many people buy a gun safe at a big box store only to realize it is woefully inadequate to the task at hand when they get it home. Rule #1. Always by a safe that will hold twice as many weapons as you currently have. Even if you don’t add more guns, you will find the added space ideal for storing important documents, electronic media and other valuables.
- How secure is the safe? Many imported safes are made with inferior materials and have thin walls. They can be breached quite easily and don’t have adequate fire proofing materials. Look for a safe with at least 90 minute fire and heavy duty steel body. A well designed door helps repel pry attacks and seals the contents of the safe during a fire.
- Bolt down capability. Even a heavy safe can be lifted or turned on its side to allow a burglar to get extra force on a safe. A safe with a bolt down system provides additional theft protection and makes moving the safe nearly impossible. Ask for more details about bolt down systems.
- Vault Pro makes a variety of safes in sizes for almost every individual or business need. We are custom safe specialists, which allows us to build the exact safe you may need for private use, business or government use. Please contact us with your requirements. 800-299-6929
Q. Is a cheap gun safe an option?
- The old adage you get what you pay for is very applicable when it comes to gun safes. Think of the valuables you are trying to protect with your safe. Do you really want a cheap gun safe? Cheap safes are usually foreign made and use inferior materials to save on manufacturing cost. A quality gun safe is a lifetime investment. Our safes are not cheap, but they are a very good value and provide added security and features not found on cheap safes. To find out more about the difference between cheap safes and our quality American made safes call us to talk with one of our safe pros.
Q. Are American Made Safes Better and Are All Your Safes Made in the U.S.A.?
- Are American made gun safes better? We think so. It comes down to quality control as well as pride in products made in the USA. Not only are we proud to be an American manufacturer, employing American's in good jobs, we are also proud of the high quality safes, vault doors, and safe room shelters we produce. The images you see on these pages are our products made here in the USA. That is our plant with American workers. Can other safe manufacturers say the same?
- Does it cost more to manufacture safes in America? Yes. But it's worth it when we deliver a top quality safe or vault door to one of our many satisfied customers. We use only top quality parts. No cheap locks that will break when most needed. We use American made locks from S&G to secure our safes. Be sure to ask any dealer where the safes they are selling are manufactured. Many sell cheap foreign made safes with cheap steel, thin walls and fireproofing that won't hold up to a major structure fire. Call us for more information about our American made safes.
Q. What Size Gun Safe Will Fit in My Home?
- A quality gun safe is a lifetime investment for the protection of your guns and valuables. An often overlooked question is HOW BIG a SAFE can I fit in my home or business? Normally businesses have larger entrances and opportunities to install very large safes, however, homes can be limited by the size of your door jam. Fortunately Vault Pro displays minimum size door jams for all our Eagle Series safes. When in doubt about whether you think you can get a certain size safe in to your home, please contact us. We are safe and vault experts and can help you determine the ideal safe solution for your home. Call us: 800-299-6929
Q. What's Better Internal Hinges or Exposed Hinges?
- Safes and vault doors that use internal hinges are preferred by some for their appearance, but looks don't provide security. First of all, internal hinges usually only allow the doors to open to a 90º angle or straight out from the safe or vault door frame. This makes the space behind the door hard to reach and in some cases completely unusable. In the case of vault doors, internal hinges narrow the usable space thru the door. Many safes and vault doors that use internal hinges don't use locking bolts on the back side of the door making them vulnerable to easier pry attacks and simple one sided frame attacks.
- External and exposed hinges are often attacked and in some cases ground completely off the door, with the thinking that without hinges, the back side of the door will pull open. Unfortunately for the would be thief, safes with exposed hinges normally have locking bolts (active or deadbolt) on the hinge side of the door. All Vault Pro Safes feature fully active or deadbolt locking mechanisms. Attacking external hinges is simply a waste of time. An external hinge allows for the door to swing open to it's full 180º...making the interior of the safe fully usable and accessible
- External hinges also improve fire resistance. Internal hinges create gaps in the door lining, which allow heat to infiltrate the door into the safe body. Vault Pro Safes external hinge system allows the entire door to seal tightly against the body frame and heat sealing Palusol® gaskets.
