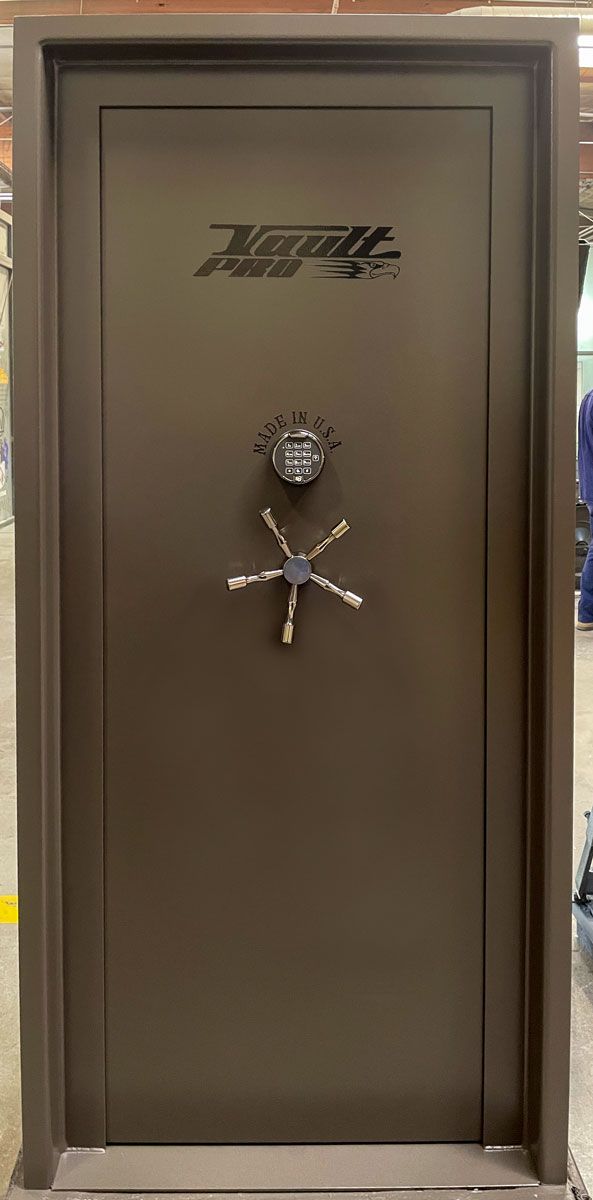

With economical security in mind, Vault Pro’s Professional Series Vault Door is engineered to provide superior protection against forced entry and fire. Using a ¼” steel frame and ¼” plate steel in the door along with its 14 bolt locking system and 1¼” Barrel Hinges, the Professional is built to exceed FEMA 320, 361 and ICC-500 recommendations for use in Storm/Tornado Shelters.
SAFE & VAULT DOOR EXPERTS CALL FOR FREE QUOTE TODAY - CLICK TO CALL or 800-299-6929 (M-F 7AM-7PM)
PROFESSIONAL SERIES - Economical Security
American Made Storm Shelter Doors for Sale - Engineered to Exceed all ICC-500 and FEMA 320 & 361 Recommended Standards for Use in Tornado Shelters.

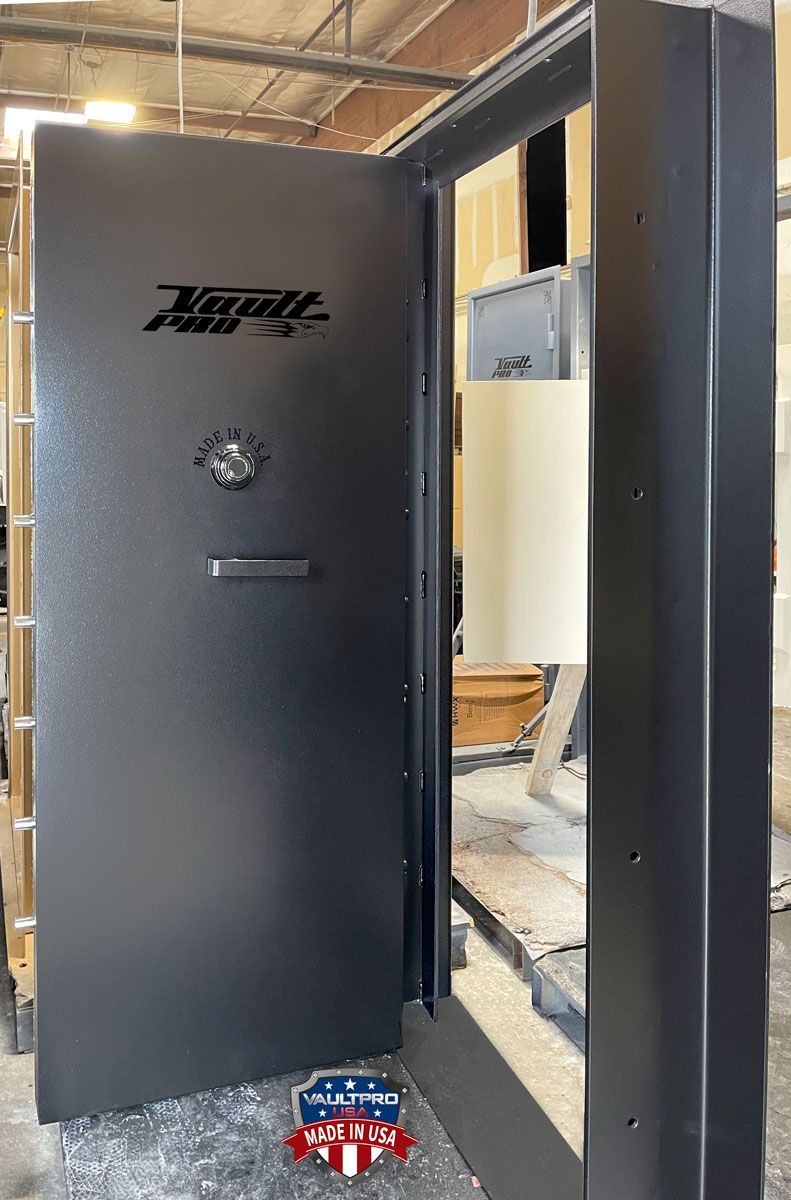

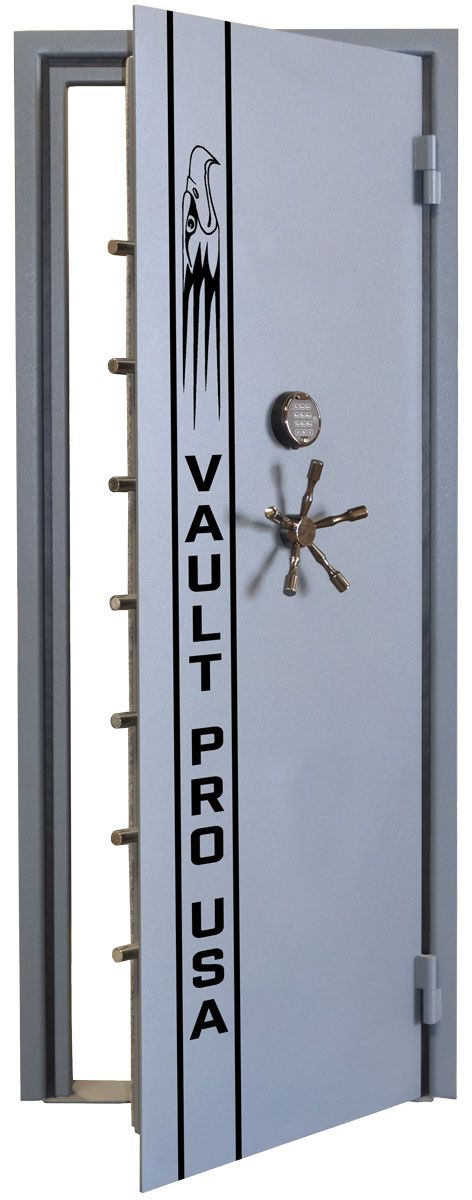

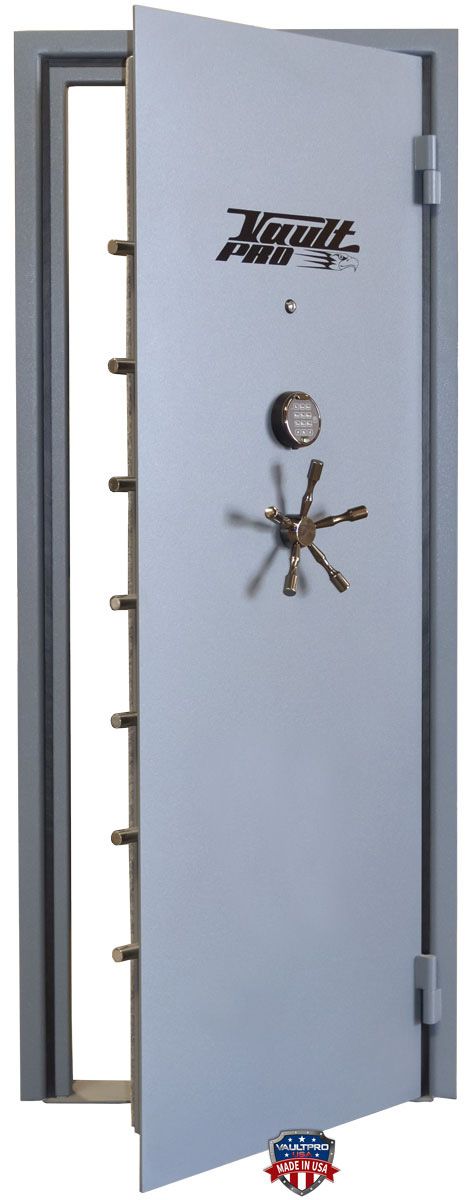

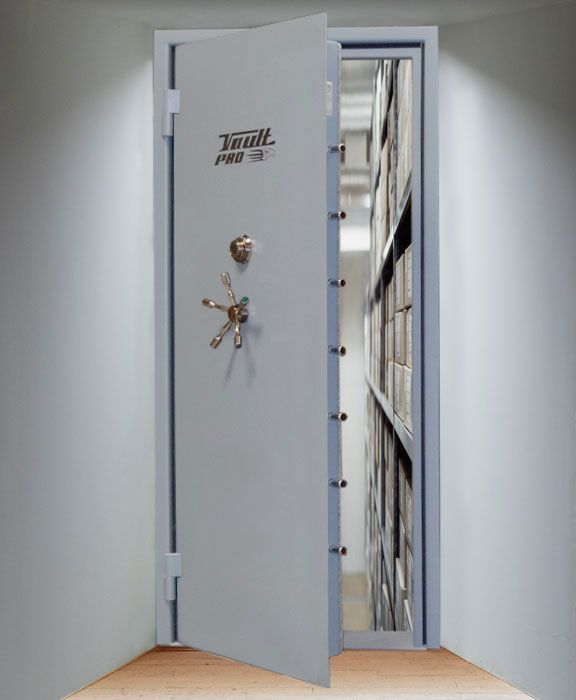

Professional Series Vault Doors
Factory Direct Sales and Delivery!
Click image to enlarge
High Quality Vault Door for Home or Business
Standard Professional Series Features Include:
CLICK FOR FREE QUOTE
1/4" Solid 60+ Rockwell Hard plate
Internal Release · 14-Bolt Locking System - 1" Locking Bolts
CALL FOR FREE QUOTE
Vault Door Model Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |
| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |
1/2" Solid Steel Frame | 1/2" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |
| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |
| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |
| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8") |
$3,154 | $3,832 | $4,711 | $6,503 | $8,284 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8") |
$3,731 | $4,244 | $5,241 | $7,164 | $9,068 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8") |
$4,286 | $4,775 | $5,773 | $7,765 | $9,887 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8") |
$4,840 | $5,200 | $6,279 | $8,532 | $10,677 | Min. Size 7'x5' Call for Free Quote |
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
We Are the Manufacturer
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's
Click images to enlarge.

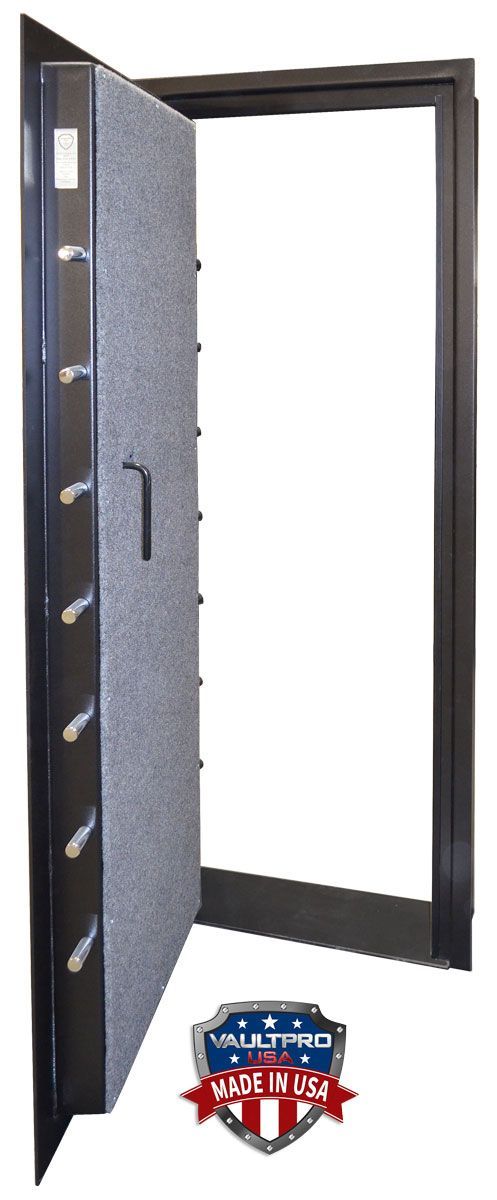

Professional Series Standard Features
- 1/4" Plate Steel Door
- Overall Door Thickness 3¾"
- 40 Minute Fire Door 1550°
- Palusol® Gasket Expands to Seal Against Heat and Smoke
- 1/4" Solid Steel Frame
- 14-Bolt Locking System - 1" Locking Bolts
- Adjustable Ball Bearing Hinges
- Sargent & Greenleaf, U.L. Listed Group 2 Spyproof Lock (Digital lock available)
- 1/4" Solid 60+ Rockwell Hard Plate
- Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan)

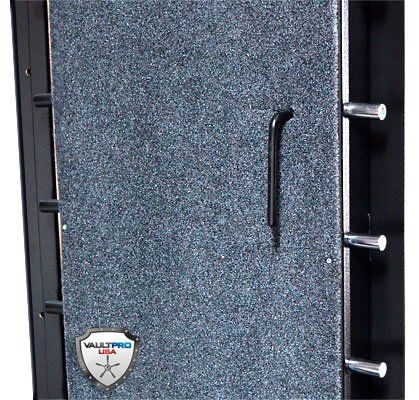

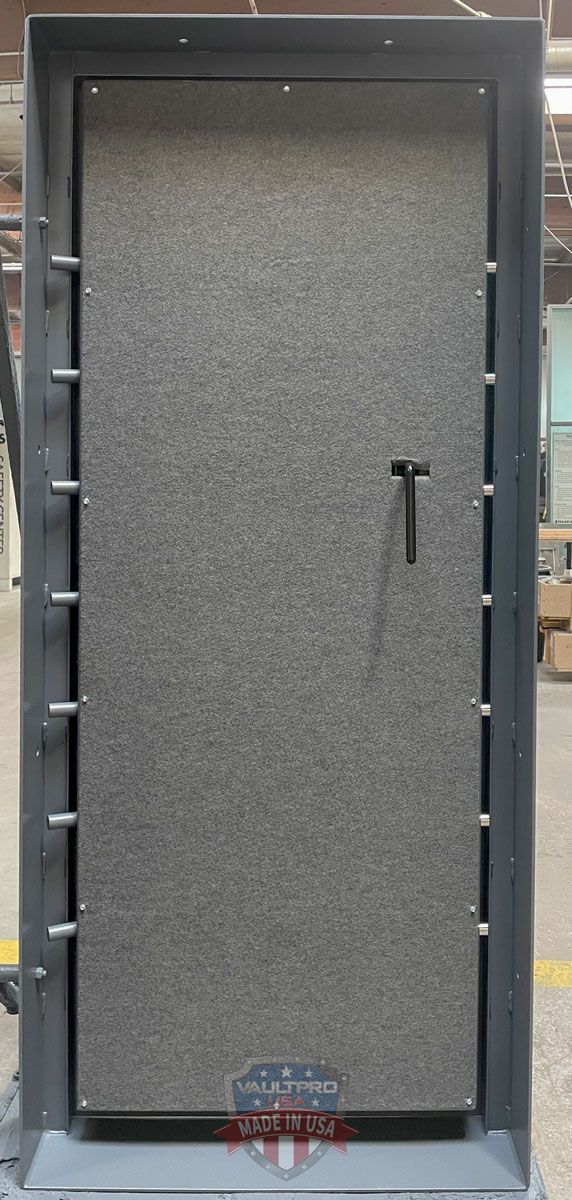

- Internal Release
- Carpeted Door Panel
- Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy - Gloss and Custom Finishes Available. Call: CLICK TO CALL
Professional Series Vault Door Specifications
- Door: 1/4" Plate Steel
- Frame Thickness: 1/4" Solid Steel
- Fire Rating: 40 Minute - 2300 degree Ceramic Fire Blanket & 2-layers of 5/8" fire board
- Number of Locking Bolts: 14 - 4" x 1" Locking Bolts. Active Bolts Fully Rotating.
- Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
- Hard Plate: 1/4" Solid 60+ Rockwell Hard Plate
- Internal Release: Yes
- Re-Locker: Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan)
- Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
- Gloss and Custom Finish Available: Yes
- Hardware: Choice of Silver, Gold or Black Matching Hardware
Professional Series Vault Door Factory Direct Pricing
80" x 30" - 5" to 8"
(frame depth)
Weight: 735 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$3154
80" x 35" - 5" to 8"
(frame depth)
Weight: 855 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$3731
80" x 40" - 5" to 8"
(frame depth)
Weight: 895 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$4286
80" x 45" - 5" to 8"
(frame depth)
Weight: 950 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$4840

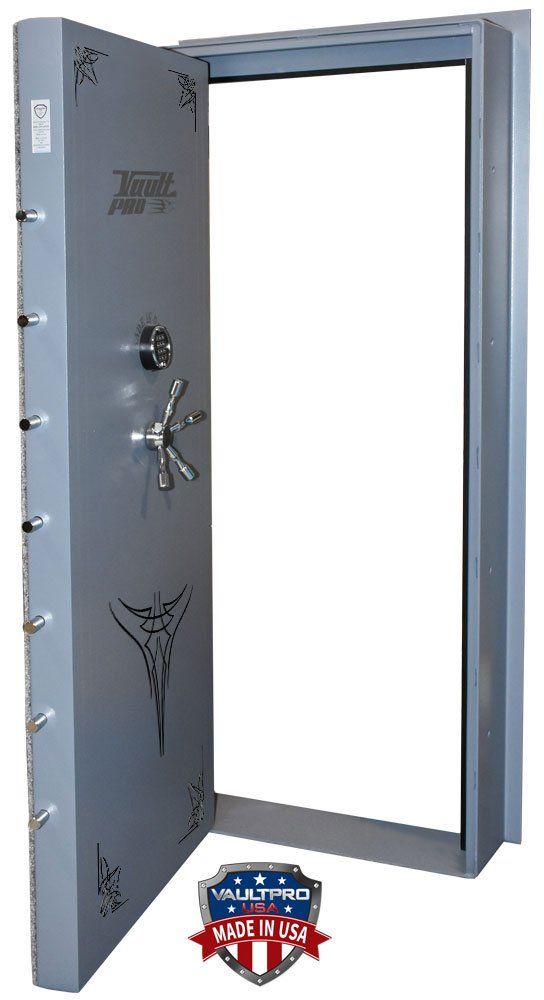

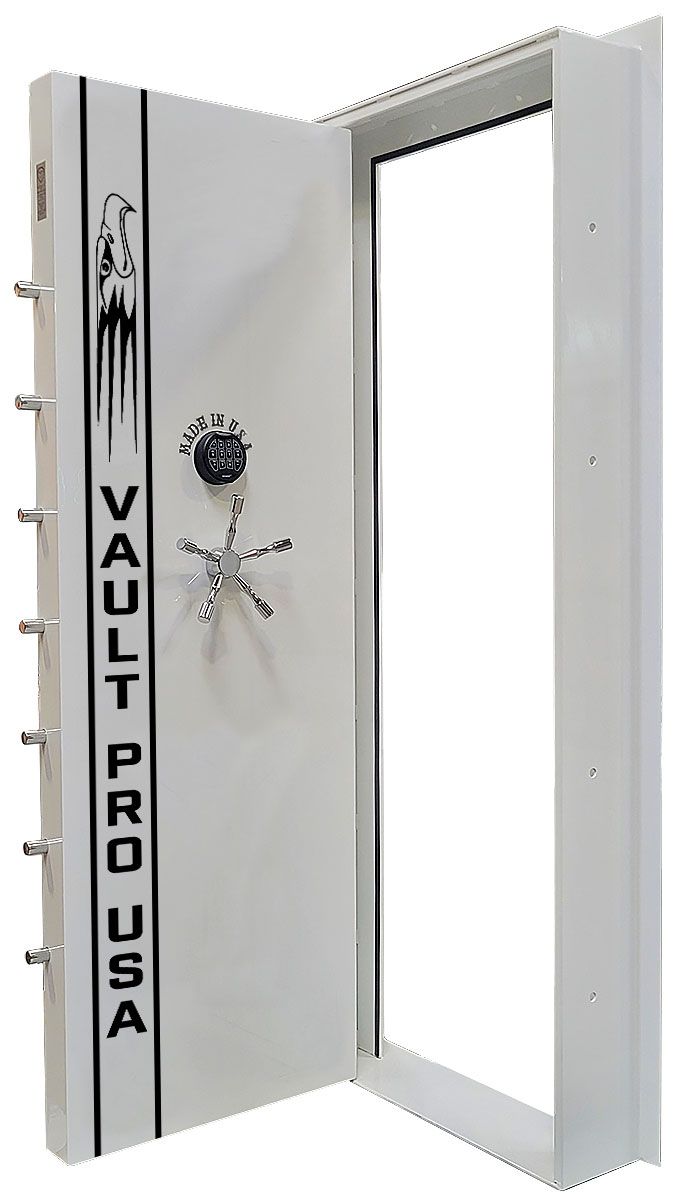

IN-SWING HINGING OPTION (Any Door - Adds up to 100 lbs.) ADD $320
In-Swing frame depth must be 6" or larger
*Door weights may vary due to frame depth, options and finished dimensions as ordered.
Installation Instructions (PDF opens in new tab)
Vault Pro Standard Finishes and Premium Gloss Finishes
Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching pinstripe and hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

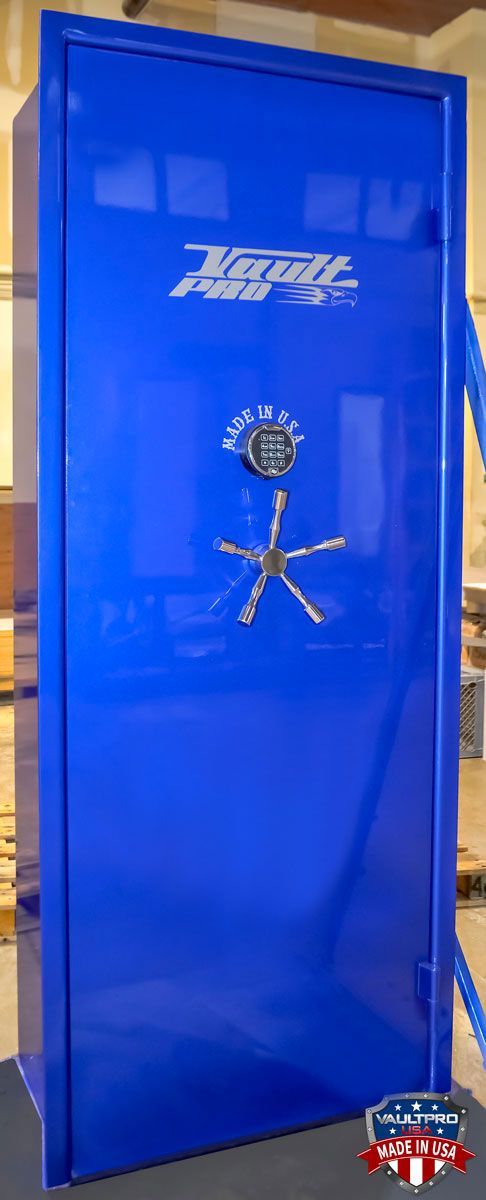

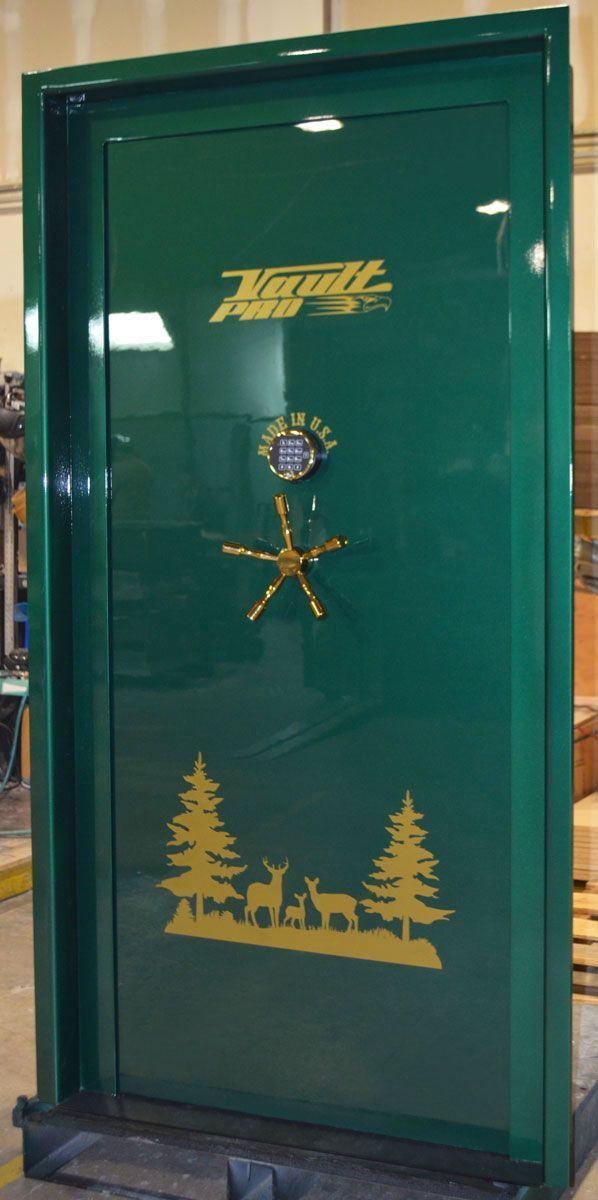

Premium Gloss Finishes
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
Premium Gloss Finish Pricing
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
| Door Size | PREMIUM GLOSS | Laser Pearl Red and Strawberry Red |
|---|---|---|
| 80 x 30 | $742 | $935 |
| 80 x 35 | $798 | $985 |
| 80 x 40 | $979 | $1140 |
| 80 x 45 | $1062 | $1215 |
Additional Premium Colors, Two Tone and Custom Finishes Available
Call one of our Vault Pro's for details and price. Tom Kelly Hand Pin-Striping & Personalization.
Call for details: CLICK TO CALL
CALL FOR FREE QUOTE

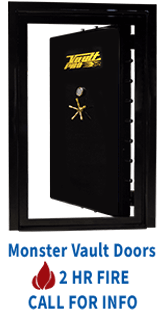

Looking for Something Different? Choose any of our Vault Door Series.
