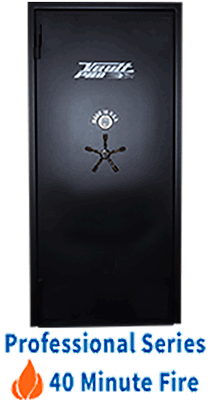

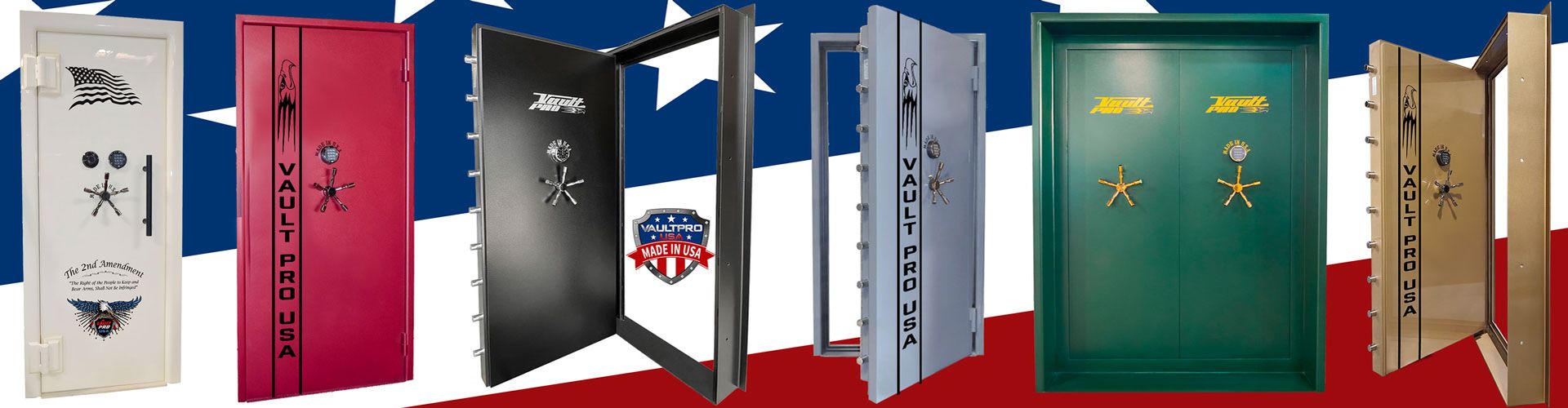

Professional Series
Economical Security
1/4" solid steel door, 14-nolt locking system, ICC-500 & FEMA compliant, 40-minute fire rating.
Executive Series
Robust Protection
1" composite steel door, 18-bolt locking system, advanced re-lockers, 1-hour fire rating.

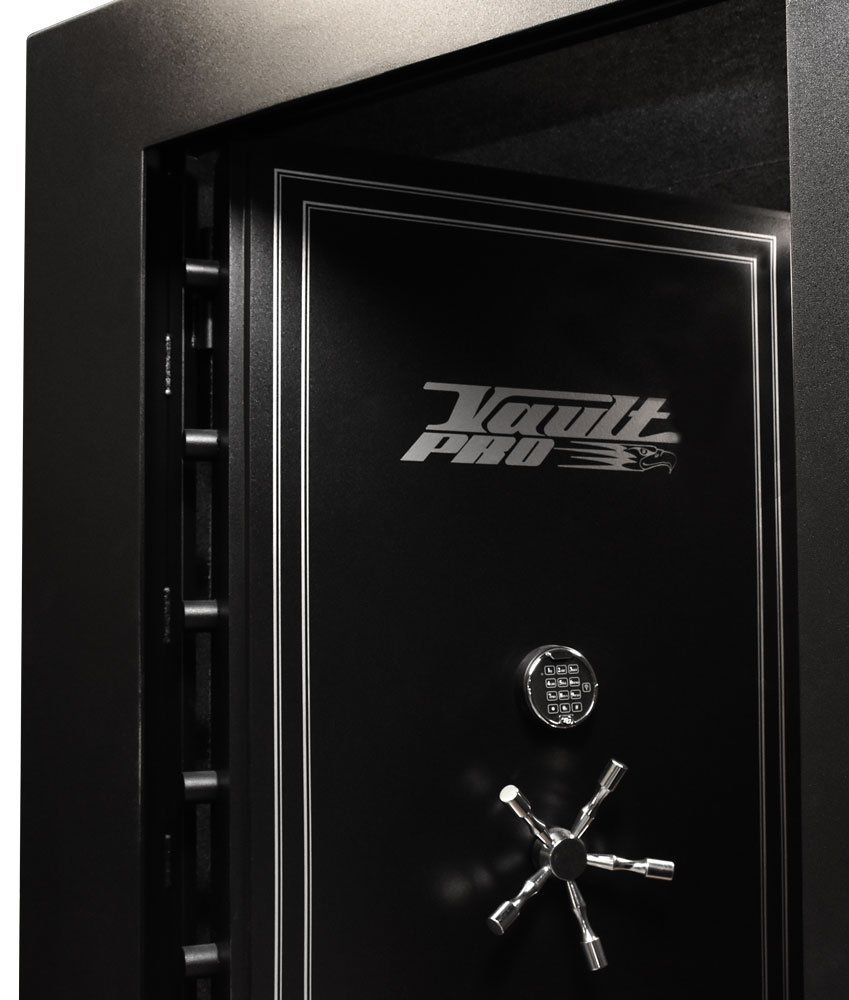

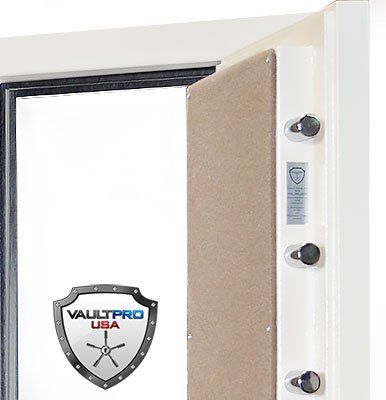

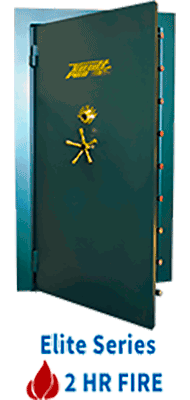

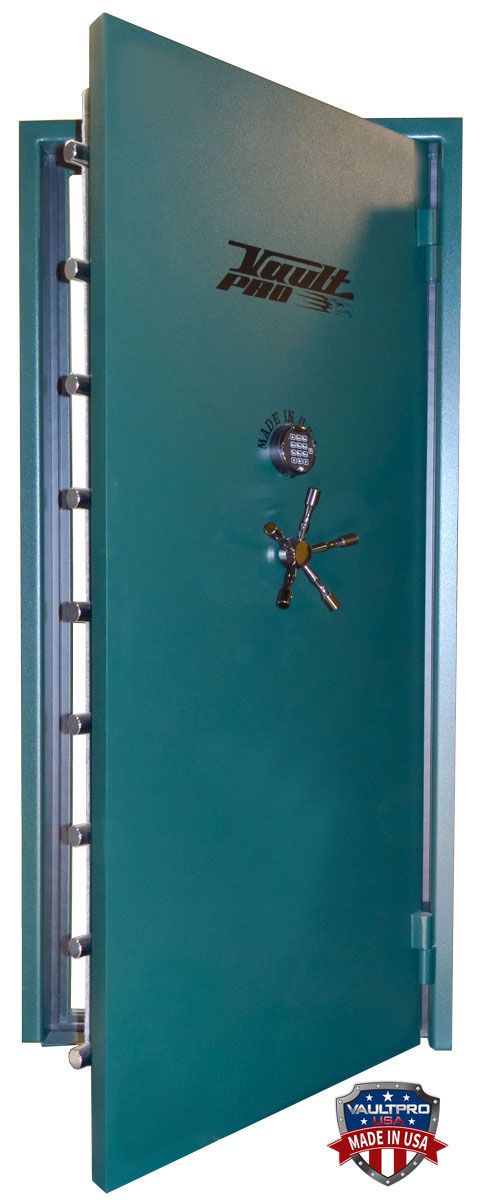

Elite Series
Best-in-Class Fire Protection

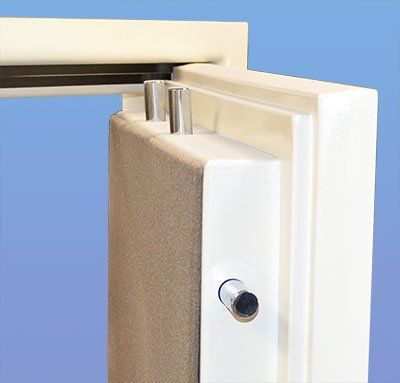

2" step-system door, 18 bolt system, locking bolts fully rotating. dual heat sealing gaskets, 2400° ceramic fire blanket.

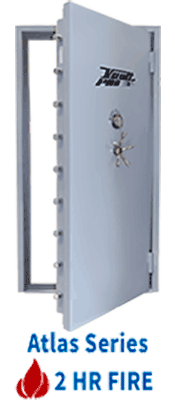

Atlas Series
Heavy-Duty Vault Doors
1/2" solid steel front plate, 22-bolt, 4-way locking system, multiple re-lockers, extended fire resitance.

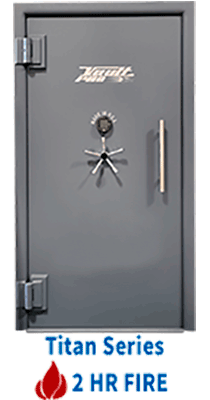

Titan Series
Ballistic-Resistant Security
1" solid steel front plate, 4-way 22-bolt locking system, ballistic resistance, extensive fire protection.

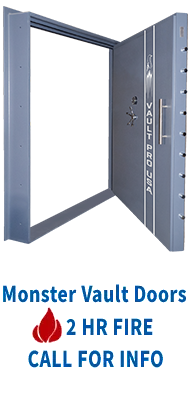

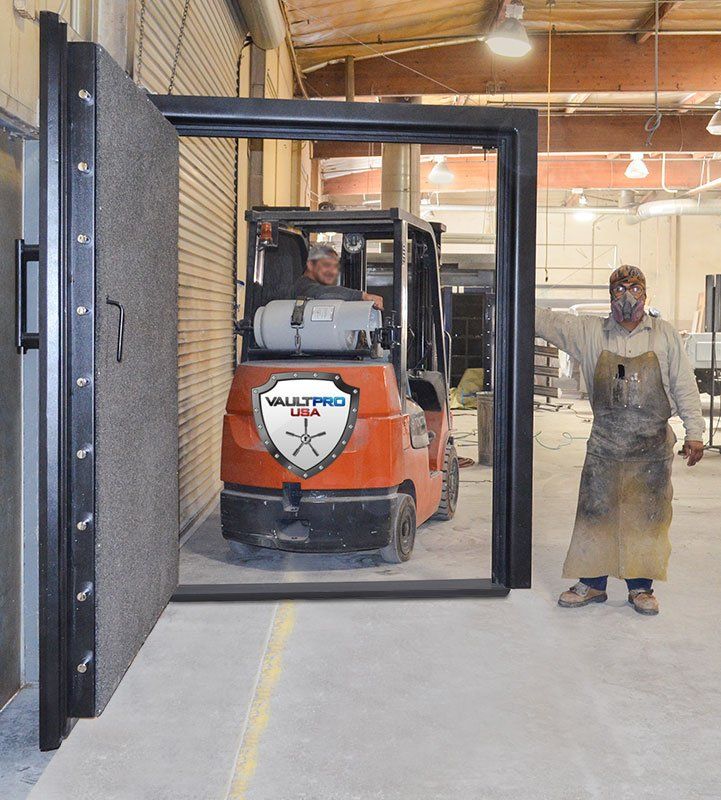

Monster Series
Very Large Heavy-Duty Doors
2" solid steel front plate, step-system door, oversized construction, multiple re-lockers, extended fire resistance.

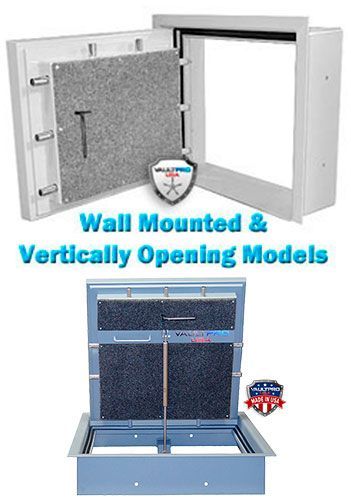

Looking for extra features or added peace of mind? Explore our:
"Ordered a custom vault door and could not be more pleased. Very easy to work with and communication was quick, even though I was overseas at the time. Great, Veteran-Owned company."
- Michael O. (U.S. Military)
Vault Door Model Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |

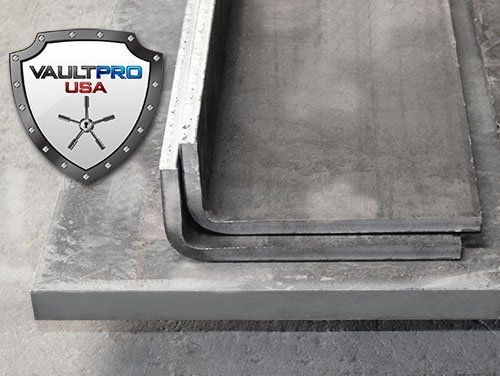

| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |
1/2" Solid Steel Frame | 1/2" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |

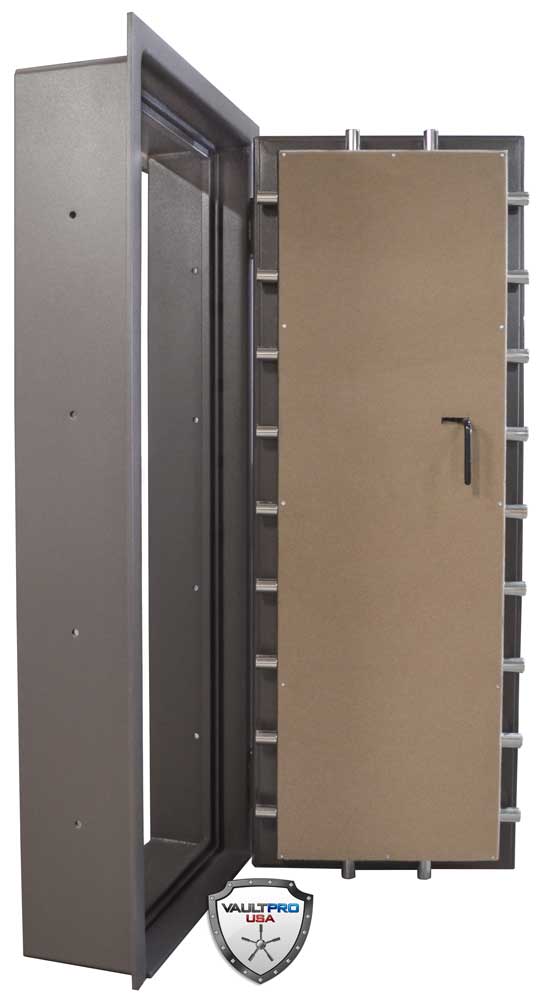

4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |

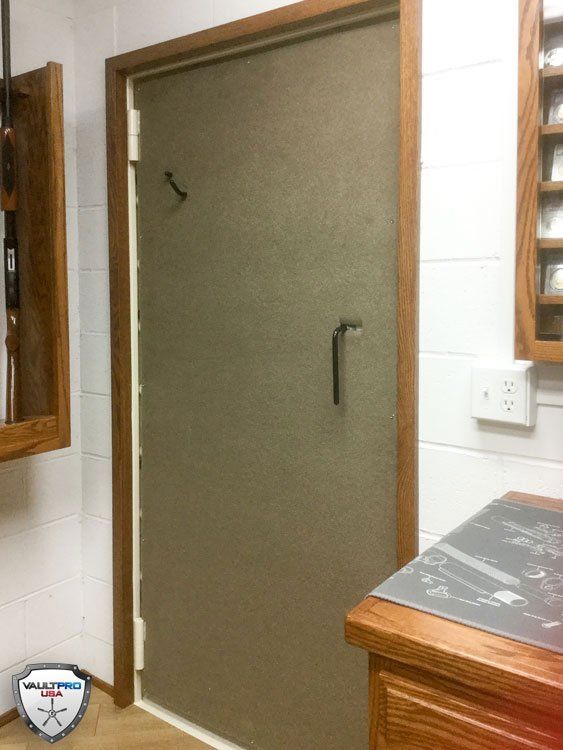

| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |
| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |

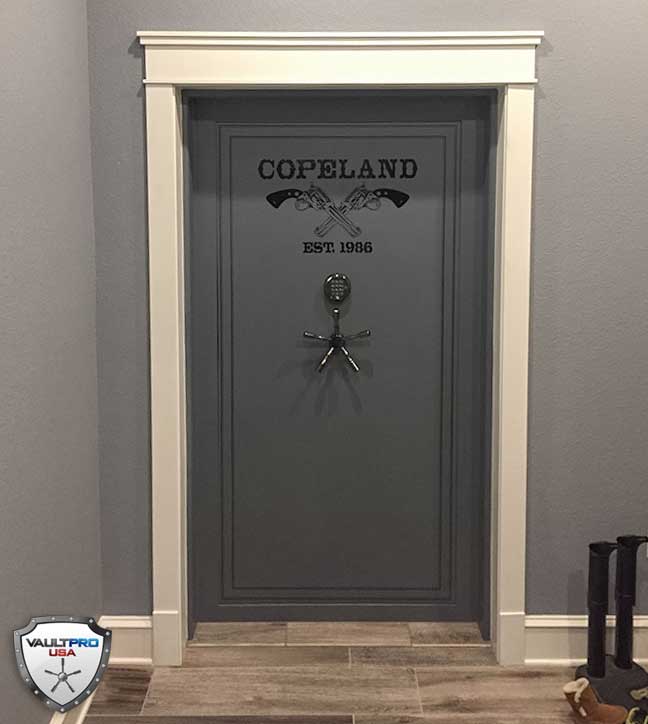

| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8") |
$3,154 | $3,832 | $4,711 | $6,503 | $8,284 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8") |
$3,731 | $4,244 | $5,241 | $7,164 | $9,068 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8") |
$4,286 | $4,775 | $5,773 | $7,765 | $9,887 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8") |
$4,840 | $5,200 | $6,279 | $8,532 | $10,677 | Min. Size 7'x5' Call for Free Quote |
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.

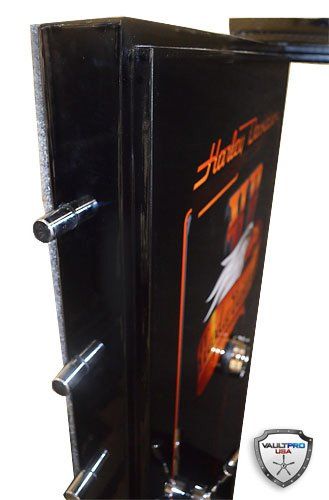

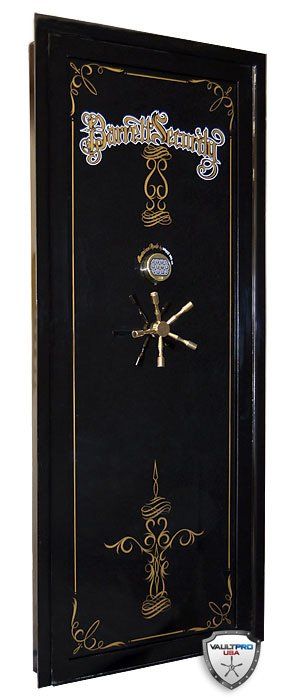

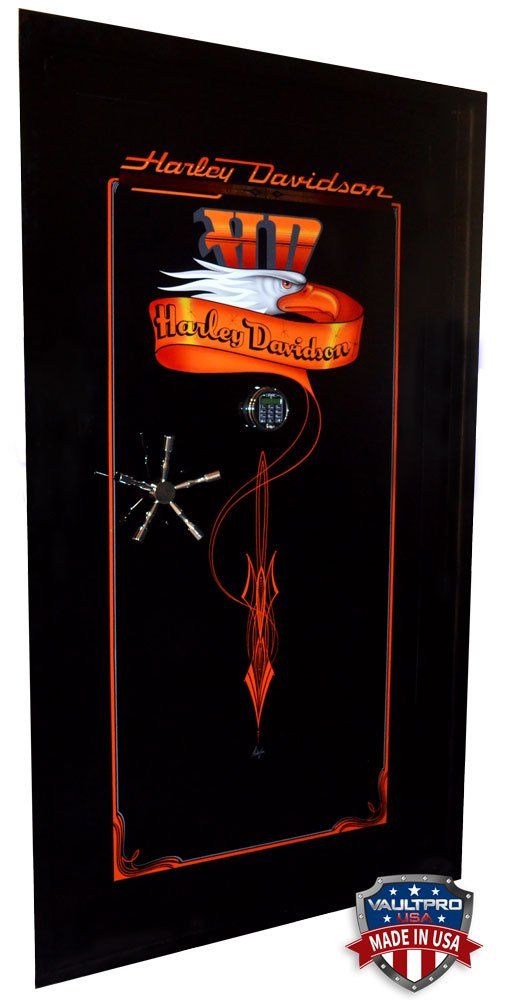

Customization options
Frequently Asked Questions
Q. What distinguishes the various vault door series, and how can I select the most suitable one?
Every Vault Pro vault door is engineered to provide exceptional protection within its category. Your selection of a vault door is influenced by several factors, such as the level of fire and anti-theft protection needed.
For those seeking the highest level of security, our Titan and Monster vault doors boast a robust, thick steel front plate and are designed to be ballistic resistant. Reach out to us for a complimentary consultation to identify the door that best meets your requirements.

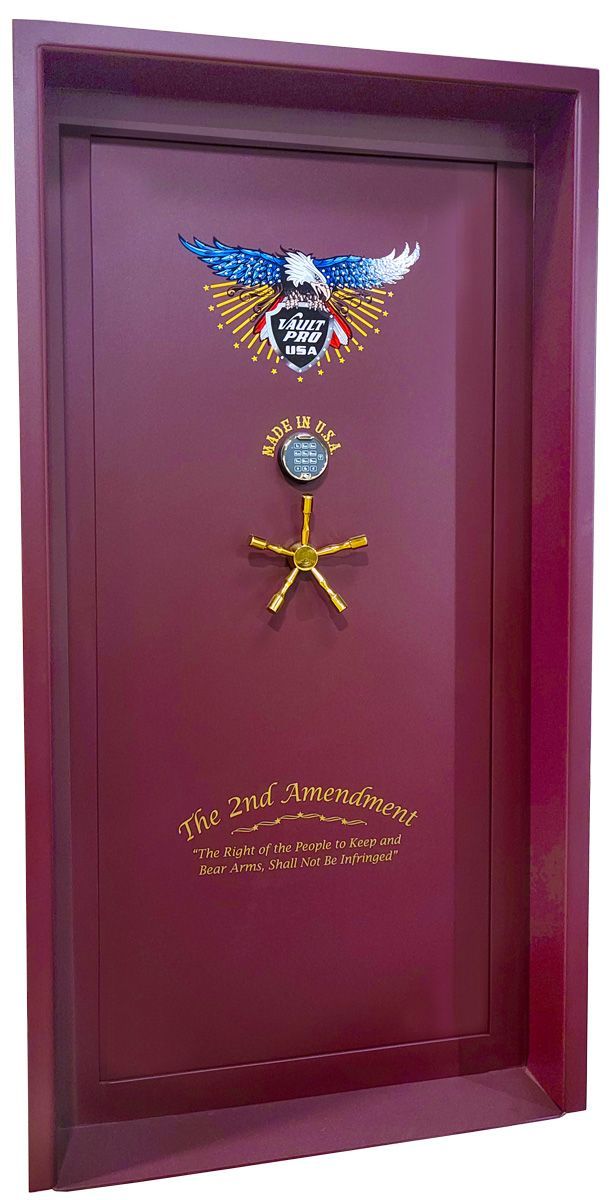

Q. Are vault doors rated for storm shelter and FEMA or ICC compliant?
Vault Pro vault doors are engineered and built to exceed all FEMA 320 & 361, ICC-500 recommended standards for use in storm & tornado shelters. Vault doors are for indoor installation only.

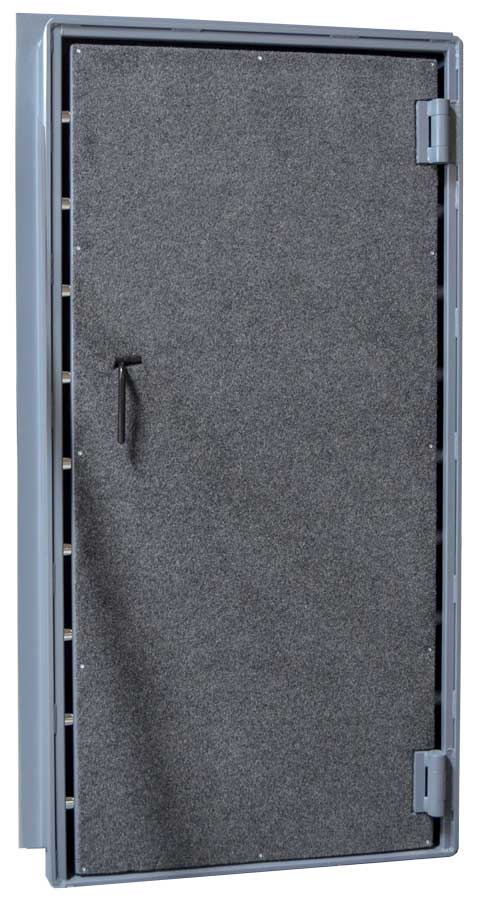

Q. Can vault doors be customized for size, swing direction, hardware, and locking options?
Yes. We offer vault doors in many standard sizes, but can build vault doors for any type of installation. Being the manufacturer, we can build vault doors to virtually any size and configuration desired. For more information and a free quote please contact us.

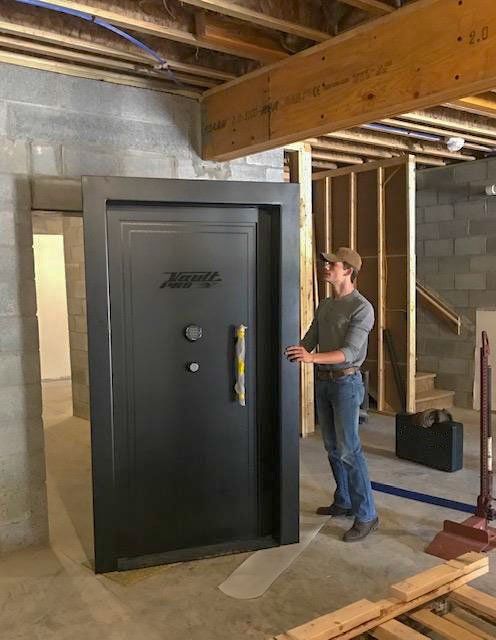

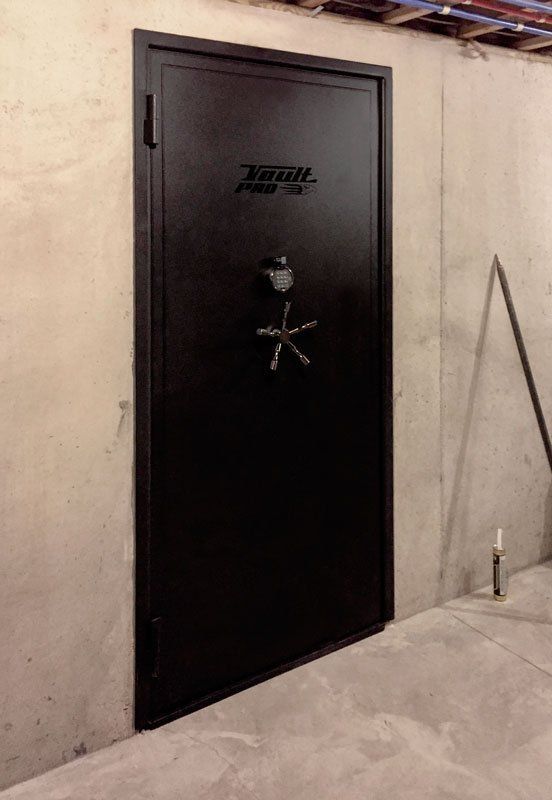

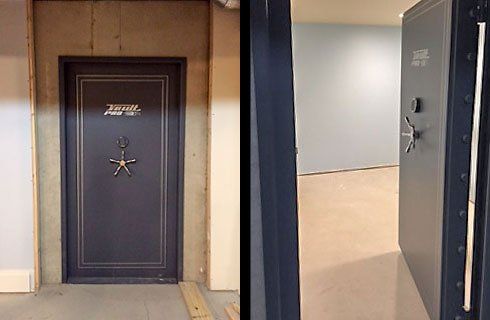

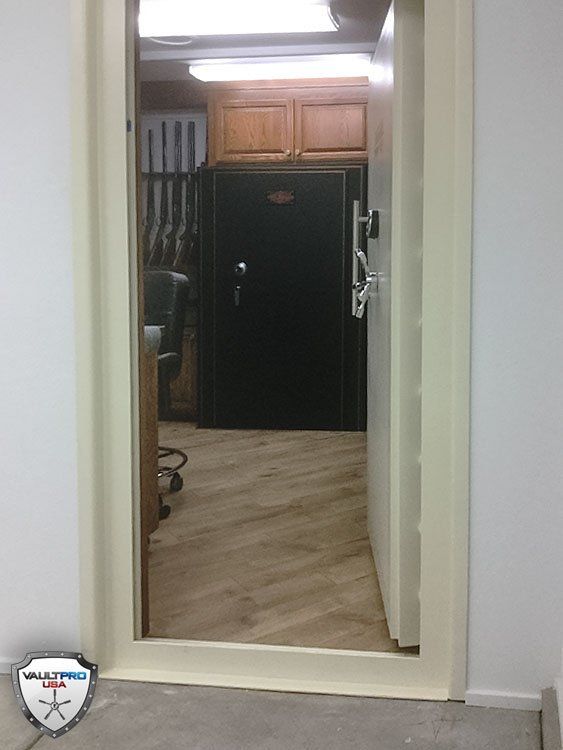

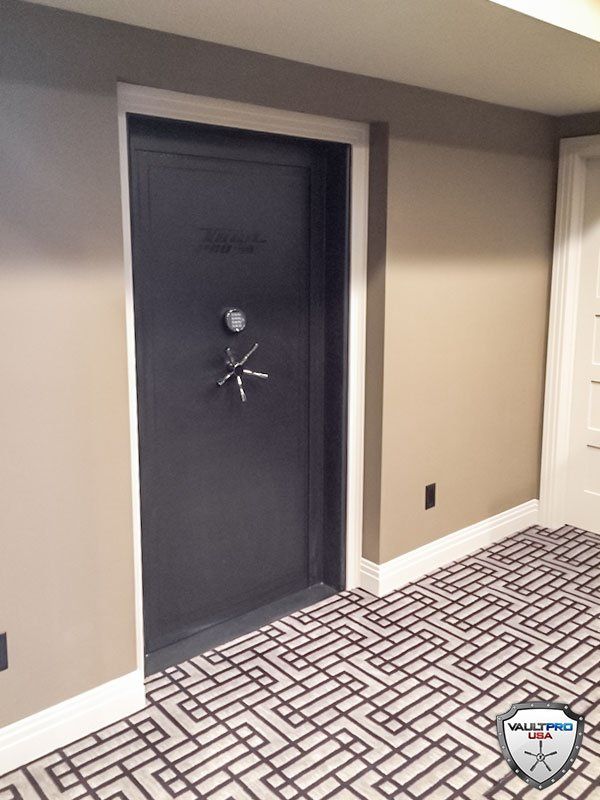

Q. How are vault doors installed, and what structural requirements are needed?

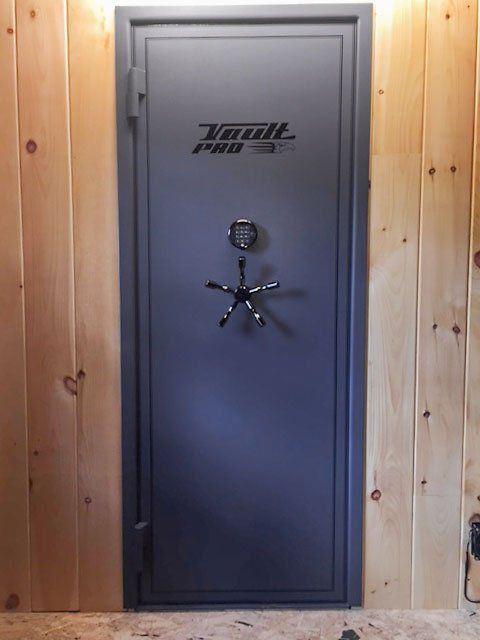

Vault doors are typically installed by a local contractor. Our vault doors can be installed in concrete filled block walls, poured concrete walls, or in standard wood frame walls.
4¼"x½" wedge anchors are recommended to hold the door securely in place.
For additional information we have complete installation guides available to download on our site. Please contact us for additional information.
Q. What level of fire and burglary protection do vault doors provide?

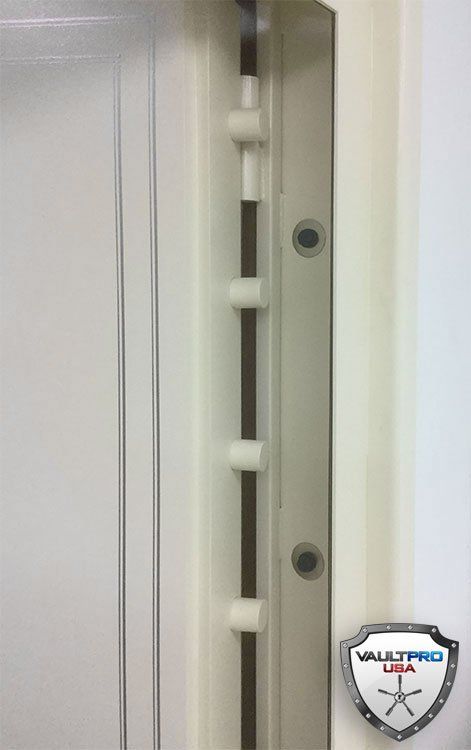

We offer vault doors with 40 min. to over 2HR fire protection. Every door is hand fitted to the door frame with a tolerance of 1/16". This gap protects against fire and pry attacks. Our Elite, Atlas, Titan, and Monster series doors feature a step-system for added security, All vault doors are built on heavy duty frames and fearure internal re-lockers to protect against drilling attempts.
Looking for a Different Security Solution?

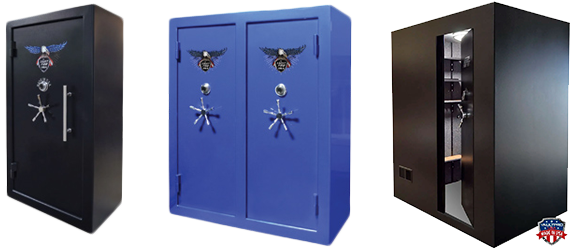

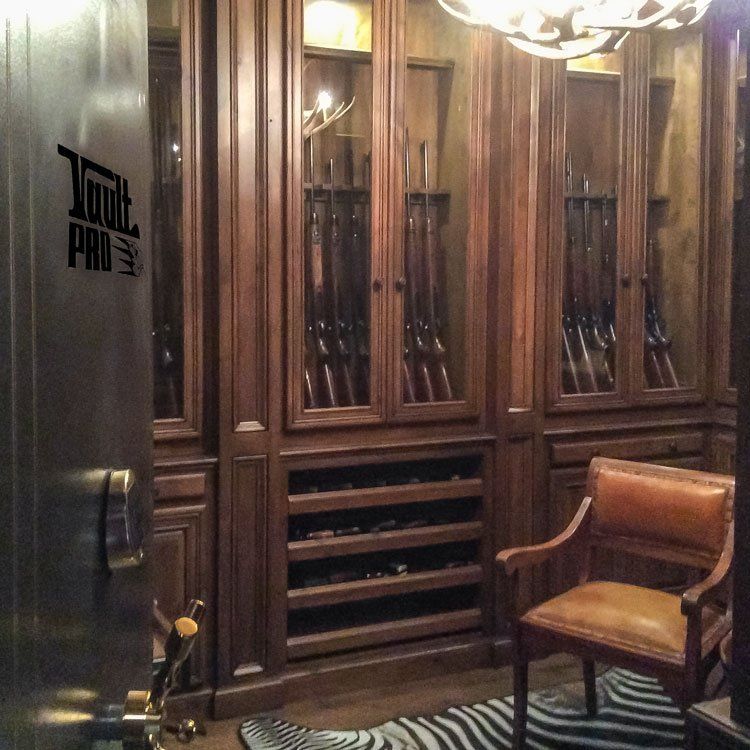

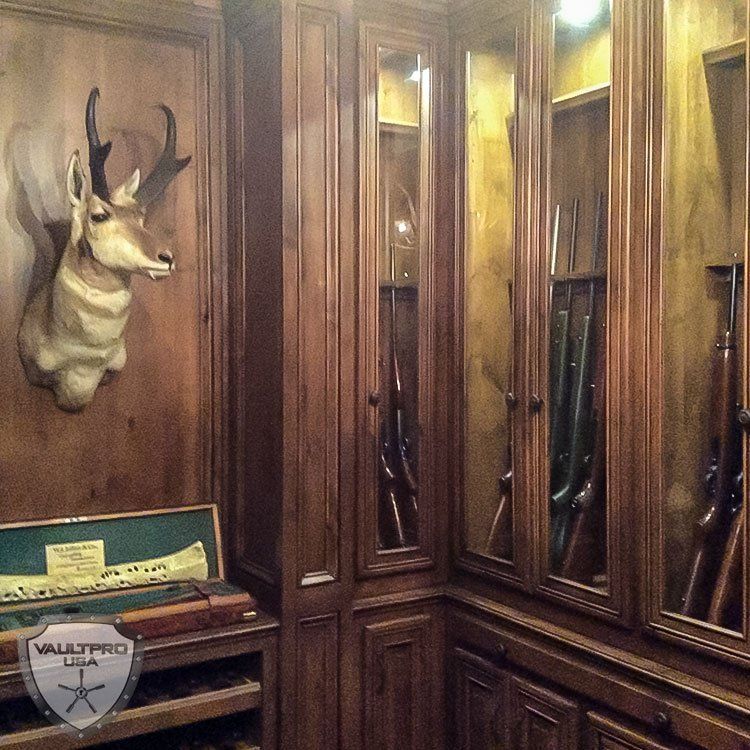

Check out our handcrafted gun safes and walk-in vault rooms.
