Where can you find a 100% American-made ballistic resistant vault door that offers exceptional state-of-the-art safety, security, and fire protection? Look no further than Vault Pro USA! If you are in search of the ultimate protection for your vault or file room door, nothing epitomizes safety and security quite like Vault Pro’s 1” Solid Steel Front Plate and 2” Step System Titan Series Vault Door. A Titan, akin to a member of a lineage of enormous and formidable giants, is distinguished by its remarkable achievements, incredible strength, and enduring resilience… an immortal entity. Equipped with a Titan’s 22-bolt locking mechanism, a 1” 60+ Rockwell Hard-plate to thwart drilling attempts, a Titan Quadruple +1 relocking system to counter punch attacks, and a 2300° Ceramic Fire Blanket, all secured behind a 1” solid steel front plate on a 2” Step System door that aligns to within 1/16th of an inch on five levels against a 1” solid steel step system mounted on a 1/2" solid steel frame, supported by two 6" x 6", Dual Thrust, Dual Radial Bearing, 2000 lb. heavy-duty hinges, Vault Pro’s Titan Vault Door undoubtedly exemplifies exceptional quality with remarkable strength and endurance… it is indeed an immortal being.
Titan Series - Ballistic Resistant Commercial & Residential Vault Doors for Tornado Storm Shelters Shelters, Walk-In Vaults. Built to Exceed FEMA 320, 361 and ICC-500 Standards
Titan Series Ballistic Resistant Vault Doors
Factory Direct Sales and Delivery!
Click image to enlarge
Double the Steel Double the Strength & Protection.
4-Way - 4"x1½" Fully Rotating Locking Bolts
Standard on Titan Vault Doors
Ballistic Resistant Heavy Duty Vault Doors
CALL FOR FREE QUOTE
Vault Door Model Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |
| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |
1/2" Solid Steel Frame | 1/2" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |
| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |
| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |
| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8") |
$3,154 | $3,832 | $4,711 | $6,503 | $8,284 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8") |
$3,731 | $4,244 | $5,241 | $7,164 | $9,068 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8") |
$4,286 | $4,775 | $5,773 | $7,765 | $9,887 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8") |
$4,840 | $5,200 | $6,279 | $8,532 | $10,677 | Min. Size 7'x5' Call for Free Quote |
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
Ballistic Resistant Vault Doors Factory Direct
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's
Click images to enlarge.
Titan Series Vault Door Standard Features
- 1" Solid Steel Front Plate
- 2" Step-System Door - Overall Door Thickness 6¼”
- 2 Hour Fire Door
- 2300° Ceramic Fire Blanket
- Dual Palusol® Heat Expanding Gaskets

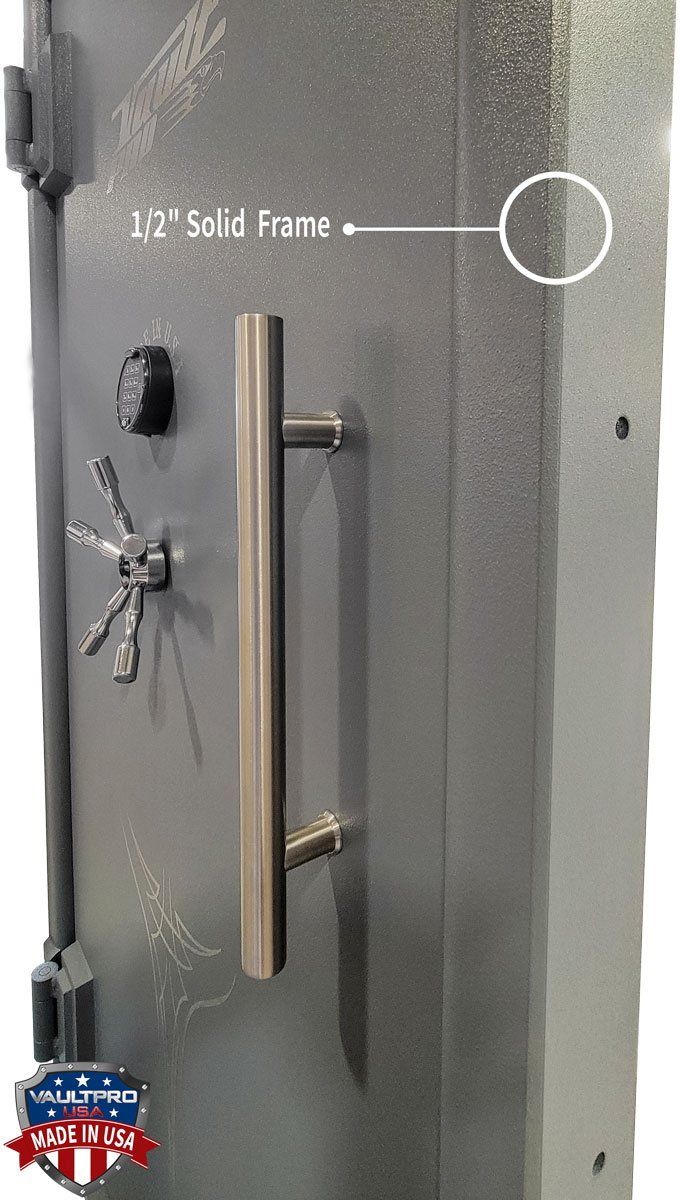

- 1/2" Solid Steel Frame
- 3" Flange
- 4-Way 22-Bolt Locking System
- 4" x 1½" Fully Rotating Locking Bolts
- 6" x 6", Dual Thrust, Dual Radial Bearing, 2000 lb. Heavy Duty Hinges
- Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
- 1" 60+ Rockwell Hard plate
- Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Internal Release

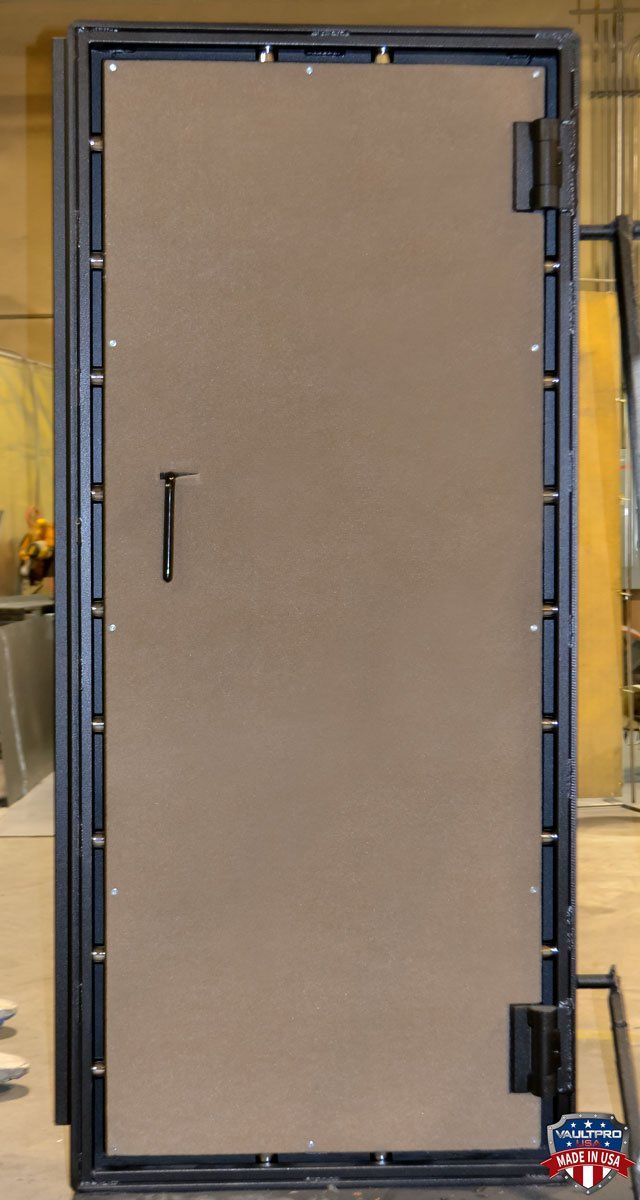

- Carpeted Door Panel
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy - Gloss and Custom Finishes Available - Call: CLICK TO CALL

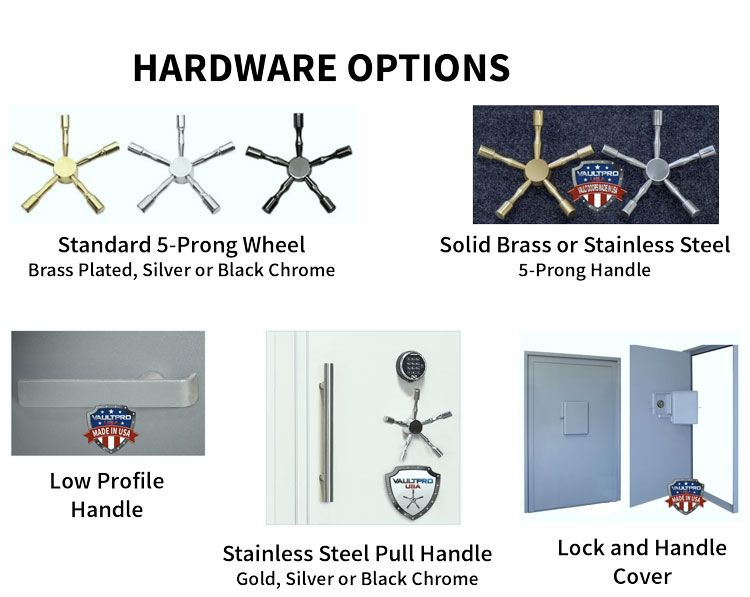

- Choice of Silver, Gold or Black Matching Hardware
- Limited Lifetime Warranty
Titan Series Vault Door Specifications
- Door: 2" Step System Door with 1" Solid Steel Front Plate
- Frame Thickness: 1/2" Solid Steel with 3" Flange
- Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
- Locking Bolt System - 4-Way - Fully Active
- Number of Locking Bolts: 22 - 4" x 1½" Locking Bolts Fully Active Bolts, 18 - Fully Rotating
- Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
- Hard Plate: 1" Solid 60+ Rockwell Hard Plate
- Internal Release: Yes
- Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
- Gloss and Custom Finish Available: Yes
- Hardware: Choice of Silver, Gold or Black Matching Hardware
- Warranty: Limited Lifetime
Titan Series Vault Door Factory Direct Pricing
80" x 30" - 8" to 12"
(frame depth)
Weight: 1,480 lbs.
Clear Thru Space:

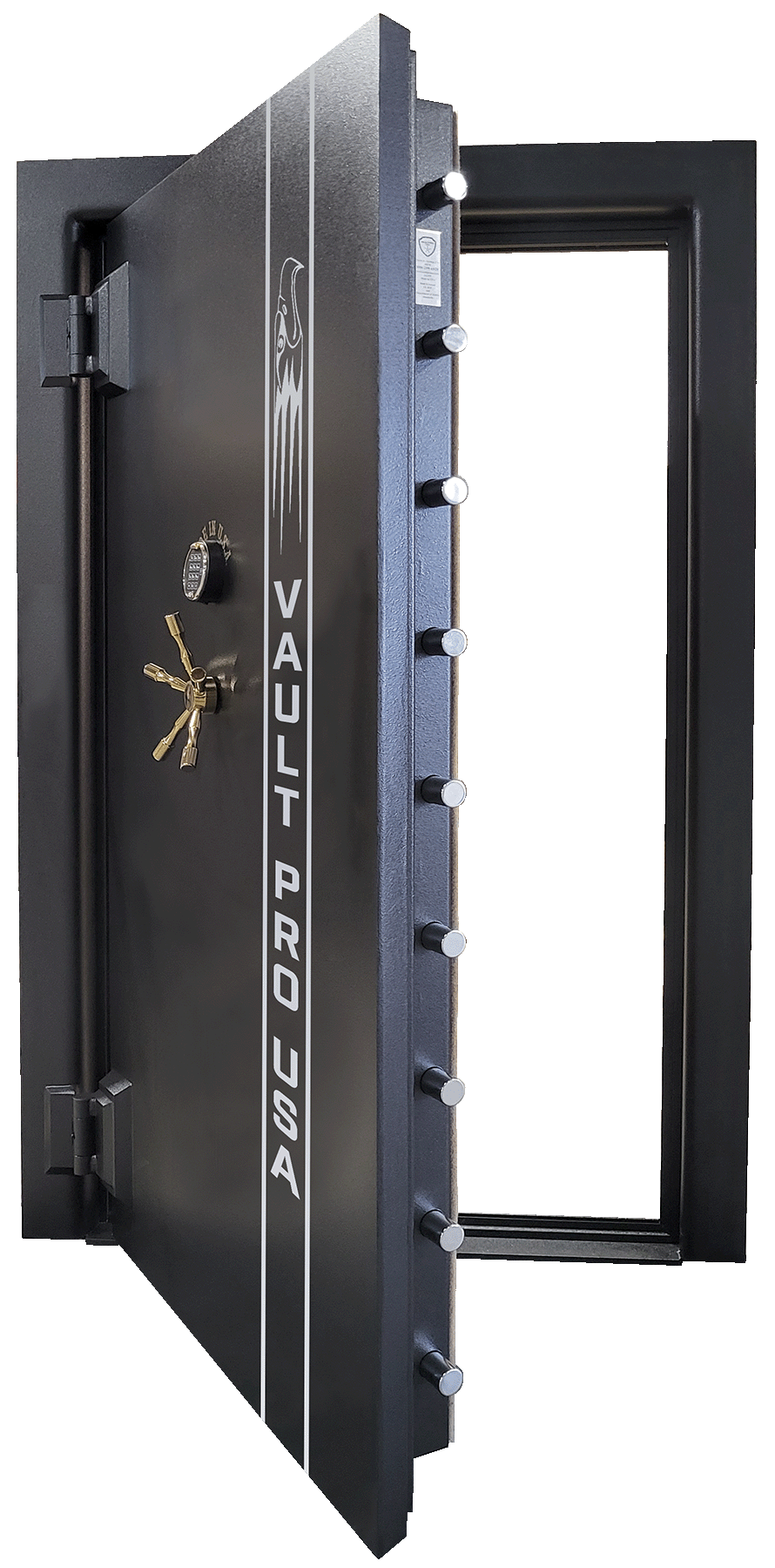

25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$8284
80" x 35" - 8" to 12"
(frame depth)
Weight: 1,790 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$9068
80" x 40" - 8" to 12"
(frame depth)
Weight: 2,010 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$9887
80" x 45" - 8" to 12"
(frame depth)
Weight: 2,900 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing

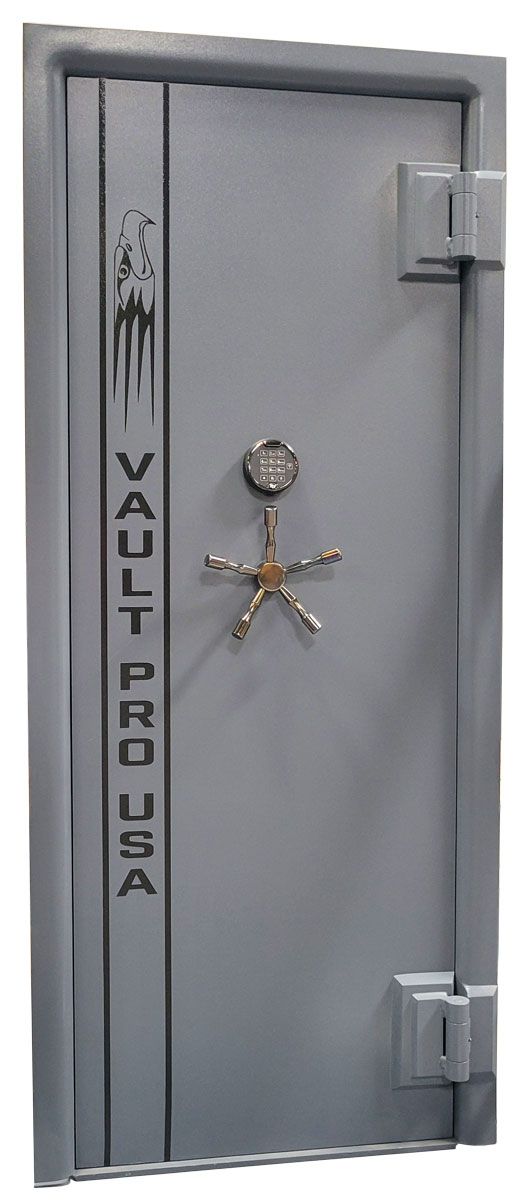

ADA Accessible Vault Door
FACTORY DIRECT PRICE
$10,677
80" x 50" - 8" to 12"
(frame depth)
Weight: 3,765 lbs.
Clear Thru Space:
45" Out-swing
43" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$11,467
Titan XL Series Vault Door Factory Direct Pricing
96" x 30" - 8" to 12"
(frame depth)
Weight: 1,776 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$11,597
96" x 35" - 8" to 12"
(frame depth)
Weight: 2,148 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$12,695
96" x 40" - 8" to 12"
(frame depth)
Weight: 1,245 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$13,841
96" x 45" - 8" to 12"
(frame depth)
Weight: 3,480 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$14,947
96" x 50" - 8" to 12"
(frame depth)
Weight: 4,518 lbs.
Clear Thru Space:
45" Out-swing
43" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$16,053

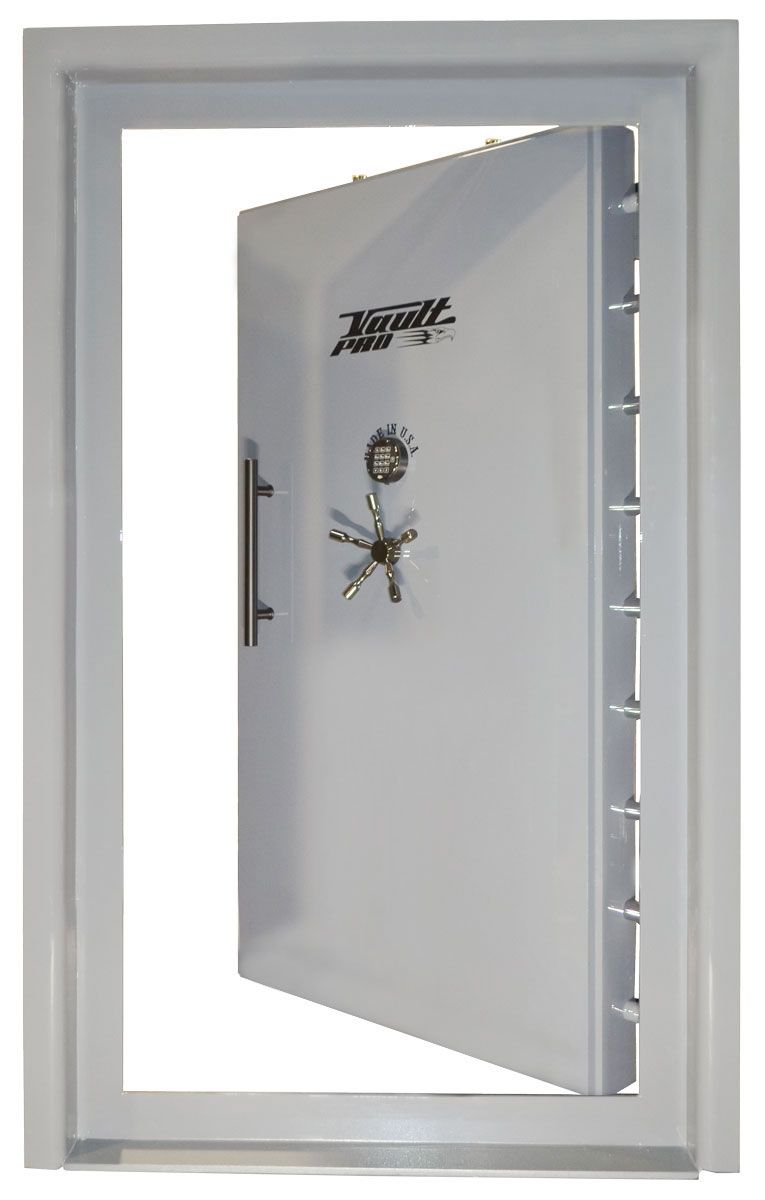

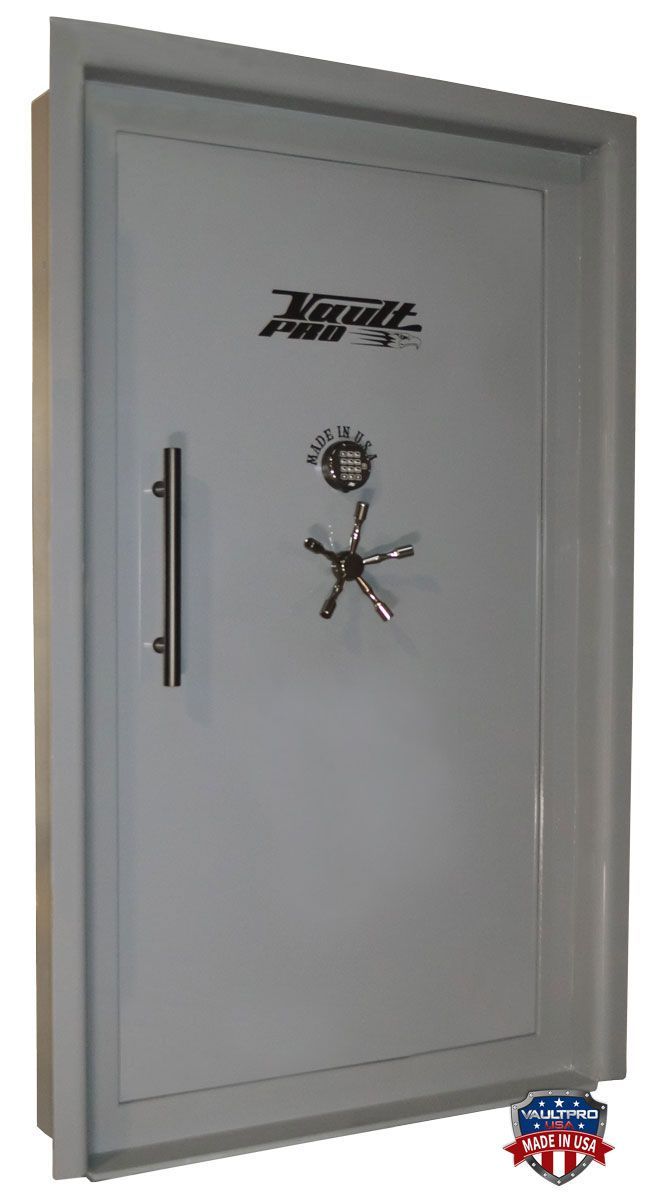

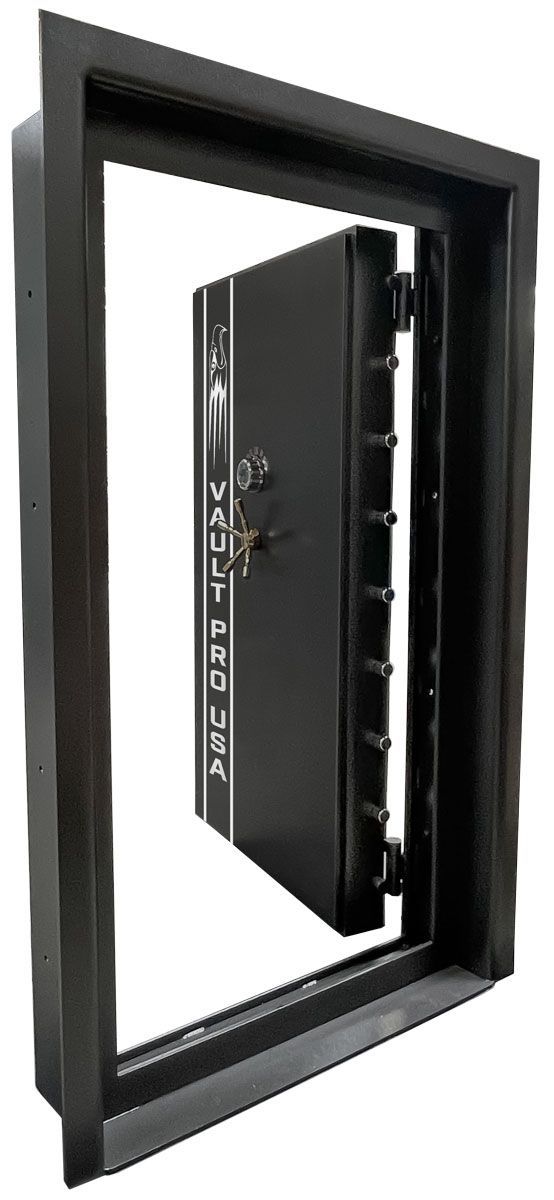

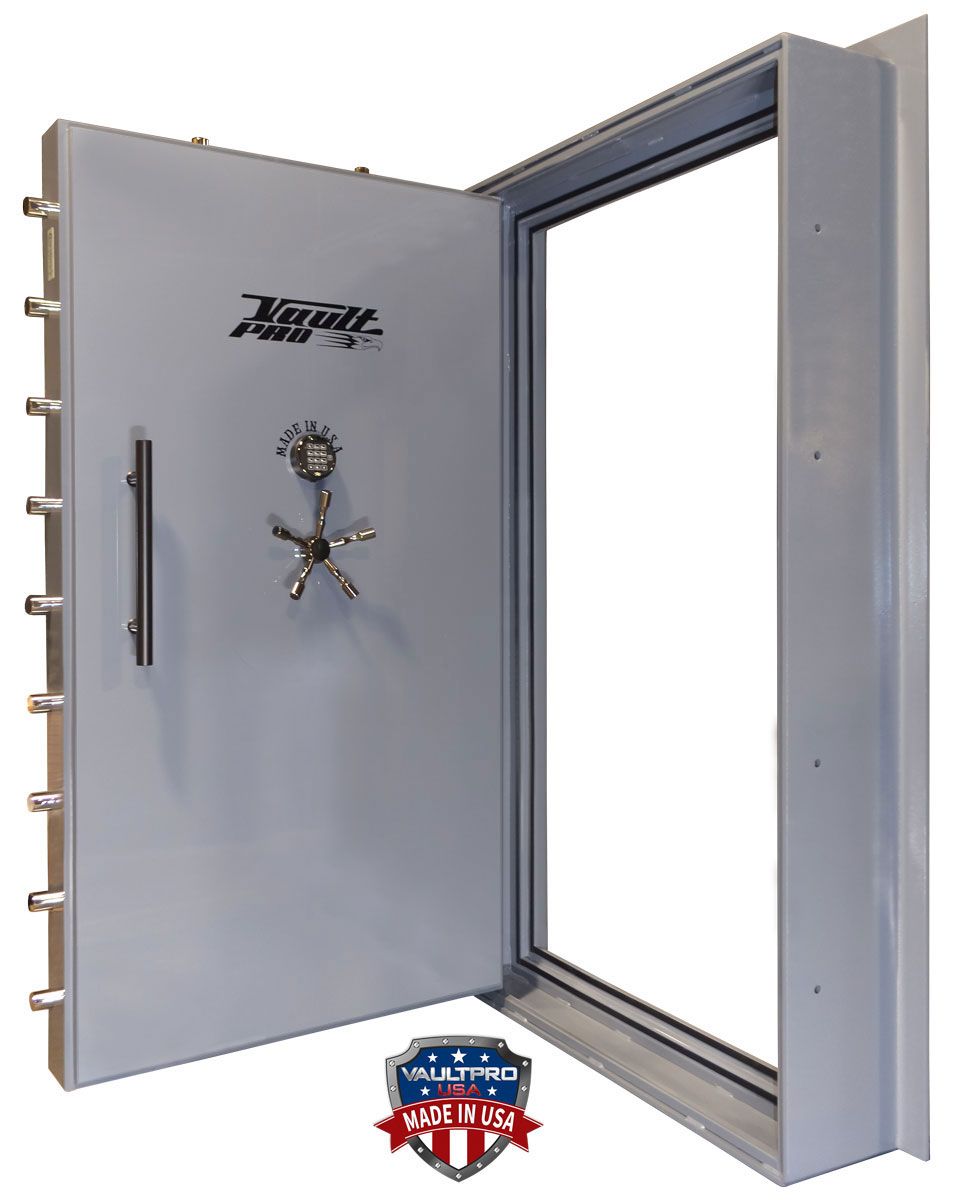

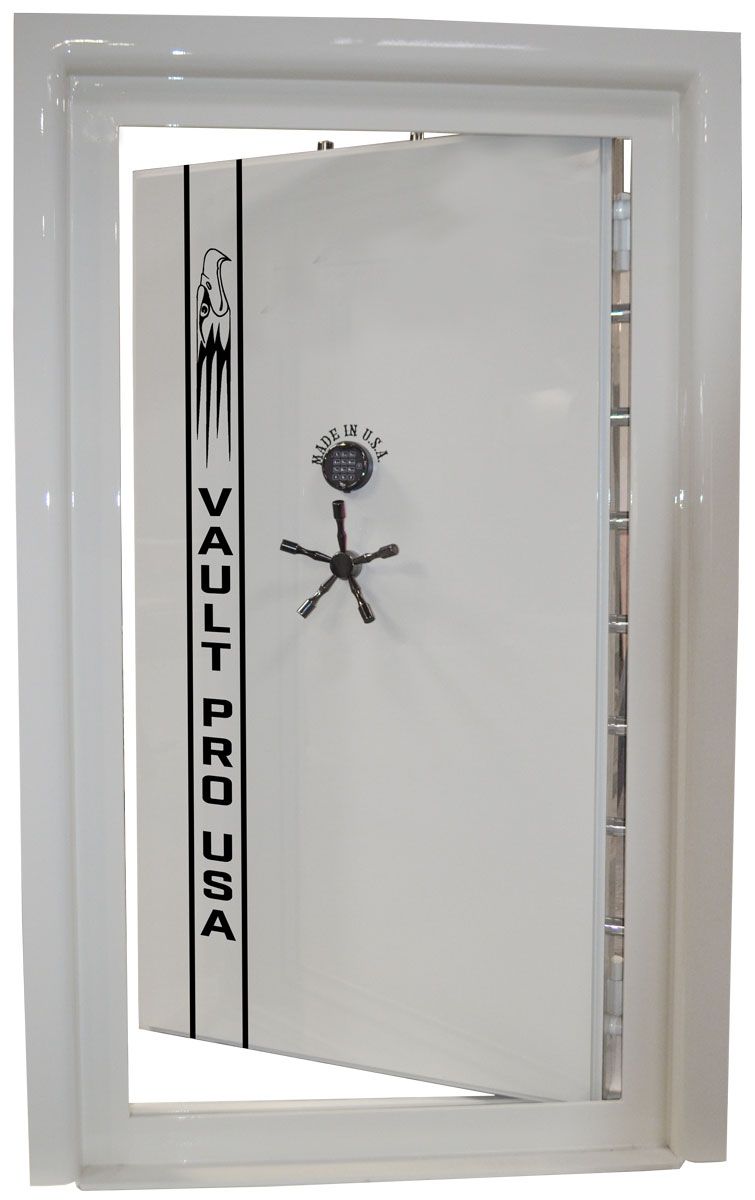

IN-SWING HINGING OPTION (Any Door - Adds up to 300 lbs.) ADD $550
In-Swing frame depth must be 8" or larger
*Door weights may vary due to frame depth, options and finished dimensions as ordered.
Installation Instructions (PDF opens in new tab)

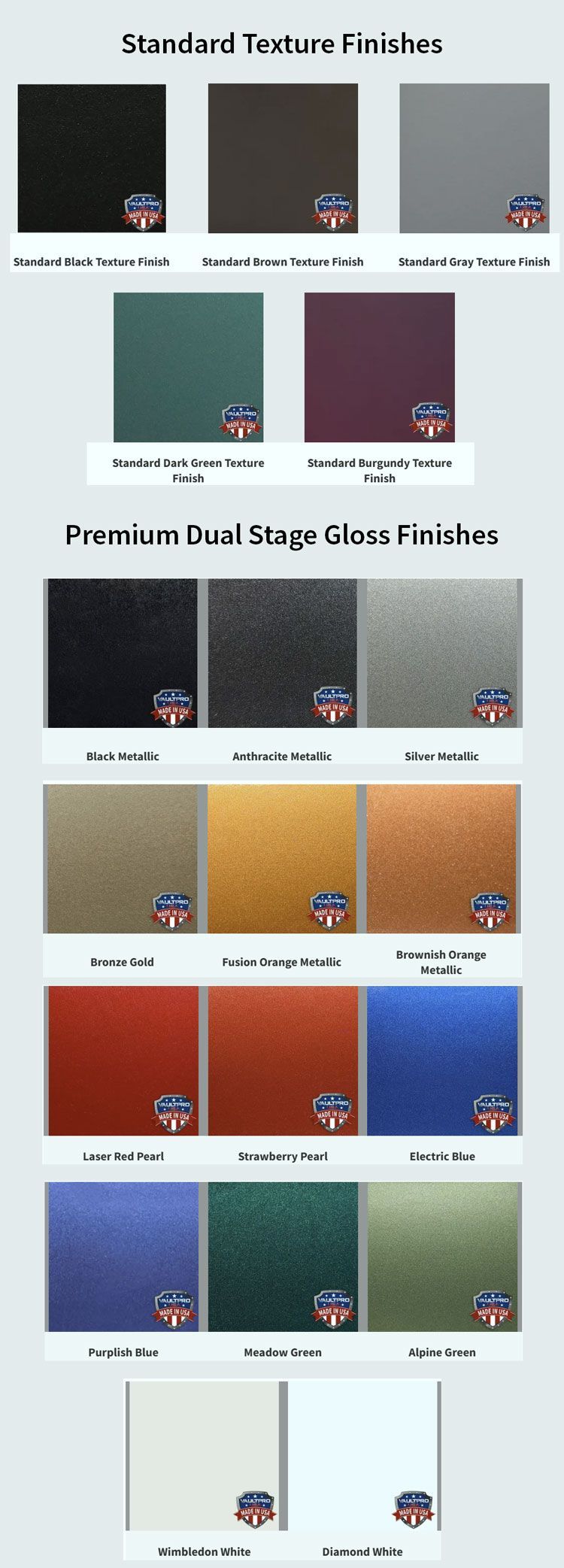

Vault Pro Standard Finishes and Premium Gloss Finishes
Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

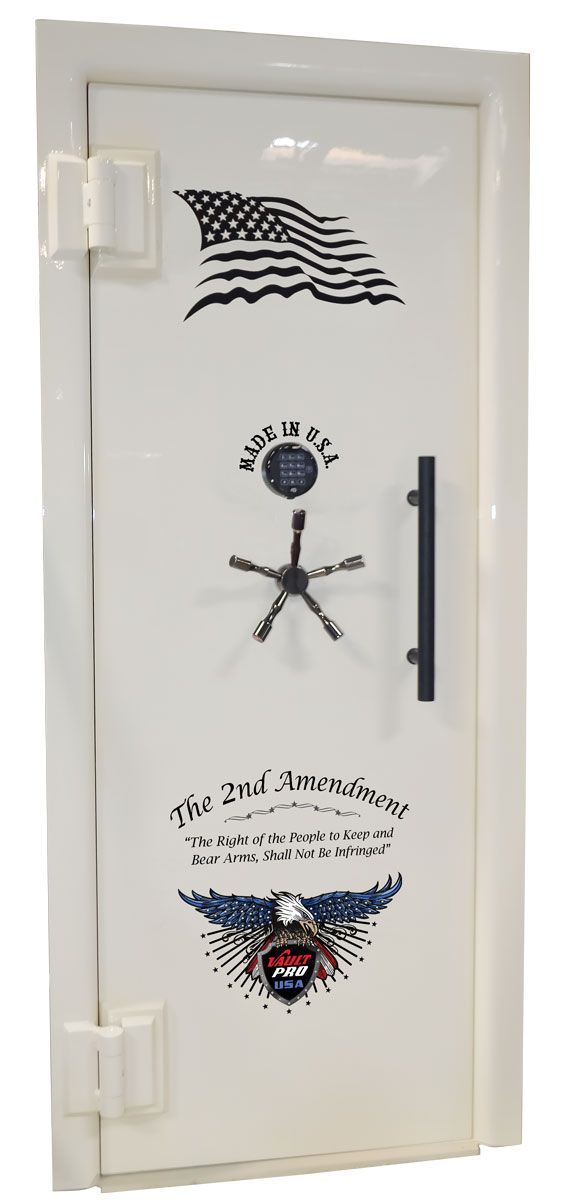

Premium Gloss Finishes
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
Premium Gloss Finish Pricing
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
| Door Size | PREMIUM GLOSS | Laser Pearl Red and Strawberry Red |
|---|---|---|
| 80 x 30 | $742 | $935 |
| 80 x 35 | $798 | $985 |
| 80 x 40 | $979 | $1140 |
| 80 x 45 | $1062 | $1215 |
Additional Premium Colors, Two Tone and Custom Finishes Available
Call one of our Vault Pro's for details and price. Tom Kelly Hand Pin-Striping & Personalization.
