UFC - WEAPONS ISSUE PORT
UFC - Weapons Issue Ports are Engineered and Manufactured in America by Vault Pro USA
Vault Pro has engineered and manufactured the “UFC – Weapons Issue Port” in accordance with the UFC 4-215-01 specifications for use in Military Armories, Military Police Departments, Defense Agencies, DoD Armories, Special Operations Centers, Reserve Training Facilities and Arms Rooms for the secure accommodation and distribution, issuance and the return of weapons and other related arms-controlled items.
Vault Pro’s “UFC – Weapons Issue Ports” are designed for accessibility, antiterrorism, security, High Performance, sustainability and physical security to prevent unauthorized access to equipment, installations, material, and documents; and to safeguard them against espionage, sabotage, damage, and theft.

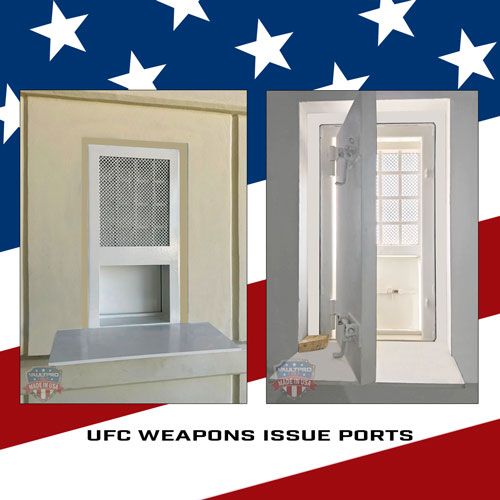

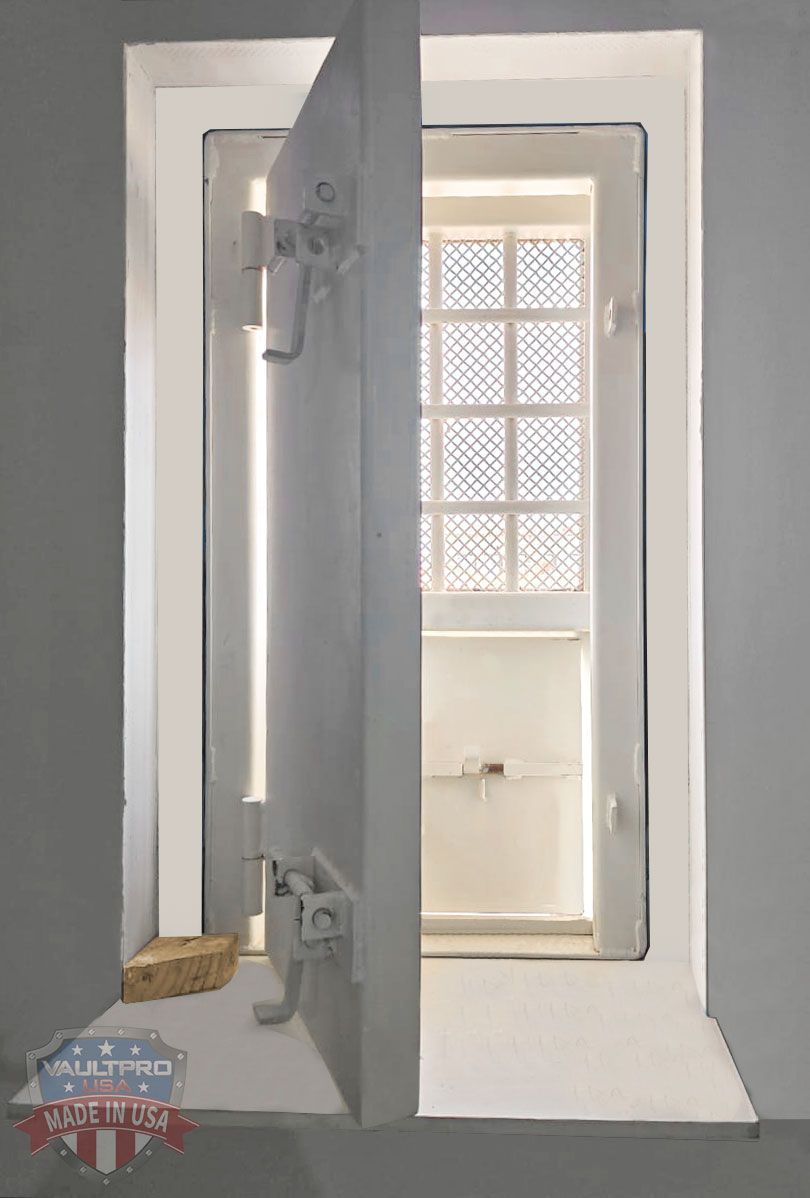

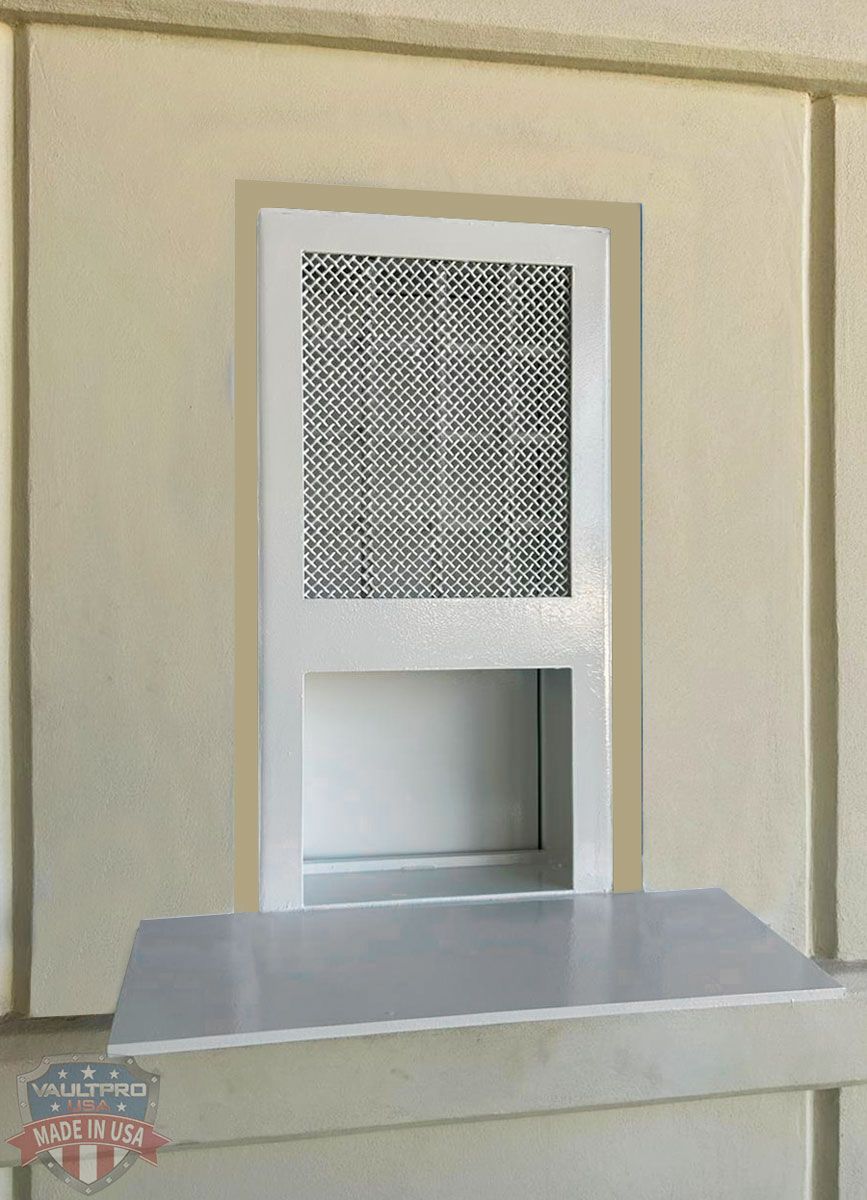

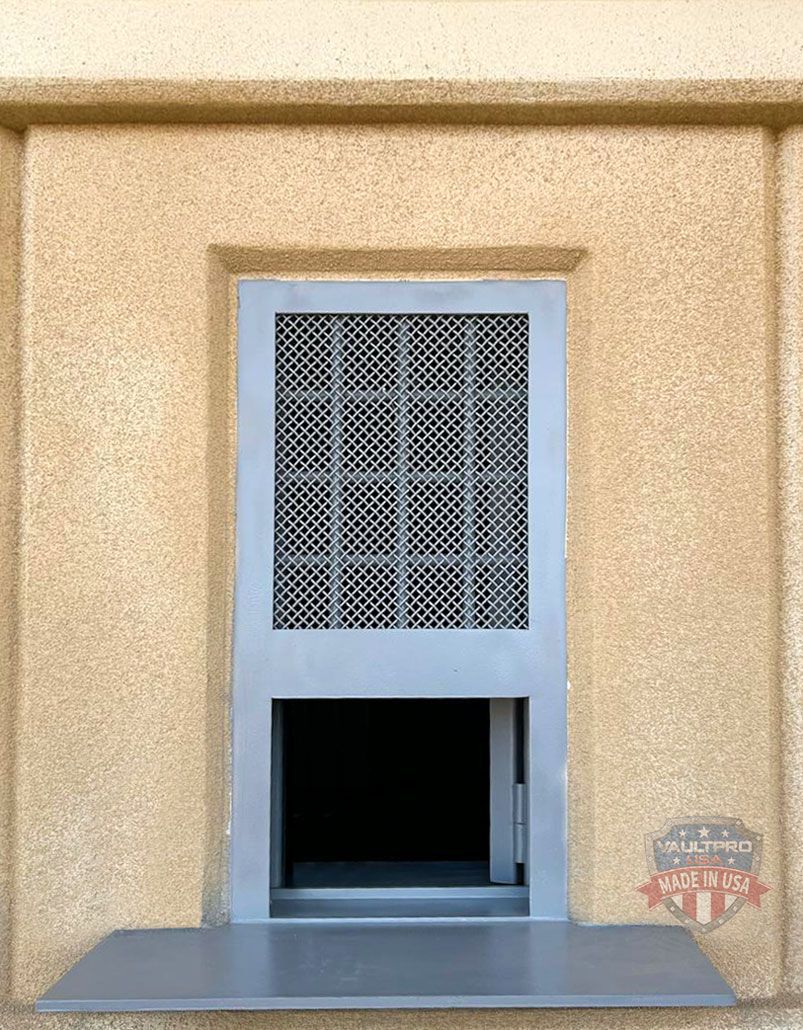

UFC - Weapons Issue Ports - Image Gallery
Click on images to enlarge.
Issue Port size is regulated by Physical Security requirements. For the Navy and Marines, OPNAVINST 5530.13C and MCO 5530.14A require openings “not to exceed 190 in-sq when open; and when not in use will be secured with material comparable to that forming the adjacent walls.
- 100% Engineered and manufactured in the U.S.A. by Vault Pro, USA.
- Bolt in and Anchor in designs for easy installation.

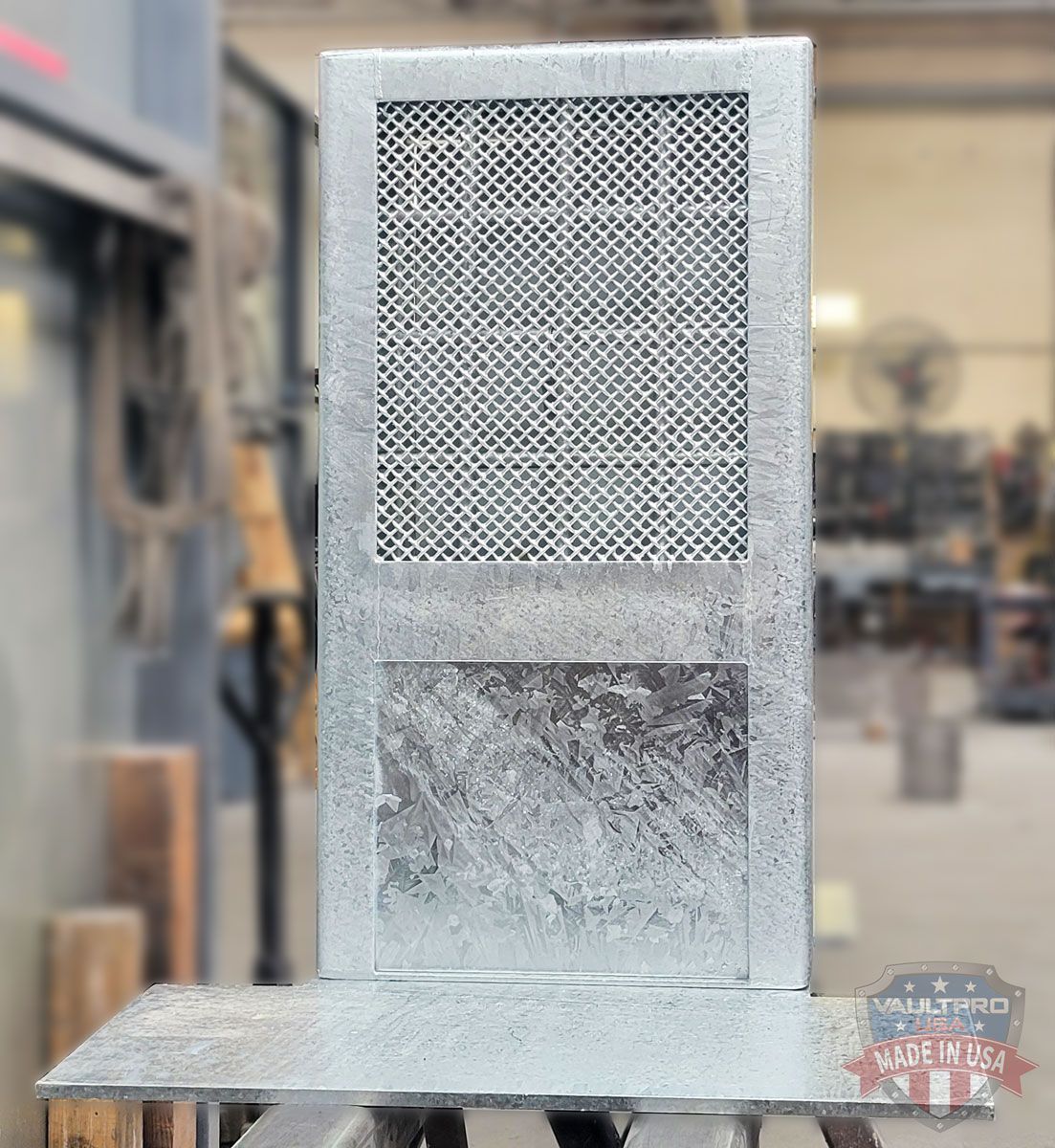

- Diamond Metal Mesh Viewing Window with Steel Bar Reinforcements.
- Maximum opening is 190 square inches (15” x 12.5” = 187.5 sq in).
- Steel: 3-gauge (1/4”) Galvanized steel frame construction.
- ¾” DIA Smooth Bars equally spaced, weld to frame, extended 1-1/2” frame
- Steel: ½” Sil Plate Working Surface inside and out.
- Steel Composite Door includes 3ea. layers of 10-gauge Steel & 2ea. layers of ¾” Plywood for ballistic resistance.

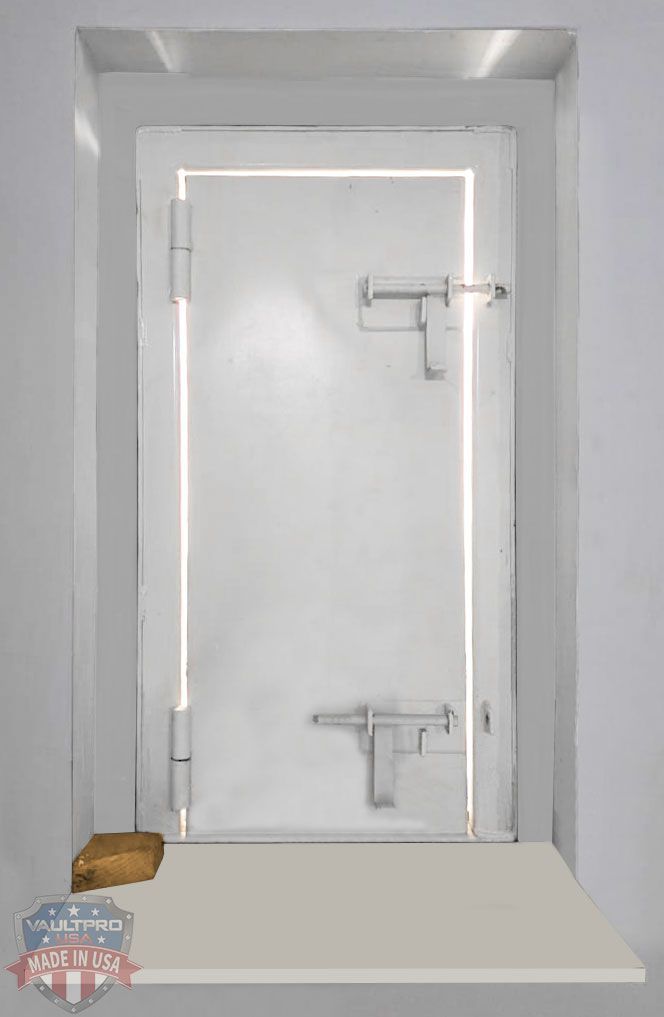

- Dual Deployable Stainless Steel Slide Hasp Locks ½” diameter x 7-1/2” length throw bolt with 1-1/2” throw (inside locking only)
- Heavy Duty Ball Bearing Hinges with Hardened Hinge Pin.
- Removable 10-gauge Galvanized Steel Hatch Provide with pull handle & stainless steel surface slide bar latches – one each side
- Finish: Galvanized Coating with Commercial Grade Gray or White Texture Finish

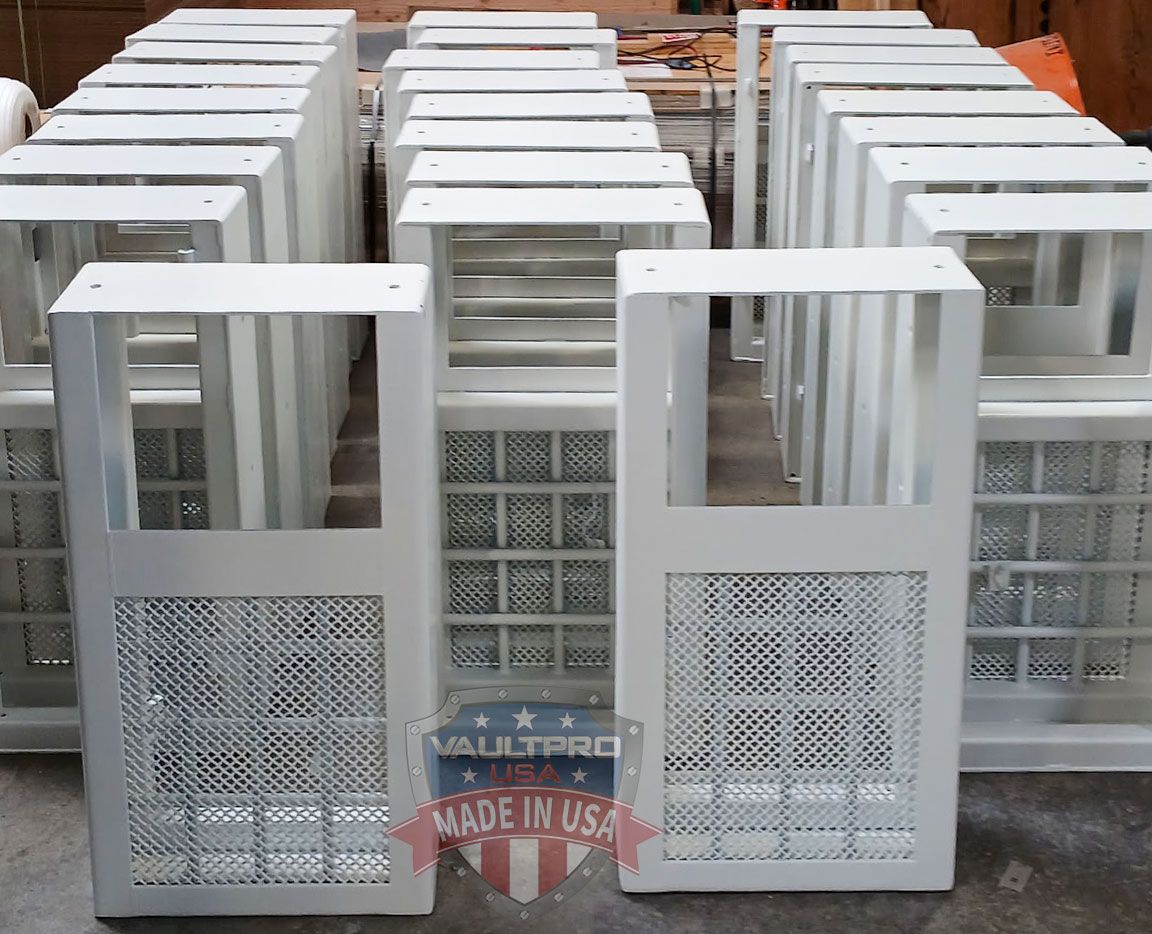

- Can be Primed for paint finish after install.
- Warranty Five Years
FACTORY DIRECT PRICE
$8399

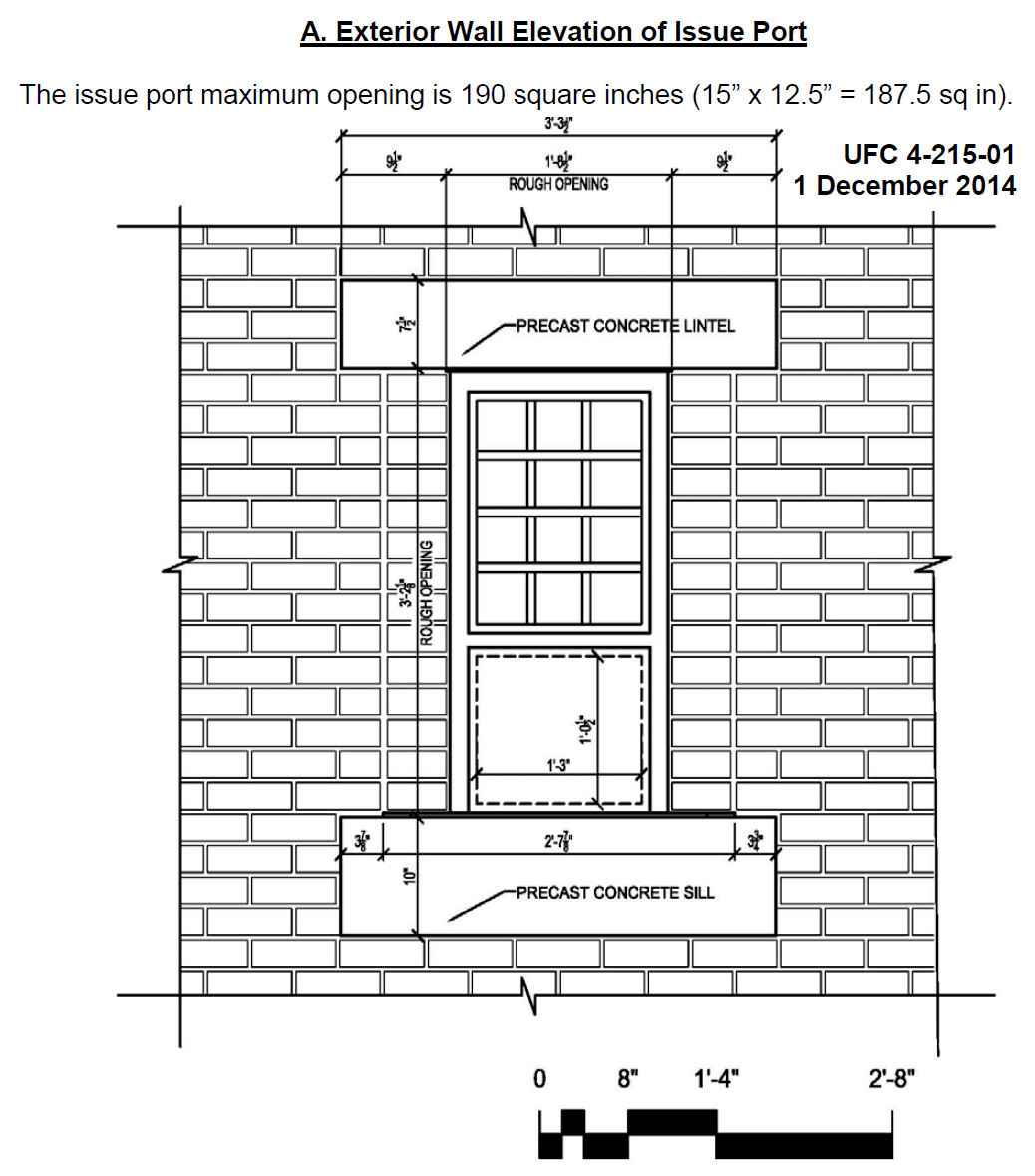

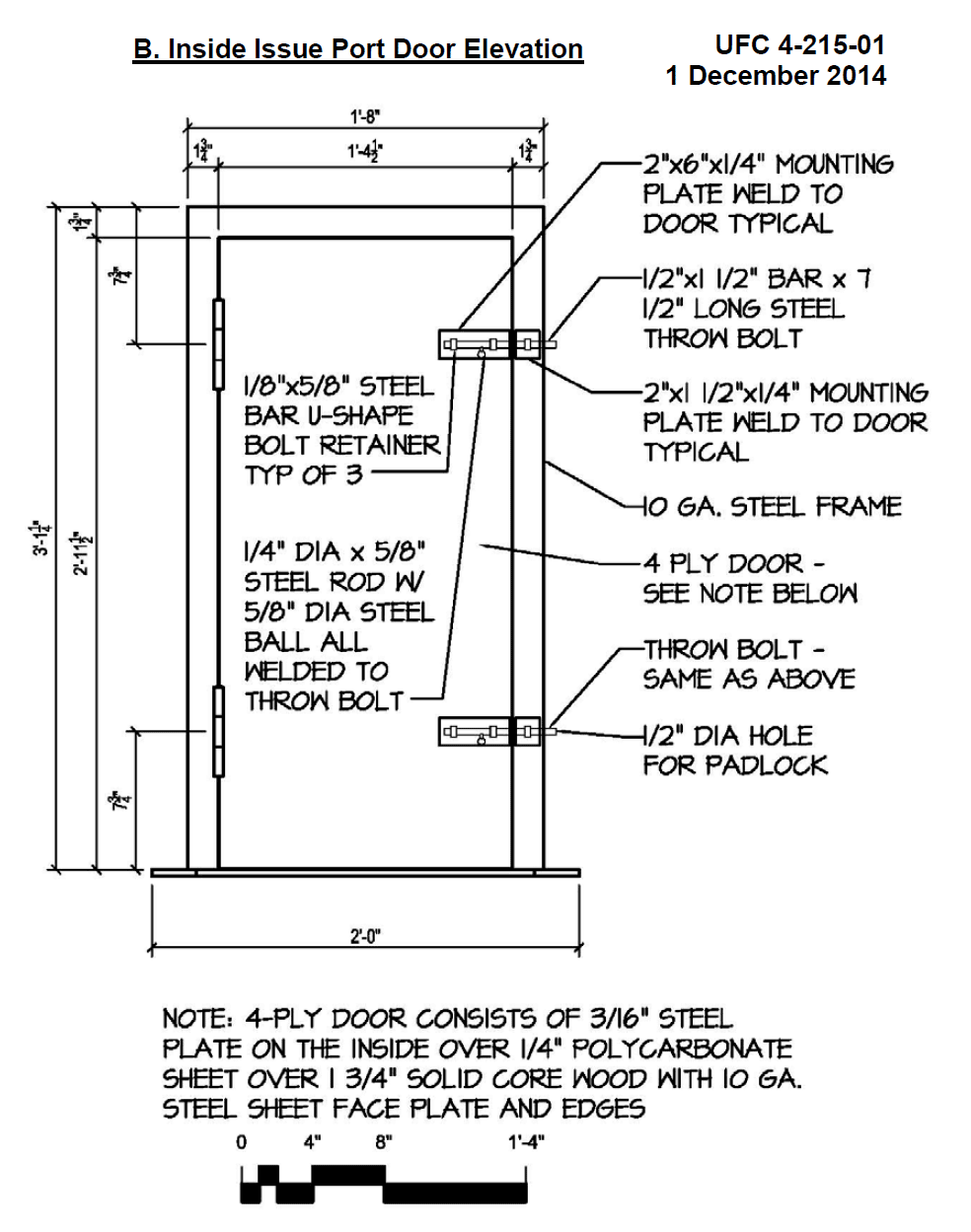

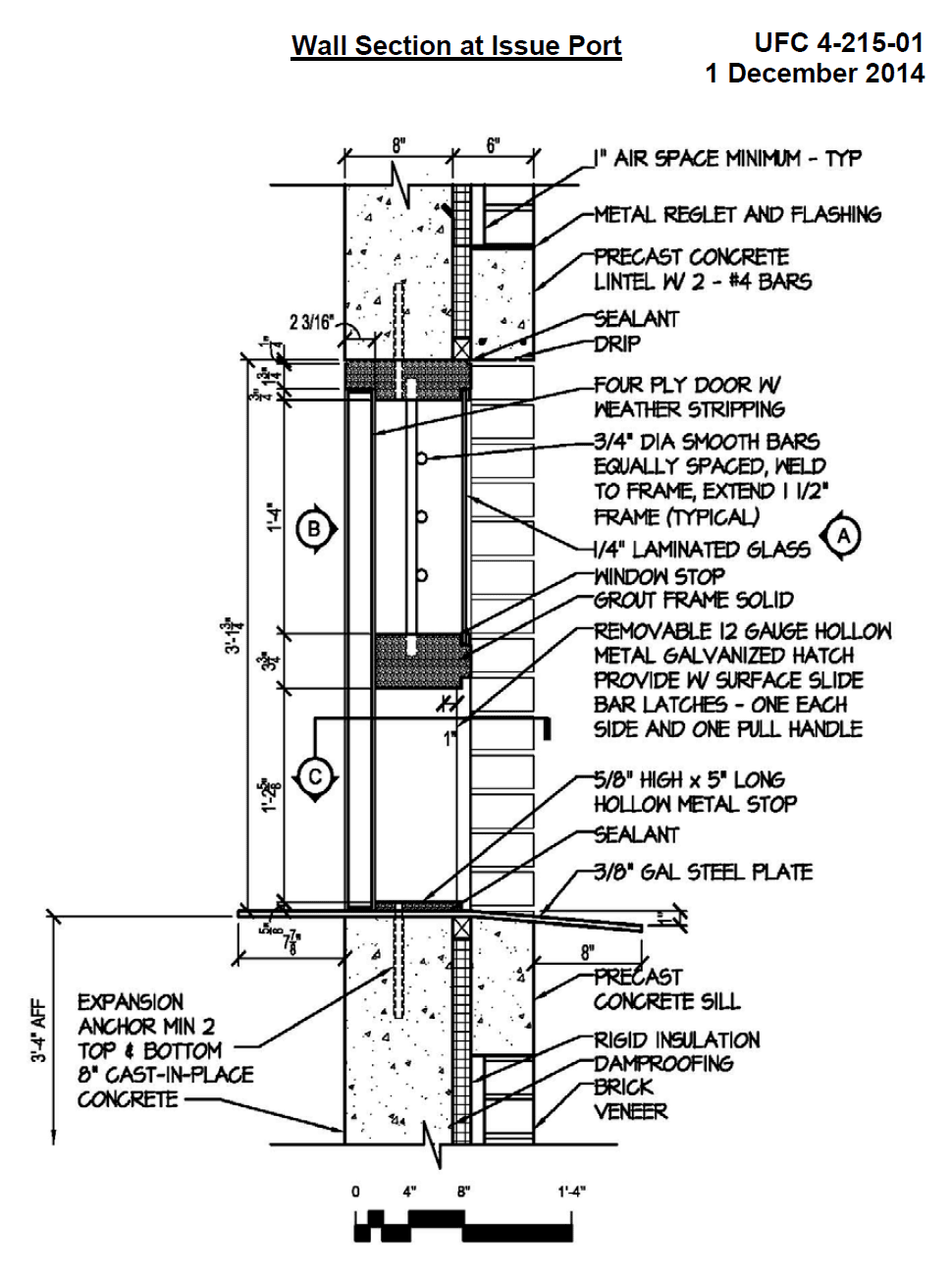

The drawings below are a preferred design for an issue port. All steel materials for the issue port must be hot-dip galvanized.
Click on images to enlarge.
Unified Facilities Criteria (UFC)
Armories and Arms Rooms - UFC 4-215-01
For more information and a free quote including shipping please call us directly at: 800-299-6929
