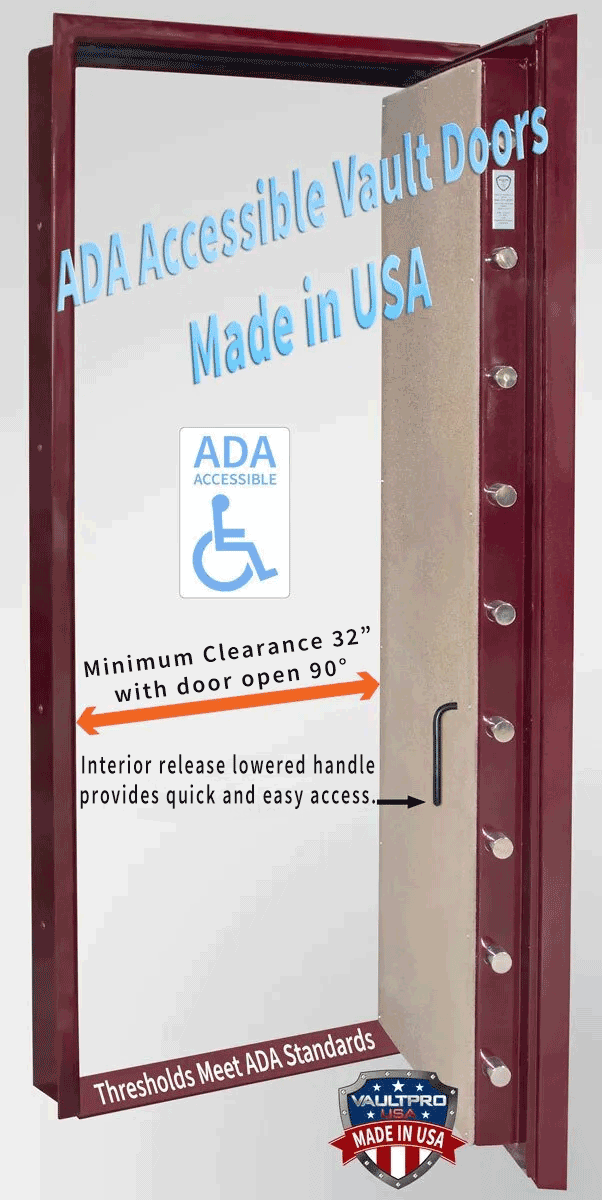

Our new 45” standard size doors can all be built to ADA (Americans with Disability Act) standards by providing a walk thru clearance of at least 32” width with the door open at 90°, and will have no more than ¼” vertical raise in the threshold, with the exception of the Titan Series Door which has a ½” frame & threshold. In the case of the Titan Door, the ½” threshold will be beveled above the bottom ¼” to comply with ADA standards. At the time of order, you must state that you want the ADA specifications built into any and all step system doors, due to the fact that there cannot be a step system feature built into the frame at the threshold…it must be flat to accommodate wheel chairs. All handles used to open or operate ADA regulation doors will be below 48” in height and operate with less than 5 lbs. of force. ADA regulation doors can also be ordered with the lock and handle positioned at a lower height if desired at no additional charge (must be specified at time of order). Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy.

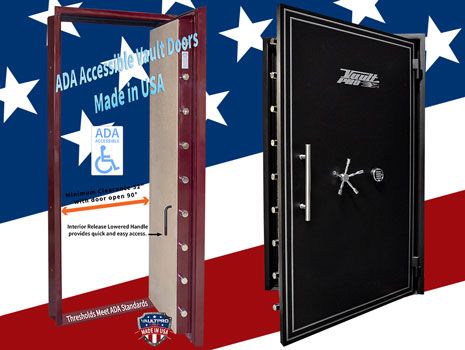

ADA Accessible Vault Doors
Built to Americans with Disability Act Standards for Accessibility. Ideal for Commercial, Government and Residential Security Vault Door Installation.
Built to Americans with Disability Act Standards for Accessibility. Ideal for Commercial, Government and Residential Security Vault Door Installation.
Free Expert Advice - Call One of Our Vault Pro's
ADA Accessible Vault Doors
ADA Accessible Vault Doors
Available in Inswing or Outswing versions.
Click image to enlarge.

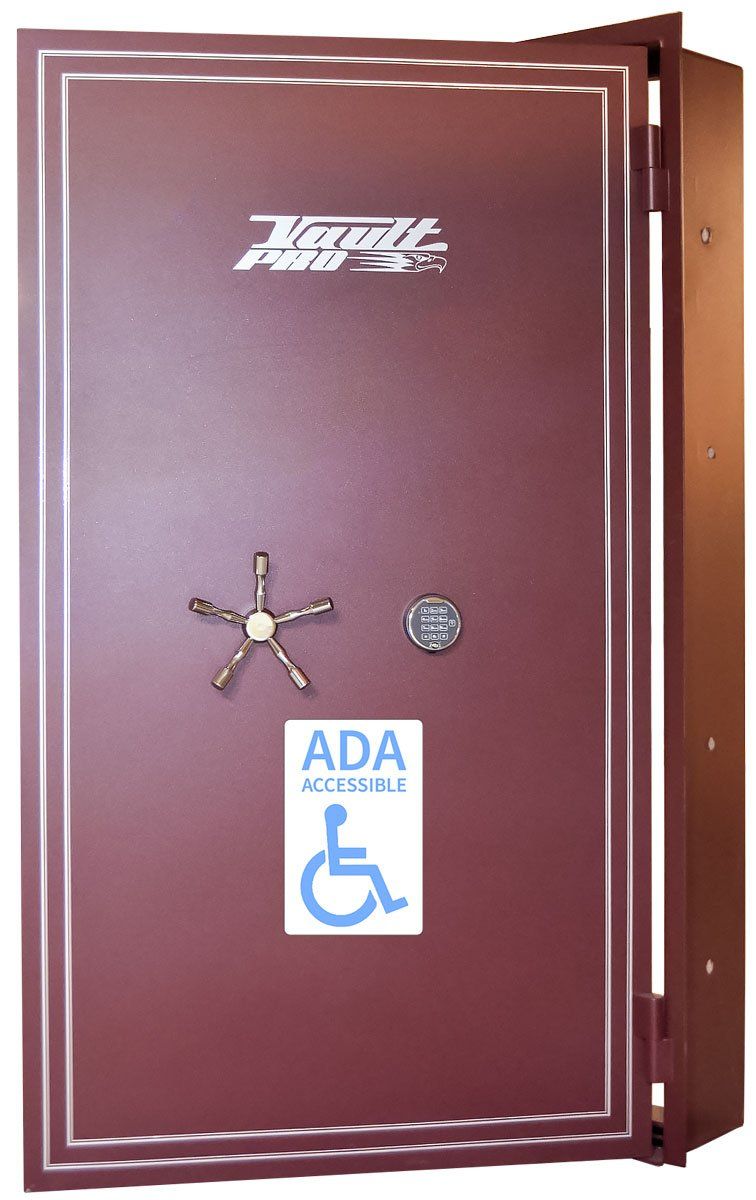

Any Vault Pro vault door model can be ordered to meet ADA specifications. Shown here in Burgundy red. For more information call us.

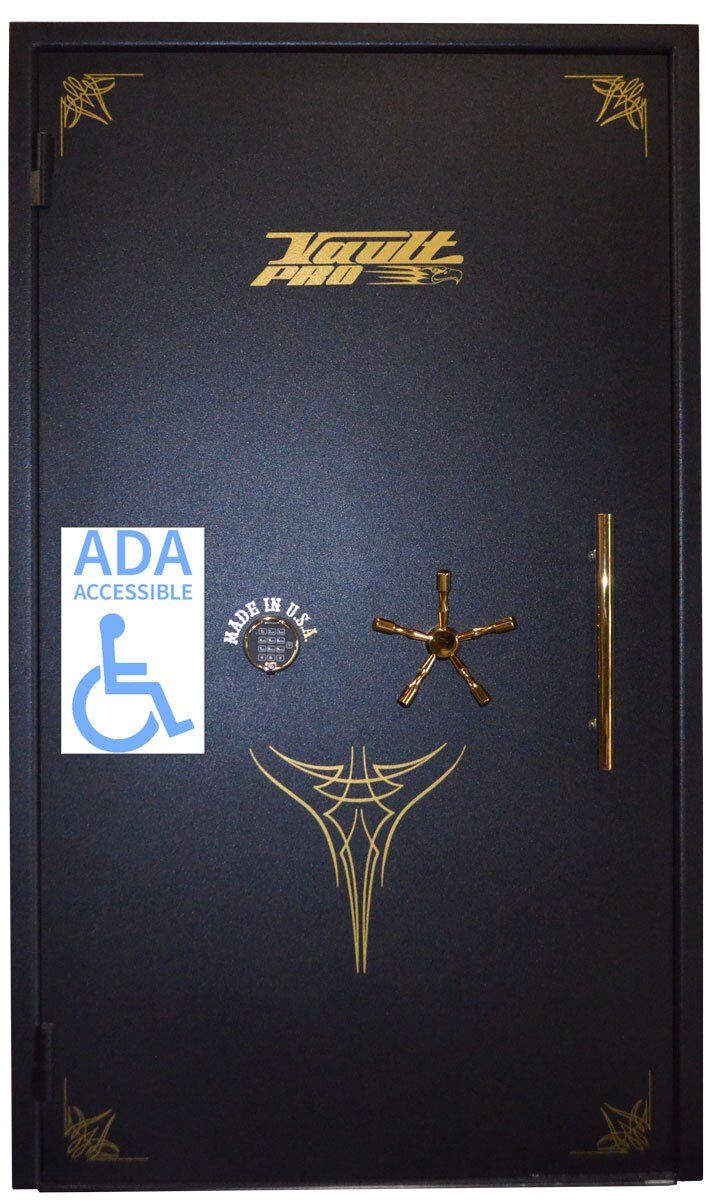

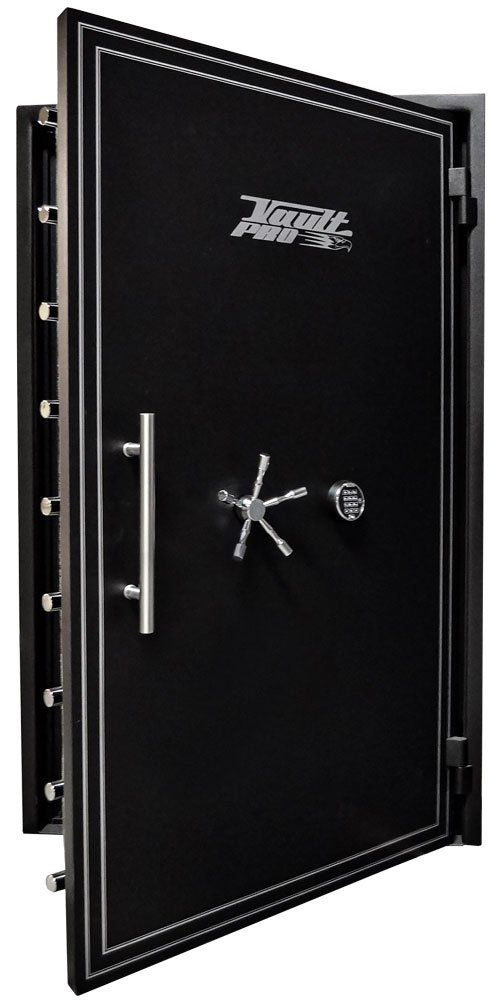

ADA Compliant Security Vault Door with low profile digital lock and handle. Low threshold is wheel chair accessible.

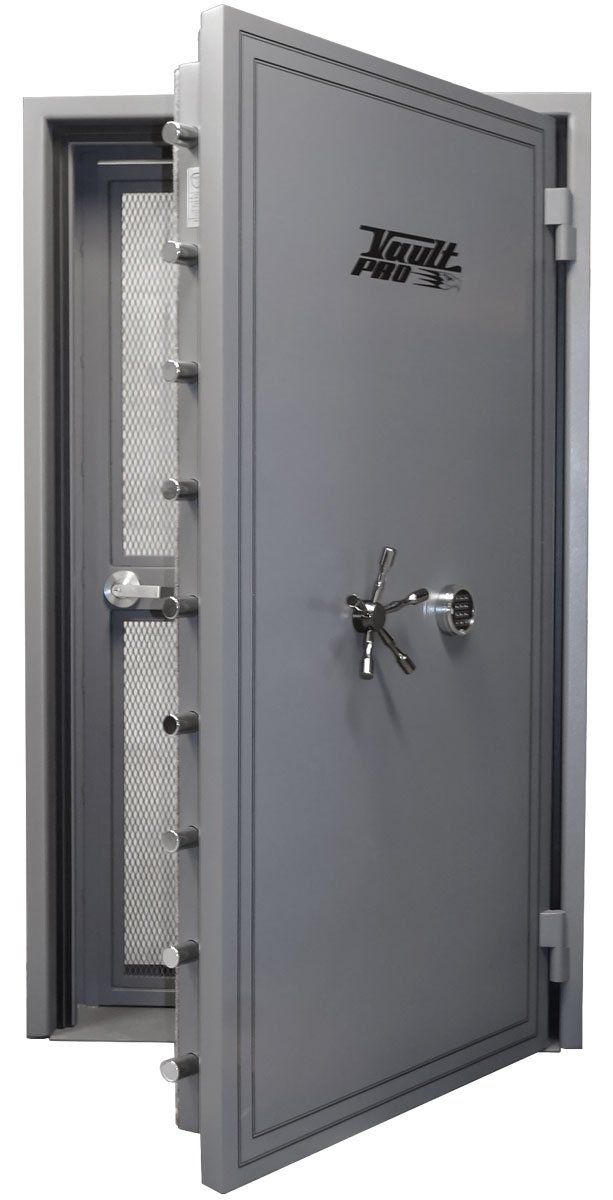

ADA Vault Door with Day Gate. Features low profile digital lock and handle. Low threshold door and day gate door fully ADA compliant.
Professional Series Vault Door
80" x 45" - 5" to 8"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$4654
IN-SWING HINGING OPTION
(Any Door - Adds up to 100 lbs.) ADD $320
In-Swing frame depth must be 6" or larger
Executive Series Vault Door
80" x 45" - 6" to 10"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$5001
IN-SWING HINGING OPTION
(Any Door - Adds up to 100 lbs.) ADD $320
In-Swing frame depth must be 6" or larger
Elite Series Vault Door
80" x 45" - 6" to 10"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$6038
IN-SWING HINGING OPTION
(Any Door - Adds up to 200 lbs.) ADD $420
In-Swing frame depth must be 6½" or larger
Atlas Series Vault Door
80" x 45" - 6" to 12"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$8204
IN-SWING HINGING OPTION
(Any Door - Adds up to 200 lbs.) ADD $420
In-Swing frame depth must be 6½" or larger
Titan Series Vault Door
80" x 45" - 8" to 12"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$10,267
IN-SWING HINGING OPTION
(Any Door - Adds up to 300 lbs.) ADD $550
In-Swing frame depth must be 7½" or larger
