Atlas Vault Doors are equipped with a comprehensive range of security and safety features that most other vault door manufacturers aspire to achieve. Each Atlas door boasts a robust ½” solid steel front plate within the 2” step system, meticulously hand-fitted to a sturdy ¼” solid steel frame. The door incorporates a 4-Way - 22 bolt locking system along with an internal release mechanism. A ¾" thick, 60+ Rockwell Hard plate safeguards your S&G Spy-Proof Lock complete with a Locking Dial, protecting it from drilling attacks. Additionally, a 3 + 1 Titan Multi Re-locker system provides enhanced defense against punch attacks. The 2300° Ceramic Fire Blanket ensures more than 2 hours of fire protection. Choose from our range of popular standard colors or design your own custom door with gloss paint, bespoke finishes, and hand pinstripes.
High Fire and Security Protection Vault Door - Engineered to Exceed all ICC-500 and FEMA 320 & 361 Recommended Standards for Use in Storm & Tornado Shelters.
Atlas Series Heavy Duty Vault Doors
Click image to enlarge

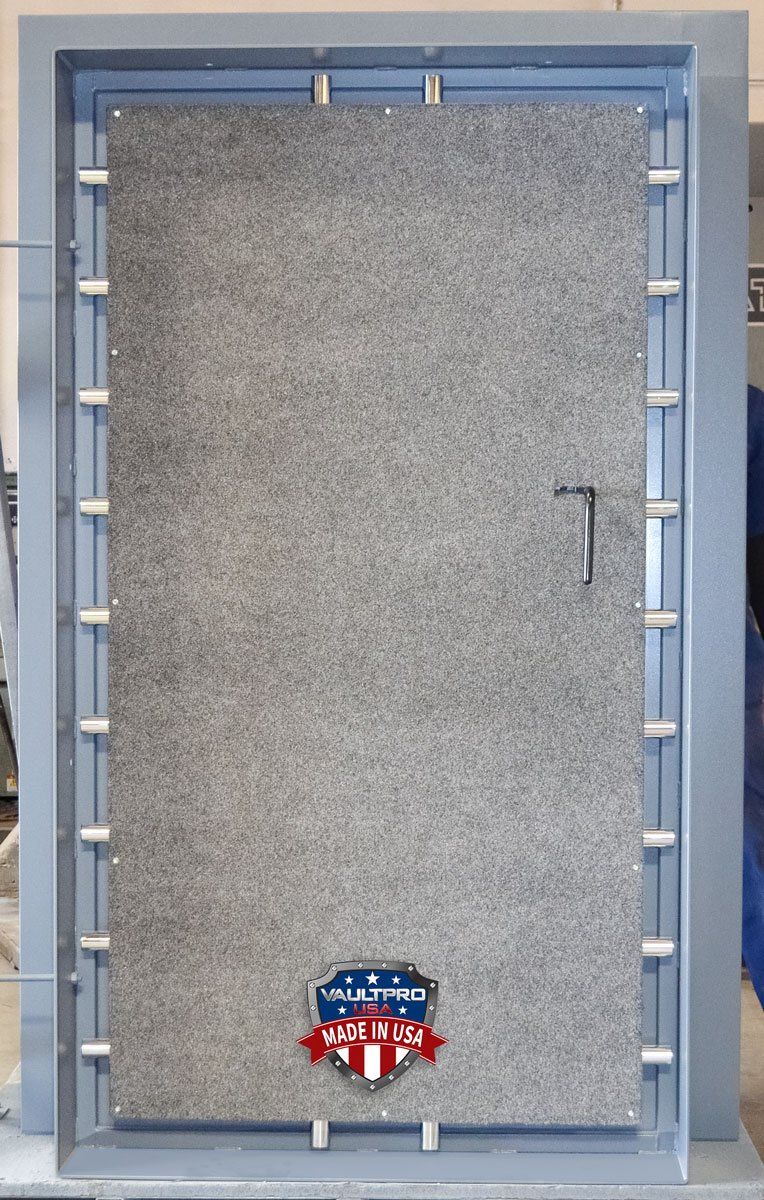

4-Way 22-Bolt Locking System Vault Doors
CALL FOR FREE QUOTE
Vault Door Model Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |
| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |
1/2" Solid Steel Frame | 1/2" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |
| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |
| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |
| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8") |
$3,154 | $3,832 | $4,711 | $6,503 | $8,284 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8") |
$3,731 | $4,244 | $5,241 | $7,164 | $9,068 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8") |
$4,286 | $4,775 | $5,773 | $7,765 | $9,887 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8") |
$4,840 | $5,200 | $6,279 | $8,532 | $10,677 | Min. Size 7'x5' Call for Free Quote |
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
Heavy Duty Vault Doors Factory Direct
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's
Click images to enlarge.
City skyline

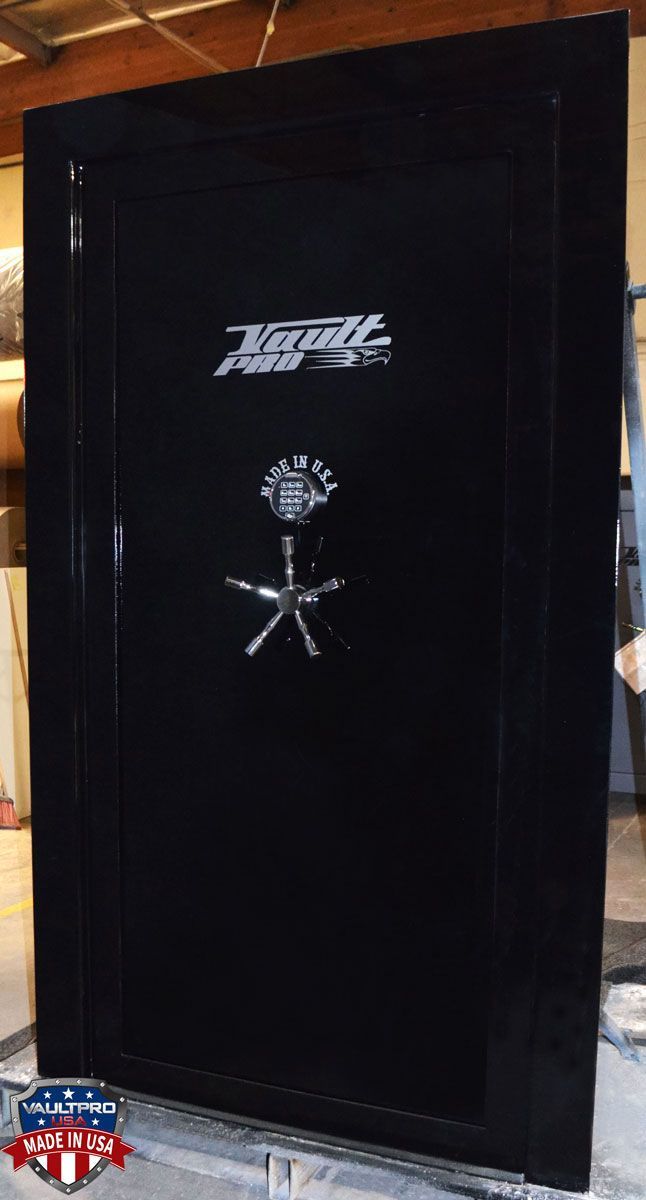

Big Vault Door - Atlas model in gloss black finish. 4-Way Fully Rotating Locking Bolts and Step-System Door Standard on Atlas Series Vault Doors
Atlas Series Standard Features
- 1/2" Solid Steel Front Plate
- 2" Step-System Door - Overall Door Thickness 6¼”
- 2 Hour Fire Door - 2300° Ceramic Fire Blanket
- Dual Palusol® Gaskets (Double Seals Door in Fire)
- 1/4" Solid Steel Frame
- 4-Way 22-Bolt Locking System
- 4" x 1½" Fully Rotating Locking Bolts
- Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
- Adjustable Ball Bearing Hinges
- 3/4" 60+ Rockwell Hard plate
- Internal Release
- Carpeted Door Panel
- Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy - Gloss and Custom Finishes Available - Call: CLICK TO CALL
- Choice of Silver, Gold or Black Matching Hardware
Atlas Series Vault Door Specifications
- Door: 2" Step System Door with 1/2" Solid Steel Front Plate
- Frame Thickness: 1/4" Solid Steel
- Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
- Locking Bolt System - 4-Way - Fully Active
- Number of Locking Bolts: 22 - 4" x 1½" Locking Bolts Fully Active Bolts, 18 - Fully Rotating
- Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
- Hard Plate: 3/4" Solid 60+ Rockwell Hard Plate
- Internal Release: Yes
- Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
- Gloss and Custom Finish Available: Yes
- Hardware: Choice of Silver, Gold or Black Matching Hardware
- Warranty: Limited Lifetime
Atlas Series Vault Door Factory Direct Pricing
80" x 30" - 6" to 12"
(frame depth)
Weight: 1,065 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$6503
80" x 35" - 6" to 12"
(frame depth)
Weight: 1,375 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$7164
80" x 40" - 6" to 12"
(frame depth)
Weight: 1,775 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$7765
80" x 45" - 6" to 12"
(frame depth)
Weight: 2,195 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$8532
80" x 50" - 6" to 12"
(frame depth)
Weight: 1,575 lbs.
Clear Thru Space:
45" Out-swing
43" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$9217
Atlas XL Series Vault Door Factory Direct Pricing
96" x 30" - 6" to 12"
(frame depth)
Weight: 1,275 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$9104
96" x 35" - 6" to 12"
(frame depth)
Weight: 1,650 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$10,029
96" x 40" - 6" to 12"
(frame depth)
Weight: 2,130 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$10,871
96" x 45" - 6" to 12"
(frame depth)
Weight: 2,635 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$11,944
96" x 50" - 6" to 12"
(frame depth)
Weight: 3,150 lbs.
Clear Thru Space:
45" Out-swing
43" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$12,903.80
IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.) ADD $420
In-Swing frame depth must be 6½" or larger
*Door weights may vary due to frame depth, options and finished dimensions as ordered.
Installation Instructions (PDF opens in new tab)
Vault Pro Standard Finishes and Premium Gloss Finishes
Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.
Premium Gloss Finishes
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
Premium Gloss Finish Pricing
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
| Door Size | PREMIUM GLOSS | Laser Pearl Red and Strawberry Red |
|---|---|---|
| 80 x 30 | $742 | $935 |
| 80 x 35 | $798 | $985 |
| 80 x 40 | $979 | $1140 |
| 80 x 45 | $1062 | $1215 |
Additional Premium Colors, Two Tone and Custom Finishes Available
Call one of our Vault Pro's for details and price. Tom Kelly Hand Pin-Striping & Personalization.
