day gates and issue ports for vault doors made in USA by Vault Pro USA

Day Gates and Issue Ports
for Military, Government, Retail Businesses and Commercial Enterprises that Require Visual Security for Securely Handling Firearms, Money and Other Items in a Protected Pass Through Environment.

Day Gates and Issue Ports
For Military, Government, Retail Businesses and Commercial Enterprises that Require Visual Security for Securely Handling Firearms, Money and Other Items in a Protected Pass Through Environment.

Vault Doors and Safe Room doors made in USA

Day Gates and Issue Ports for Secure Pass Thru

Factory Direct Sales and Delivery!

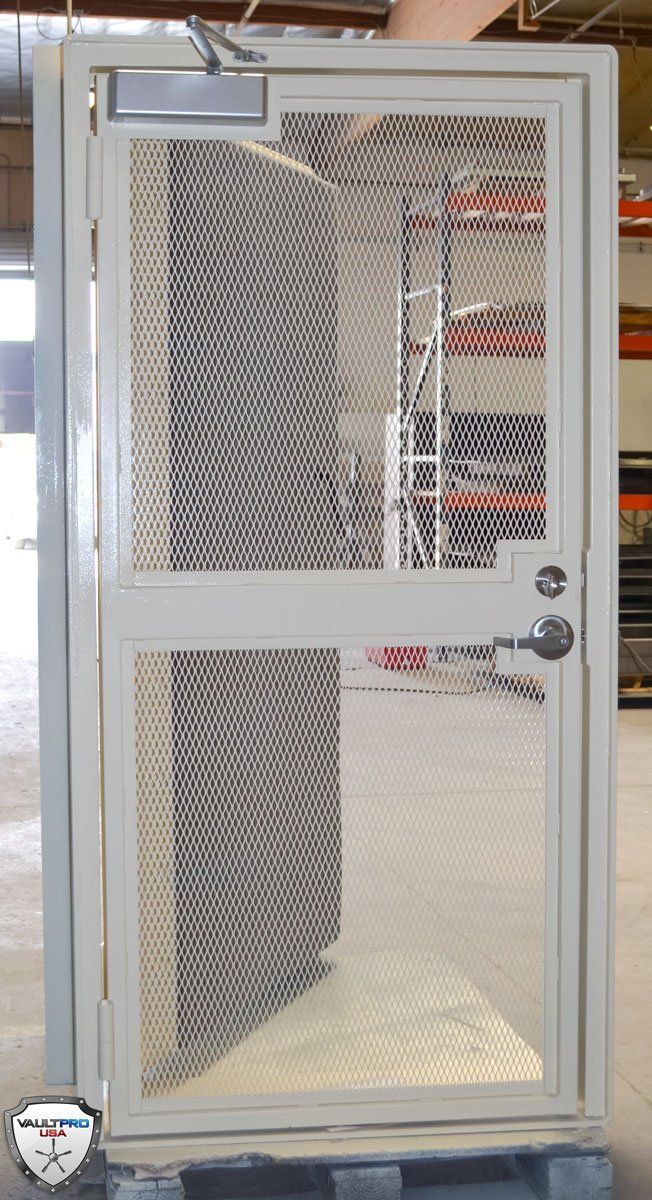

Day gates for secure pass thru in vault door rooms

Day Gates for Vault Door Installation

Issue Ports for Secure Pass Thru

We Are Day Gate for Vault Door Manufacturers.
Free Expert Advice - Call One of Our Vault Pro's

Day Gates

Day Gates for Vault Pro Vault Doors - Vault Pro Self Closing Day Gates are designed and built to be used exclusively with Vault Pro Atlas, Elite and Titan Series Vault Doors where visual security is required. Add a Day Gate to your vault door installation for added security.

Click images to enlarge.

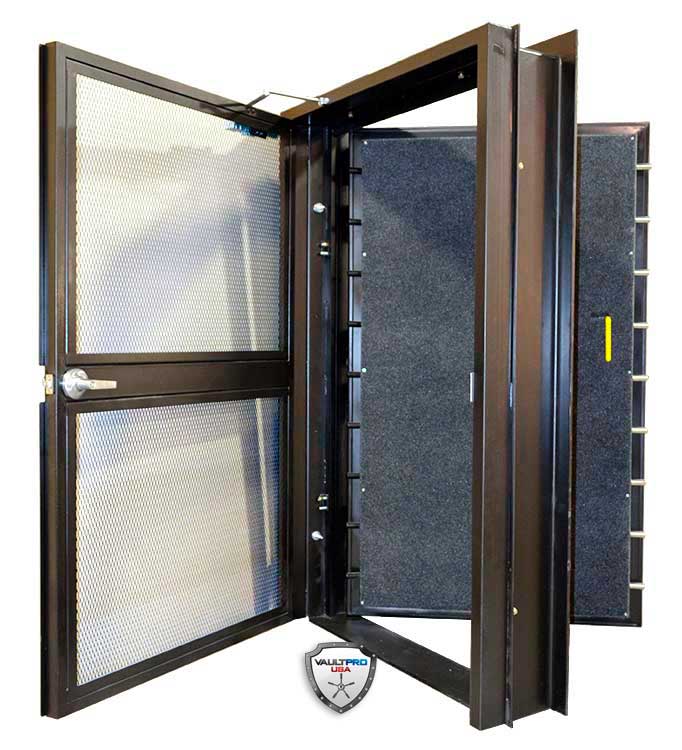

Day gate and vault door open pass through

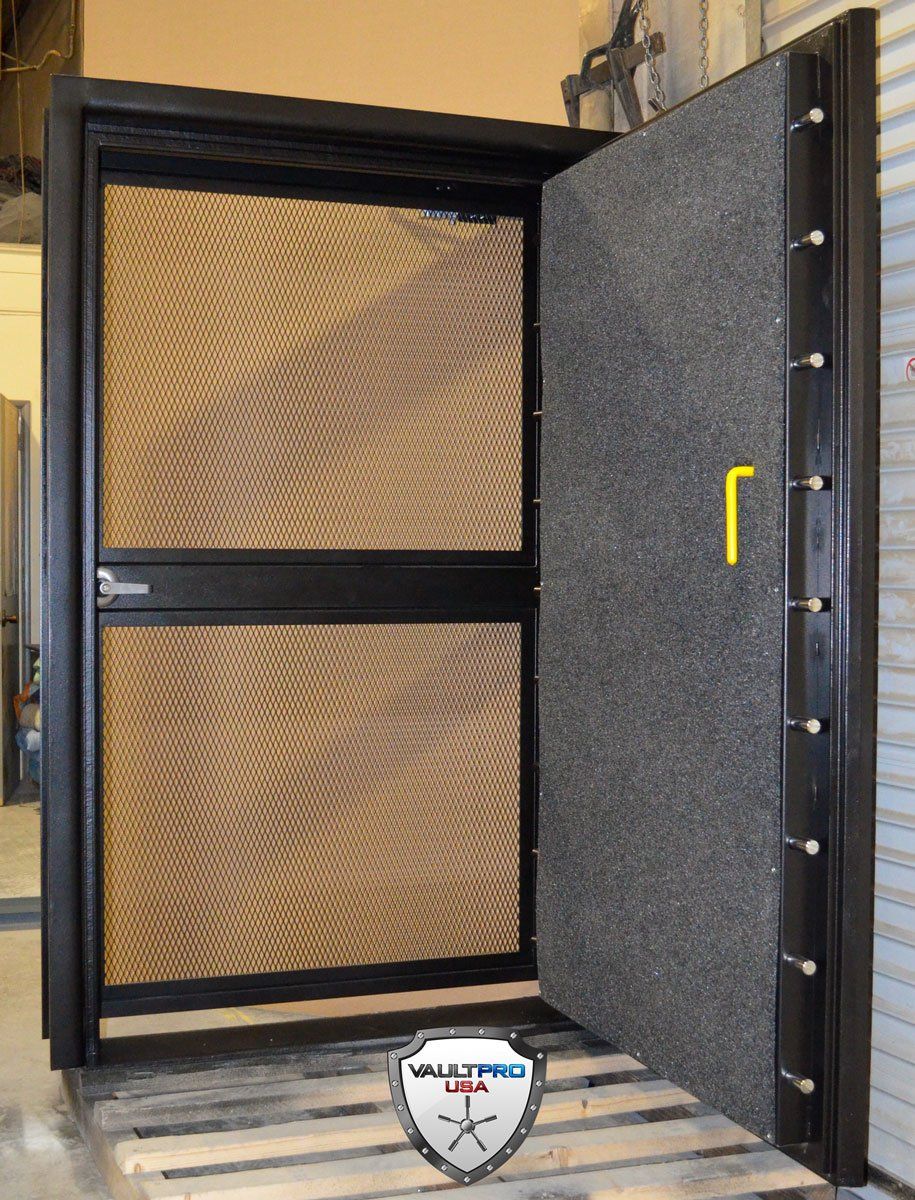

Day Gate on Vault Door

Button

Day gate with automatic closure on vault door

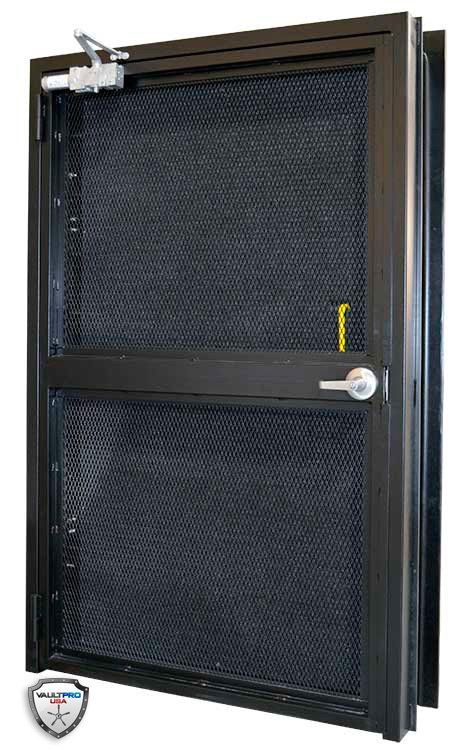

Day Gate Showing Automatic Closure

Button

Day Gate Provides Added Visual Security

Button

Vault Pro has designed Day Gates to provide superior security, access control and visual ability where controlled substances, weapons, equipment and materials are stored and issued. All of Vault Pro’s Day Gates can be equipped with framed issue port hatches or pass thru.

Day Gates are in-swing and can be hinged on either side of the out swinging Vault Pro Vault Door. Vault Pro Day Gates are equipped with a group 2 locking device operable from inside by a handle and from the outside by key and will not interfere with the operation of the vault doors internal release or inner escape device.

Vault Pro Day Gates come in three standard sizes and custom sizes are available. Call one of our Vault Pro’s for details - CLICK TO CALL

Click images to enlarge.

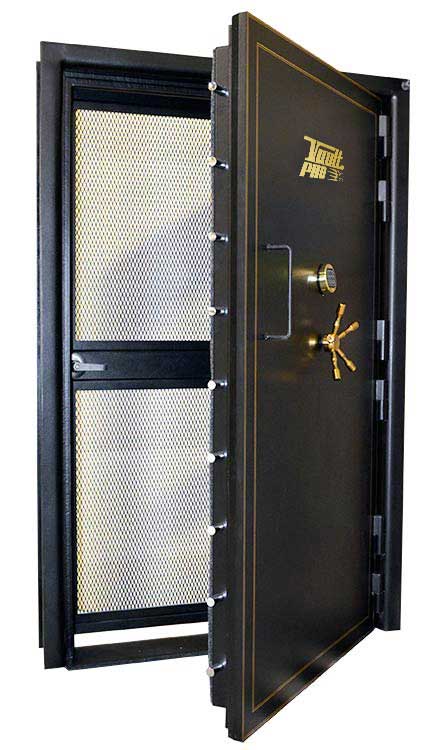

Day Gate on vault door with handle and rotating latch

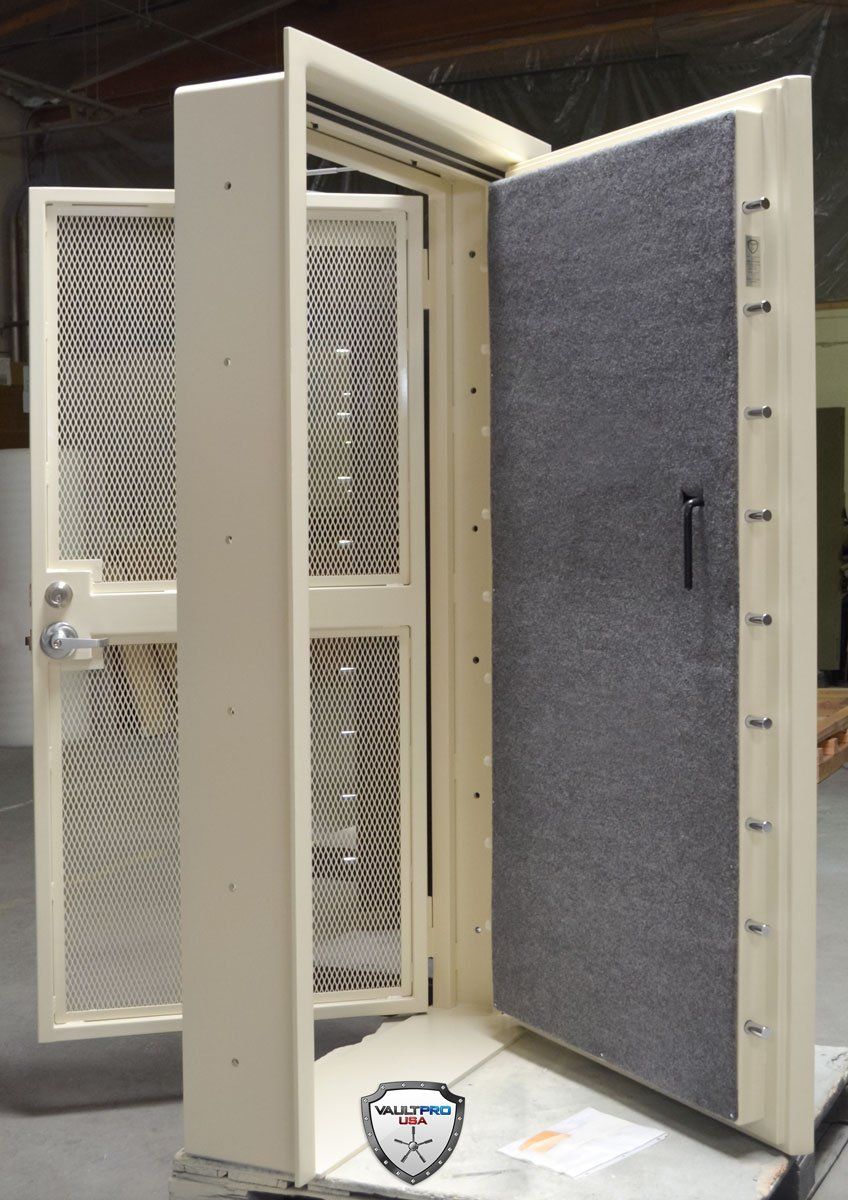

Day Gate mounted on heavy duty frame with vault door

Day Gate Standard Features

Heaviest Gauge Frames in the Industry
#16, ½” Flattened Expanded Metal
Day Gate Can be Hinged on Left or Right Side
Group 2 Lock Operable from Inside by a Handle and from the Outside by Key
Will Not Interfere with Operation of the Vault Door Internal Release or Inner Escape Device
Four Standard Sizes Fit Most Installations (Custom sizes available)
Paint Color to Match Vault Pro Door - Call for more information and Free Quote: CLICK TO CALL

Day Gates Factory Direct Pricing

Standard Day Gates available for all vault doors

80" x 30"

FACTORY DIRECT PRICE

$1870

80" x 35"

FACTORY DIRECT PRICE

$2099

80" x 40"

FACTORY DIRECT PRICE

$2355

80" x 45"

FACTORY DIRECT PRICE

$2599

Electric Strike for Day Gate (option): $399.00

CALL FOR FREE QUOTE

CLICK TO CALL (M-F 7AM-7PM)

CLICK FOR FREE QUOTE

Issue Ports for Secure: Military, Government and Industrial Use

Vault Pro Weapon’s Issue Ports for Government, Military and Business are ideal for access and passage of weapons, ammunition and classified material to users by an armorer or designated individual in charge of dispensing them through the secure issue port.

Vault Pro Issue Ports come in multiple configurations, including Inverted-T Style, and custom sizes are available. Call one of our Vault Pro’s for details - CLICK TO CALL

Issue ports for secure pass thru for military, government and industrial use

Issue Ports in Final Assembly and Inspection Area. Mesh type issue ports on the left. On the right, issue ports which will have ballistic level glass installed.

Click images in gallery below to enlarge.

Bolt in Place Issue Ports with front and rear facing views.

Button

Pour in place Issue Port pass thru security

Pour in place Issue Port seen from front showing Diamond Metal Mesh Viewing Window with Steel Bar Reinforcements.

Button

Issue ports for secure pass thru of firearms and classified materials made in USA

Inverted T-Style Issue ports for secure pass thru of firearms and classified materials are easily locked.

Inverted T-Style Issue ports for secure pass thru of firearms and classified materials made in USA

Issue Ports at final assembly and inspection prior to shipping.

Bolt in place Issue Port with door closed.

Pour in place Issue Port with door closed.

Day gates and issue ports for secure pass thru of weapons or pharmaceuticals. Made in USA by Vault Pro

Issue Ports in final assembly and inspection area. Port doors closed.

Issue Port Standard Features

Description: Two Piece Weapons Issue Port, 37¼” x 19” x 20” depth including 8” flanged channel (steel with white textured finish).

Provides safe and easy weapons issue ability from secured location.

Features:

Made in the U.S.A.
Bolt in and Anchor in designs for easy installation.
Diamond Metal Mesh Viewing Window with Steel Bar Reinforcements.
Steel: 3-gauge (1/4”) steel frame construction.
Steel: ½” Plate Working Surface inside and out.
Steel Composite Door includes 3ea. layers of 10-gauge Steel & 2ea. layers of ¾” Plywood for ballistic resistance.
Dual Deployable Slide Hasp Locks (inside locking only)
Heavy Duty Ball Bearing Hinges with Hardened Hinge Pin.
Finish: Commercial Grade White Texture Finish
Warranty Five Years
