Vault Pro’s Executive Series Vault Doors seamlessly blend exceptional anti-theft and fire protection with an attractive design that safeguards your family, business, and valuables. Crafted to surpass FEMA 320, 361, and ICC-500 guidelines, they serve as the perfect security solution for constructing walk-in storm and tornado shelters, safe rooms, and walk-in vaults. Featuring a unique combination of a 2300° Ceramic Fire Blanket, a 1” composite door, and Palusol® heat-activated gaskets, the Executive Vault Door offers an impressive hour of fire protection. With 18 – 1” locking bolts, a Sargent & Greenleaf U.L. Listed Group 2 Spyproof Lock, a 1/2" 60+ Rockwell Hard plate, and Triple Re-lockers, it guarantees robust security. The Executive Vault Door is available in four standard sizes and can be customized to any specific dimensions required. Like all our security products, the Executive Vault Door is proudly manufactured in the USA. We specialize in custom vault doors—contact us for more information and to receive a free quote.

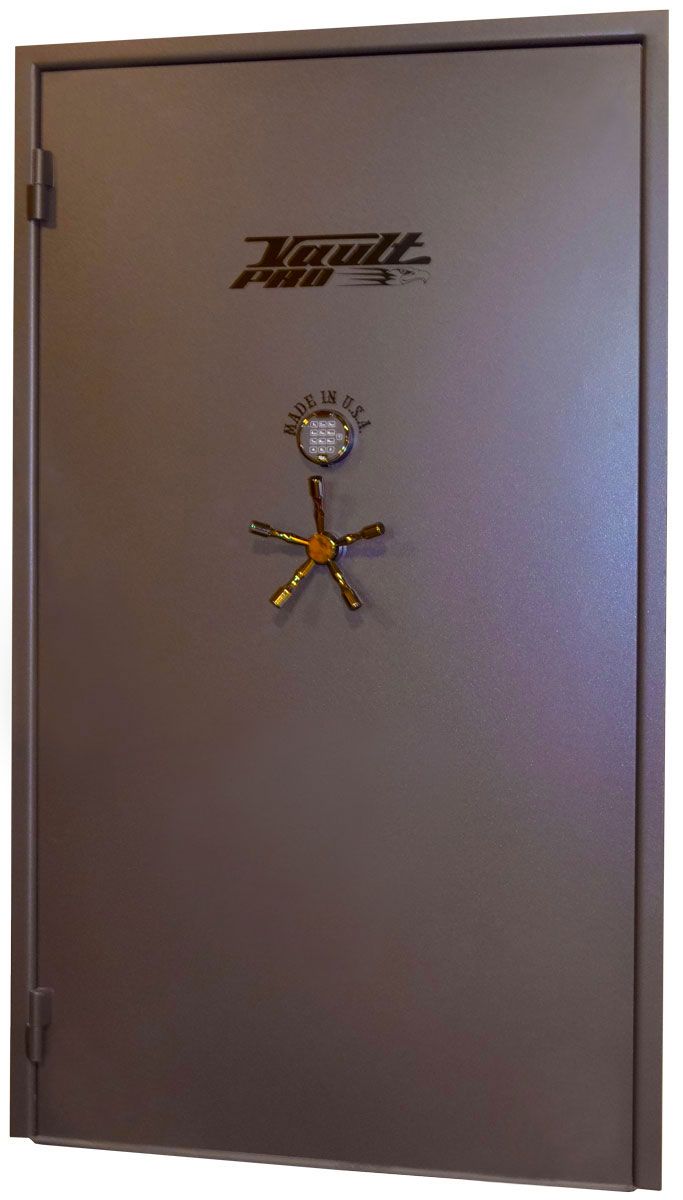

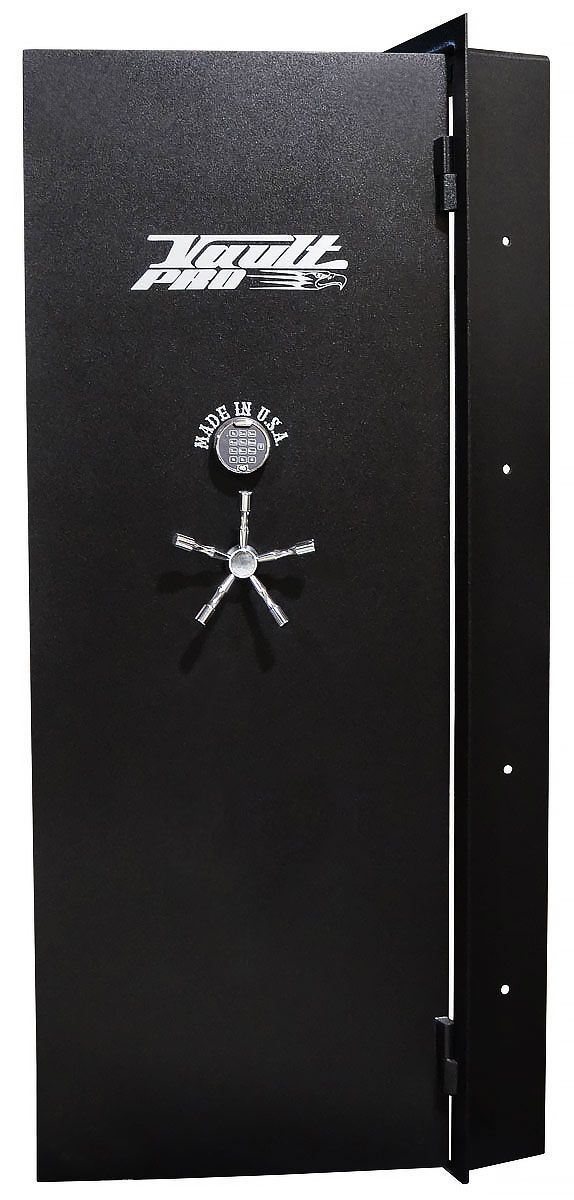

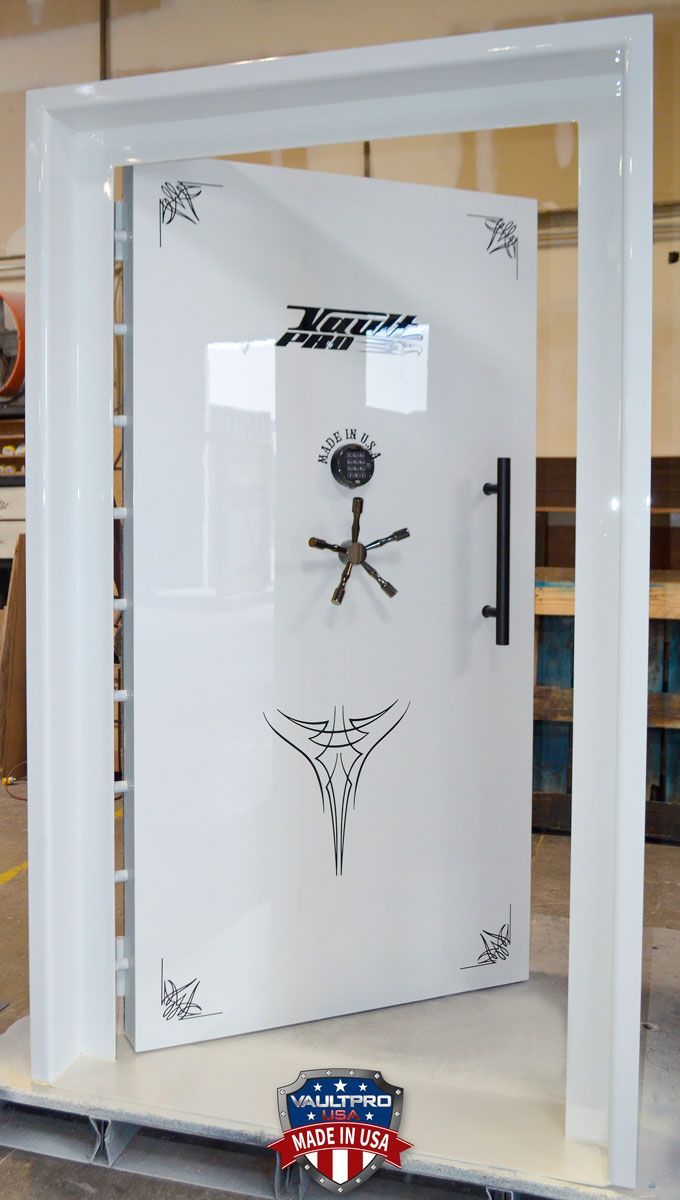

Executive Series Vault Door
Click image to enlarge
Vault Door Model Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |
| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |
1/2" Solid Steel Frame | 1/2" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |
| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |
| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |
| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware | Choice of Silver, Gold or Black Pinstripe & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8") |
$3,154 | $3,832 | $4,711 | $6,503 | $8,284 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8") |
$3,731 | $4,244 | $5,241 | $7,164 | $9,068 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8") |
$4,286 | $4,775 | $5,773 | $7,765 | $9,887 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8") |
$4,840 | $5,200 | $6,279 | $8,532 | $10,677 | Min. Size 7'x5' Call for Free Quote |
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
Vault Doors Factory Direct
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's
Click images to enlarge.
Executive Series Vault Doors Standard Features
- 1" Composite Steel Door
- Overall Door Thickness 4½"
- 1 Hour Fire Door 1550°
- Palusol® Gasket Heat Activated Protects Against Fire and Smoke Damage
- 1/4" Solid Steel Frame
- 2300° Ceramic Fire Blanket

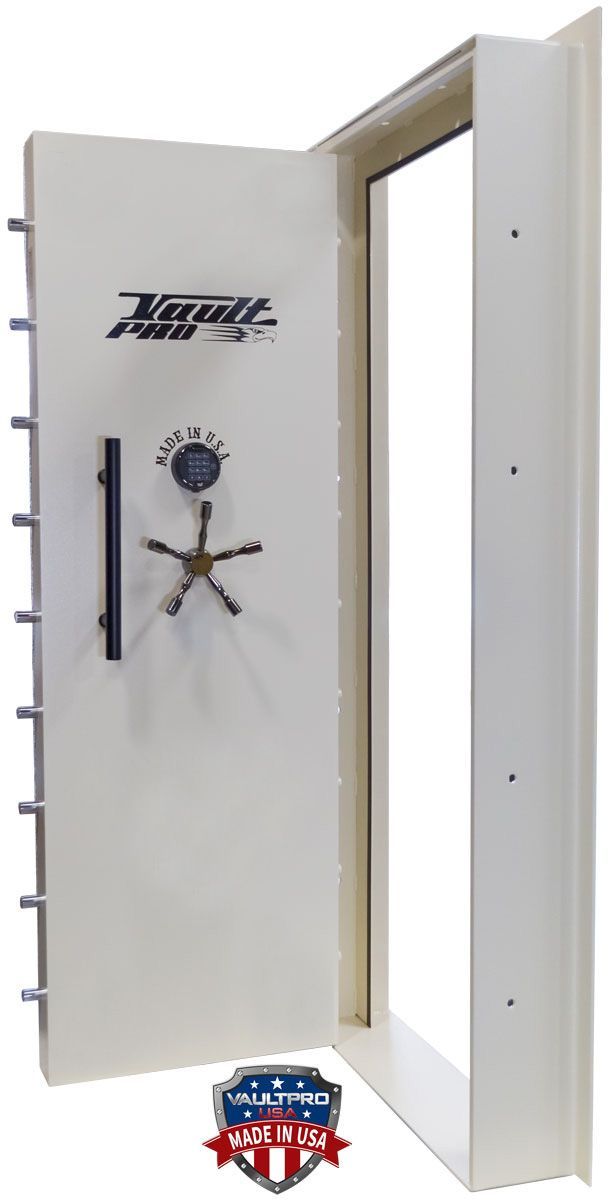

- 18-Bolt Locking System - 1" Locking Bolts
- Adjustable Ball Bearing Hinges
- Sargent & Greenleaf, U.L. Listed Group 2 Spyproof Lock (Digital Lock Available)
- 1/2" 60+ Rockwell Hard plate
- Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan)
- Internal Release

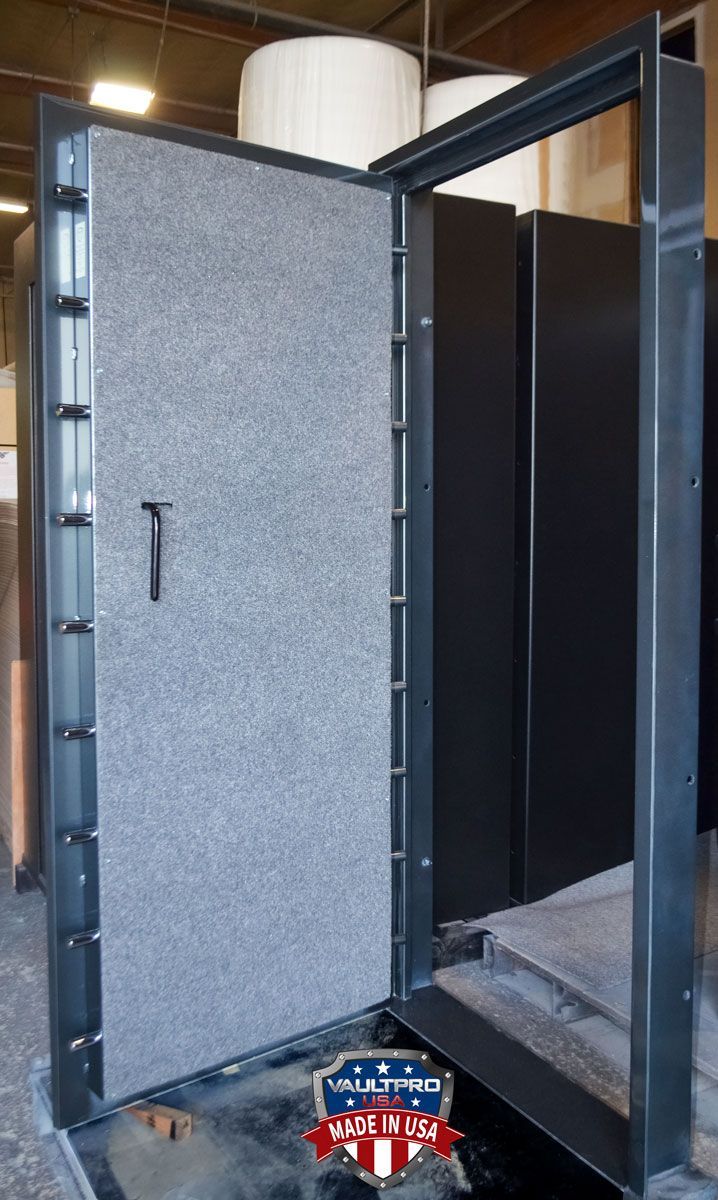

- Carpeted Door Panel
- Black, Gray, Brown, Green and Burgundy Matte Finish
- Gloss and Custom Finishes Available - Call: CLICK TO CALL

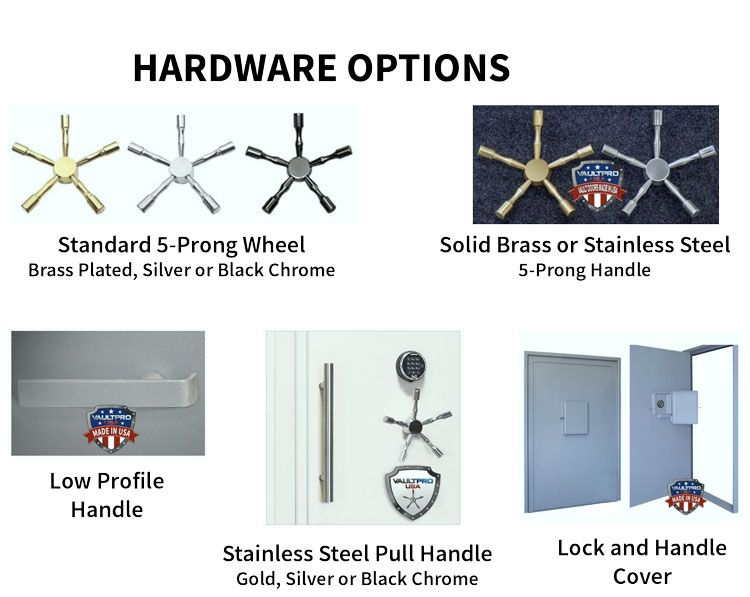

- Choice of Silver, Gold or Black Matching Hardware
Executive Series Vault Door Specifications
- Door: 1" Composite Steel Door
- Frame Thickness: 1/4" Solid Steel
- Fire Rating: 1 Hour with 2300° Ceramic Fire Blanket Layer and Multiple Layers of X-Rate Fireboard
- Number of Locking Bolts: 18 - 4" x 1" Locking Bolts. Active Bolts Fully Rotating.
- Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
- Hard Plate: 1/2" Solid 60+ Rockwell Hard Plate
- Internal Release: Yes
- Re-Locker: Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan)
- Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
- Gloss and Custom Finish Available: Yes
- Hardware: Choice of Silver, Gold or Black Matching Hardware
- Warranty: Limited Lifetime
Executive Series Vault Door Factory Direct Pricing
80" x 30" - 6" to 10"
(frame depth)
Weight: 810 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$3832
80" x 35" - 6" to 10"
(frame depth)
Weight: 860 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$4244
80" x 40" - 6" to 10"
(frame depth)
Weight: 980 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$4775
80" x 45" - 6" to 10"
(frame depth)
Weight: 1,105 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$5200
80" x 50" - 6" to 10"
(frame depth)
Weight: 1,255 lbs.
Clear Thru Space:
45" Out-swing
43" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$5775
Executive XL Series Vault Door Factory Direct Pricing
96" x 30" - 5" to 8"
(frame depth)
Weight: 970 lbs.
Clear Thru Space:
25" Out-swing
23" In-Swing
FACTORY DIRECT PRICE
$5364
96" x 35" - 5" to 8"
(frame depth)
Weight: 1,030 lbs.
Clear Thru Space:
30" Out-swing
28" In-Swing
FACTORY DIRECT PRICE
$5941
96" x 40" - 5" to 8"
(frame depth)
Weight: 1,170 lbs.
Clear Thru Space:
35" Out-swing
33" In-Swing
FACTORY DIRECT PRICE
$6685
96" x 45" - 5" to 8"
(frame depth)
Weight: 1,325 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$7280
96" x 50" - 5" to 8"
(frame depth)
Weight: 1,505 lbs.
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
$8085

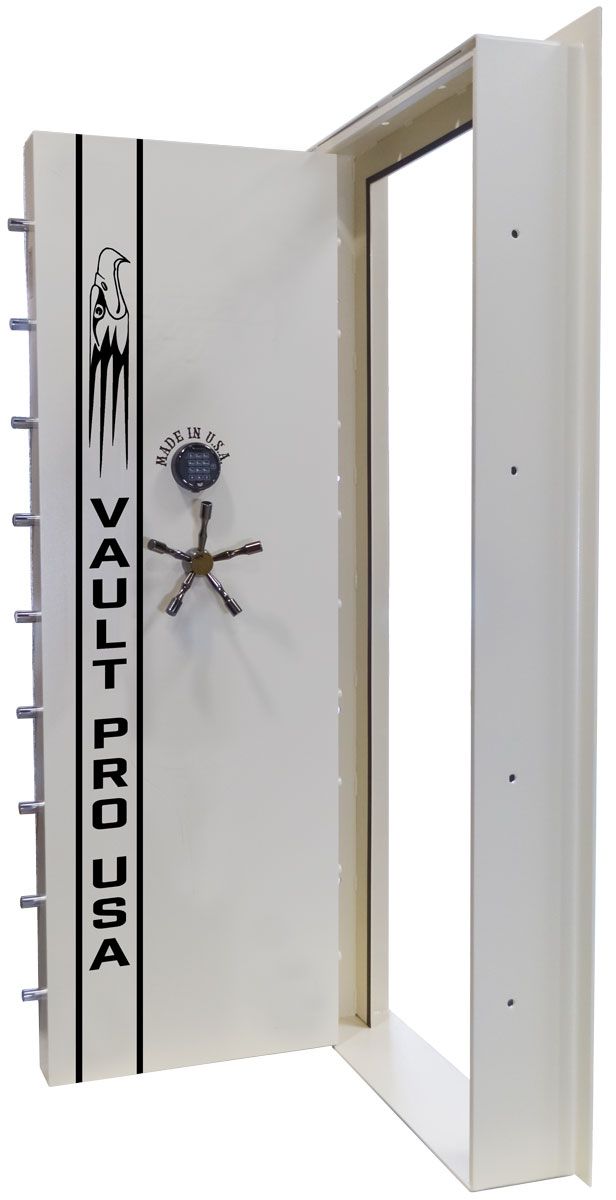

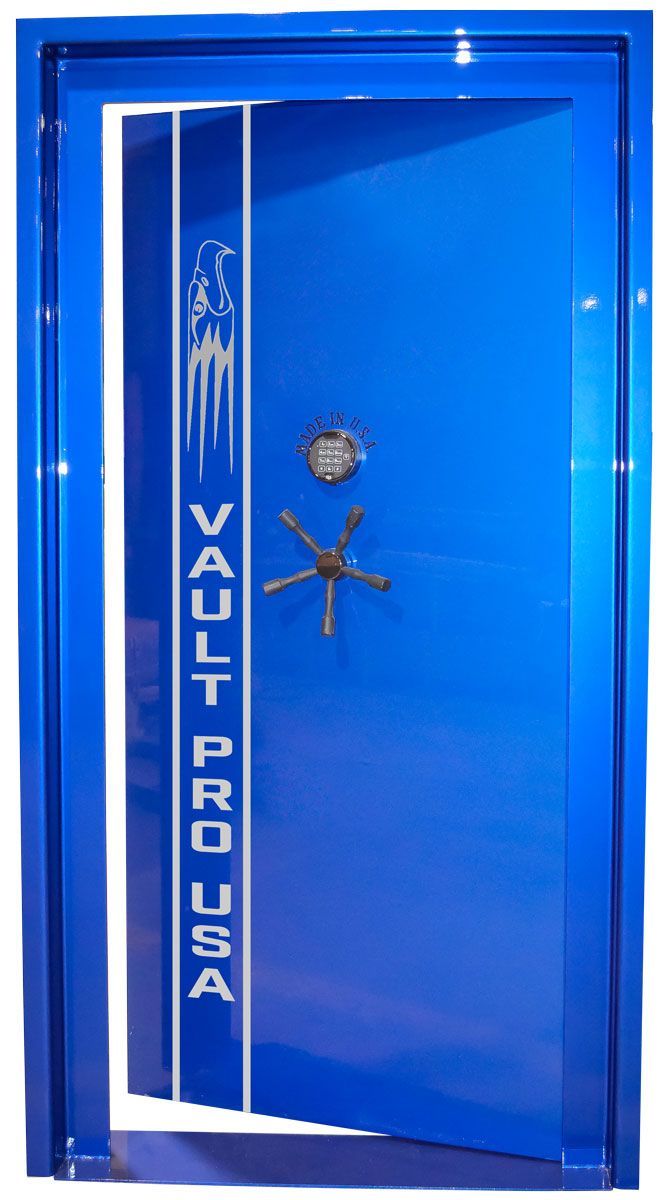

IN-SWING HINGING OPTION (Any Door - Adds up to 100 lbs.) ADD $320
In-Swing frame depth must be 6" or larger
*Door weights may vary due to frame depth, options and finished dimensions as ordered.
Installation Instructions (PDF opens in new tab)
Vault Pro Standard Finishes and Premium Gloss Finishes

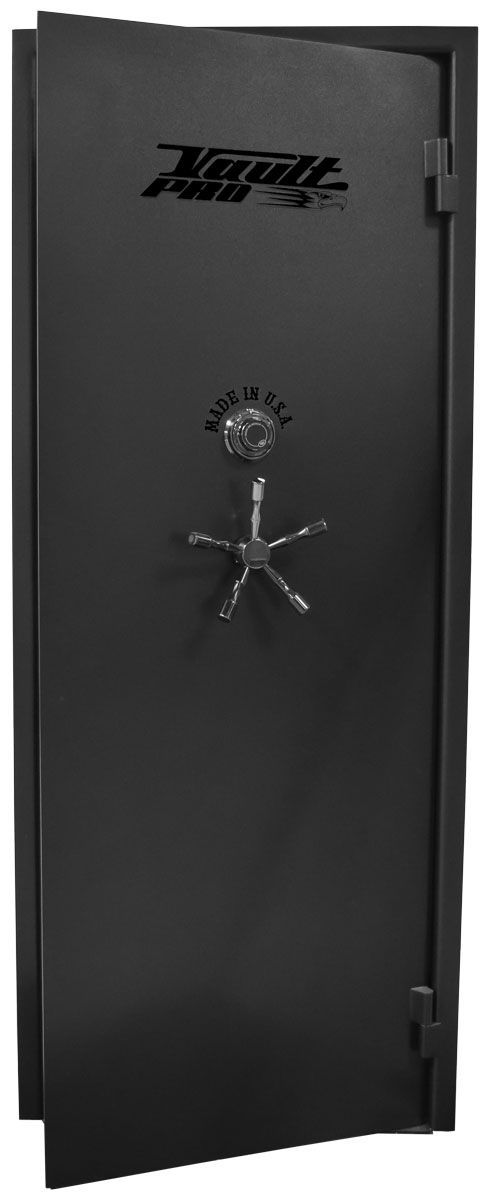

Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

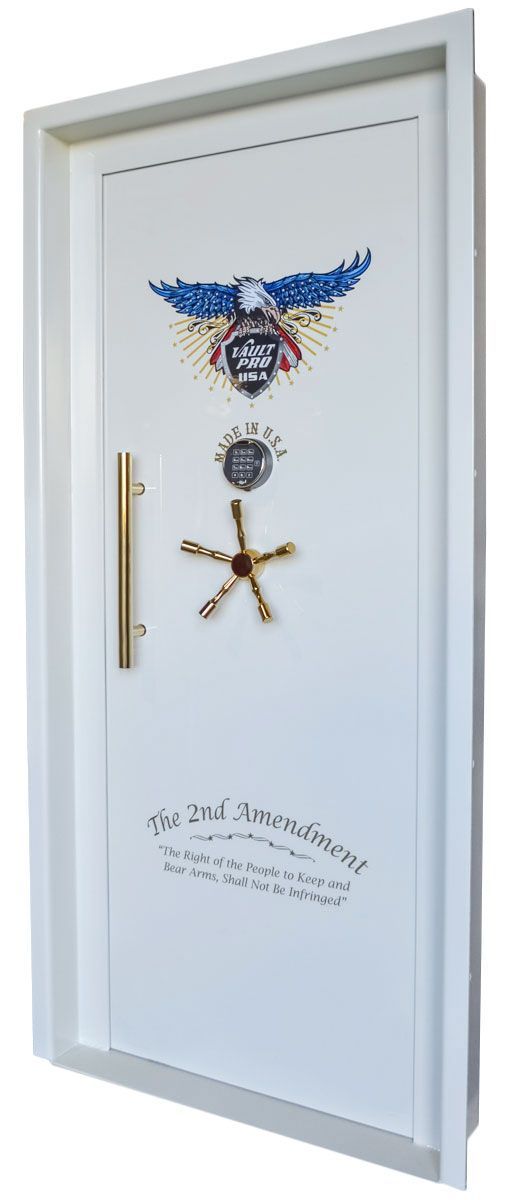

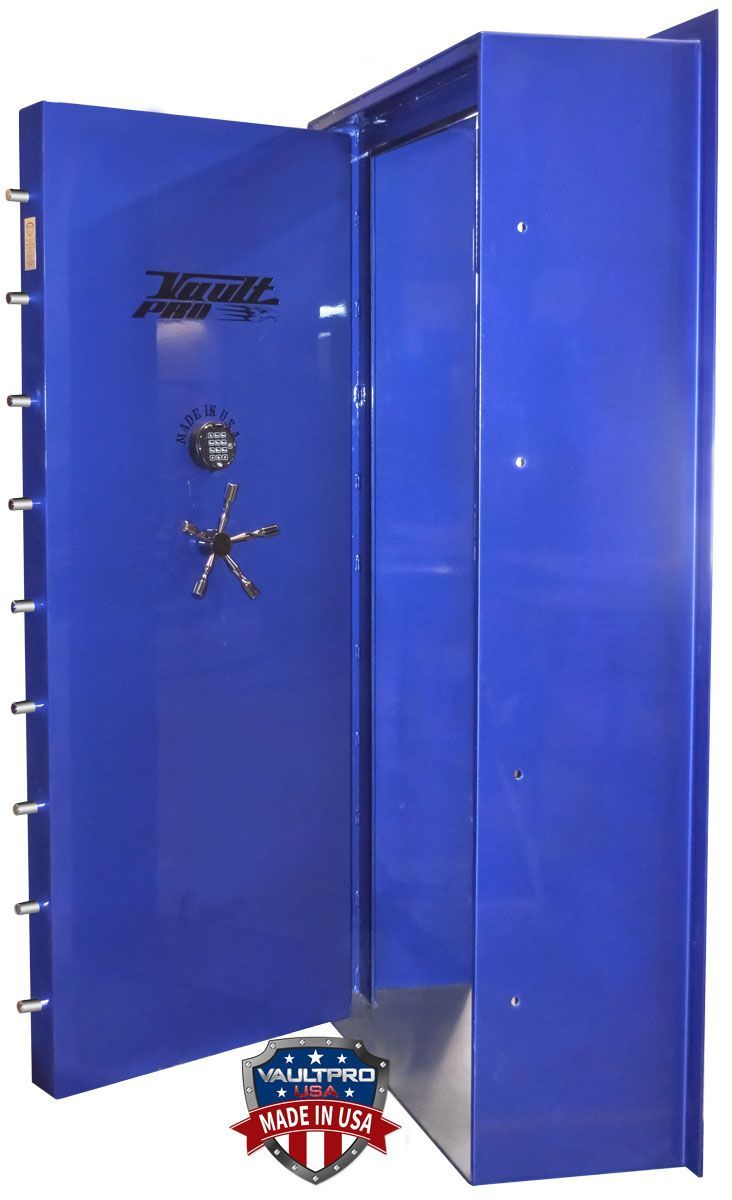

Premium Gloss Finishes
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
Premium Gloss Finish Pricing
Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
| Door Size | PREMIUM GLOSS | Laser Pearl Red and Strawberry Red |
|---|---|---|
| 80 x 30 | $742 | $935 |
| 80 x 35 | $798 | $985 |
| 80 x 40 | $979 | $1140 |
| 80 x 45 | $1062 | $1215 |
Additional Premium Colors, Two Tone and Custom Finishes Available
Call one of our Vault Pro's for details and price. Tom Kelly Hand Pin-Striping & Personalization.
Call for details: CLICK TO CALL
