Professional Series
Economical Security
1/4" solid steel door, 14-nolt locking system, ICC-500 & FEMA compliant, 40-minute fire rating.
Premier Vault Door Manufacturer - Proudly Made in the USA
Clear Online Pricing - Direct Factory Sales & Delivery of Vault Doors!
Vault Doors > Vault Doors Overview
Executive Series
Robust Protection
1" composite steel door, 18-bolt locking system, advanced re-lockers, 1-hour fire rating.
Elite Series
Best-in-Class Fire Protection. Ballistic Resistance Level 6
2" step-system door, 18 bolt system, locking bolts fully rotating. dual heat sealing gaskets, 2400° ceramic fire blanket.

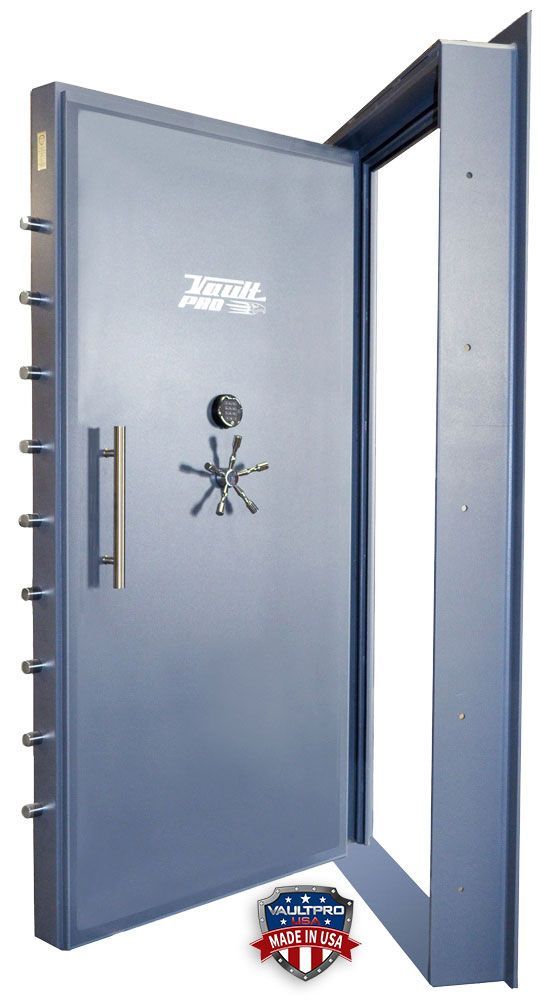

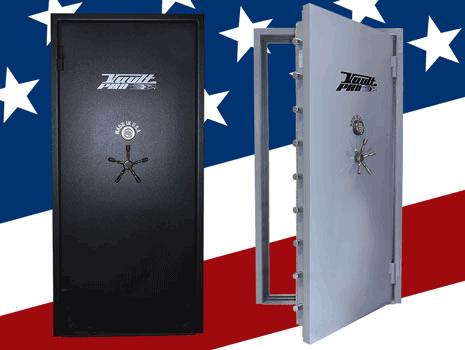

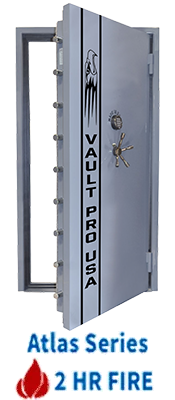

Atlas Series
Heavy-Duty Vault Doors. Ballistic Resistance Level 9
1/2" solid steel front plate, 22-bolt, 4-way locking system, multiple re-lockers, extended fire resitance.

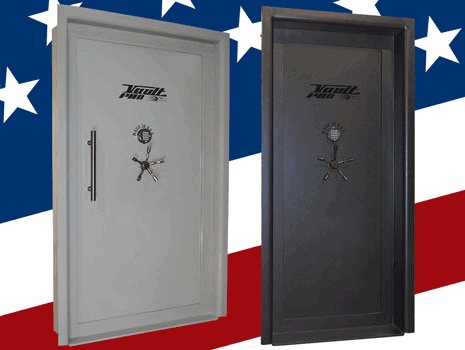

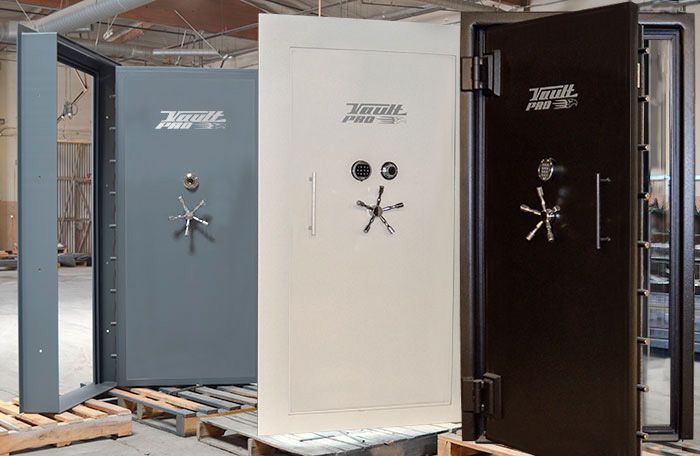

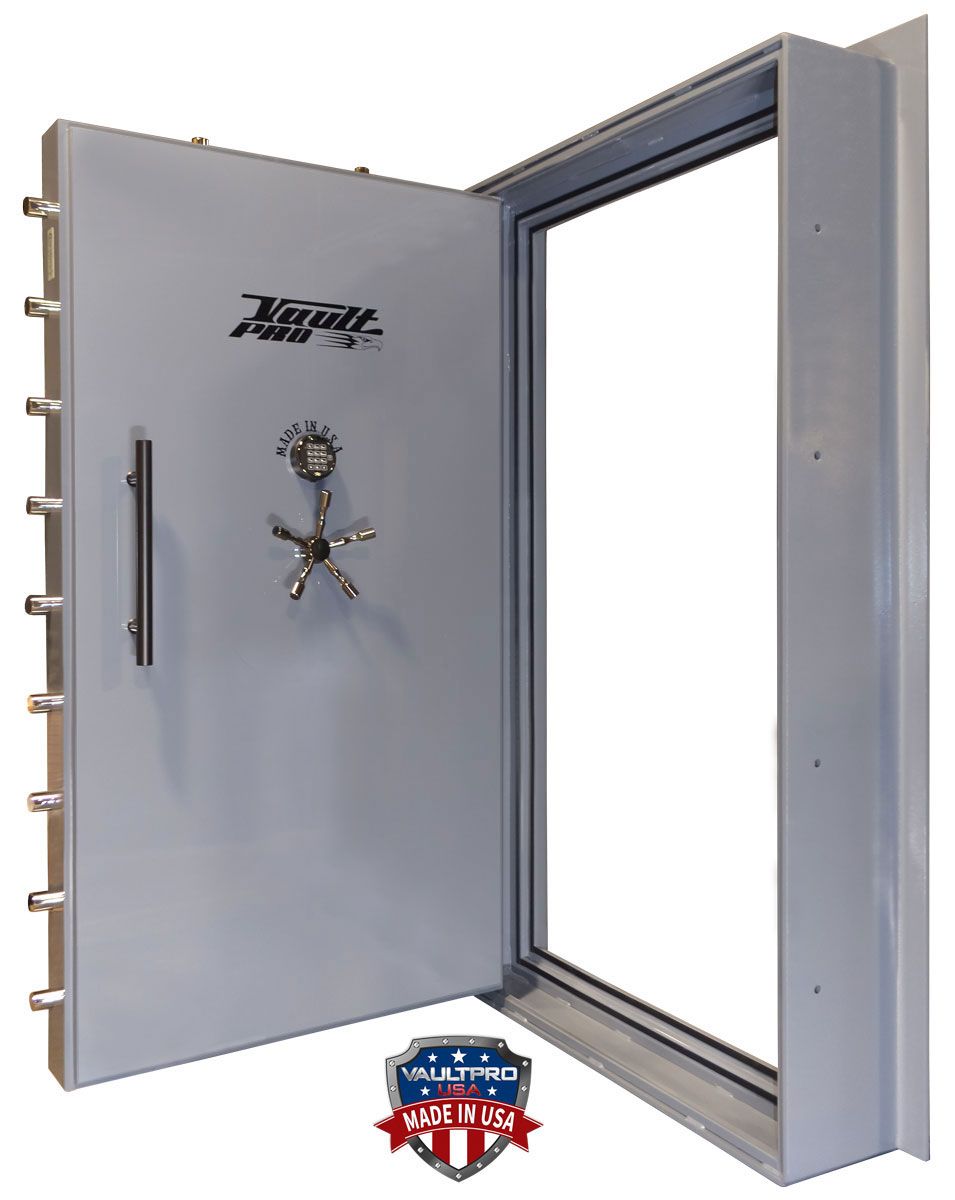

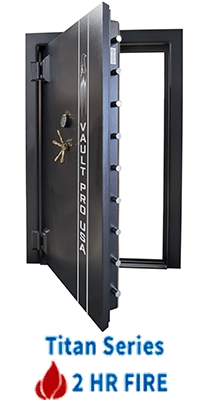

Titan Series
Ballistic-Resistant Security. Ballistic Resistance Level 10
1" solid steel front plate, 4-way 22-bolt locking system, ballistic resistance, extensive fire protection.

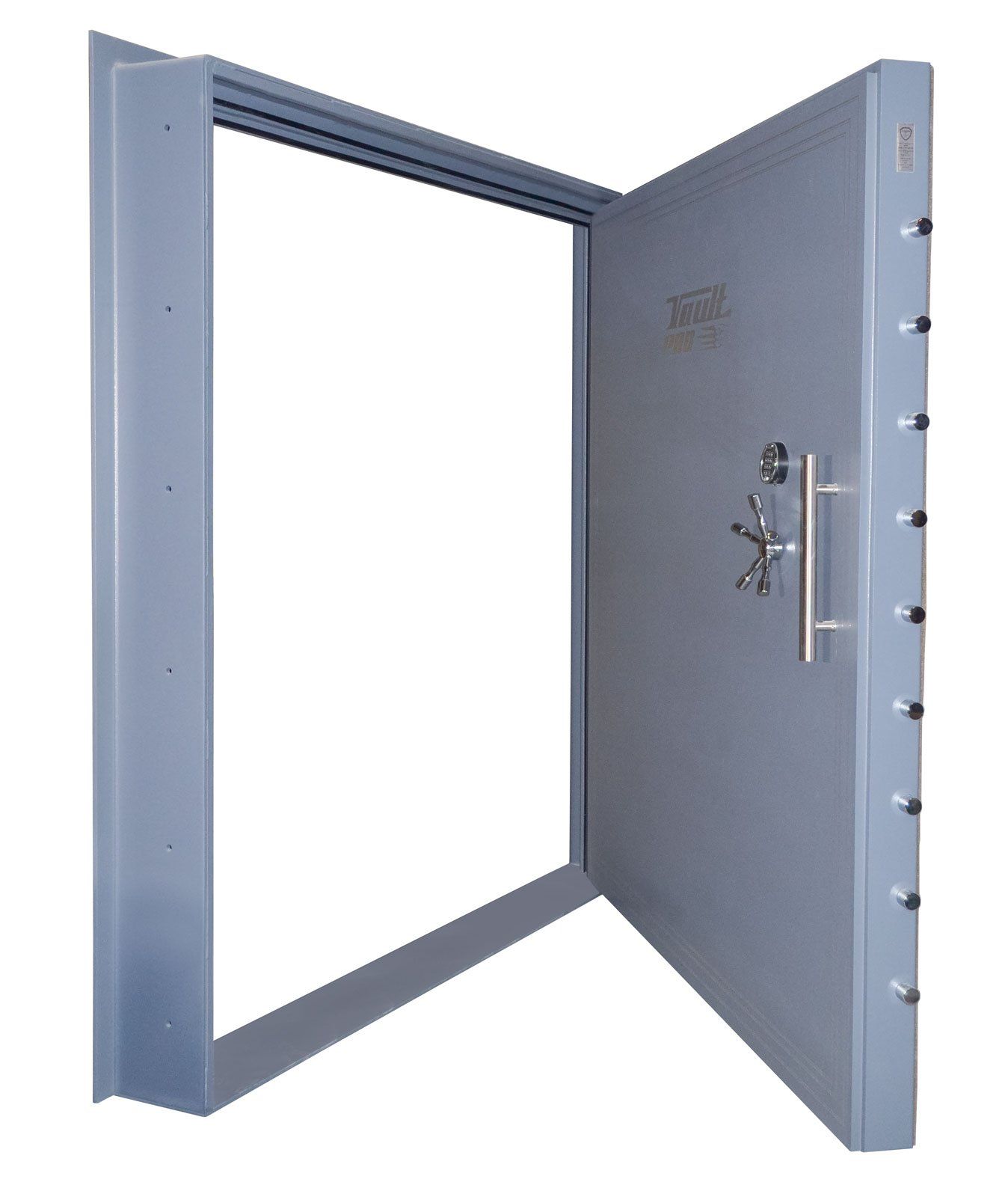

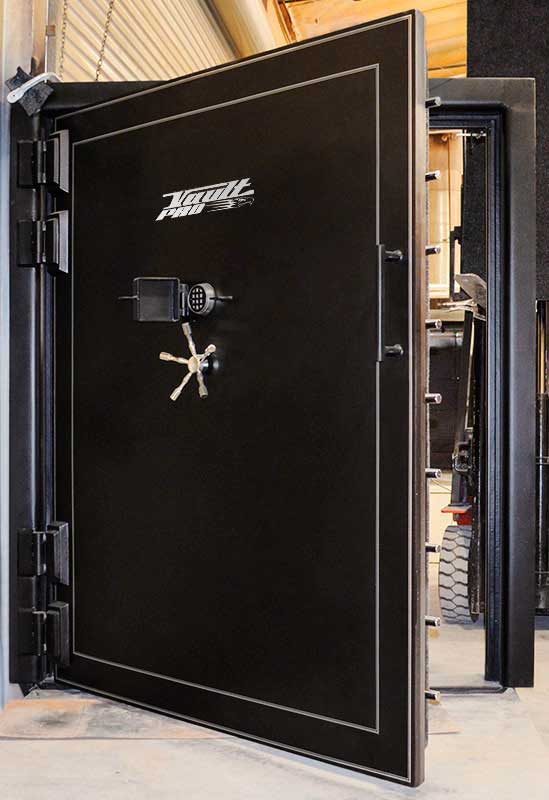

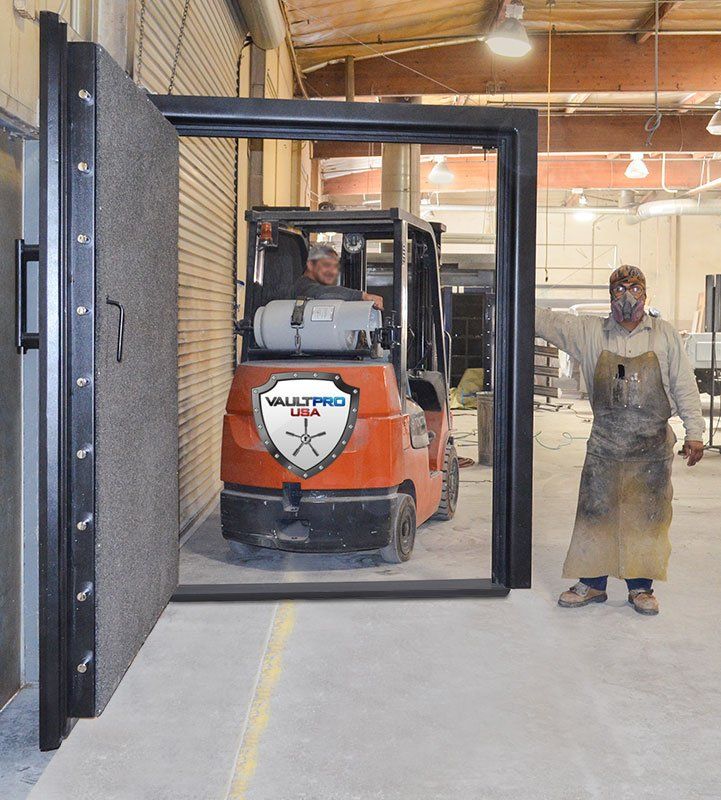

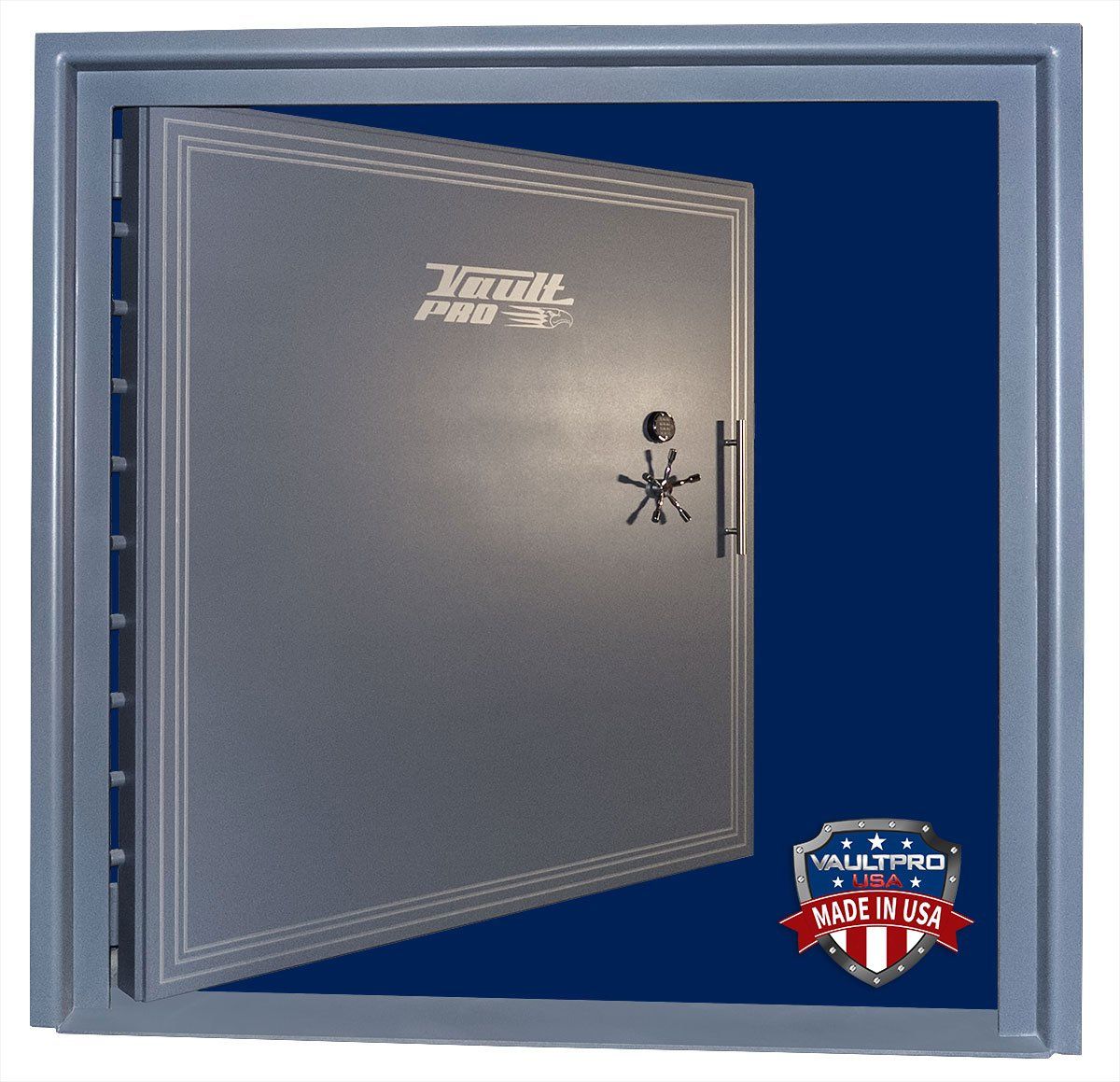

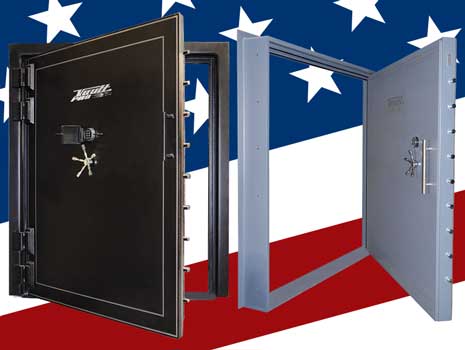

Monster Series
Very Large Heavy-Duty Doors. Ballistic Resistance Level 10
2" solid steel front plate, step-system door, oversized construction, multiple re-lockers, extended fire resistance.
American made steel vault doors · Residential vault doors · Commercial vault doors · Government specification vault doors · ADA compliant vault doors · day gates

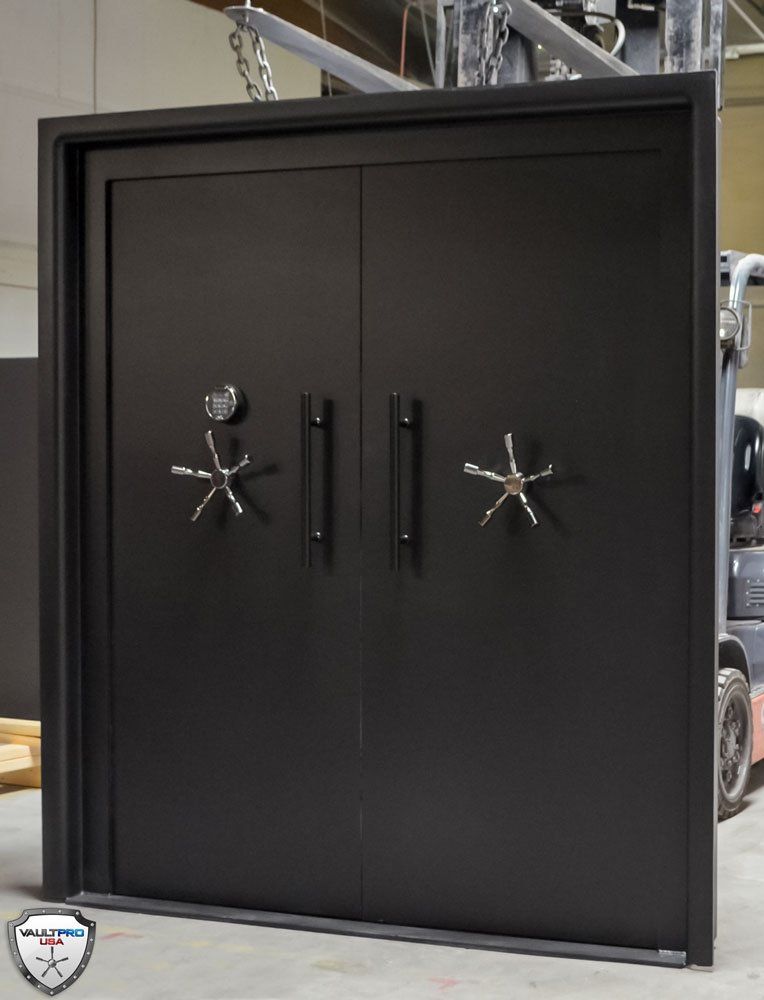

Need a custom vault door? We make doors in all sizes and configurations. Call our vault door experts today!
Vault Doors & Storm Shelter Doors - Engineered and Built to Exceed all FEMA 320 & 361, ICC-500 Recommended Standards for Use in Storm & Tornado Shelters.
Vault doors are for indoor installation only.
CALL FOR FREE QUOTE

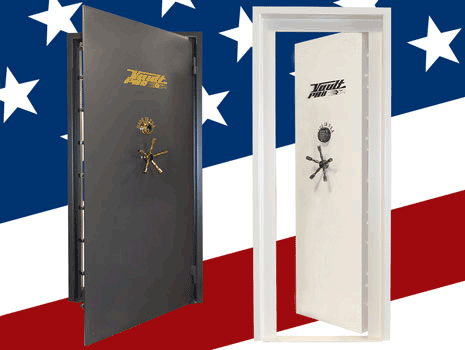

"Your Best Value in Vault Doors - All Made in America!"
American Made Vault Doors for Storm Shelters, Walk-in Vaults, Safe Rooms and all Installations. Outward Swinging & Inward Swinging Vault Room and Shelter Safe Room Doors Available.
Vault Door Quick Comparison Chart
Model Detail Specifications
| Model | Professional | Executive | Elite | Atlas | Titan | Monster |
| Door | 1/4" Plate Steel | 1" Composite Steel Door | 2" Step System Door | 2" Step System Door with 1/2" Solid Steel Front Plate |
2" Step System Door with 1" Solid Steel Front Plate | 7' x 5' 2" Solid Steel Stepped Door |
| Frame Thickness | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel | 1/4" Solid Steel |

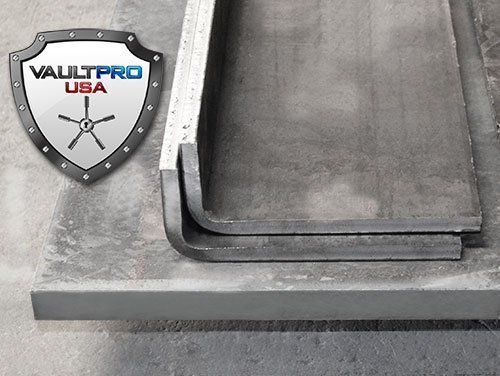

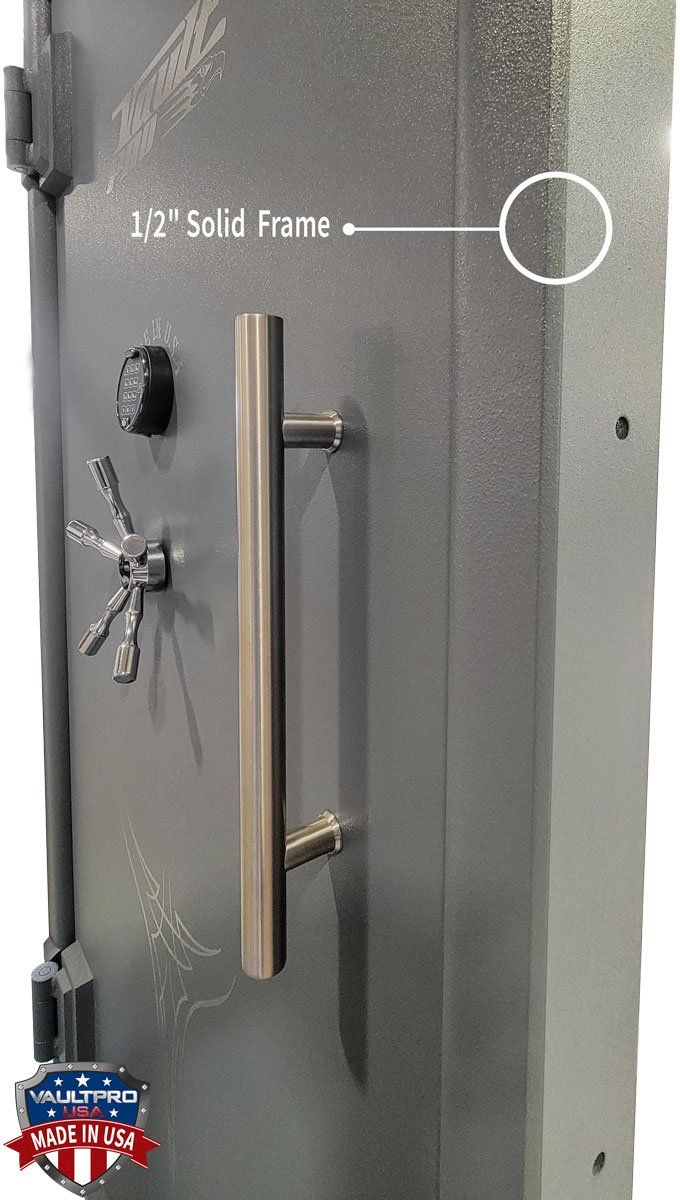

1/2" Solid Steel Frame | 1" Solid Steel Frame |
| Fire Rating | 40 Minute | 1 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
2 Hour 2300° Ceramic Fire Blanket |
| Number of Locking Bolts | 14 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1" Locking Bolts. Active Bolts Fully Rotating |
18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
22 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
22 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
22 4" x 1½" Locking Bolts. Active Bolts Fully Rotating |
| Lock Type | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial | U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial |
| Hard Plate | 1/4" Solid 60+ Rockwell Hard Plate | 1/2" 60+ Rockwell Hard plate | 1/2" 60+ Rockwell Hard plate | 3/4" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate | 1" 60+ Rockwell Hard plate |
| Internal Release | Yes | Yes | Yes | Yes | Yes | Yes |
| Re-Locker | Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan) | Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) | Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan) |

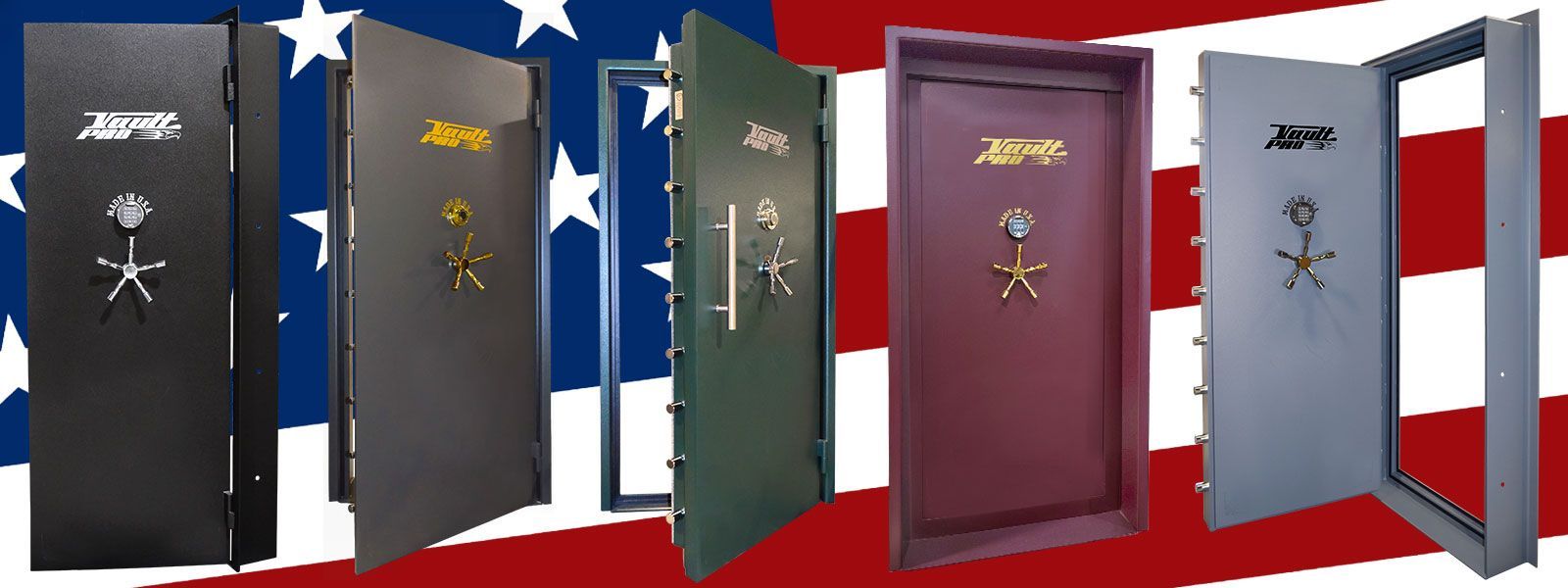

| Standard Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish | Black, White, Gray, Brown, Green or Burgundy Matte Finish |
| Gloss and Custom Finish Available | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware | Choice of Silver, Gold or Black Logo & Matching Hardware |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime | Limited Lifetime |
| Country of Origin | United States | United States | United States | United States | United States | United States |
| State of Origin | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California | Santa Fe Springs, California |
| Starting Price 80" x 30" (Frame Depth 5" to 8"**) |
$3,310 | $4,020 | $4,945 | $6,825 | $8,698 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 35" (Frame Depth 5" to 8"**) |
$3,915 | $4,455 | $5,015 | $7,520 | $9,520 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 40" (Frame Depth 5" to 8"**) |
$4,500 | $5,505 | $6,060 | $8,155 | $10,485 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 45" (Frame Depth 5" to 8"**) |
$5,085 | $5,460 | $6,595 | $8,955 | $11,210 | Min. Size 7'x5' Call for Free Quote |
| Starting Price 80" x 50" (Frame Depth 5" to 8"**) |
$5,665 | $6,065 | $7,140 | $9,675 | $12,040 | Min. Size 7'x5' Call for Free Quote |
** Minimum frame depth for Inswing: Professional 6", Executive 6", Elite 6-1/2", Atlas 6-1/2", Titan 8"
NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.
- Finest Vault Doors - All Made in USA

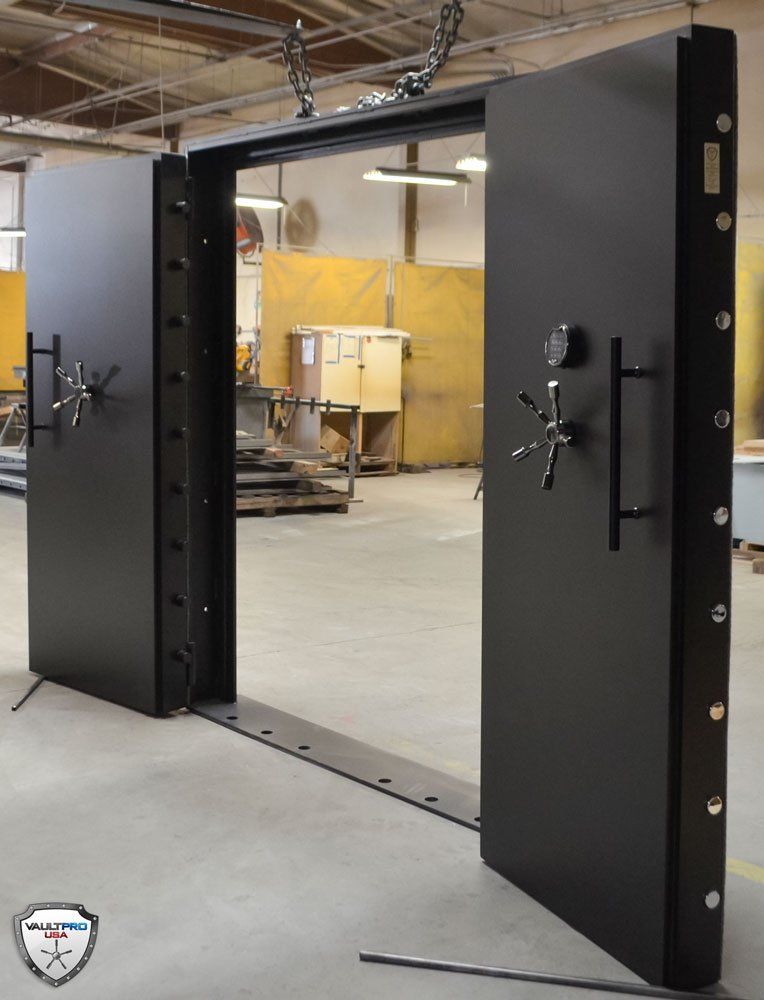

- Custom Vault Door Specialists - Custom CAD Design, Manufacture and Custom Art
- Solid Stainless Steel Vault Doors Made to Your Specifications - Call for Free Quote

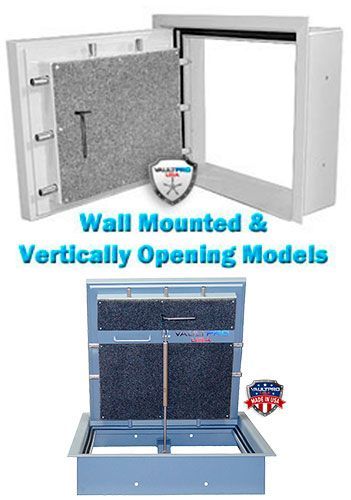

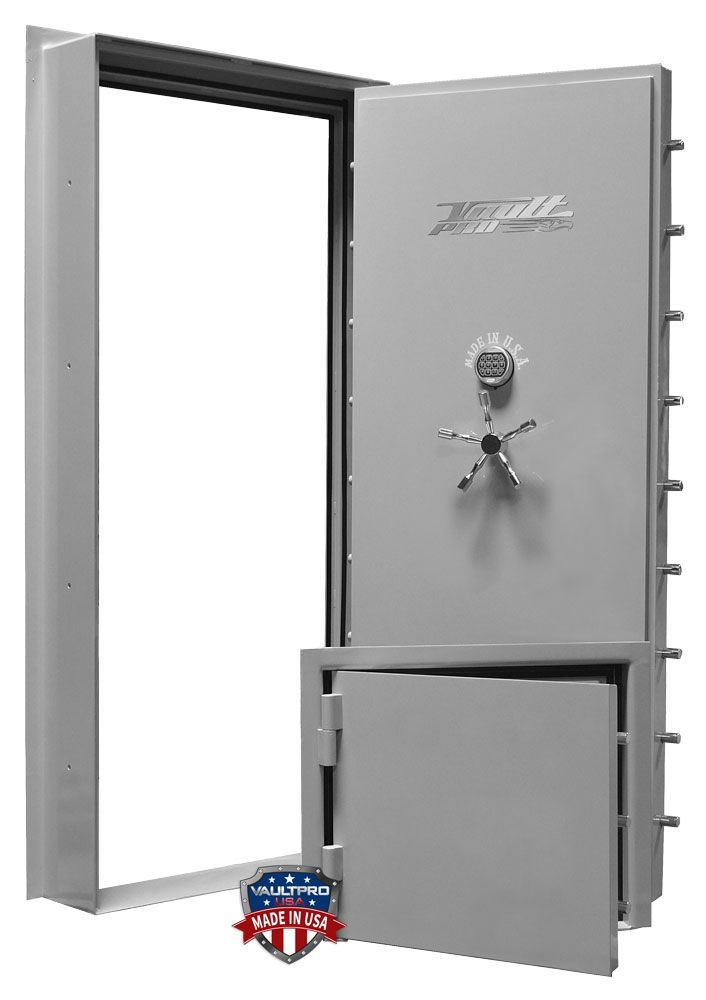

EASY EXIT SYSTEM

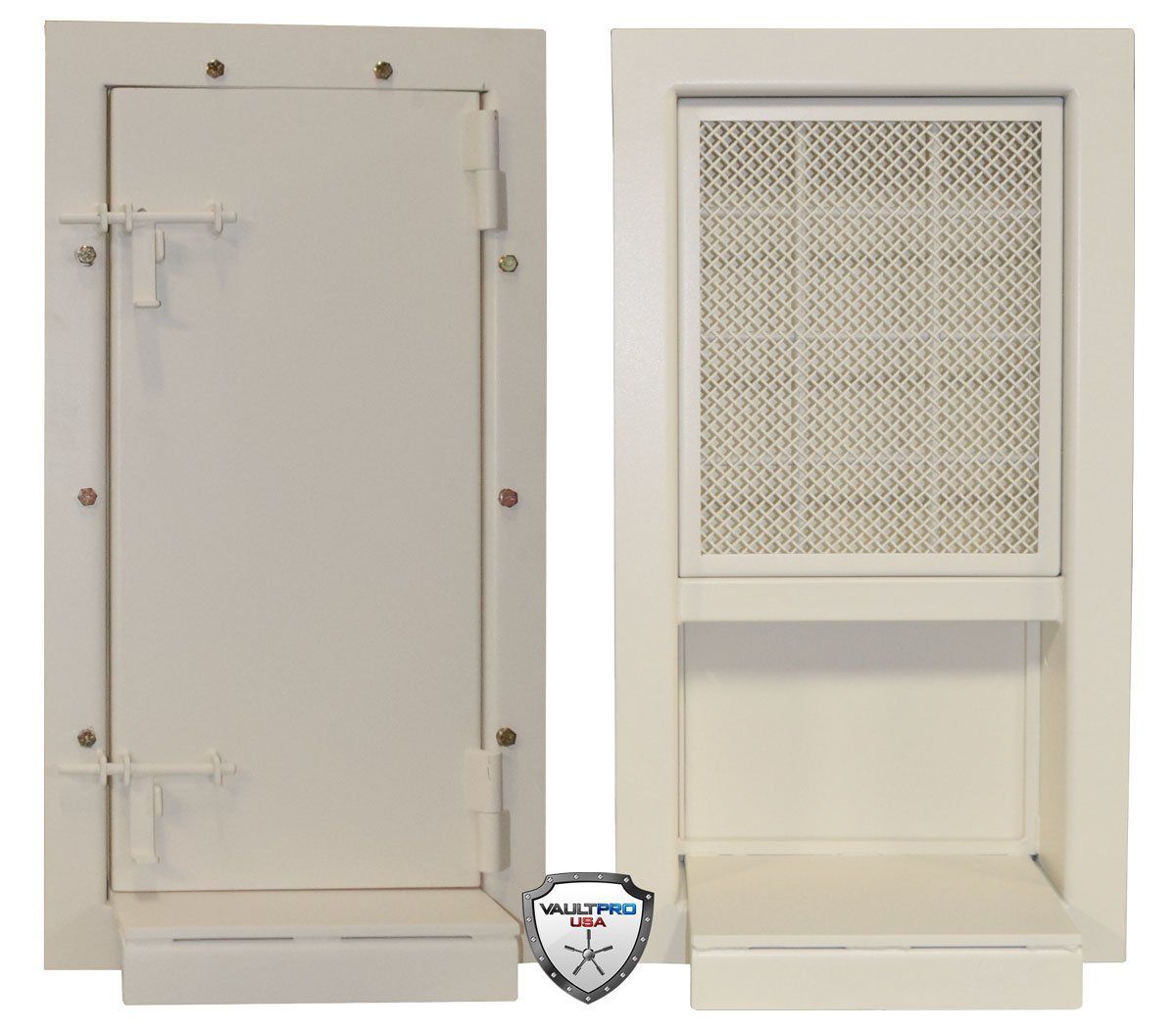

An emergency escape hatch can be integrated into the side wall, floor or ceiling of the shelter for a swift exit in case the main door is obstructed by debris. Vault Pro escape hatches feature a quick-release internal handle for ease of use. Additionally, safe rooms can be outfitted with pneumatic or hydraulic mechanisms for vertical escape hatches.
Easy Exit System
Add an Emergency Escape Hatch to Your Safe Room Shelter for Quick Exit should primary exit be blocked by debris.

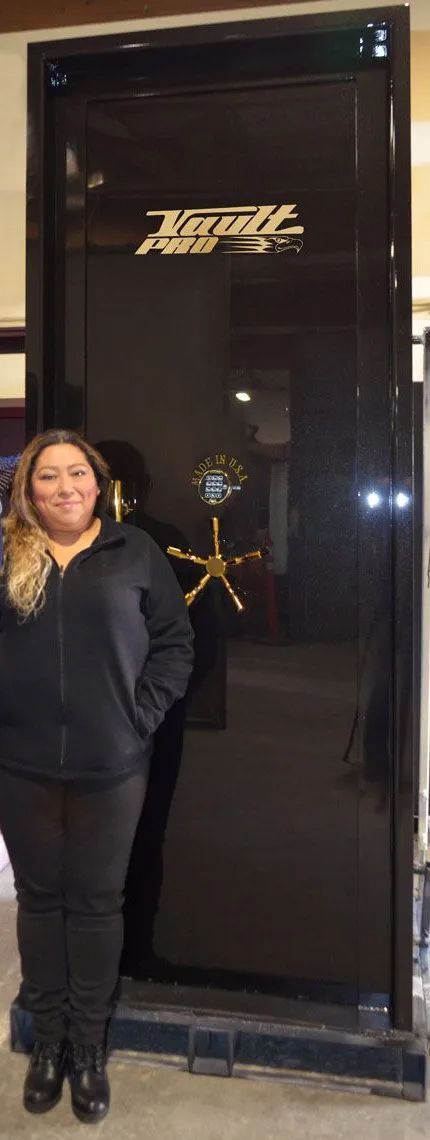

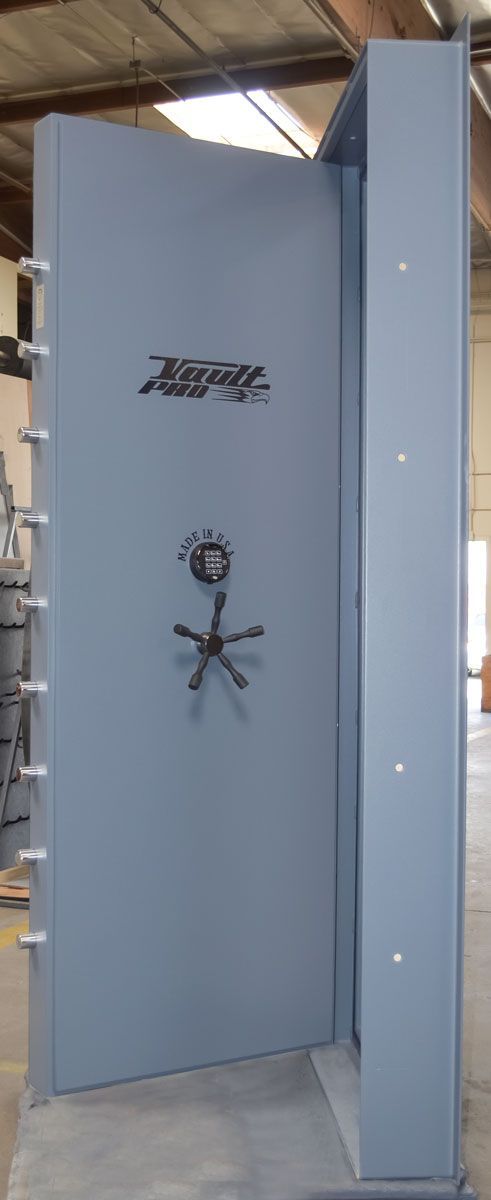

Introducing the XL Series
96" Tall Vault Doors
Available with Every Model
We Are Custom Door Specialists - Call: CLICK TO CALL (M-F 7AM to 7PM)

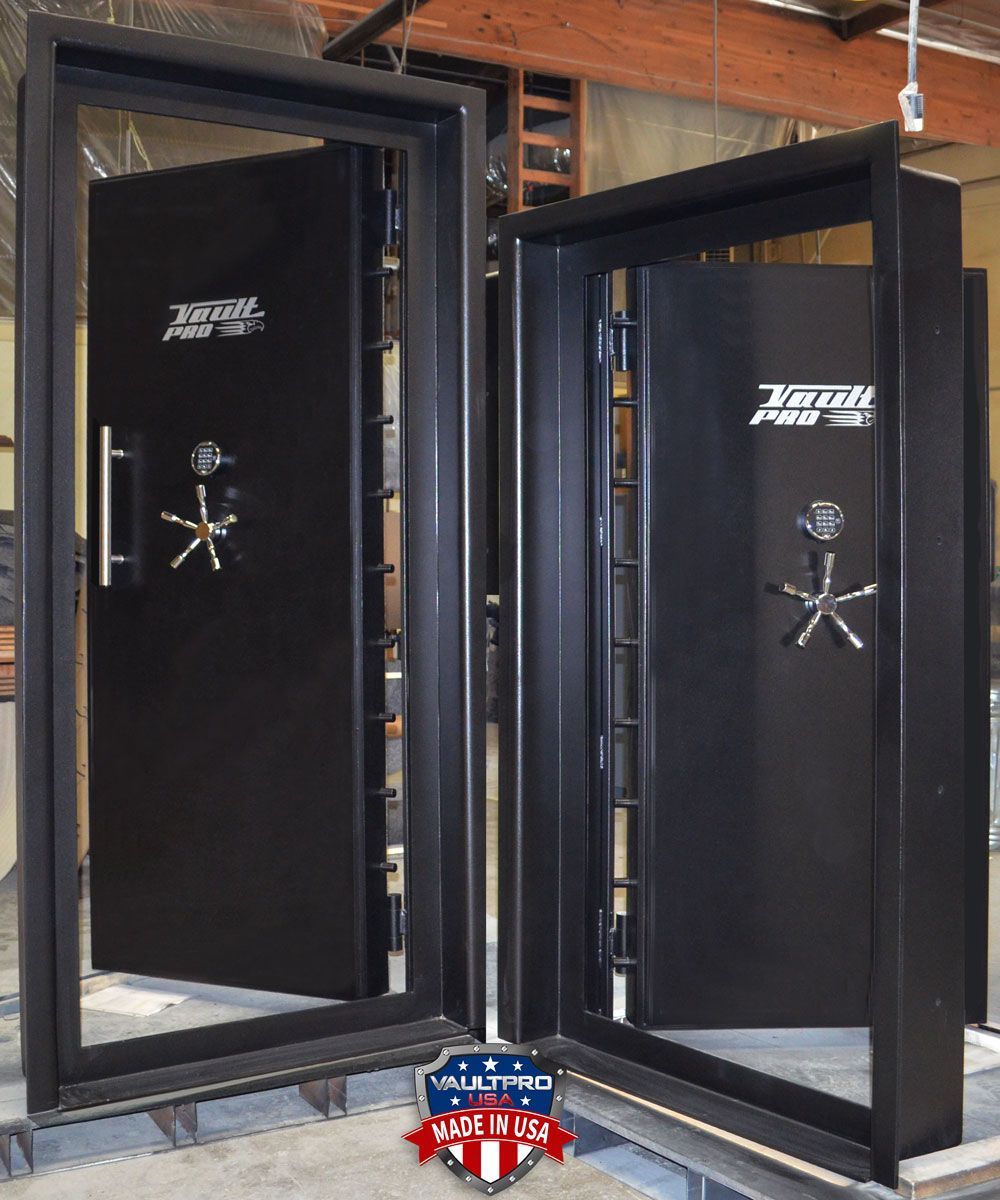

XL Series 96" Tall Door
Click images to enlarge.

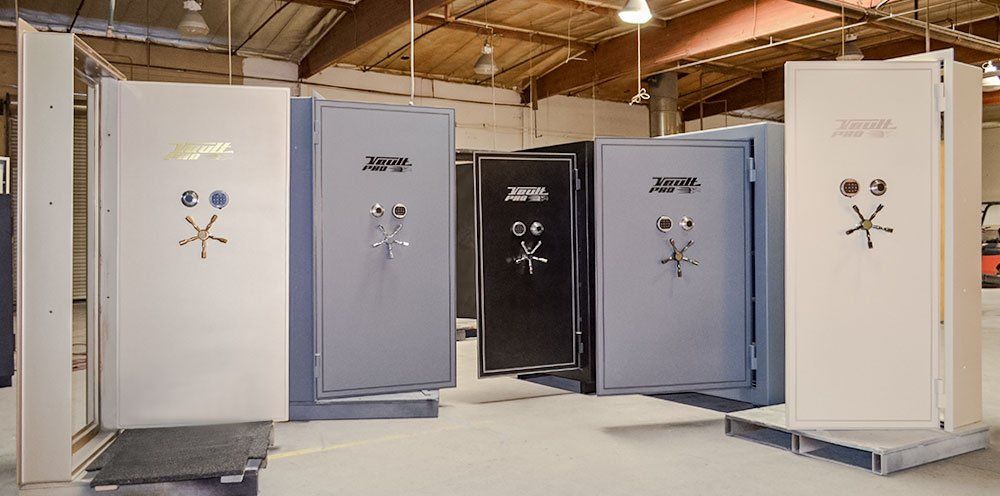

Why Choose Vault Pro Vault Doors?
Are you in search of a vault door, tornado shelter, storm shelter, or safe room door to safeguard your home or business? We offer the finest American-made steel vault doors and custom options for sale across the USA. Browse our collection of storm shelter doors and walk-in vault room doors, or let us craft a unique vault door tailored just for you.

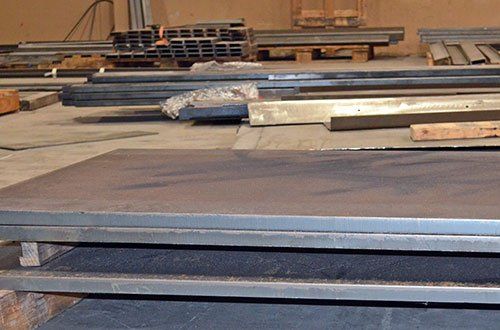

Our vault room doors are constructed from the highest quality materials by expert American craftsmen. We provide top-notch security products for home and business, specializing in storm shelters and walk-in vault rooms. Need a personalized door solution? Our team will design exquisite, custom high-end vault doors and security doors to meet your specific needs. Contact one of our Vault Pros: CLICK TO CALL.

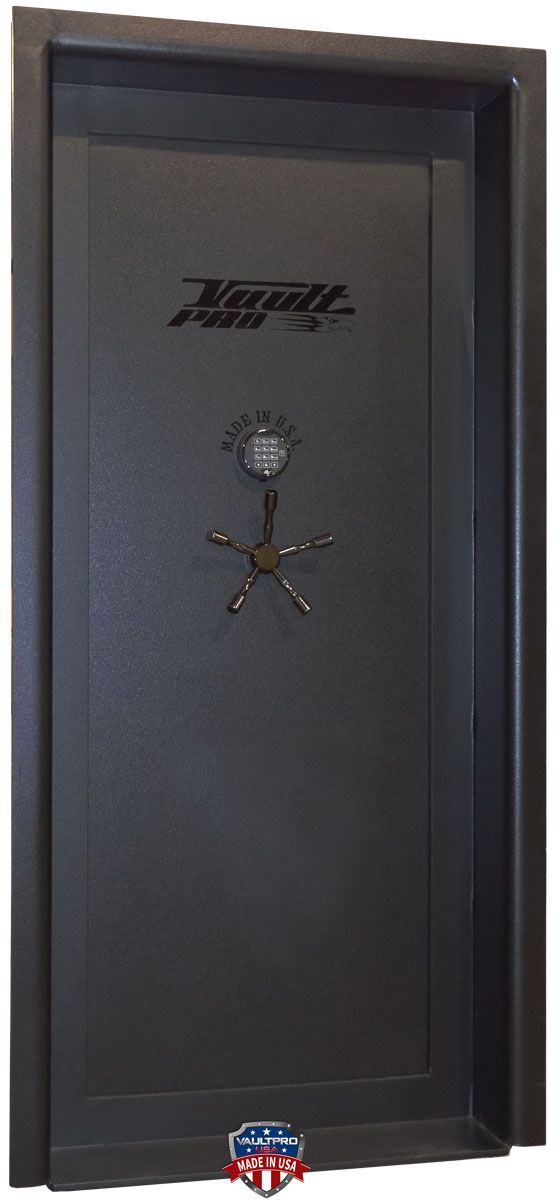

Ballistic Resistant · Bullet Resistant · Torch Resistant
Looking for a bullet-resistant door? Vault Pro enhances our robust doors with AR-500 ballistic steel, ideal for safe rooms, panic rooms, and secure areas where bullet resistance is paramount. Contact us for details and a free quote.
Looking for a torch-resistant vault door? Vault Pro uses 304 Stainless Steel, also know as 18/8 for its 18% chromium and 8% nickel content. This corrosion-resistant material is self-healing in oxygen and dissipates heat quickly, making it highly resistant to torch cutting for enhanced security.
Vault Door Models Features & Pricing

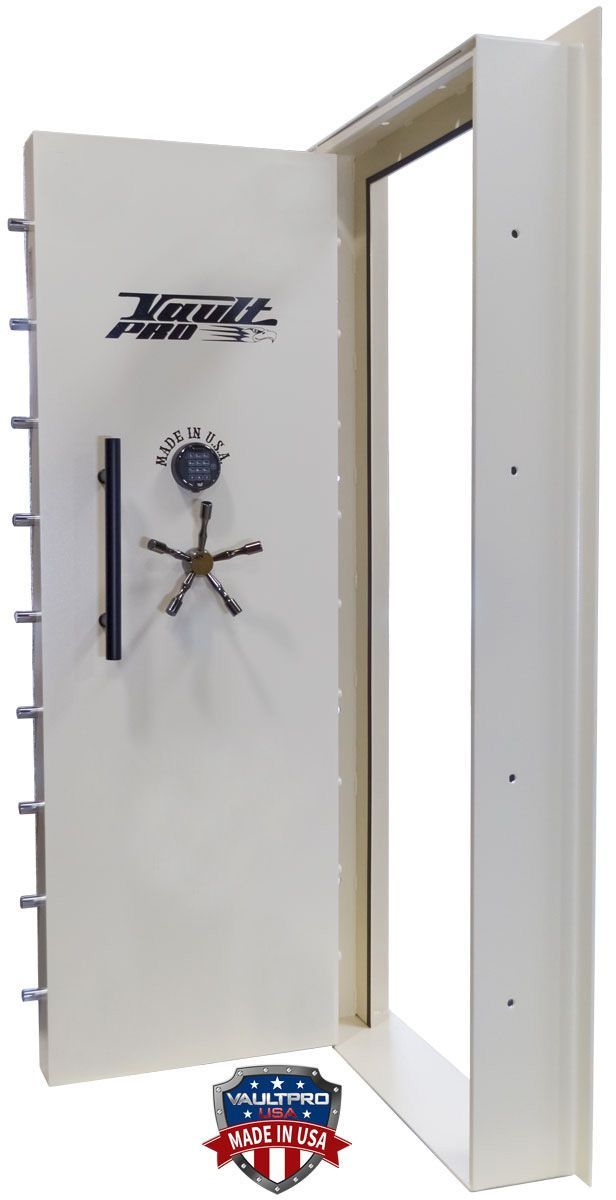

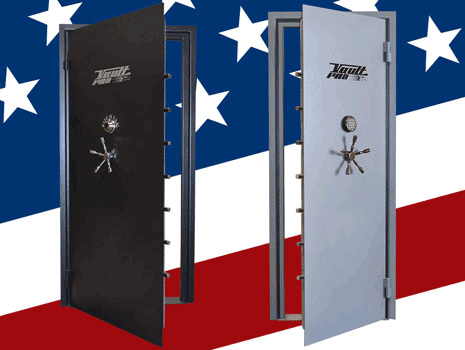

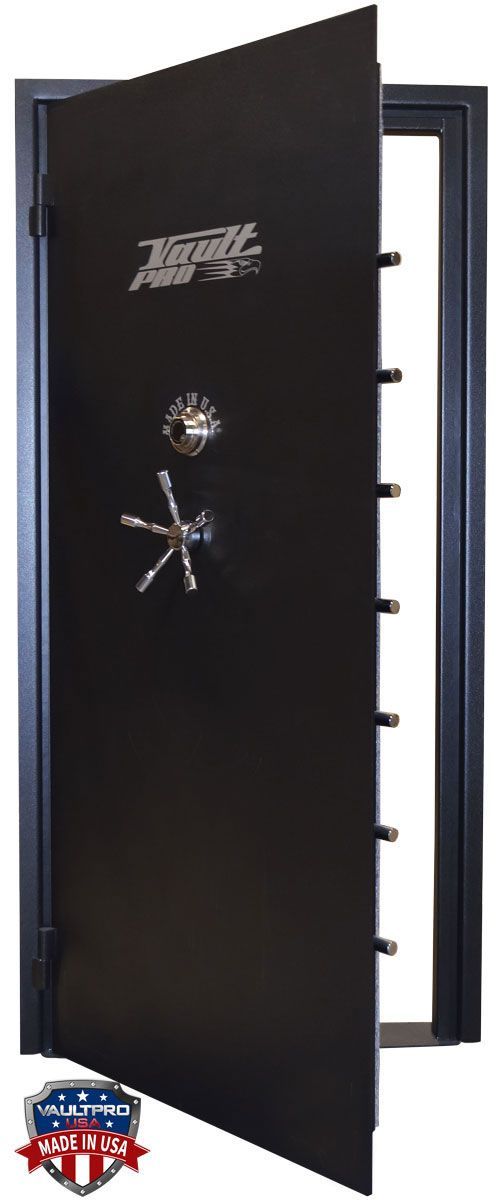

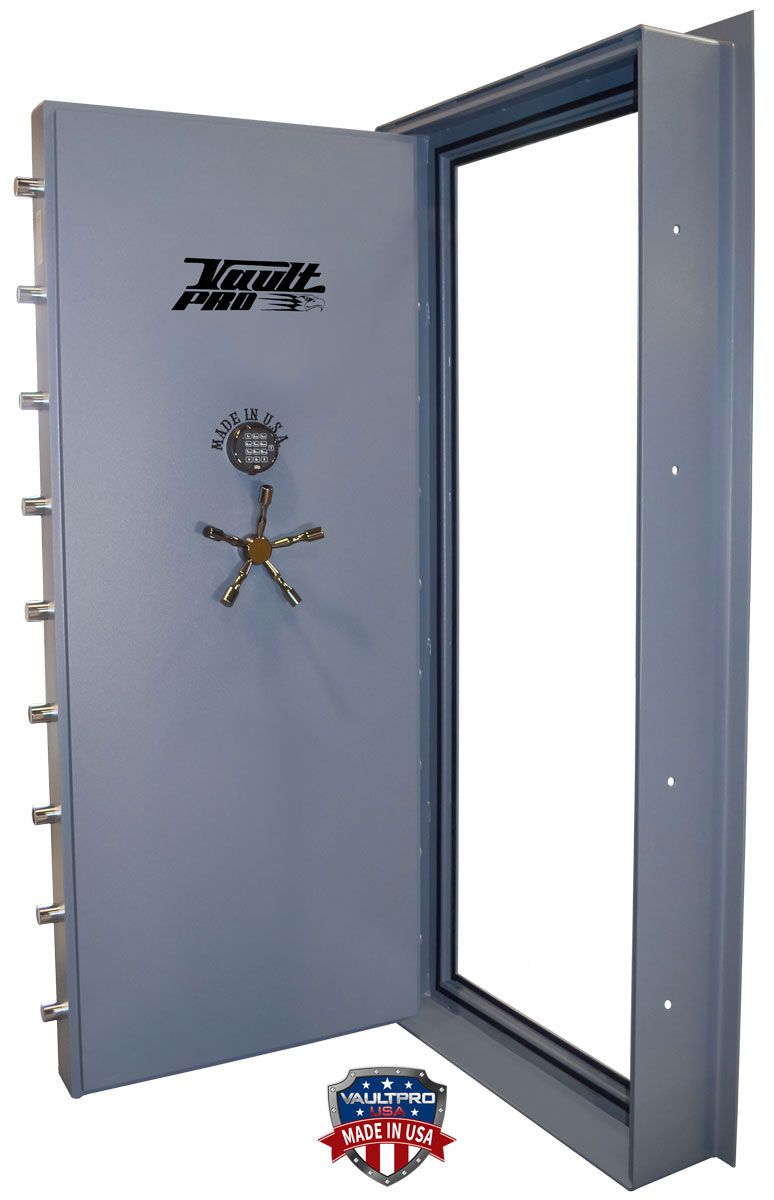

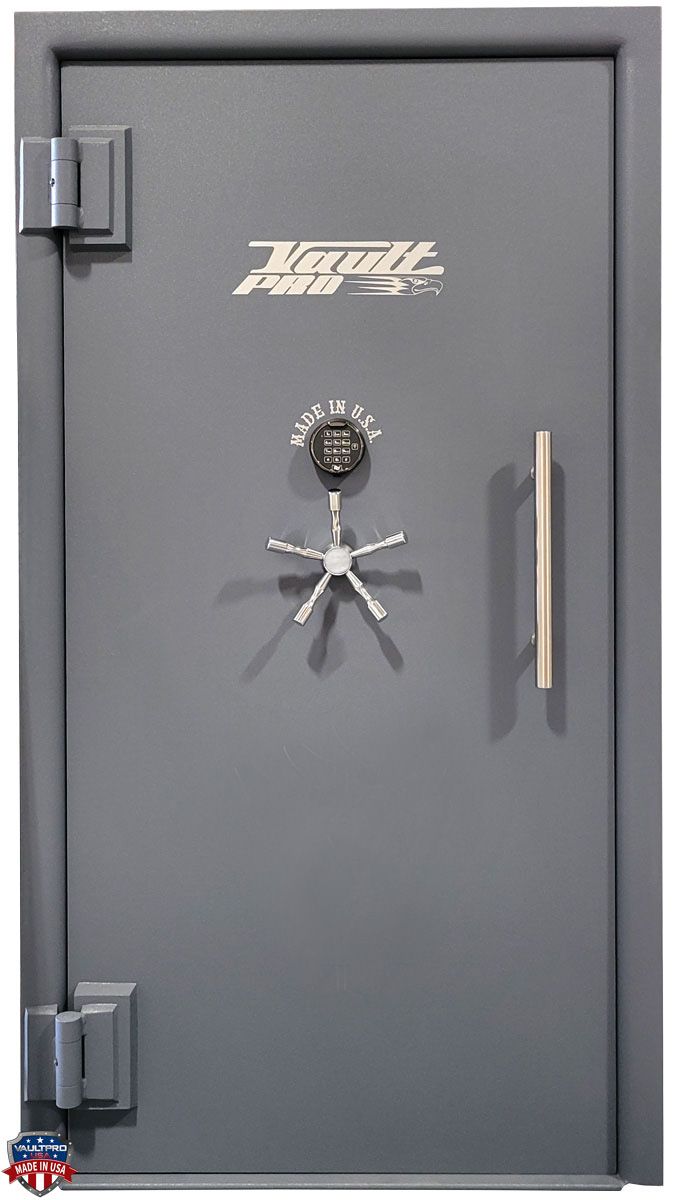

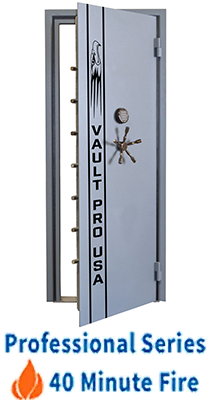

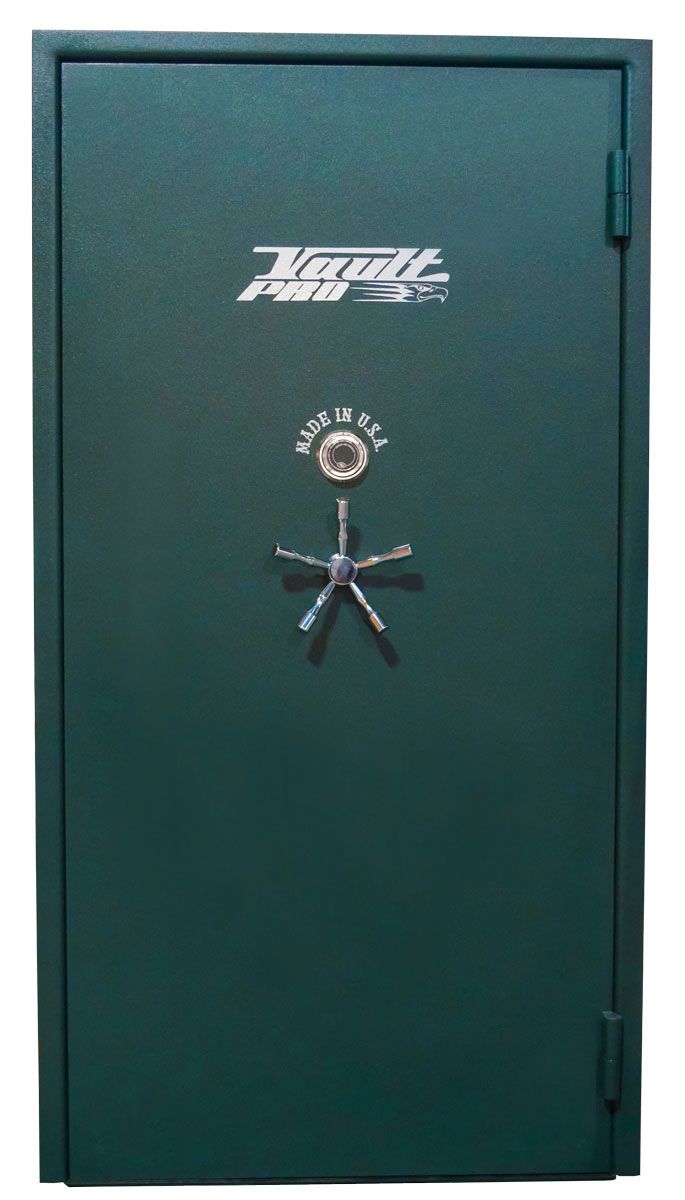

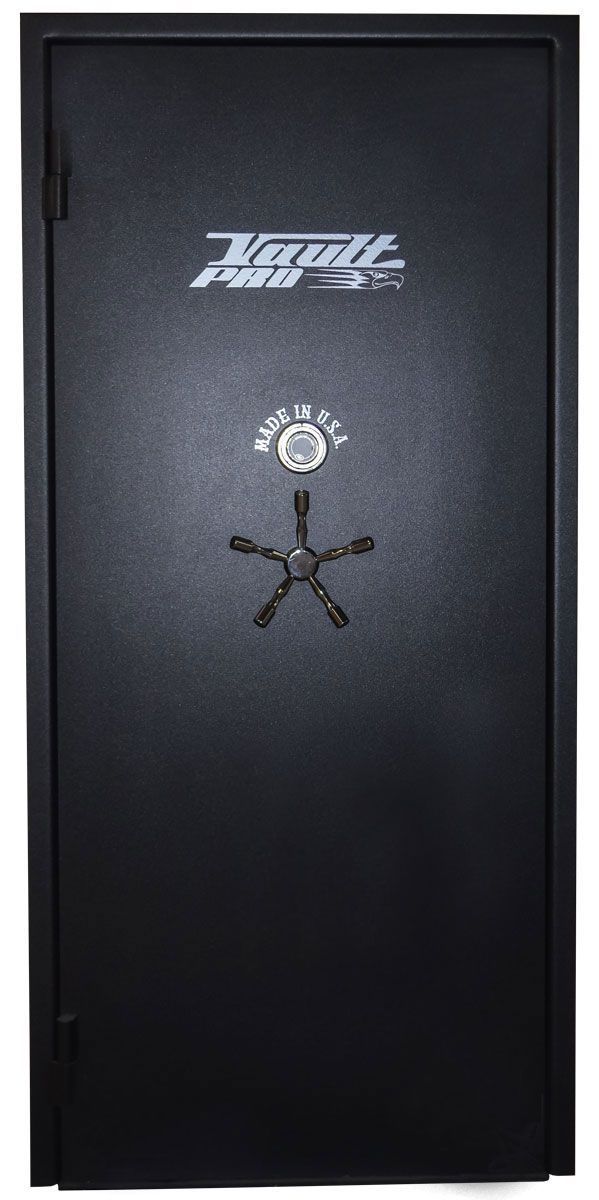

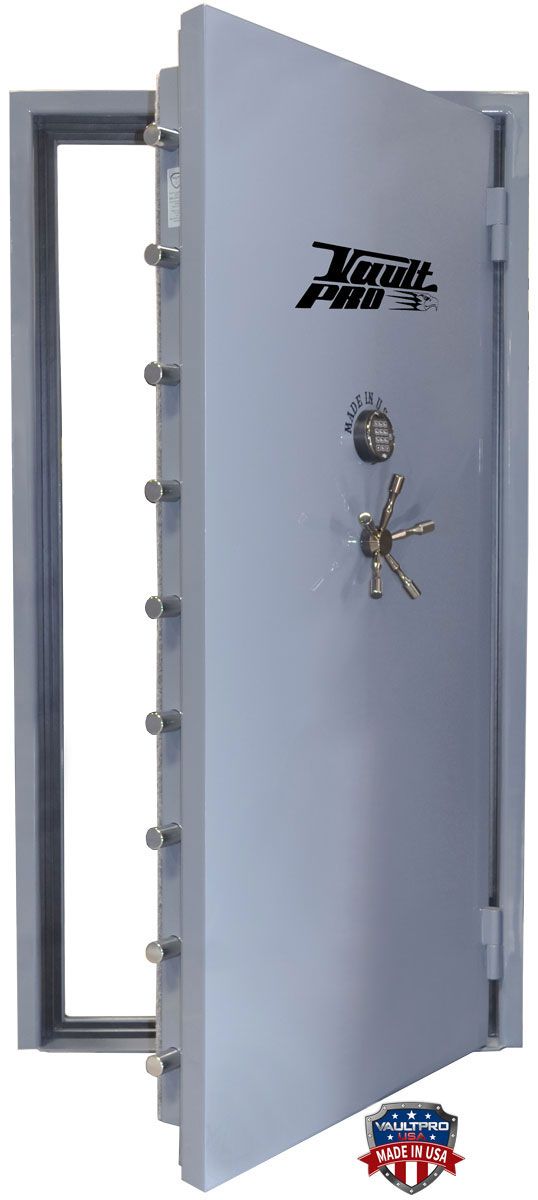

Professional Series Vault Door
Click on Image to enlarge.
Professional Series Standard Features
- 1/4" Plate Steel Door
- Overall Door Thickness 3¾"
- 40 Minute Fire Door 1550°

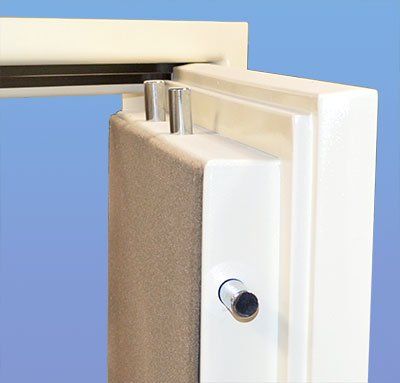

- Palusol® Gasket
- 1/4" Solid Steel Frame
- 14-Bolt Locking System - 1" Locking Bolts

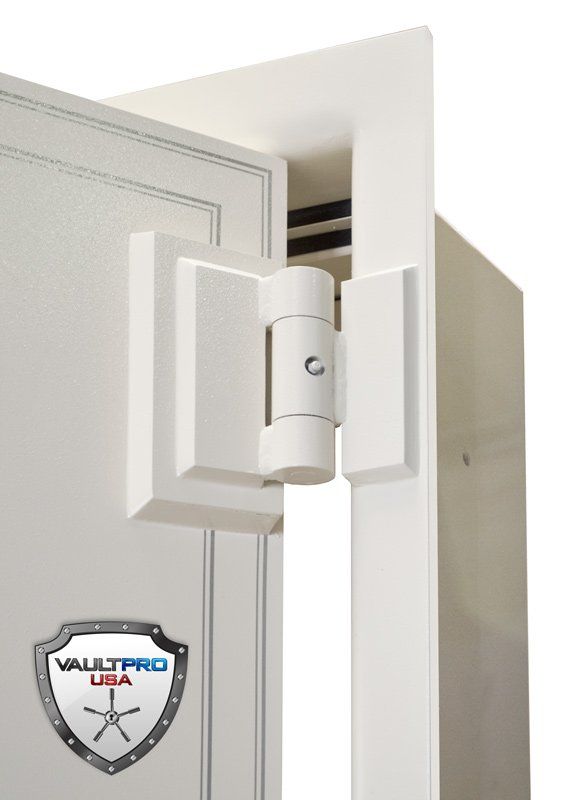

- Adjustable Ball Bearing Hinges
- Left or Right Hinged Door
- Sargent & Greenleaf, U.L. Listed Group 2 Spyproof Lock (Digital lock available)
- 1/4" Solid 60+ Rockwell Hard Plate
- Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan)

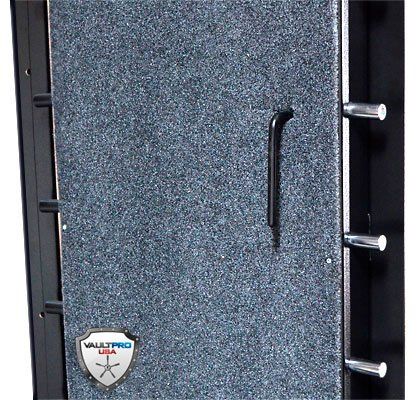

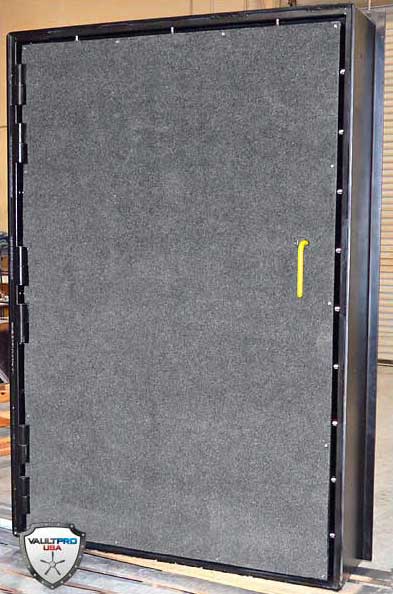

- Internal Release
- Carpeted Door Panel
- Black, Gray, Brown, Burgundy and Dark Green Matte Finish - Gloss and Custom Finishes Available - Call:
CLICK TO CALL
- Choice of Silver, Gold or Black Matching Hardware
Prioritizing economic security, Vault Pro’s Professional Series Vault Door is meticulously designed to offer exceptional protection against forced entry and fire hazards. Constructed with a robust ¼” steel frame and a ¼” plate steel door, along with a reliable 14-bolt locking system and 1¼” barrel hinges, the Professional series is engineered to surpass FEMA 320, 361, and ICC-500 standards for Storm and Tornado Shelters.
Standard Professional Series Features Include: 1/4" Solid 60+ Rockwell Hard plate · Internal Release · 14-Bolt Locking System - 1" Locking Bolts
Professional Series Vault Door Factory Direct Pricing
Professional Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 6"-8" | 735 lbs | 25" outswing / 23" inswing | — | outswing $3,310 | inswing $3,660 |
| 80" x 35" | 6"-8" | 855 lbs | 30" outswing / 28" inswing | — | outswing $3,915 | inswing $4,265 |
| 80" x 40" | 6"-8" | 895 lbs | 35" outswing / 33" inswing | — | outswing $4,500 | inswing $4,850 |

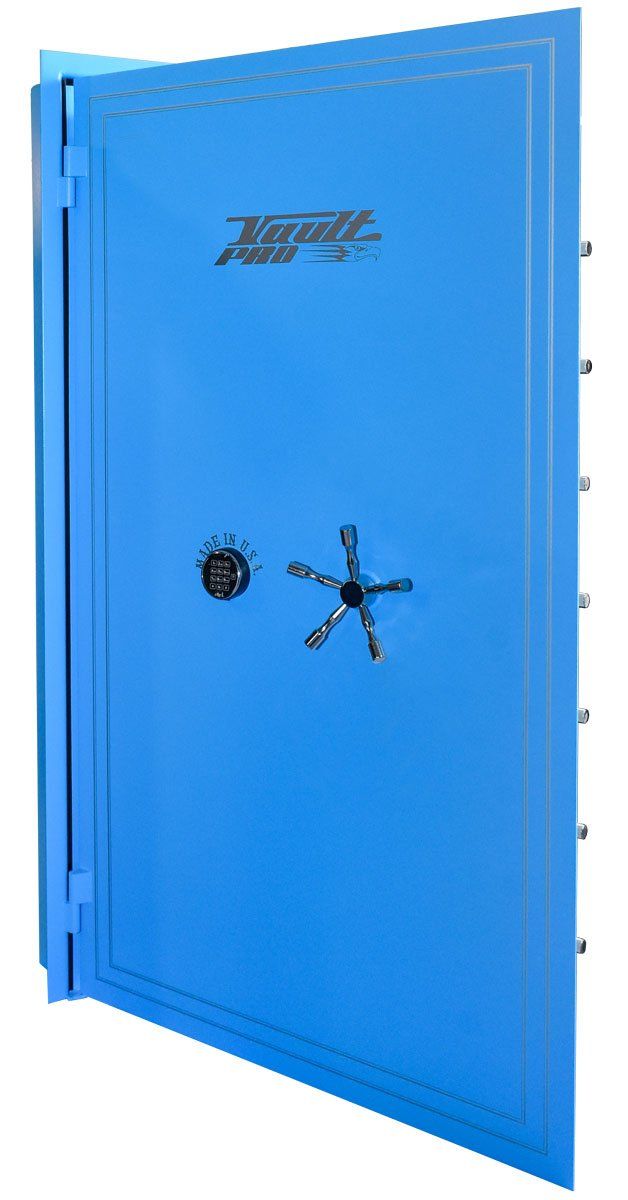

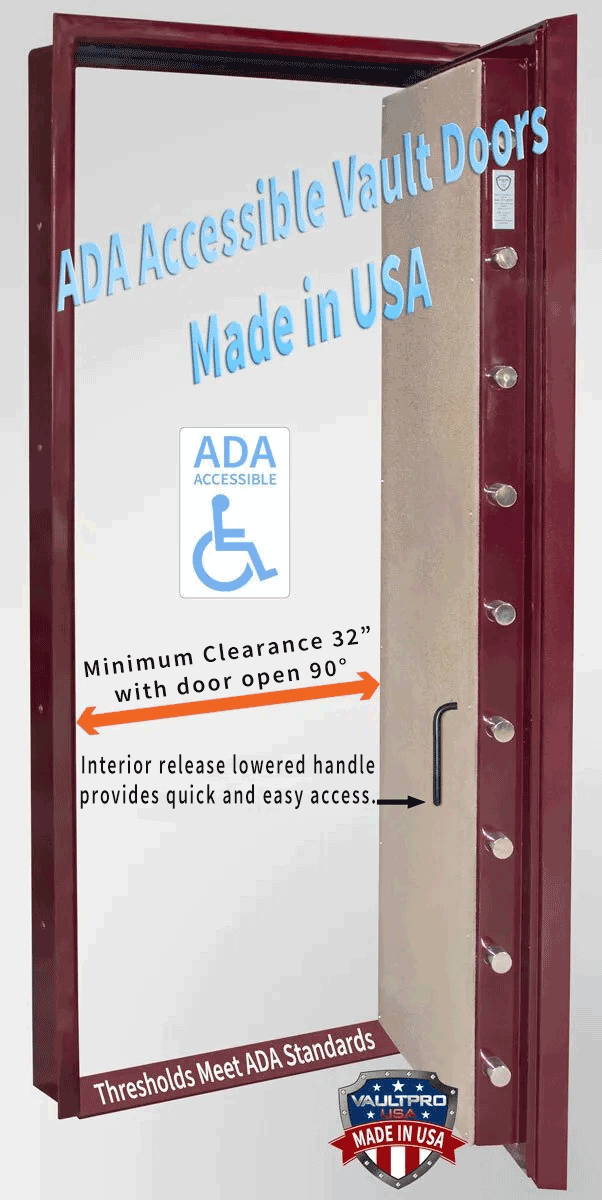

| 80" x 45" | 6"-8" | 950 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $5,085 | inswing $5,435 |
| 80" x 50" | 6"-8" | 1,015 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $5,665 | inswing $6,015 |
Professional XL Series Vault Door Factory Direct Pricing
Professional XL Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 96" x 30" | 6"-8" | 825 lbs | 25" outswing / 23" inswing | — | outswing $4,635 | inswing $4,985 |
| 96" x 35" | 6"-8" | 1,025 lbs | 30" outswing / 28" inswing | — | outswing $5,485 | inswing $5,835 |
| 96" x 40" | 6"-8" | 1,075 lbs | 35" outswing / 33" inswing | — | outswing $6,300 | inswing $6,650 |
| 96" x 45" | 6"-8" | 1,140 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $7,115 | inswing $7,465 |
| 96" x 50" | 6"-8" | 1,240 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $7,930 | inswing $8,280 |
IN-SWING HINGING OPTION - Left or Right (Any Professional Door - Adds up to 100 lbs.)
In-Swing frame depth must be 7" or larger
Do you need a specific size vault door?
We are custom specialists. All size vault doors and configurations available - Call Us.
WHAT LEVEL OF SECURITY DO YOU REQUIRE?
Standard or 4-Way Active Bolt System available
(4-Way Active Bolts are Standard on Atlas, Titan and Monster Vault Doors)
Call to talk with one of our Vault Pro's about your specific requirements: CLICK TO CALL

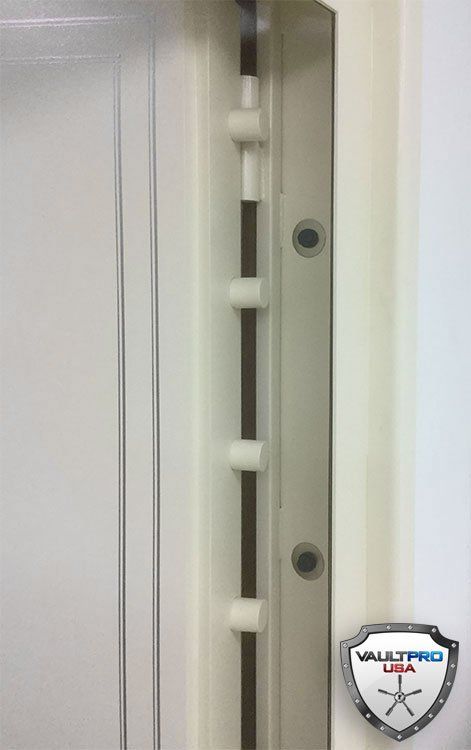

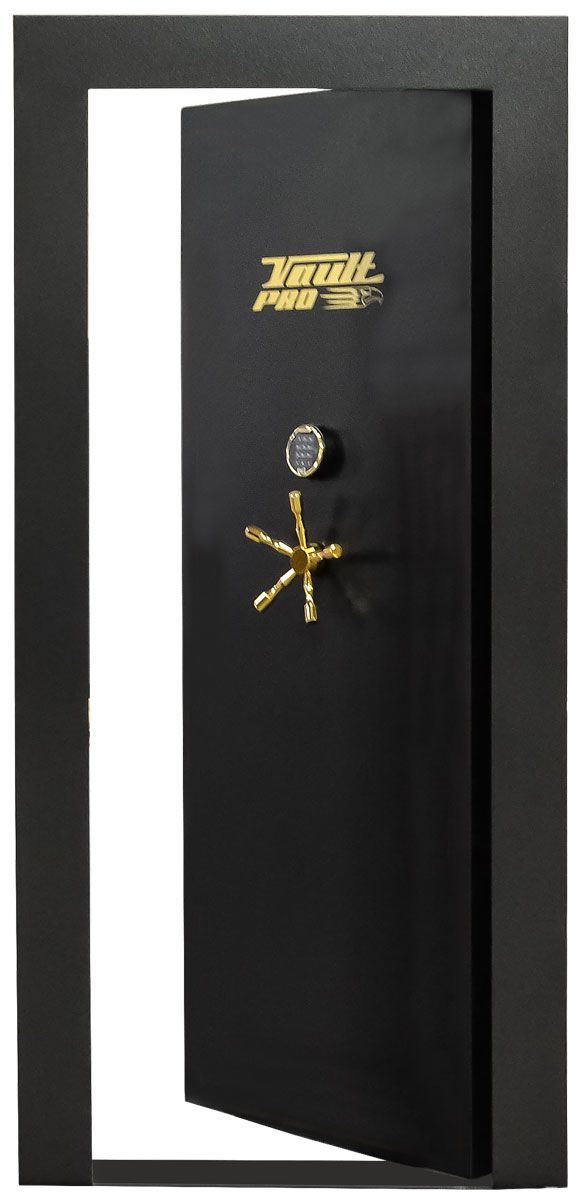

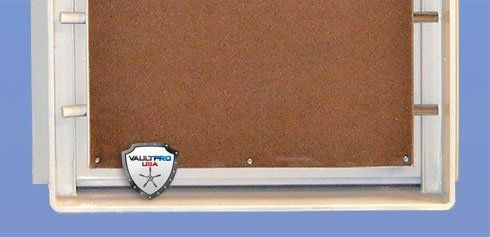

Standard bolt system with top & side bolts
and flat threshold.

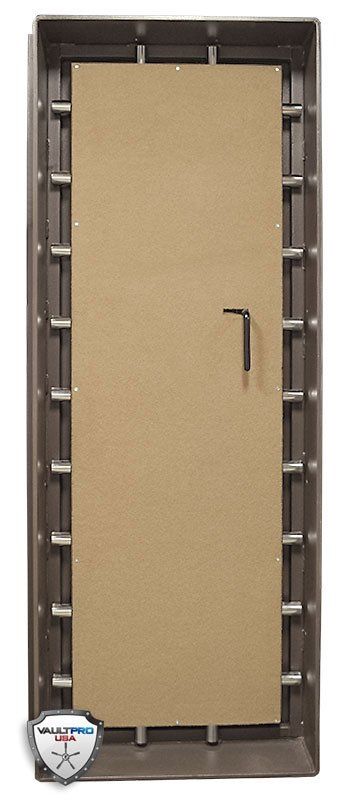

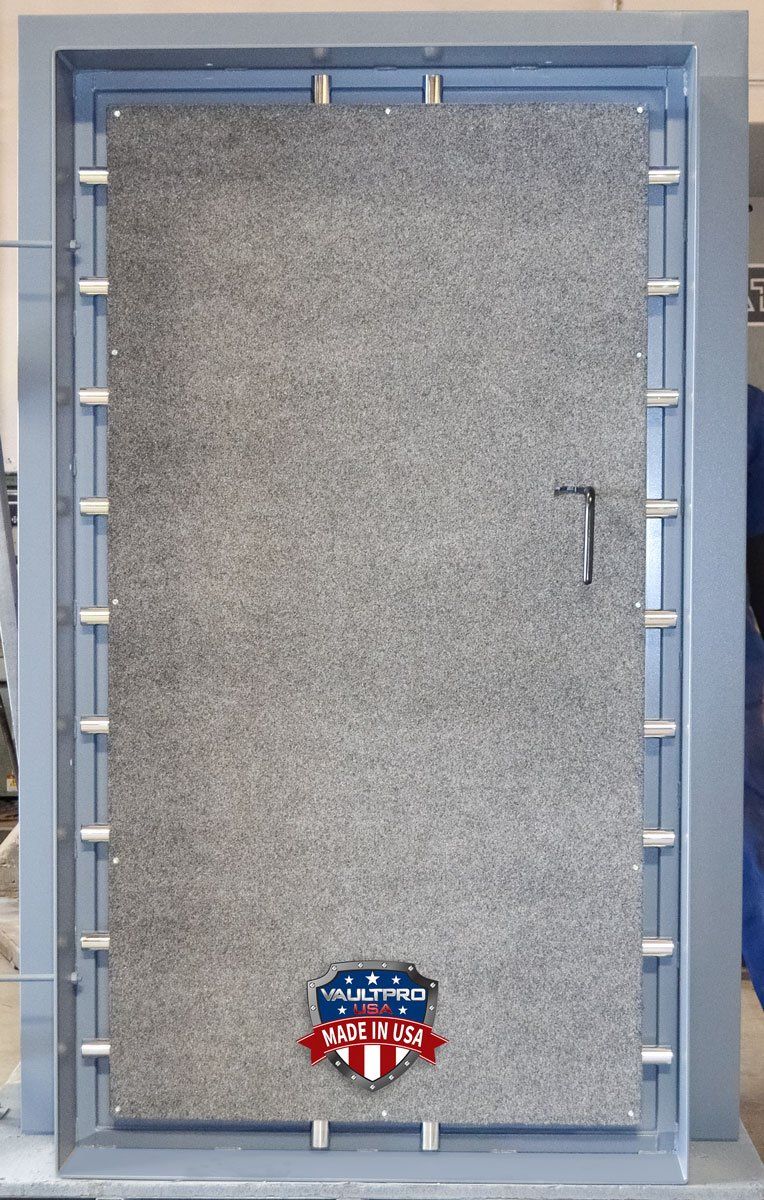

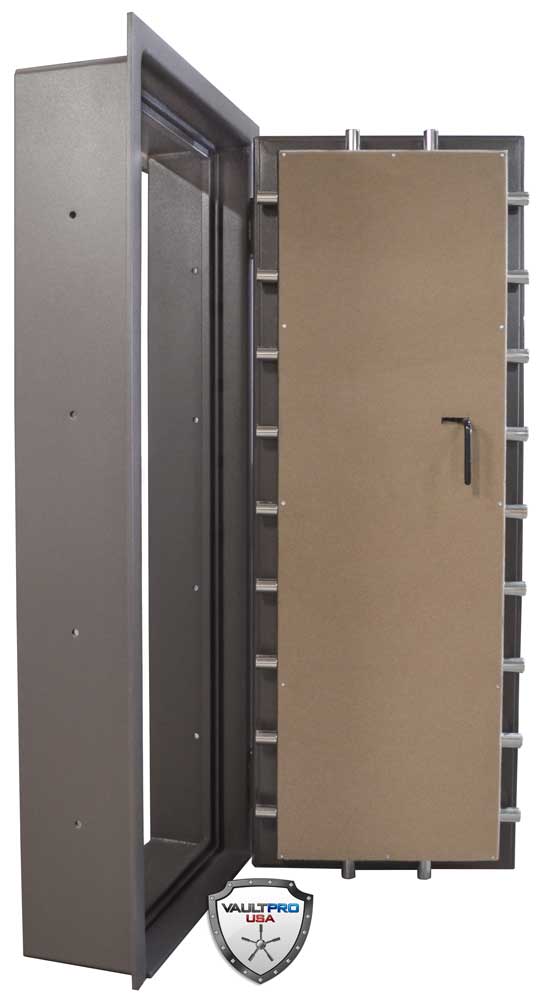

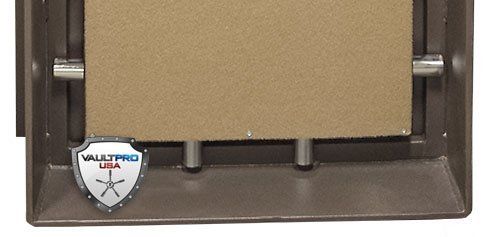

4-way active bolt system with fully rotating locking bolts and step at threshold. 4-Way Active Bolt System is standard on Atlas, Titan, and Monster Vault Doors.
Optional on Professional, Executive and Elite model doors. Add $400.00

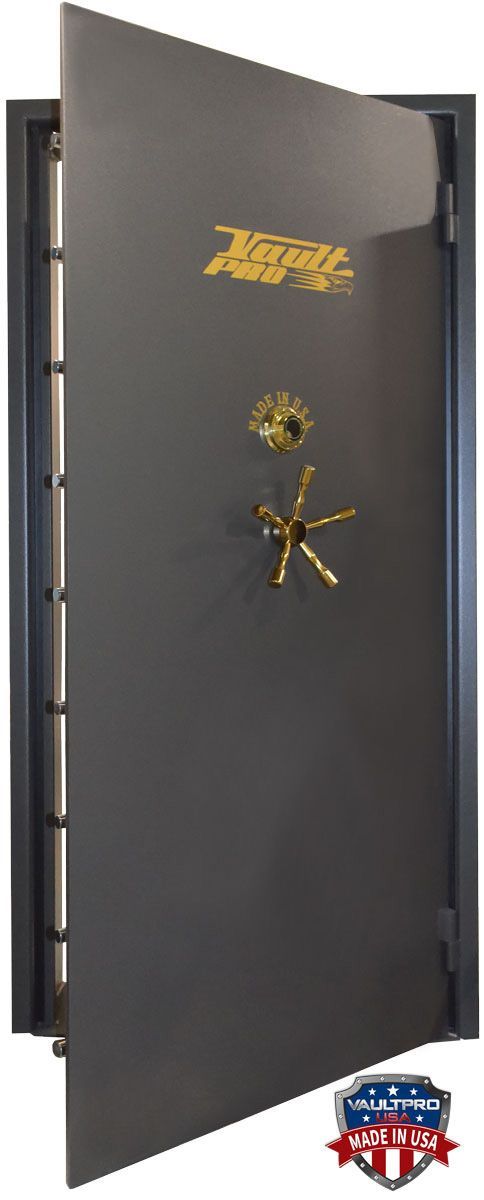

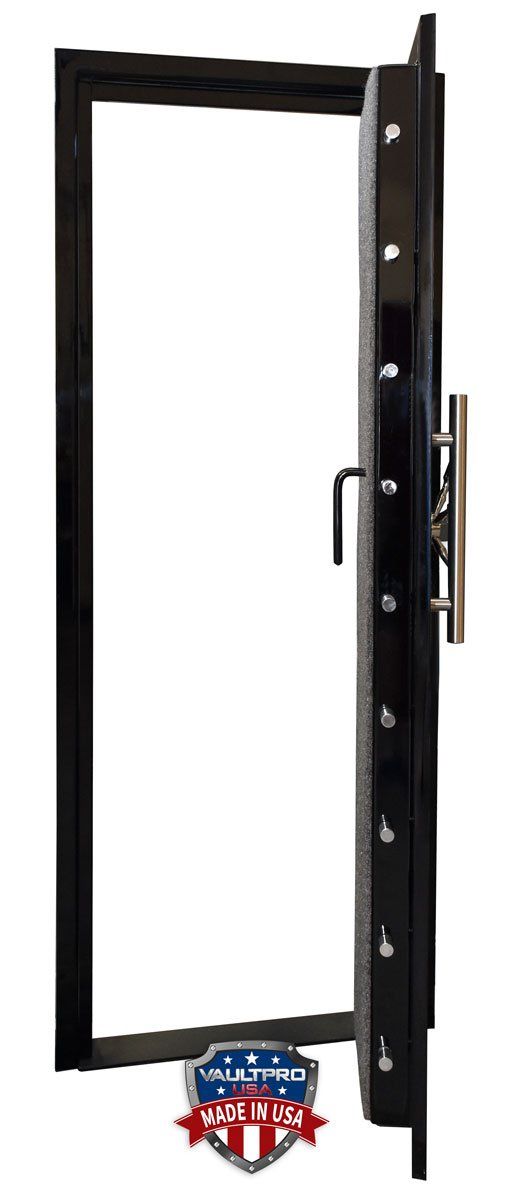

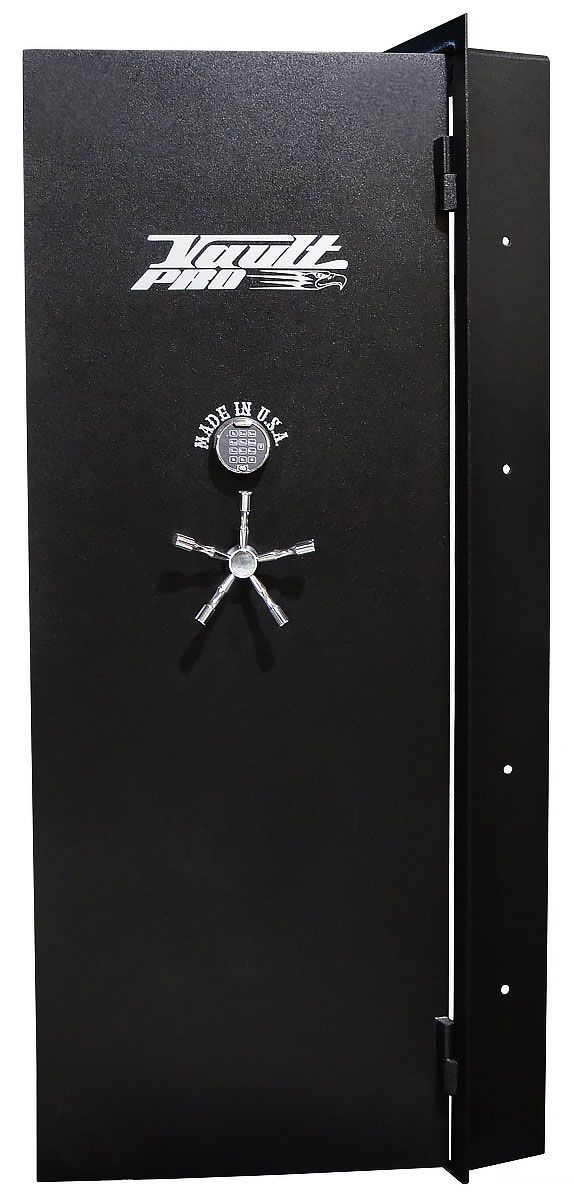

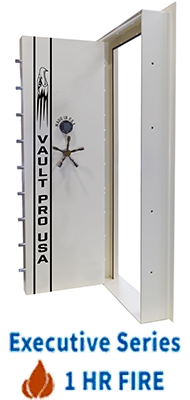

Executive Series Vault Door
Executive Series Vault Door
Click images to enlarge.
Executive Series Standard Features
- 1" Composite Steel Door
- Overall Door Thickness 4½"
- 1 Hour Fire Door 1550°
- Palusol® Gasket
- 1/4" Solid Steel Frame
- 2300° Ceramic Fire Blanket
- 18-Bolt Locking System - 1" Locking Bolts
- Adjustable Ball Bearing Hinges
- Sargent & Greenleaf, U.L. Listed Group 2 Spyproof Lock (Digital Lock Available)
- 1/2" 60+ Rockwell Hard plate
- Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan)
- Internal Release
- Carpeted Door Panel
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy
- Gloss and Custom Finishes Available -
Call: CLICK TO CALL - Choice of Silver, Gold or Black Matching Hardware
The Executive Series Vault Door provides superior protection against forced entry and fire. The 1" composite door (overall thickness 4½") utilizes 2300° ceramic fireproofing for 1HR fire protection. The 18 bolt locking system and 1¼” barrel hinges are hand-fitted to a solid 1/4" frame for exceptional strength. The Executive vault door is built to exceed FEMA 320, 361 and ICC-500 recommendations for use in Storm/Tornado Shelters.
Executive Series Vault Door Factory Direct Pricing
Executive Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 6"-10" | 810 lbs | 25" outswing / 23" inswing | — | outswing $4,020 | inswing $4,370 |
| 80" x 35" | 6"-10" | 860 lbs | 30" outswing / 28" inswing | — | outswing $4,455 | inswing $4,805 |
| 80" x 40" | 6"-10" | 980 lbs | 35" outswing / 33" inswing | — | outswing $5,015 | inswing $5,365 |
| 80" x 45" | 6"-10" | 1,105 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $5,460 | inswing $5,810 |
| 80" x 50" | 6"-10" | 1,255 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $6,065 | inswing $6,415 |
Executive XL Series Vault Door Factory Direct Pricing
Executive XL Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 96" x 30" | 6"-10" | 970 lbs | 25" outswing / 23" inswing | — | outswing $5,635 | inswing $5,985 |
| 96" x 35" | 6"-10" | 1,030 lbs | 30" outswing / 28" inswing | — | outswing $6,235 | inswing $6,585 |
| 96" x 40" | 6"-10" | 1,170 lbs | 35" outswing / 33" inswing | — | outswing $7,020 | inswing $7,370 |
| 96" x 45" | 6"-10" | 1,325 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $7,645 | inswing $7,995 |
| 96" x 50" | 6"-10" | 1,505 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $8,490 | inswing $8,840 |
IN-SWING HINGING OPTION Adds up to 100 lbs.
In-Swing frame depth must be 7" or larger

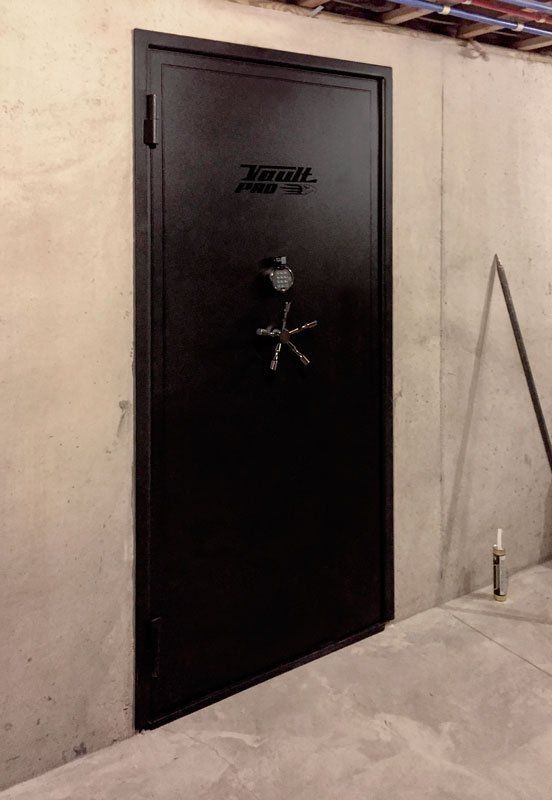

Installation Instructions (PDF opens in new tab)
VAULT DOORS ANY SIZE! WE ARE CUSTOM DOOR SPECIALISTS - CALL: CLICK TO CALL (M-F 7AM to 7PM)

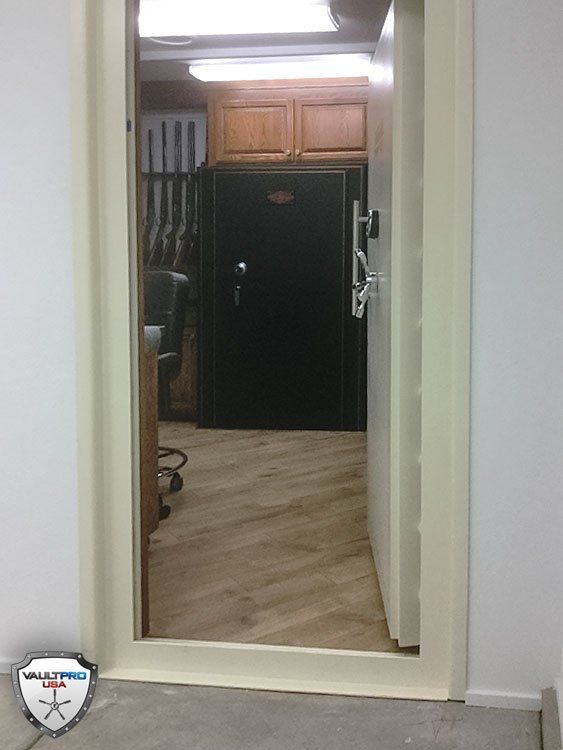

Create Your Own Walk-in Vault Room & Storm Shelter

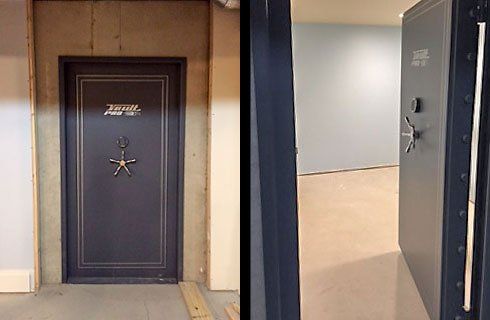

In-Swing or Out-swing Vault Doors and Frames for Hidden Vault Doors
Click on images to enlarge.
City skyline

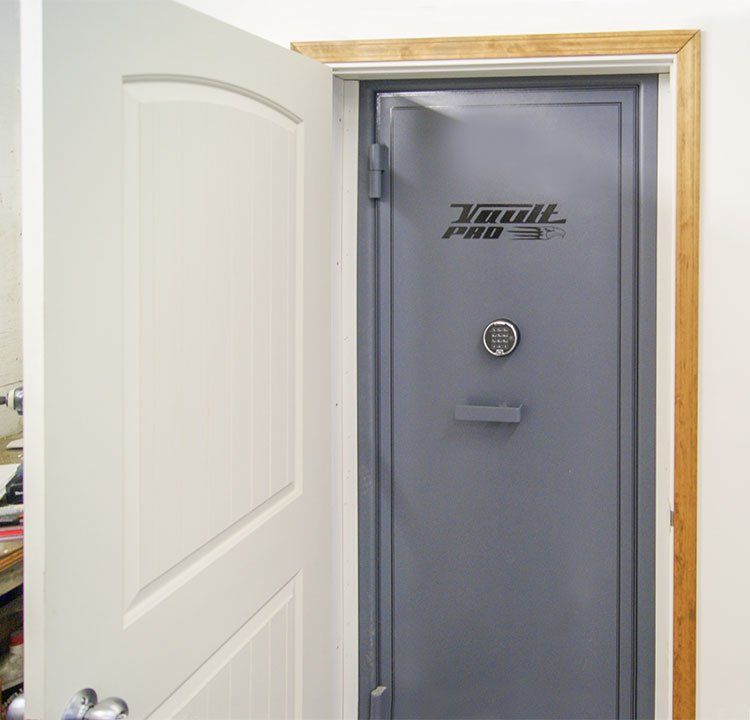

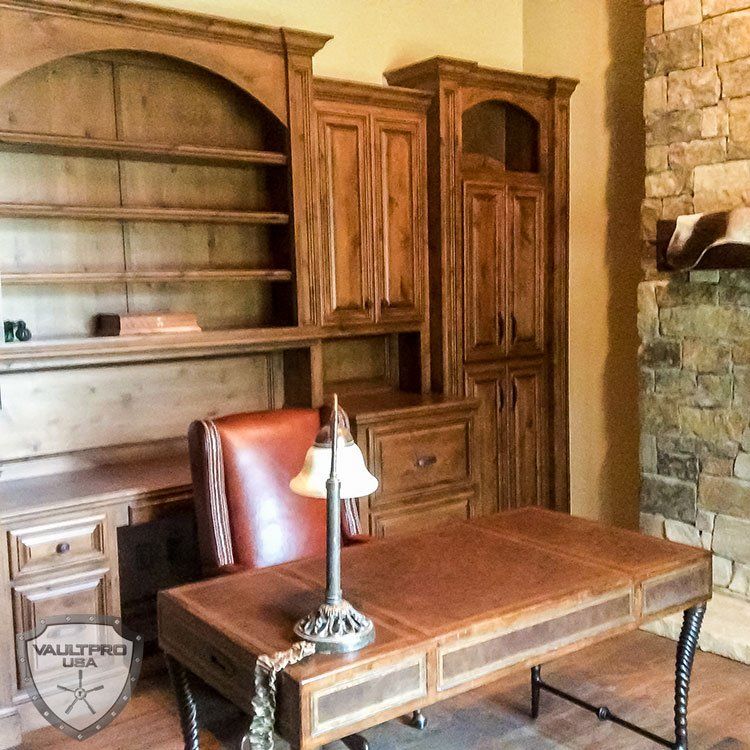

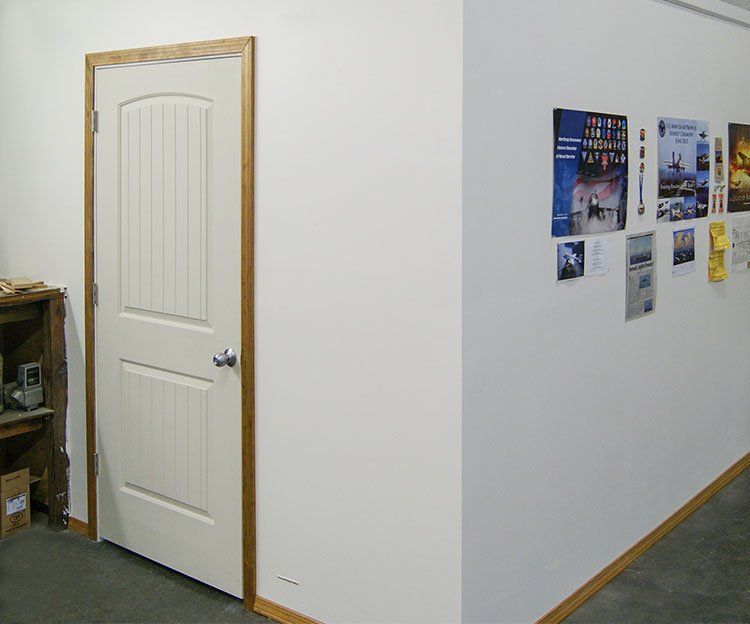

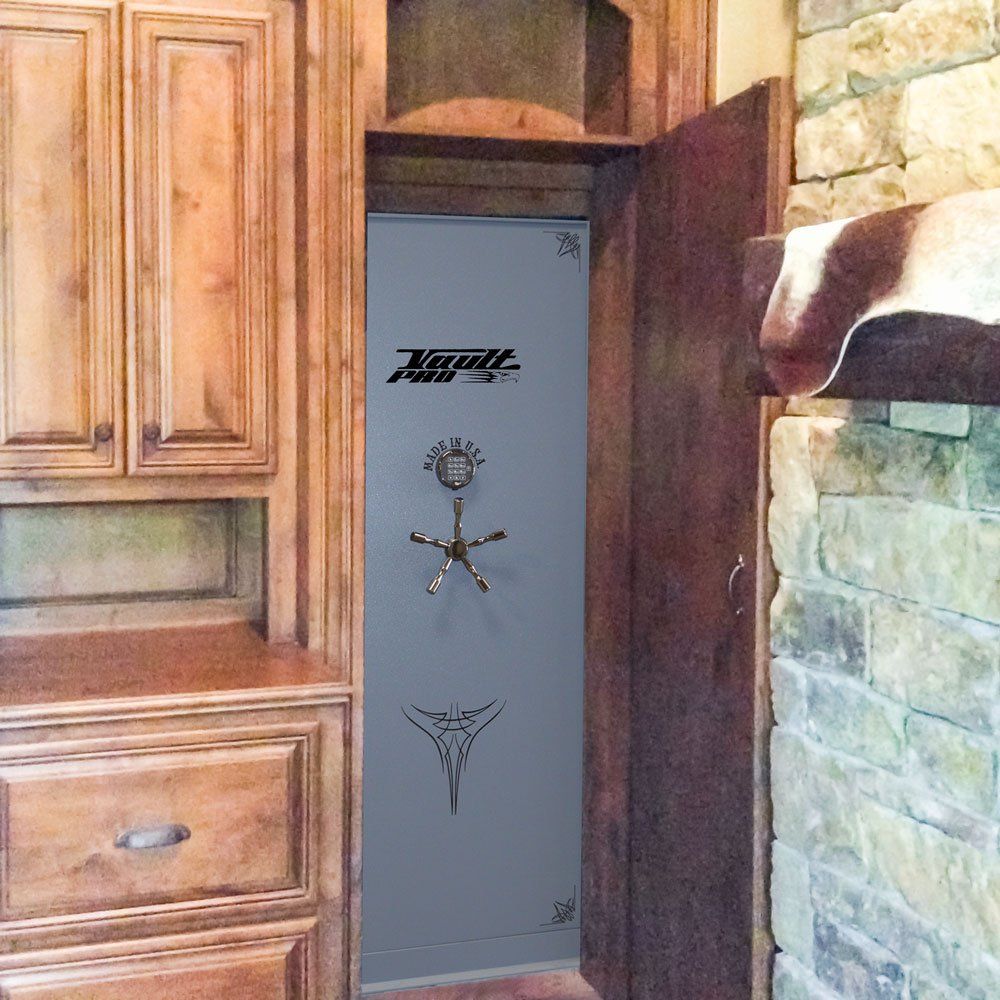

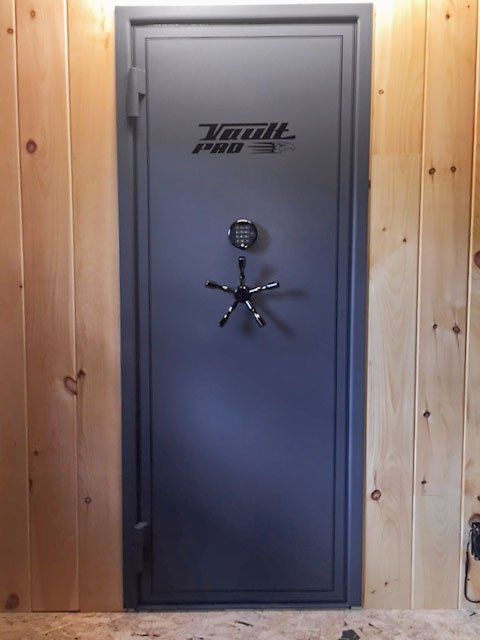

Hidden vault room door. Outer door closed to disguise hidden vault door.
Birthday Sparks
Hidden vault room vault door with Low Profile L-handle.
Fashion Magazine

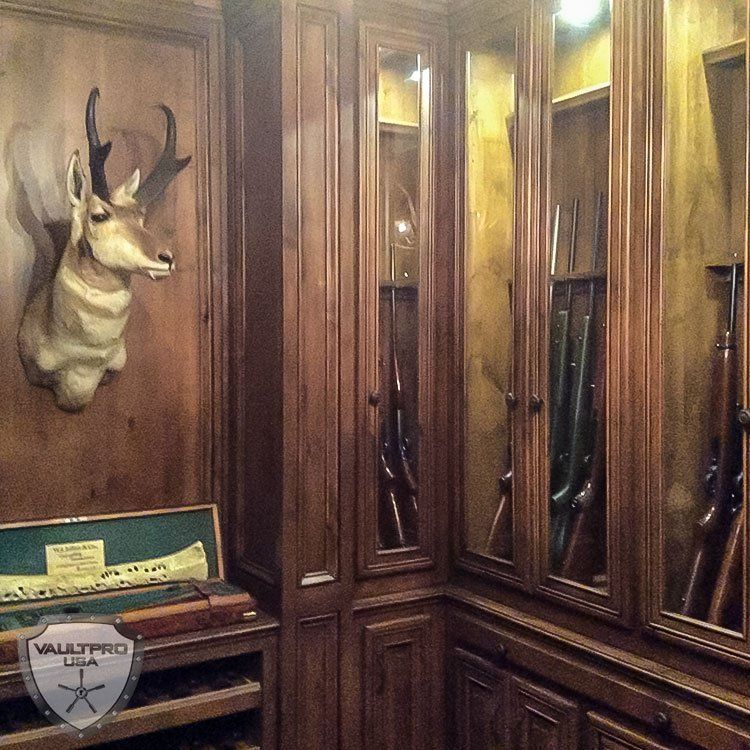

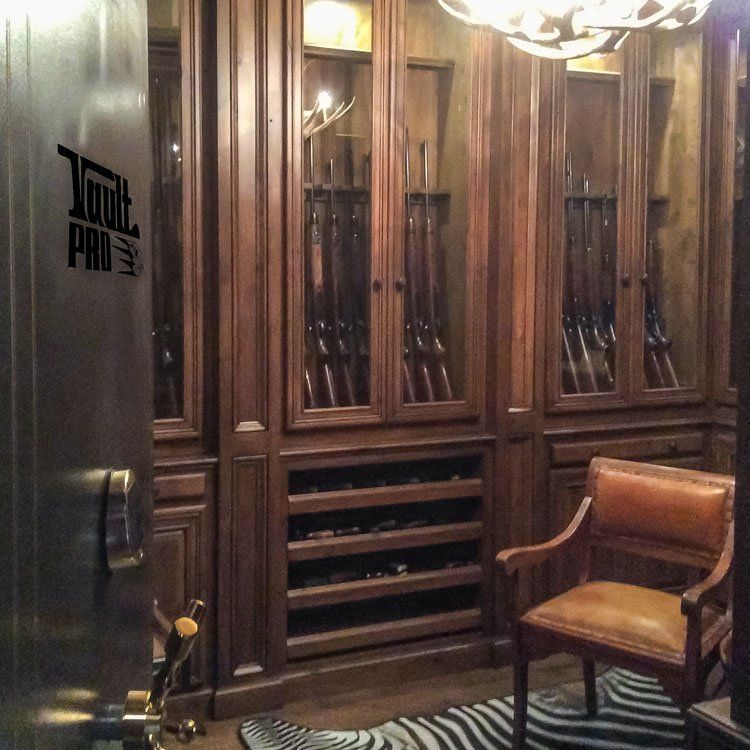

Outswing vault door open to show hidden vault room interior. (Inswing door available)
Blurred Lines

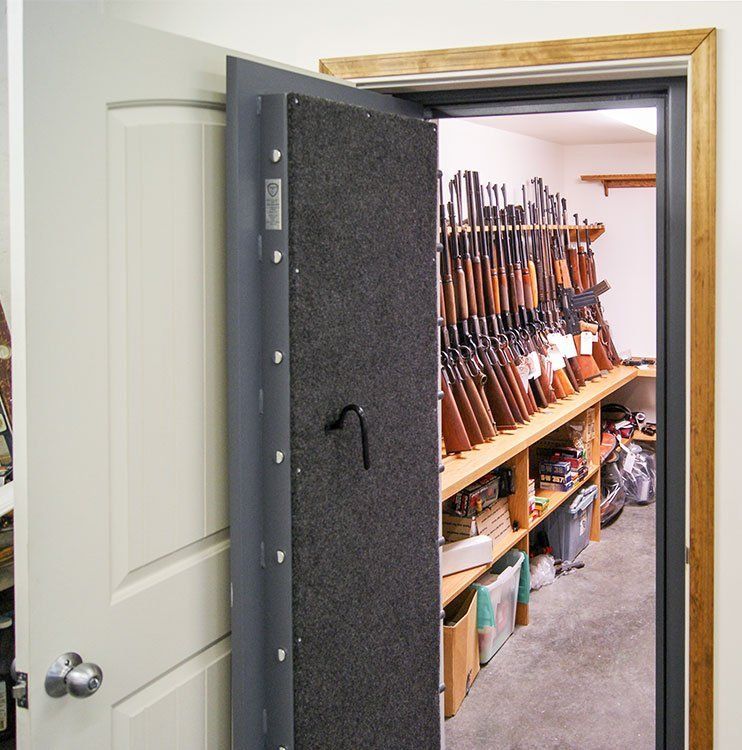

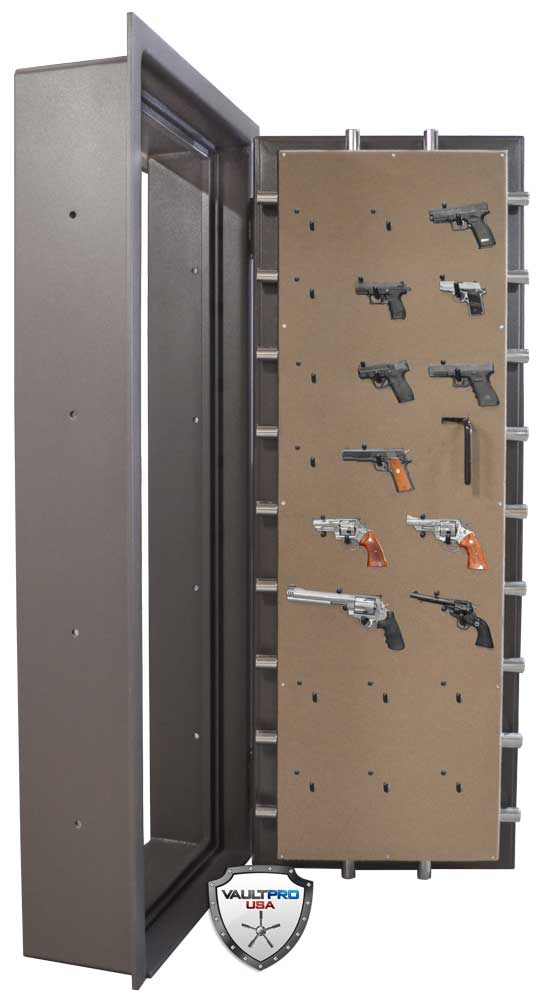

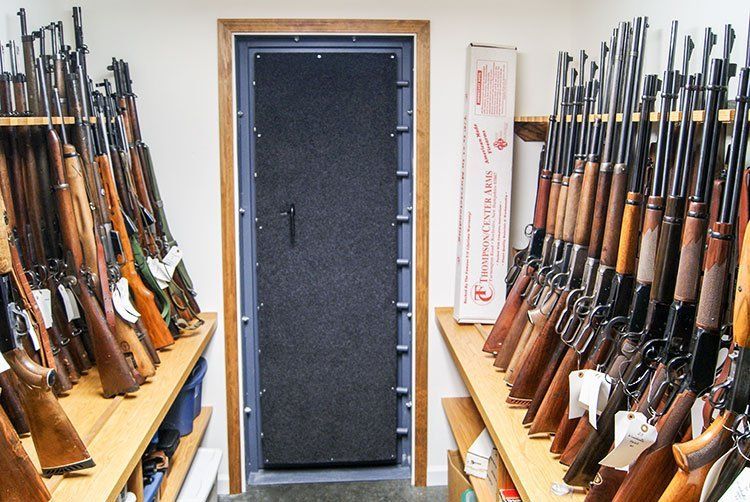

Guns and Valuables Secured in Vault Room by heavy duty vault door.
Hidden Vault Door
Locked and hidden behind a discrete and unsuspected door, Mr. "M" chose our all American Manufactured, custom left hinged Executive Series Vault Door with a flat handle and an Electromagnetic Pulse (E.M.P.) Resistant Sargent & Greenleaf Group 1, Digital Lock to conceal a few firearms. Check out those lever actions...very nice. Mr. "M", rest assured, Vault Pro has your firearms safe and secure.

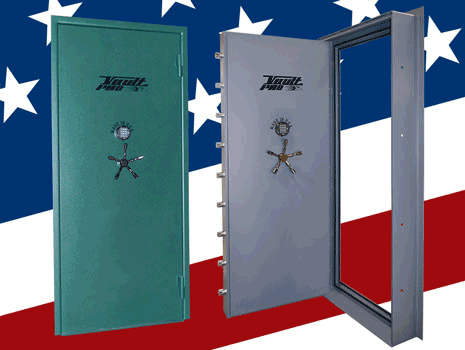

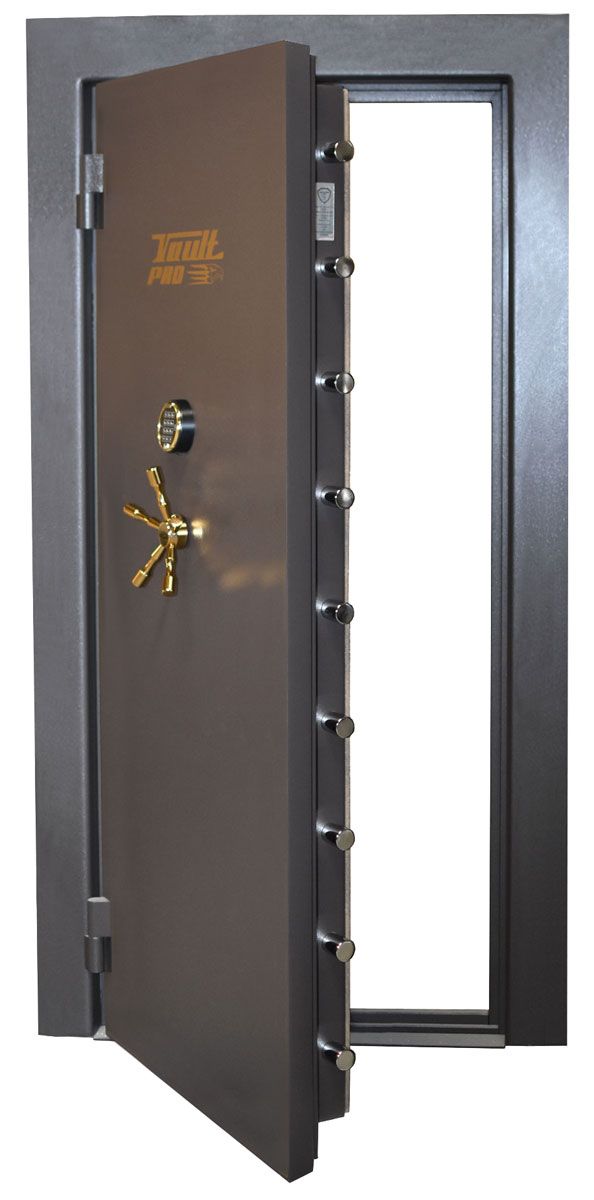

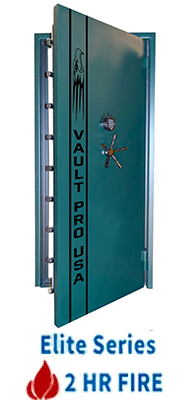

Elite Series Vault Doors

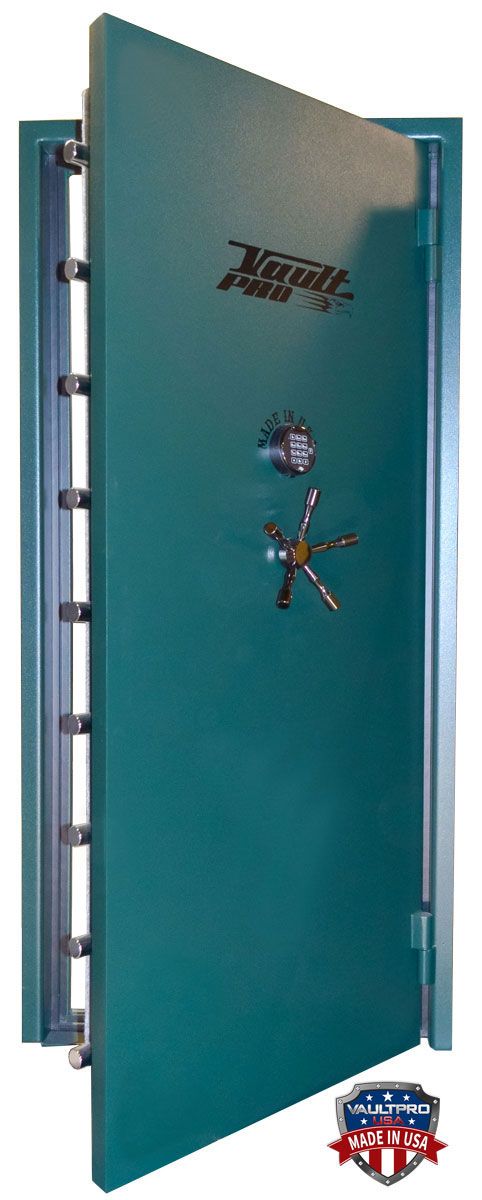

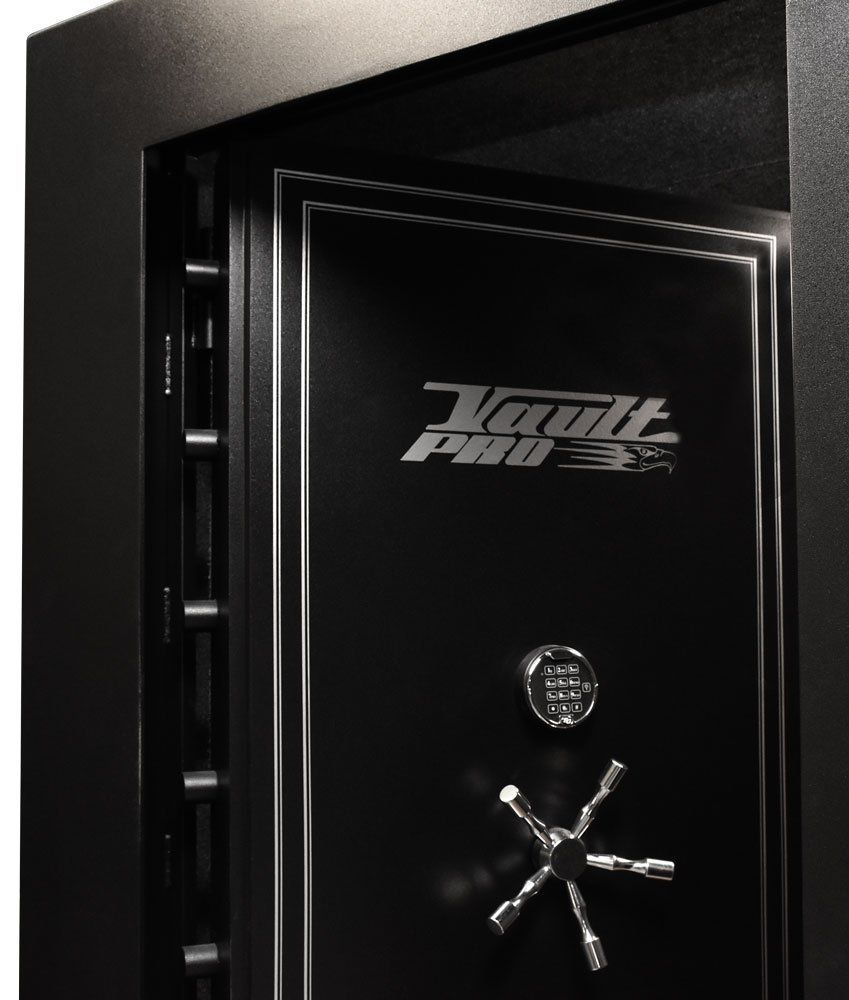

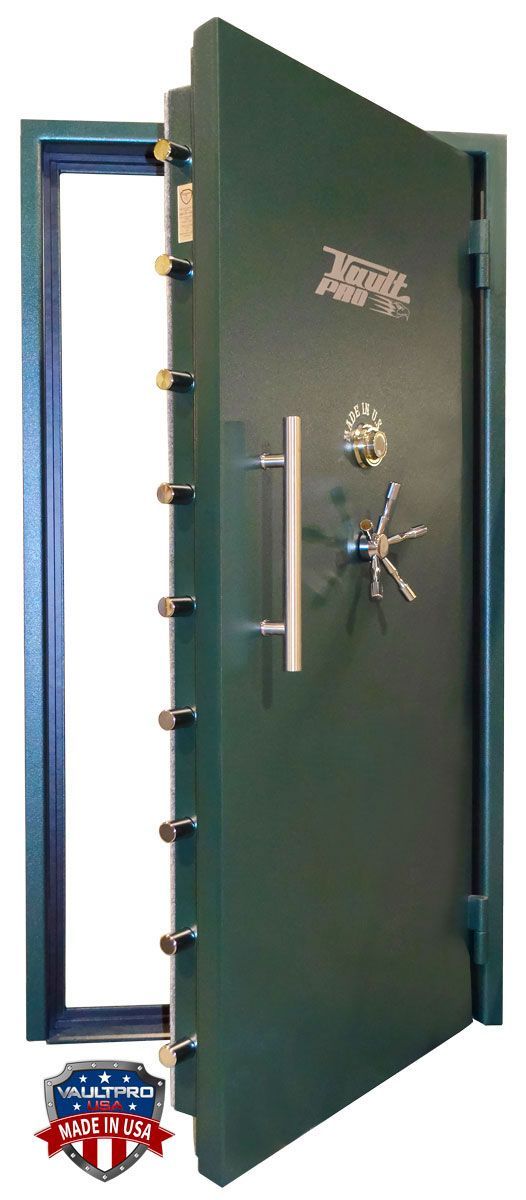

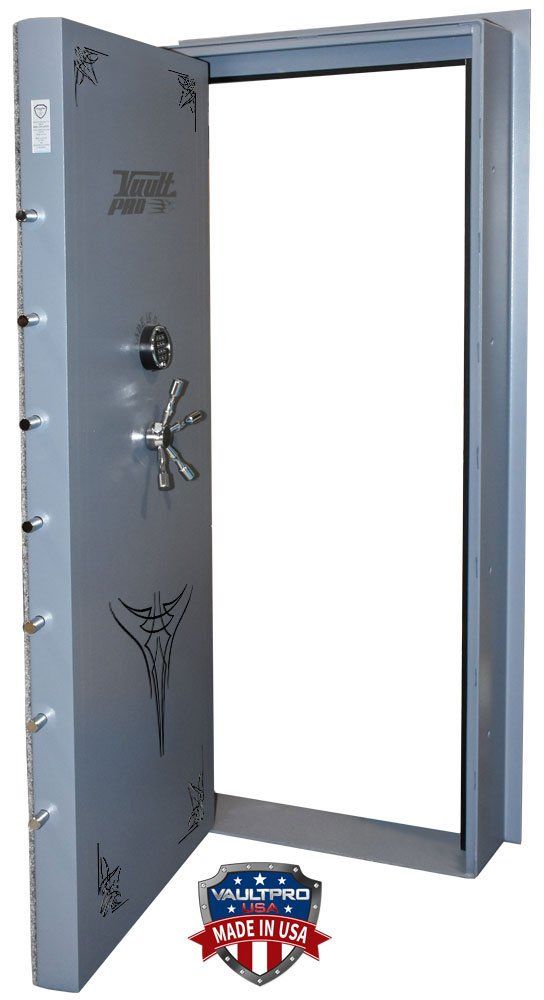

Elite Series Vault Door

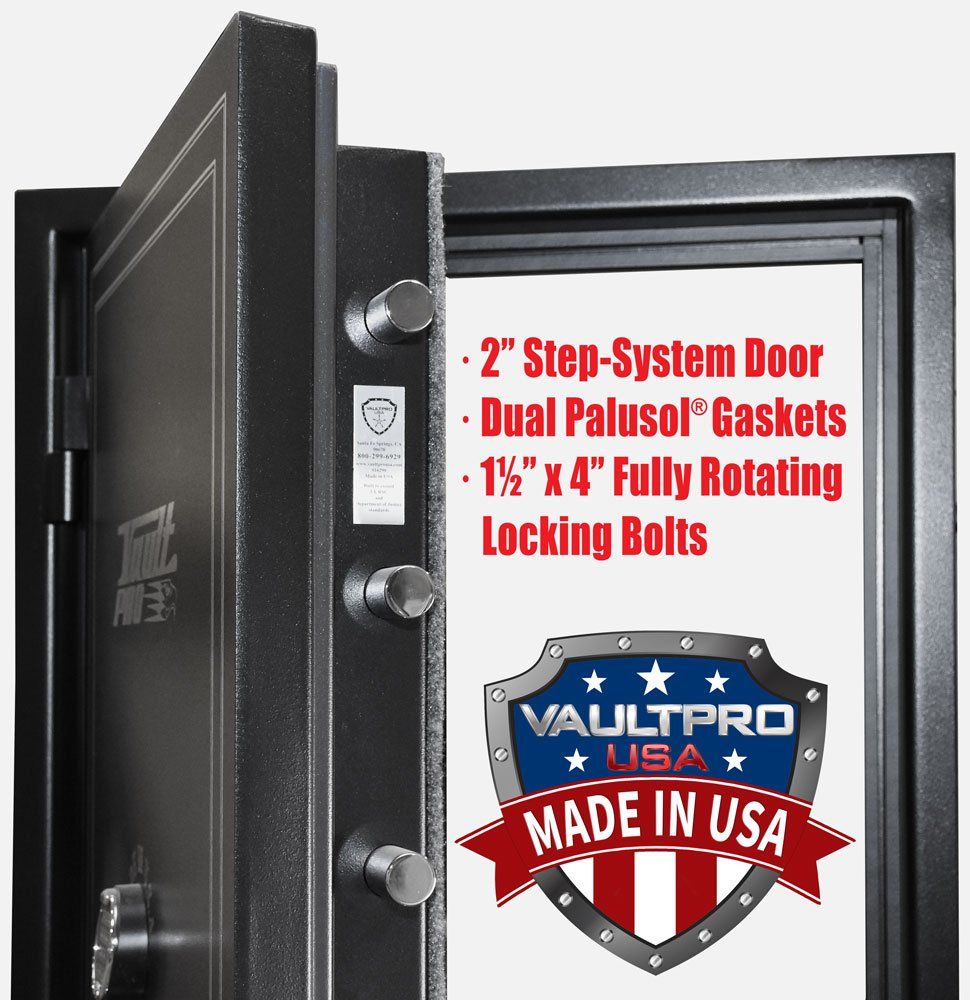

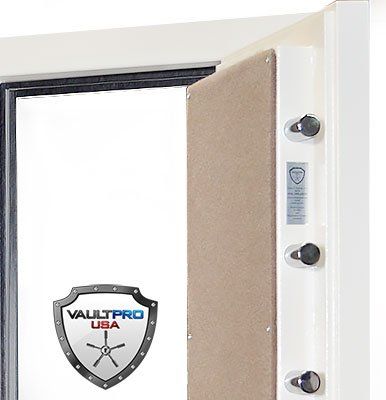

2" Step-System Door
(In-Swing version shown here)
Our Most Popular Model
Elite Series Standard Features
- Engineered to Exceed FEMA 320& 361, ICC-500
- 2" Step System Door - Overall Door Thickness 6¼”
- 2 Hour Fire Door 1550°
- Dual Palusol® Gaskets
- 2300° Ceramic Fire Blanket
- 1/4" Solid Steel Frame
- 1/2" 60+ Rockwell Hard plate
- Adjustable Ball Bearing Hinges

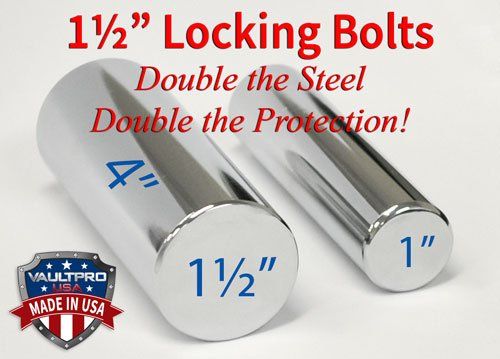

- 18 - 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
- Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock (Digital Lock Available)
- Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Internal Release
- Carpeted Door Panel
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy
- Gloss and Custom Finishes Available -
Call: CLICK TO CALL - Choice of Silver, Gold or Black Matching Hardware
Elite Series Vault Door
If you are looking for the best in class fire protection and the exceptional security only a 2” Step System Door and perfectly matched frame combination sealed against dual Palusol® gaskets can provide, than the Elite Series Vault Door is the door for you.
The Elite Series Vault Door is Vault Pro’s most popular vault door for a good reason…superior security and fire protection as well as a long list of standard features that include custom fit doors, multiple relockers, 2300° Ceramic Fire Blanket, choice of our most popular colors and hardware and an even longer list of available upgrades and custom options.
Vault Pro engineered the Elite Series Vault Door to exceed all ICC-500 and FEMA 320 & 361 recommended standards for use in storm & tornado shelters and as file room doors.

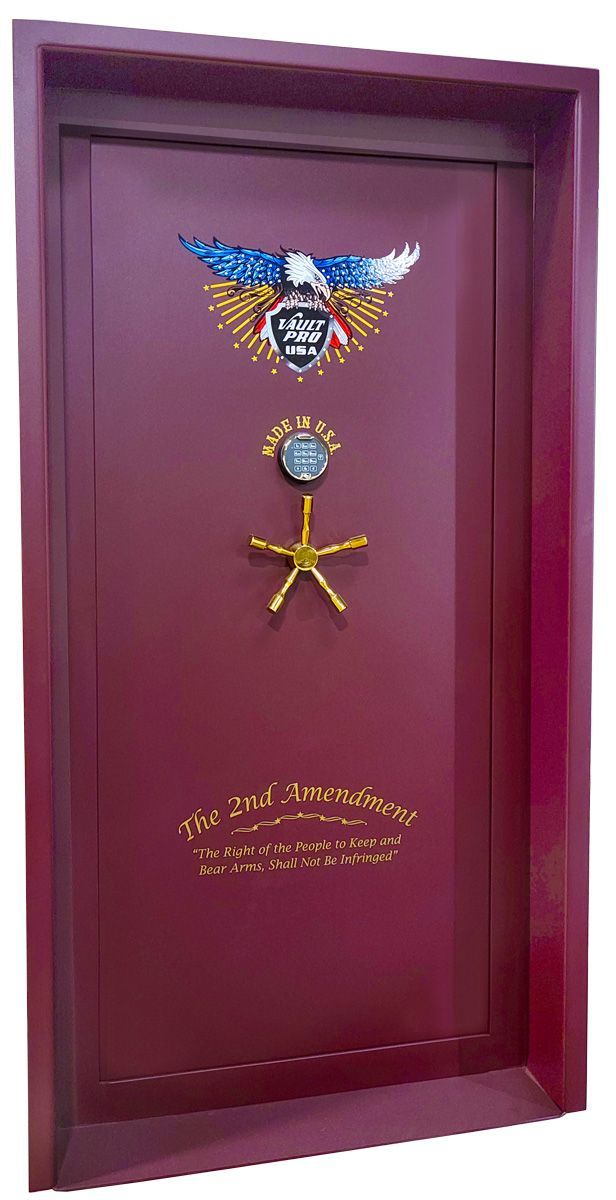

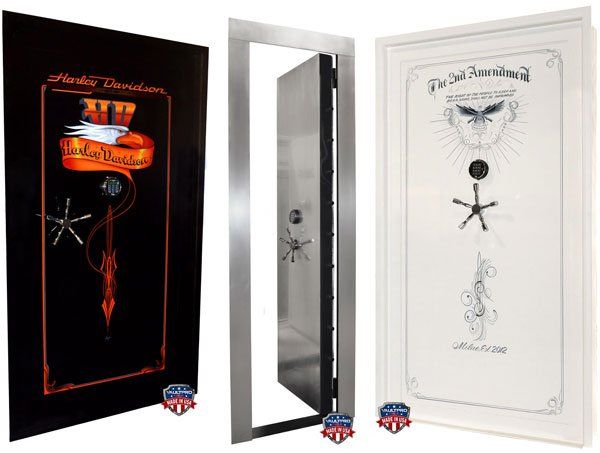

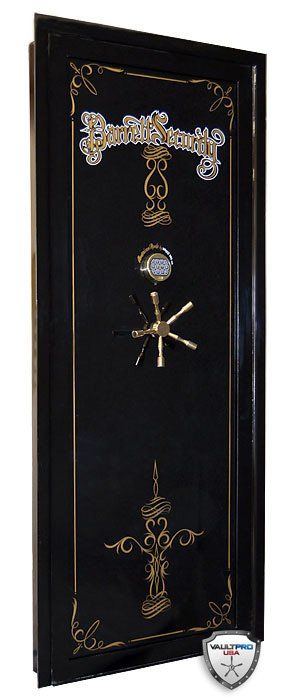

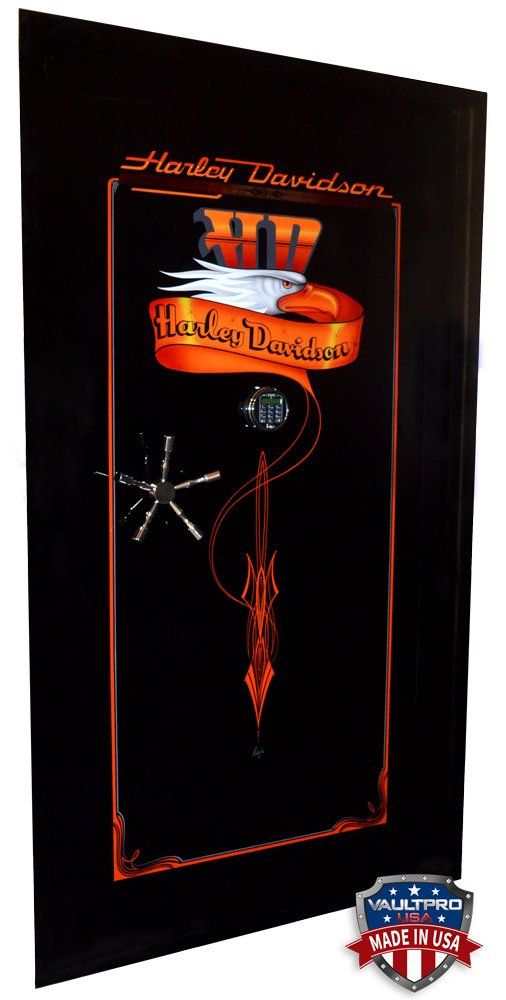

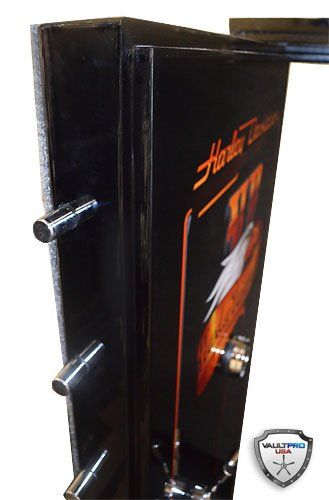

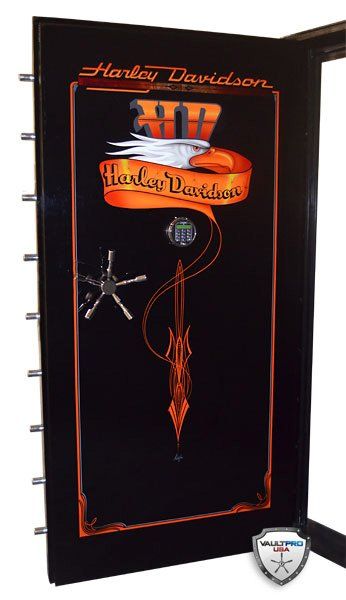

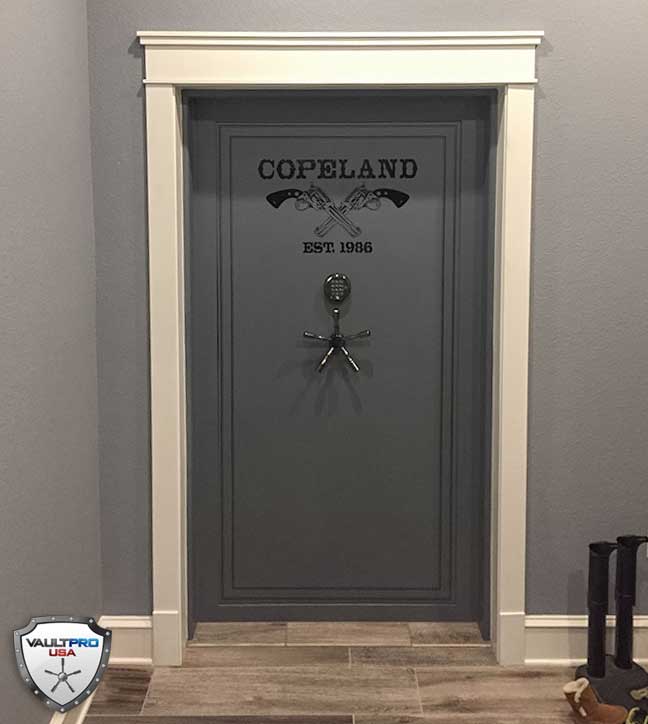

Custom paint and graphics on vault door.
Click image to enlarge.
The Protection You Deserve at an Affordable Price.
Standard Features on Elite Series:
2" Step System Door
Overall Door Thickness is 6¼"
1/2" 60+ Rockwell Hard plate
2300° Ceramic Fire Blanket - 2 Hour Fire Door
Outswing Elite Door
1½" Locking Bolts and Step-System Door Standard on Elite Series
Elite Series (in-swing) Vault Door in Burgundy with custom 2nd Amendment and Shield Eagle logo.
CALL FOR FREE QUOTE
Elite Series Vault Door Factory Direct Pricing
Elite Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 7" - 10" | 850 lbs | 25" outswing / 23" inswing | — | outswing $4,945 | inswing $5,395 |
| 80" x 35" | 7" - 10" | 935 lbs | 30" outswing / 28" inswing | — | outswing $5,505 | inswing $5,955 |
| 80" x 40" | 7" - 10" | 1,040 lbs | 35" outswing / 33" inswing | — | outswing $6,060 | inswing $6,510 |
| 80" x 45" | 7" - 10" | 1,130 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $6,595 | inswing $7,045 |
| 80" x 50" | 7" - 10" | 1,275 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $7,140 | inswing $7,590 |
Elite XL Series Vault Door Factory Direct Pricing
Elite XL Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 96" x 30" | 7" - 10" | 1,020 lbs | 25" outswing / 23" inswing | — | outswing $6,925 | inswing $7,375 |
| 96" x 35" | 7" - 10" | 1,125 lbs | 30" outswing / 28" inswing | — | outswing $7,705 | inswing $8,155 |
| 96" x 40" | 7" - 10" | 1,245 lbs | 35" outswing / 33" inswing | — | outswing $8,485 | inswing $8,935 |
| 96" x 45" | 7" - 10" | 1,350 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $9,230 | inswing $9,680 |
| 96" x 50" | 7" - 10" | 1,530 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $9,995 | inswing $10,445 |
IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.)
In-Swing frame depth must be 7" or larger
VAULT DOORS ANY SIZE! WE ARE CUSTOM DOOR SPECIALISTS - CALL: CLICK TO CALL (M-F 7AM to 7PM)
4-Way 4" x 1½ Fully Rotating Locking Bolts
Standard on Atlas, Titan and Monster Vault Doors
4-Way Locking Bolt System Standard on Atlas, Titan and Monster Vault Doors
Four-way locking bolt option (standard on Atlas, Titan and Monster Vault Doors).
Emergency Escape Hatches and Wide Flange Options
Call for more information:
CLICK TO CALL
Atlas Series Vault Doors
Atlas Heavy Duty Step-System Vault Door - In-Swing or Out Swing Available.
Atlas Series Standard Features
- 1/2" Solid Steel Front Plate
- 2" Step-System Door - Overall Door Thickness 6¼”
- 2 Hour Fire Door
- 2300° Ceramic Fire Blanket
- Dual Palusol® Gasket (Double Seals Door in Fire)
- 1/4" Solid Steel Frame
- 4-Way 22-Bolt Locking System
- 4" x 1½" Fully Rotating Locking Bolts
- Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
- Adjustable Ball Bearing Hinges
- 3/4" 60+ Rockwell Hard plate
- Internal Release
- Carpeted Door Panel
- Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy
- Gloss and Custom Finishes Available -
- Call:
CLICK TO CALL
- Choice of Silver, Gold or Black Matching Hardware
Atlas Series Vault Door
Atlas Vault Doors come standard with a list of security & safety features most other vault door manufacturers only wish they could match. The Atlas door features a ½” solid steel front plate in the 2” step system door which is hand fitted to a ¼” solid steel frame, 22 bolt locking system and internal release. 3/4" 60+ Rockwell Hard plate protects your S&G Spy-Proof Lock with Locking Dial from drill attacks. A 3 + 1 Titan Multi Re-locker system backs up your lock from punch attacks. 2300° Ceramic Fire Blanket provides beyond 2 hour fire protection. Choose from our popular standard colors or create your own custom door with gloss paint and custom finishes & hand pinstripes.
Atlas Series Vault Door Factory Direct Pricing
Atlas Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 7" - 12" | 1,065 lbs | 25" outswing / 23" inswing | — | outswing $6,825 | inswing $7,275 |
| 80" x 35" | 7" - 12" | 1,375 lbs | 30" outswing / 28" inswing | — | outswing $7,520 | inswing $7,970 |
| 80" x 40" | 7" - 12" | 1,775 lbs | 35" outswing / 33" inswing | — | outswing $8,155 | inswing $8,605 |
| 80" x 45" | 7" - 12" | 2,195 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $8,955 | inswing $9,405 |
| 80" x 50" | 7" - 12" | 2,575 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $9,675 | inswing $10,125 |
Atlas XL Series Vault Door Factory Direct Pricing
Atlas XL Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 96" x 30" | 7" - 12" | 1,275 lbs | 25" outswing / 23" inswing | — | outswing $9,560 | inswing $10,010 |
| 96" x 35" | 7" - 12" | 1,650 lbs | 30" outswing / 28" inswing | — | outswing $10,530 | inswing $10,980 |
| 96" x 40" | 7" - 12" | 2,130 lbs | 35" outswing / 33" inswing | — | outswing $11,415 | inswing $11,865 |
| 96" x 45" | 7" - 12" | 2,635 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $12,540 | inswing $12,990 |
| 96" x 50" | 7" - 12" | 3,150 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $13,550 | inswing $14,000 |
IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.)
In-Swing frame depth must be 7" or larger
VAULT DOORS ANY SIZE! WE ARE CUSTOM DOOR SPECIALISTS - CALL: CLICK TO CALL (M-F 7AM to 7PM)
Titan Series Vault Doors
Ballistic Resistant Vault Doors · 1" Solid Steel Front Plate
In-Swing Titan Vault Door with Optional Pull Handle and Gloss Gray Finish.

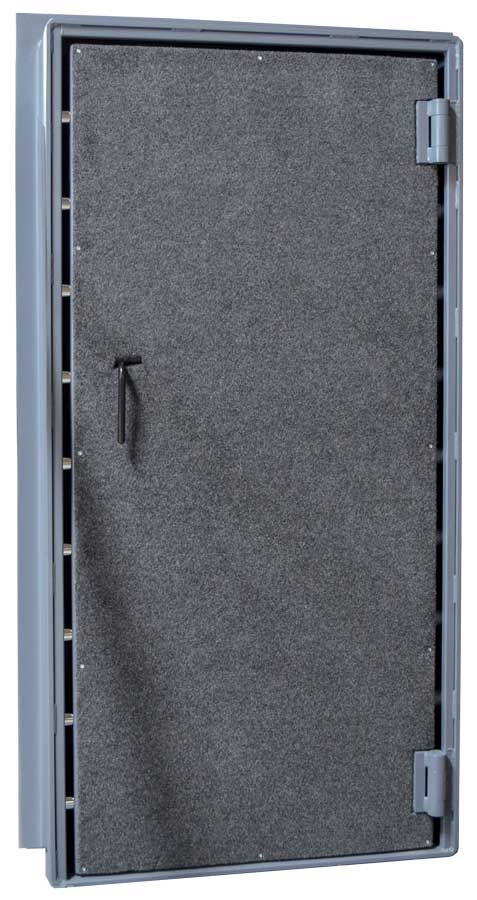

Titan Series Vault Door inswing version. 1" Solid Steel front plate, 1/2" Solid Steel frame and 4-way 22-bolt locking system.
Click images to enlarge.
Titan Series Standard Features
- 1" Solid Steel Front Plate
- 2" Step-System Door - Overall Door Thickness 6¼”
- 2 Hour Fire Door
- 2300° Ceramic Fire Blanket
- Dual Palusol® Gaskets
- 1/2" Solid Steel Frame
- 4-Way 22-Bolt Locking System
- 6" x 6", Dual Thrust, Dual Radial Bearing, 2000 lb. Heavy Duty Hinges
- 4" x 1½" Fully Rotating Locking Bolts
- Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
- 1" 60+ Rockwell Hard plate
- Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
- Internal Release
- Carpeted Door Panel
- Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy
- Gloss and Custom Finishes Available -
Call: CLICK TO CALL - Choice of Silver, Gold or Black Matching Hardware
Titan Series Vault Door
Where can you get a 100% American Made Ballistic Resistant Vault Door along with exceptional state of the art safety, security and fire protection? Vault Pro USA…that’s where! Are you looking for ultimate protection in a vault or file room door? Nothing says safety & security like Vault Pro’s 1” Solid Steel Front Plate, 2” Step System Titan Series Vault Door.
Titan’s 4-way 22-bolt locking system, 1” 60+ Rockwell Hard-plate to stop drill attacks, Titan Quadruple +1 Relocking system to prevent punch attacks, and 2300° Ceramic Fire Blanket all behind a 1” solid steel front plate on a 2” Step System door that closes to within 1/16th of an inch on five levels against a 1” solid steel step system mounted on a 1/2" solid steel frame by two 6" x 6", Dual Thrust, Dual Radial Bearing, 2000 lb. heavy duty hinges. Vault Pro’s Titan Vault Door most certainly stands out for greatness and incredible strength.
Click image to enlarge.
Benton Police Department Swat Team in front of their massive Titan Vault Door.
"Yes sir we have a GIANT door that is currently located in our newly built SWAT building and it is phenomenal. That door is a behemoth and we love it...“We love our door.” Again thank you all so much for your assistance and patience with us. If there is ever anything else we can do for you or your company please feel free to let me know. I know that is usually one of those things people just throw out there. I truly mean it. If you have a department or other company interested in your doors in our area please feel free to give them my contact information if they’d like to see the door first hand I don’t mind at all. "
Respectfully,
E. Haworth
Captain
Patrol Division
Benton Police Department
Titan Series Vault Door Factory Direct Pricing
Titan Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 8" - 12" | 1,480 lbs | 25" outswing / 23" inswing | — | outswing $8,698 | inswing $9,348 |
| 80" x 35" | 8" - 12" | 1,790 lbs | 30" outswing / 28" inswing | — | outswing $9.520 | inswing $10,170 |
| 80" x 40" | 8" - 12" | 2,010 lbs | 35" outswing / 33" inswing | — | outswing $10,485 | inswing $11,135 |
| 80" x 45" | 8" - 12" | 2,315 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $11,210 | inswing $11,860 |
| 80" x 50" | 8" - 12" | 2,625 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $12,040 | inswing $12,690 |
Titan XL Series Vault Door Factory Direct Pricing
Titan XL Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 96" x 30" | 8" - 12" | 1,776 lbs | 25" outswing / 23" inswing | — | outswing $12,175 | inswing $12,825 |
| 96" x 35" | 8" - 12" | 2,148 lbs | 30" outswing / 28" inswing | — | outswing $13,330 | inswing $13,980 |
| 96" x 40" | 8" - 12" | 2,520 lbs | 35" outswing / 33" inswing | — | outswing $14,535 | inswing $15,185 |
| 96" x 45" | 8" - 12" | 2,895 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $15,695 | inswing $16,345 |
| 96" x 50" | 8" - 12" | 3,265 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $16,855 | inswing $17,505 |
IN-SWING HINGING OPTION (Any Door - Adds up to 300 lbs.)
In-Swing frame depth must be 8" or larger
Options and Accessories for Vault Doors
Titan Vault Doors - Learn More
CLICK FOR FREE QUOTE

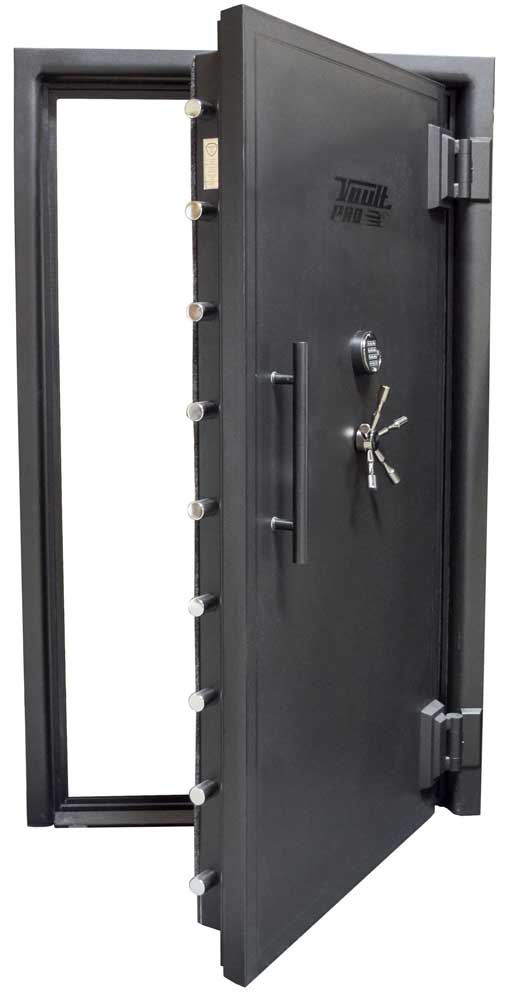

![Open black security vault door with silver bolts and handle, shown partially open on a white background]()
Button
![Gray metal safe door with large handle and dial lock, labeled “1/2]()
![Beige front door with a dark frame and vertical handle, shown on display.]()
![Open gun safe with rifles and handguns mounted on the inside door panel]()

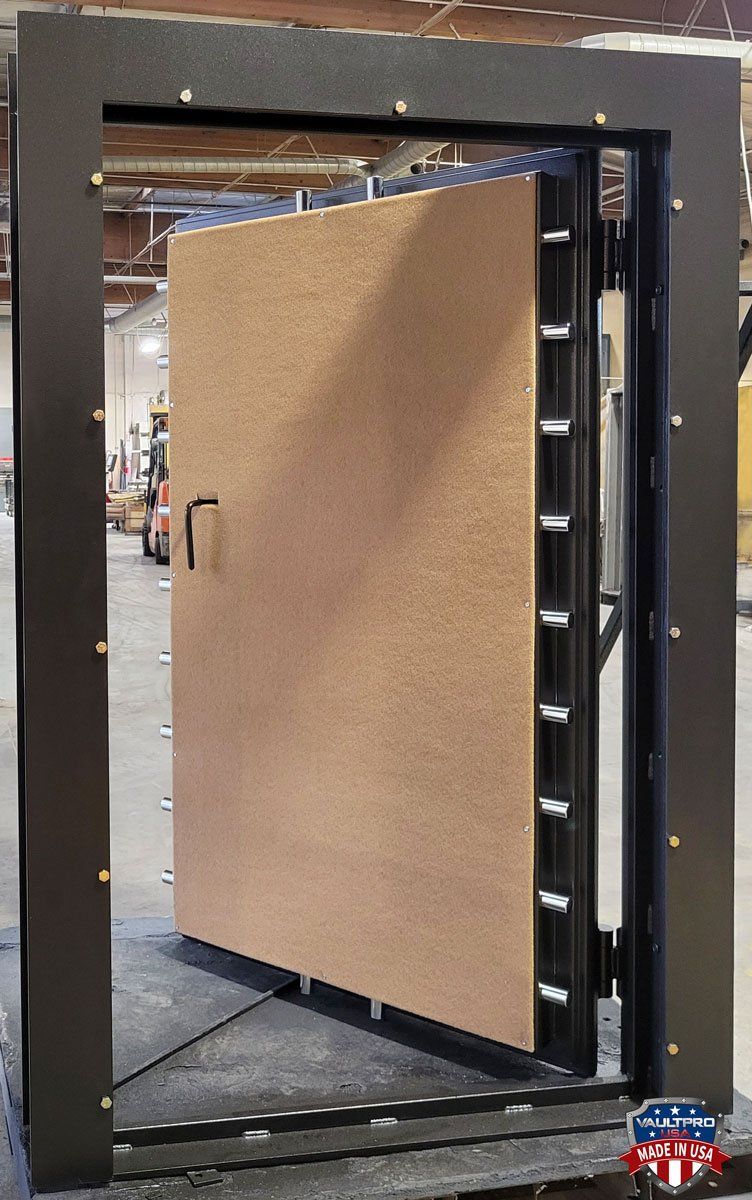

![Large hinged industrial door with a tan panel, partially open in a warehouse-like setting.]()
VAULT DOORS ANY SIZE! WE ARE CUSTOM DOOR SPECIALISTS - CALL: CLICK TO CALL (M-F 7AM to 7PM)
The Titan Series Vault Door Comes with a wide Range of Standard and Optional Features:
The Titan Series comes with a one inch solid steel front plate 2" Step System Door, 22-bolt locking system, Titan hinge system featuring dual thrust, dual radial hinges, each hinge with 2,000 lb. rating, 2300° Ceramic Fire Blanket, multiple re-lockers, internal release and S&G Spy-Proof Lock with Locking Dial -- All Standard
Click images to enlarge.
1" Solid Steel Front Plate, 2" Step System Door. Overall door thickness 6¼" (Shown with optional pull handle).
NEW! Standard on the Titan Series Door, Titan 4-way 22 active bolt system with step at threshold.
The Titan Series vault doors, like all Vault Pro products are proudly made in the USA.
Monster Series Vault Doors
A Monster of a Vault Door from Vault Pro USA
The Monster wide vault door interior quick release handle. Standing seven foot tall, five feet wide with a 2" Steel Stepped Door and weighing in at well over 3000 pounds, this really is a "Monster Vault Door". Size alone sets this gargantuan American Made Vault Door in a class all of it's own.
Vault Pro designed the Monster Vault Door specifically to provide the highest level security and fire protection.
Multiple Heavy Duty Hinges along with a 1/2" Solid Steel Stepped Frame allow the 2" Solid Steel Stepped Door to swing smoothly. The 4-way bolt locking system includes 22-1½" & 360º rotating locking bolts to make cutting impossible. Only our Titan Quadruple +1 Relocking System and 1" Solid 60+ Rockwell Hard-plate will work to defend against both drill and punch attacks.
With Vault Pro's reputation for exacting specifications and tolerances, the Monster Vault Door is no slouch. The Monster Step System Door fits to within 1/16" of the Monster Step Frame to seal on at least five points for the most pry proof vault door available in today's market. In addition to dual Palusol® Gaskets between the door and frame, Multiple layers of X-Rate fireboard and 2300° Ceramic Fire Blanket are used to make the Monster Vault Door the most Fireproof Vault Door in it's class with over 3 hour protection.
If Ballistic Resistance is your concern, rest assured. Virtually nothing is getting thru the Monsters 2" solid steel front plate.
Call for details: CLICK TO CALL
Need a Really Big Vault Door? We Have the Biggest!
This Monster Size Vault Door is big enough to drive a forklift or car through. This Custom Oversize Monster Vault Door features four massive pin bearing hinges each rated at over 2000 lbs!
Click images to enlarge.
You Can Drive a Forklift through this Monster Vault Door.
Massive Monster Vault Door. When Door Swing through is not an issue we offer massive vault doors like this door built wide enough for cars to pass through.
In-Swing Monster Vault Door with Low threshold allows vehicles to pass through. Perfect for secure vehicle storage or large item storage that require forklift or pallete jack access.
Monster Series Vault Door Factory Direct Pricing
Monster Series Vault Door - Factory Direct Pricing
| Door Size | Frame Depth | Weight | Walk Thru - Clear-Thru | Notes | Factory Direct Price |
|---|---|---|---|---|---|
| 80" x 30" | 8" - 12" | 2,145 lbs | 25" outswing / 23" inswing | — | outswing $12,644 | inswing $13,294 |
| 80" x 35" | 8" - 12" | 2,415 lbs | 30" outswing / 28" inswing | — | outswing $14,285 | inswing $14,935 |
| 80" x 40" | 8" - 12" | 2,685 lbs | 35" outswing / 33" inswing | — | outswing $15,485 | inswing $16,135 |
| 80" x 45" | 8" - 12" | 2,955 lbs | 40" outswing / 38" inswing | ADA Accessible | outswing $17,285 | inswing $17,935 |
| 80" x 50" | 8" - 12" | 3,225 lbs | 45" outswing / 43" inswing | ADA Accessible | outswing $18,845 | inswing $19,495 |
IN-SWING OPTION (Any Monster Vault Door - adds up to 400lbs)
In-Swing frame depth must be 8" or larger
Need an Even Bigger Vault Door?
We Are Custom Specialists. Any Size, Any Configuration.

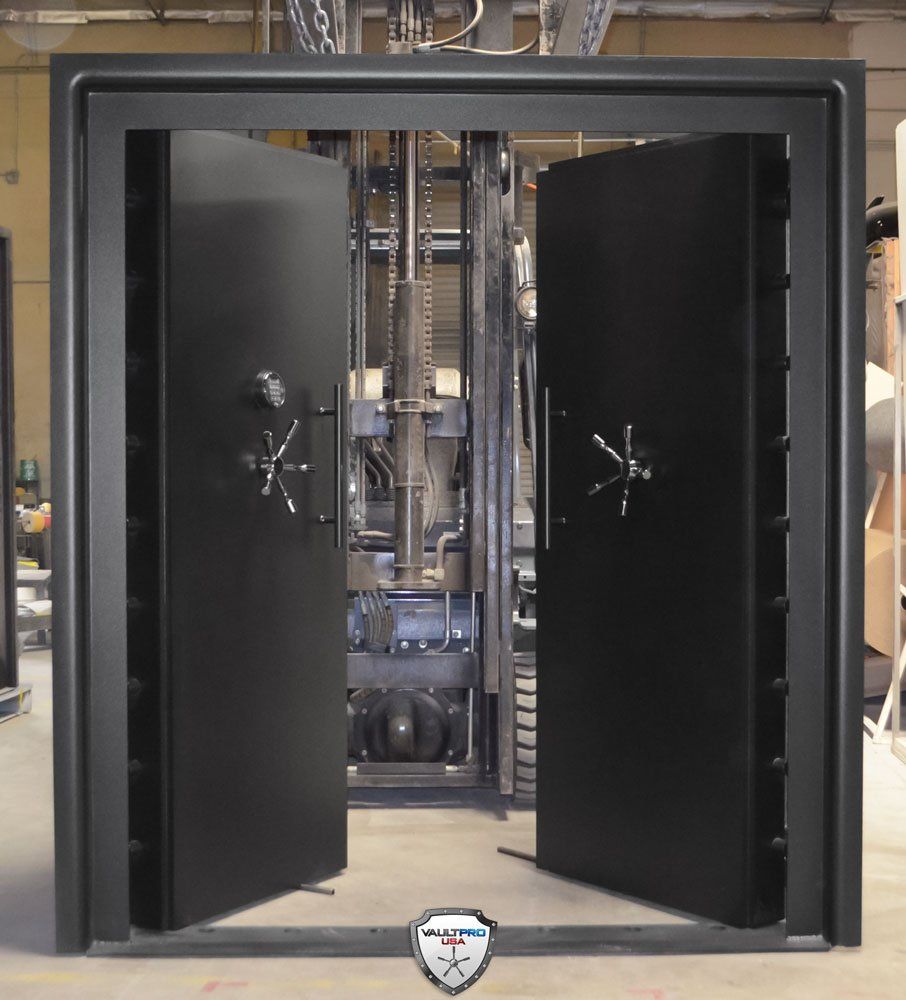

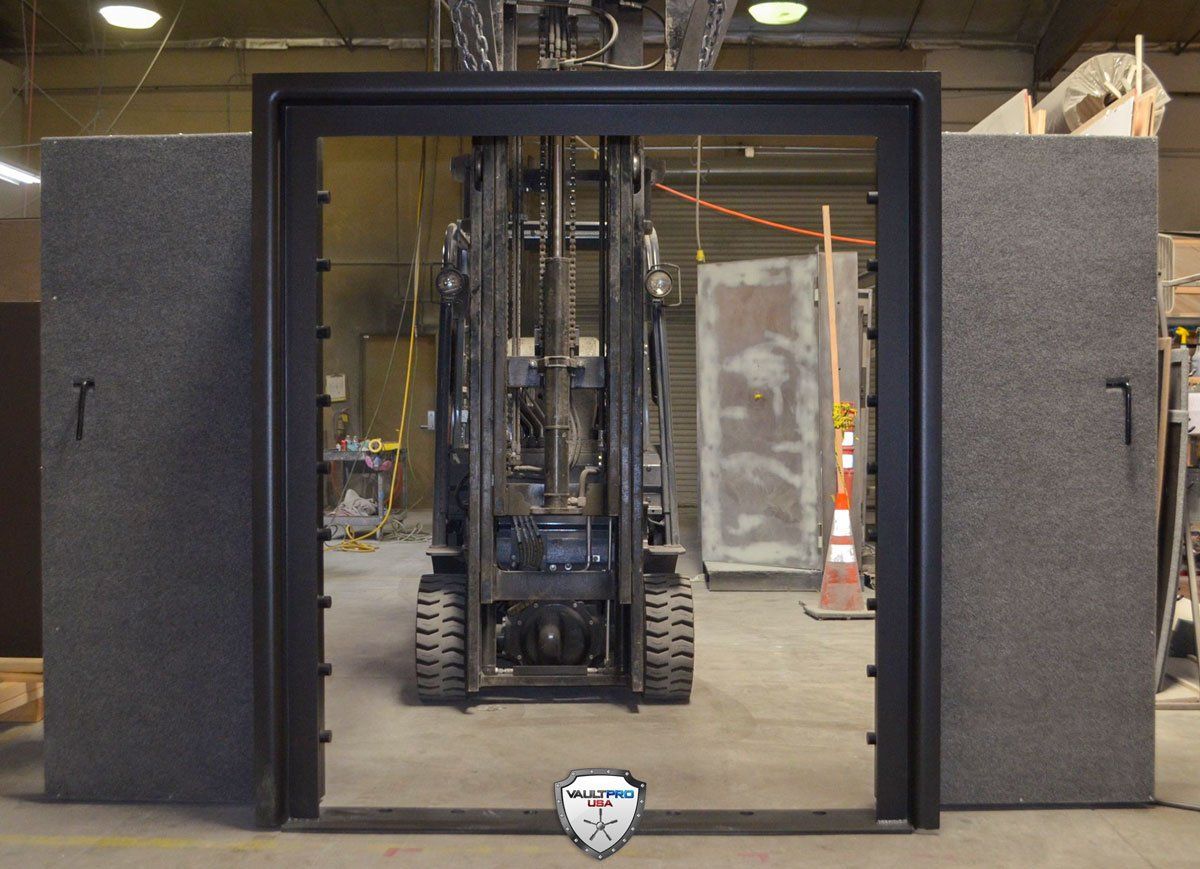

Double Door Vault Doors
Double Wide Vault Doors Wide Enough for Vehicle Access
Custom Vault Door Specialists - Made in USA - CALL FOR FREE QUOTE!

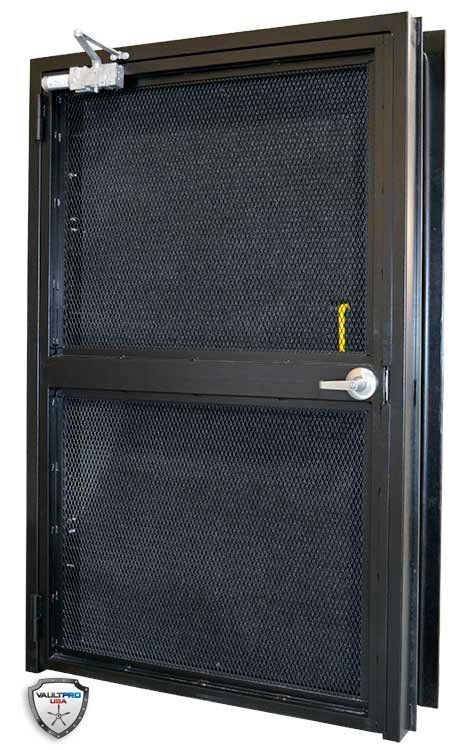

Vault Pro Self Closing Day Gates are designed and built to be used with Vault Pro Atlas, Elite and Titan Series Vault Doors where visual security is required. Add a Day Gate to your vault door installation for added security.
Day Gates are in-swing and can be hinged on either side of the out swinging Vault Pro Vault Door. Vault Pro Day Gates are equipped with a group 2 locking device operable from inside by a handle and from the outside by key and will not interfere with the operation of the vault doors internal release or inner escape device.

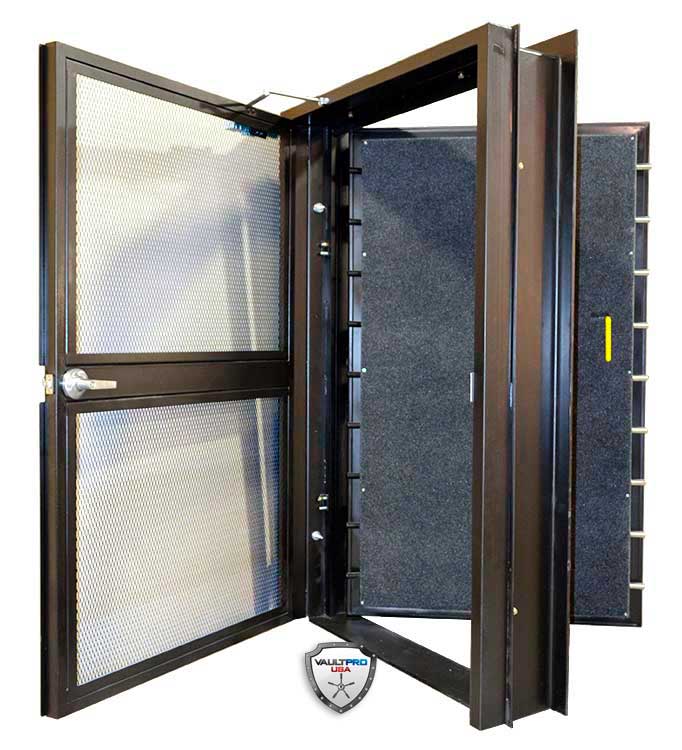

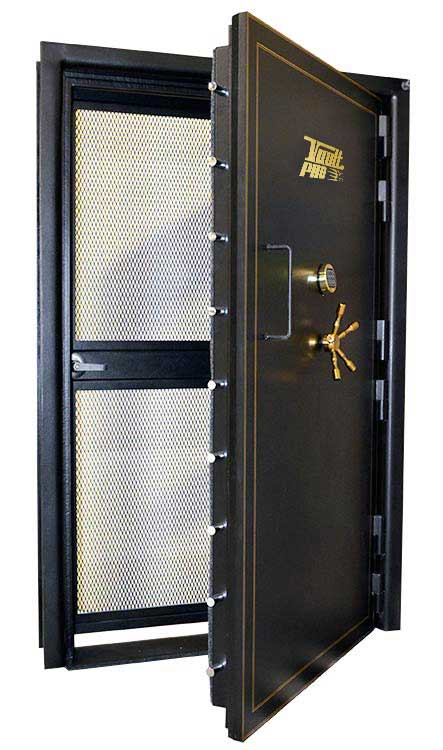

Add a Day Gate to your vault door installation.
Vault Pro Day Gates feature inward swinging doors that can be hinged on
either side of the outward swinging vault door.
either side of the outward swinging vault door.
Day Gate Standard Features
- Heaviest Gauge Frames in the Industry
- #16, ½” Flattened Expanded Metal
- Day Gate Can be Hinged on Left or Right Side
- Group 2 Lock Operable from Inside by a Handle and from the Outside by Key
- Will Not Interfere with Operation of the Vault Door Internal Release or Inner Escape Device
- Four Standard Sizes Fit Most Installations (Custom sizes available)
80" x 30"
FACTORY DIRECT PRICE
$1870
80" x 35"
FACTORY DIRECT PRICE
$2099
80" x 40"
FACTORY DIRECT PRICE
$2355
80" x 45"
FACTORY DIRECT PRICE
$2599
CLICK FOR FREE QUOTE
Vault Pro has designed Day Gates to provide superior security, access control and visual ability where controlled substances, weapons, equipment and materials are stored and issued. All of Vault Pro’s Day Gates can be equipped with framed issue port hatches or pass thru.
Vault Pro Day Gates come in three standard sizes and custom sizes are available. Call one of our Vault Pro’s for details: CLICK TO CALL
ADA Accessible Vault Doors
Vault Pro builds the only American's with Disabilities Act or ADA Compliant Vault Doors. Lock and handle as well as the internal release can be lowered and the threshold is flat, so anyone in a wheel chair can utilize the door. Ball bearing hinges make this relatively heavy (about 1150 lbs. - *weight varies by model) door glide open and close with ease. If you have a need for one of our security solutions, don't hesitate to contact us: CLICK TO CALL
ADA Accessible Vault Doors
Click image to enlarge.
Our new 45” standard size doors can all be built to ADA (Americans with Disability Act) standards by providing a walk thru clearance of at least 32” width with the door open at 90°, and will have no more than ¼” vertical raise in the threshold, with the exception of the Titan Series Door which has a ½” frame & threshold. In the case of the Titan Door, the ½” threshold will be beveled above the bottom ¼” to comply with ADA standards. At the time of order, you must state that you want the ADA specifications built into any and all step system doors, due to the fact that there cannot be a step system feature built into the frame at the threshold…it must be flat to accommodate wheel chairs. All handles used to open or operate ADA regulation doors will be below 48” in height and operate with less than 5 lbs. of force. ADA regulation doors can also be ordered with the lock and handle positioned at a lower height if desired at no additional charge (must be specified at time of order). Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy.
Professional Series Vault Door
80" x 45" - 5" to 8"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
Outswing: $5,085
Inswing: $5,435
Inswing option adds up to 100 lbs.
In-Swing frame depth must be 6" or larger
Executive Series Vault Door
80" x 45" - 6" to 10"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
Outswing: $5,460
Inswing: $5,810
Inswing option adds up to 100 lbs.
In-Swing frame depth must be 6" or larger
Elite Series Vault Door
80" x 45" - 6" to 10"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
Outswing: $6,595
Inswing: $7,045
Inswing option adds up to 200 lbs.
In-Swing frame depth must be 6½" or larger

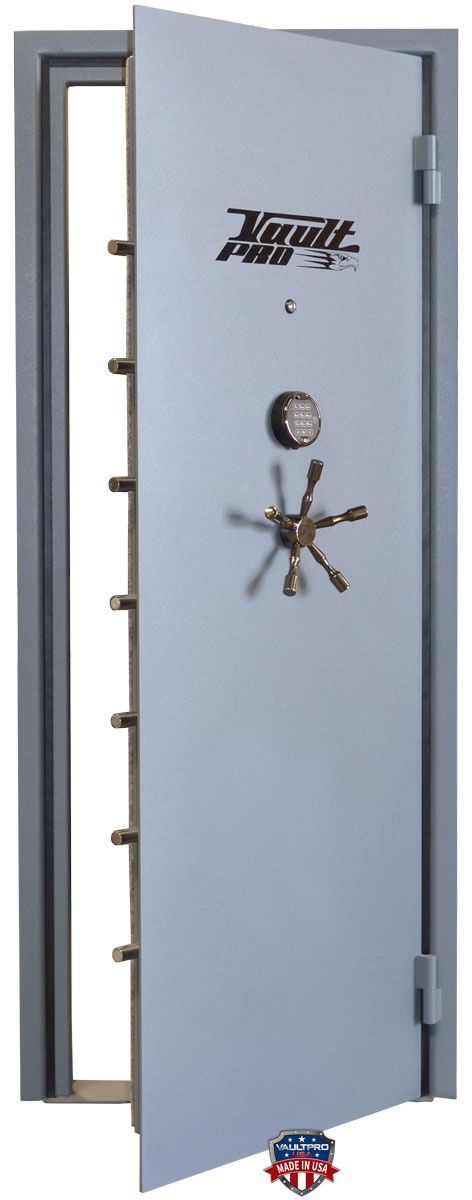

Atlas Series Vault Door
80" x 45" - 6" to 12"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
Outswing: $8,955
Inswing: $9,405
Inswing option adds up to 200 lbs.
In-Swing frame depth must be 6½" or larger

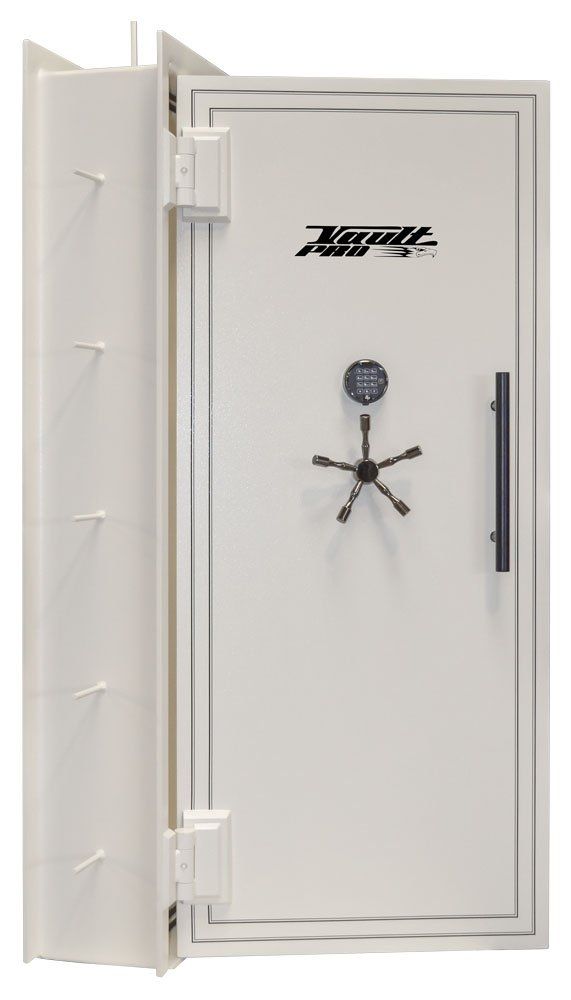

Titan Series Vault Door
80" x 45" - 8" to 12"
(frame depth)
Clear Thru Space:
40" Out-swing
38" In-Swing
ADA Accessible Vault Door
FACTORY DIRECT PRICE
Outswing: $11,210
Inswing: $11,860
Inswing option adds up to 300 lbs.
In-Swing frame depth must be 7½" or larger

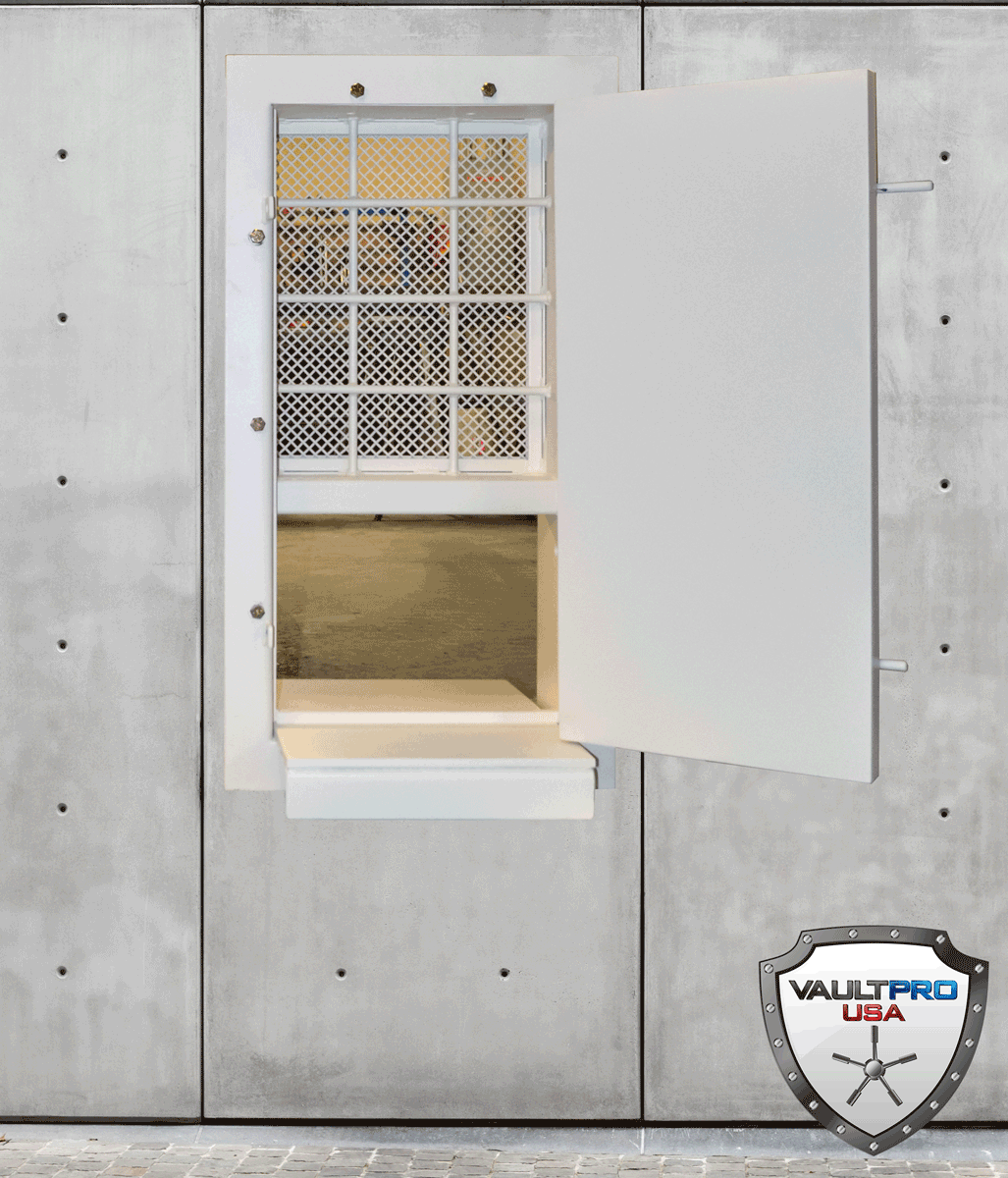

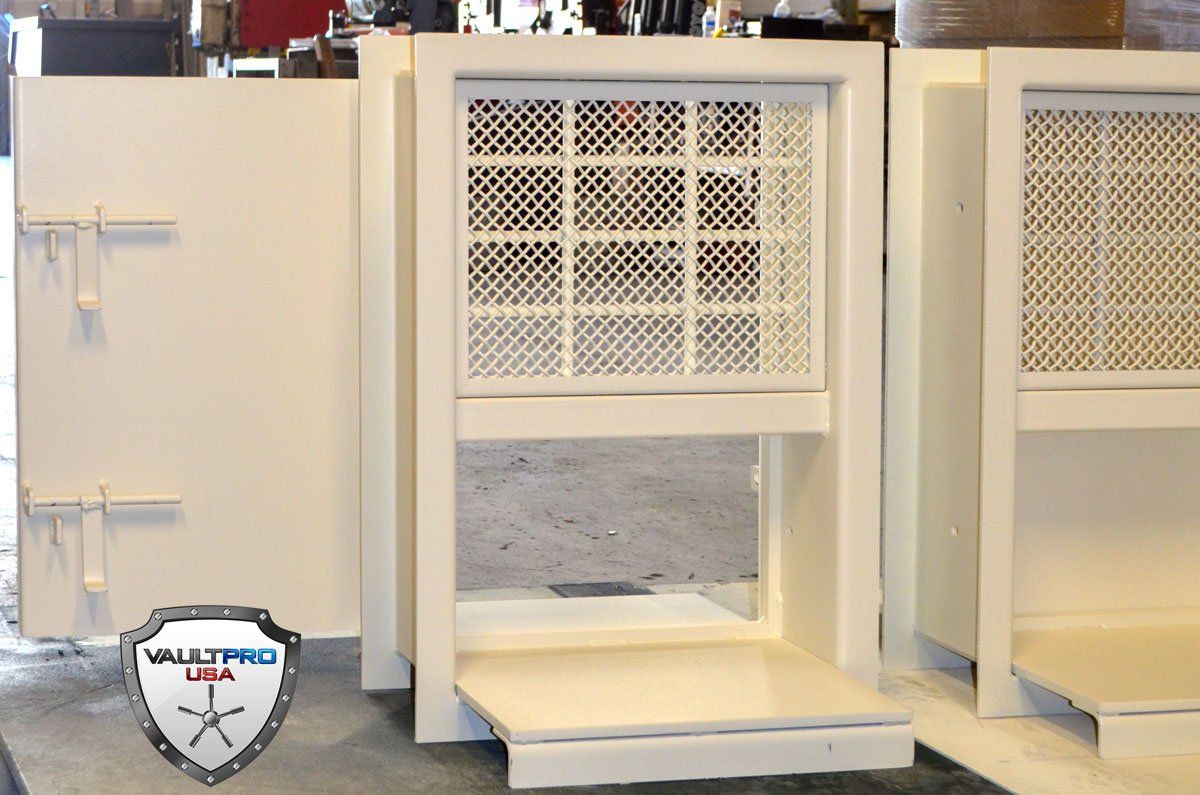

Issue Ports - For Secure Pass Thru
Vault Pro Weapon’s Issue Ports for Government, Military and Business are ideal for access and passage of weapons, ammunition and classified material to users by an armorer or designated individual in charge of dispensing them through the secure issue port.
BALLISTIC RESISTANT VAULT DOORS
Do you want the best ballistic resistance available on the market today? AR500 is not surface hardened…it is quenched, tempered & through hardened. AR500 is premium grade steel used where extreme abrasion, wear and impact are immanent.
Add a layer of AR-500 plate steel inside your Vault Door “Rest Assured… Vault Pro has you covered!”
CALL FOR FREE QUOTE

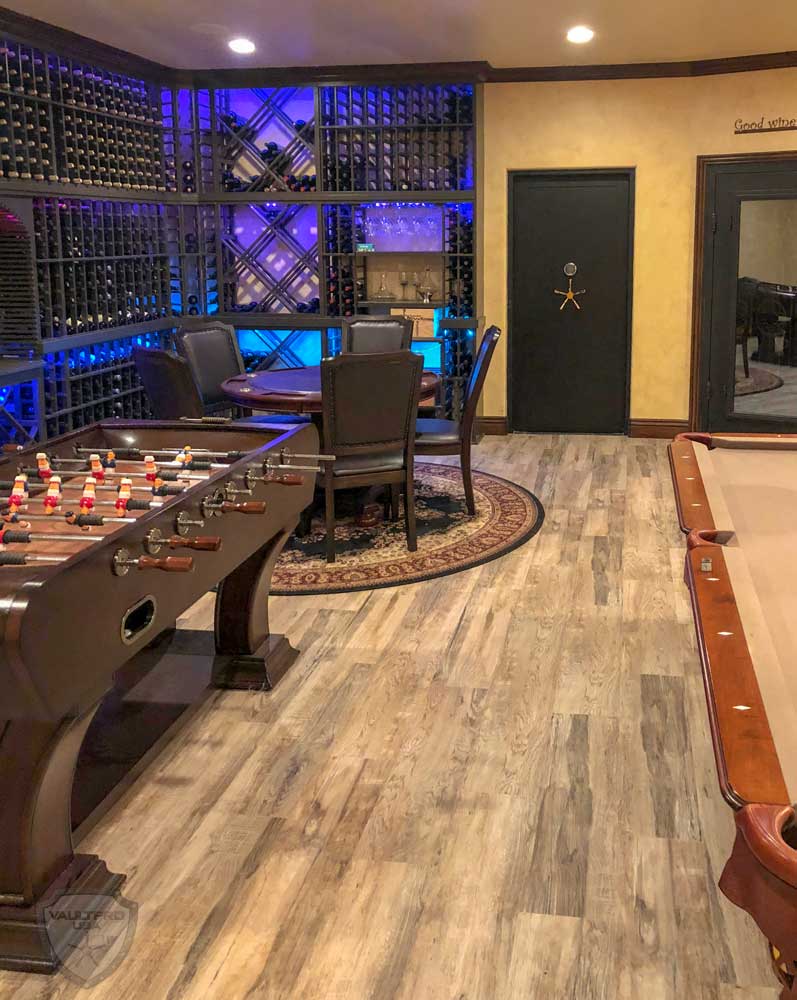

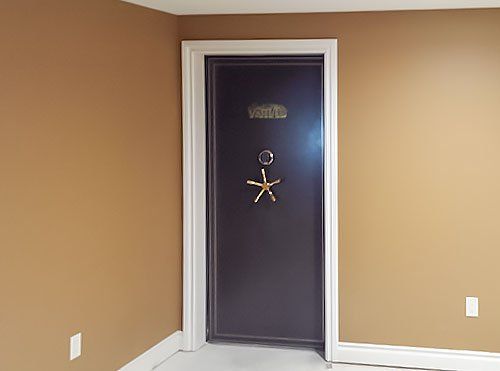

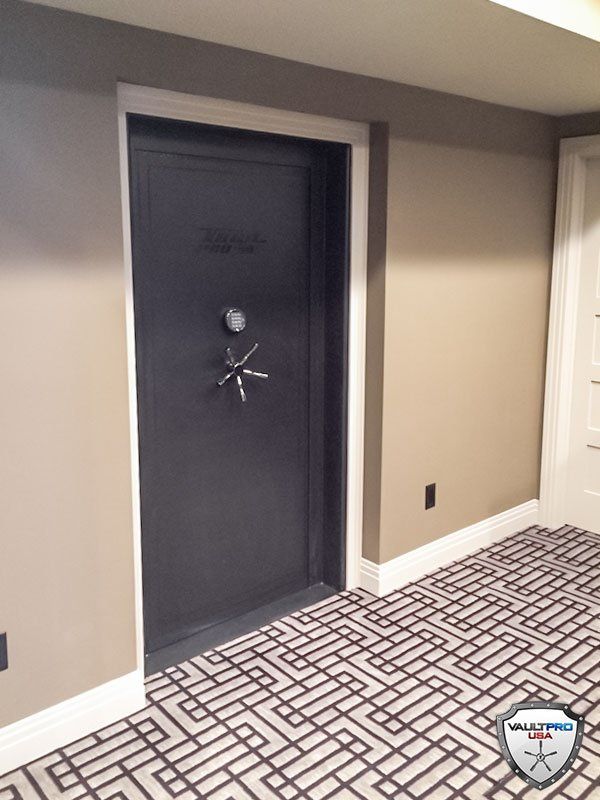

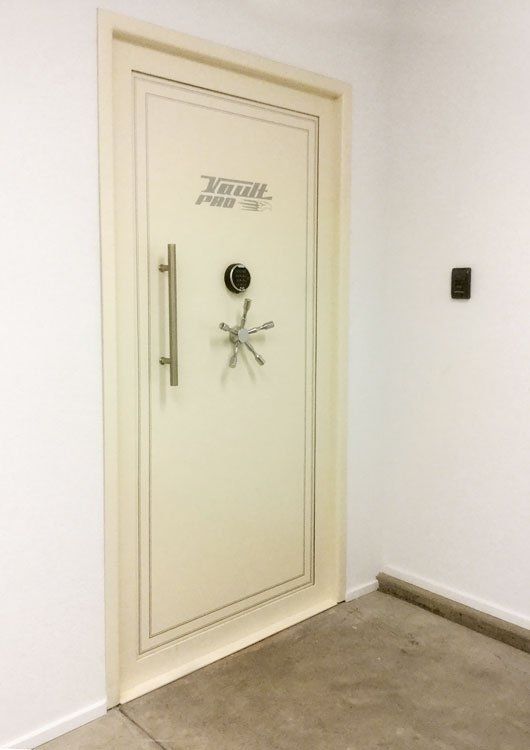

Vault Pro Vault Door Customer Image Gallery

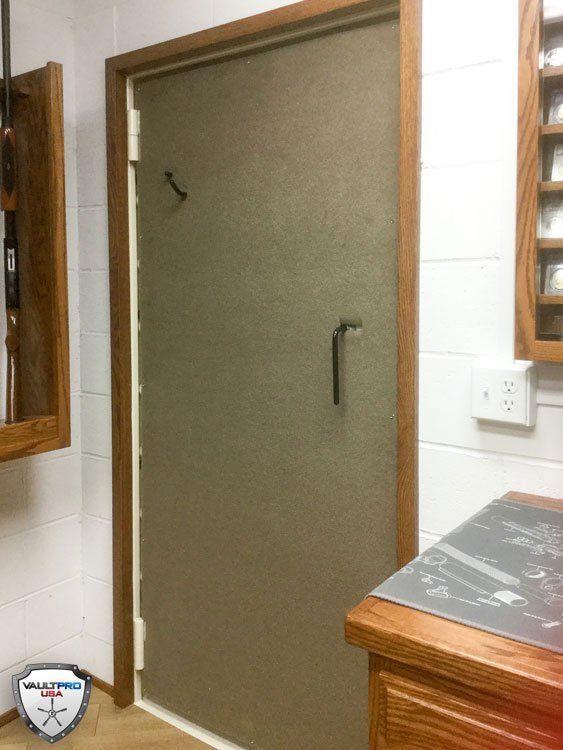

Custom Hidden Vault Door - Walk In Vault Room
Click on images to enlarge.
Another Vault Pro client, Mr. R., created a most exquisite hidden walk in vault, which is protected by one of our All American Made vault doors. Thank you for sharing some images of this amazing and secure vault room.

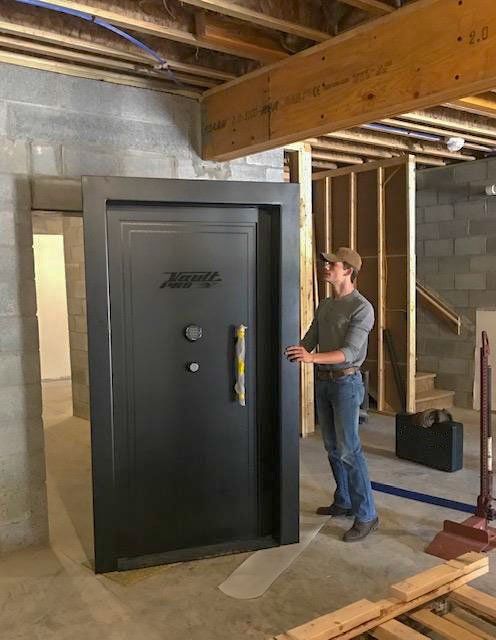

Installation is a Breeze
“We were going to have a moving company take it down the stairs but we decided to do it ourselves, only 3 of us LOL! Unloaded and installed in one hour! Installation was a breeze. Y’all definitely exceeded my expectations. Thank you for everything!”
J. R.
Billings, MT
The Vault Pro USA Difference
What makes Vault Pro doors different? It's the people. Vault Pro vault doors are engineered to be better. Each vault door is hand assembled under exacting techniques to ensure top quality of the finished product. All Vault Pro USA products are backed by a lifetime warranty against fire, break in and manufacturer defect. Please call us for details.

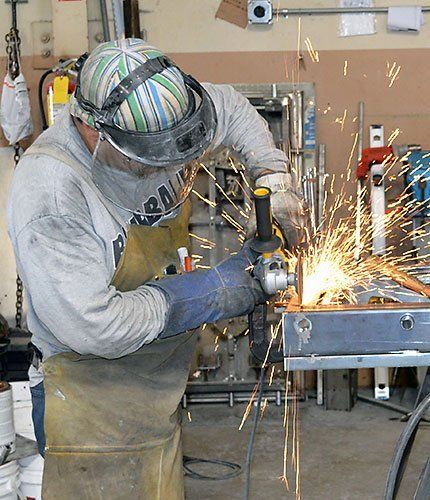

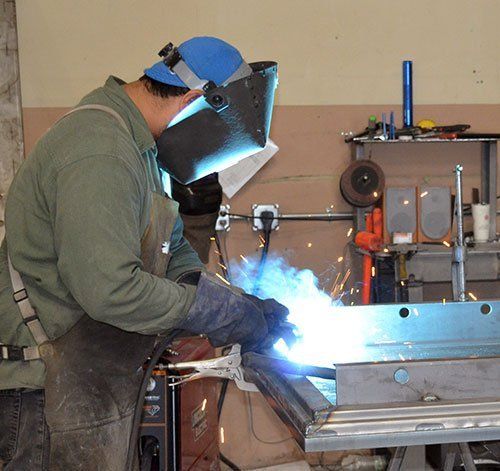

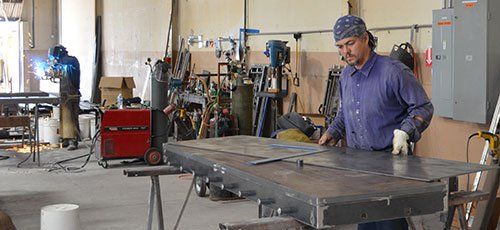

Hand Crafted from raw material to finished vault door.

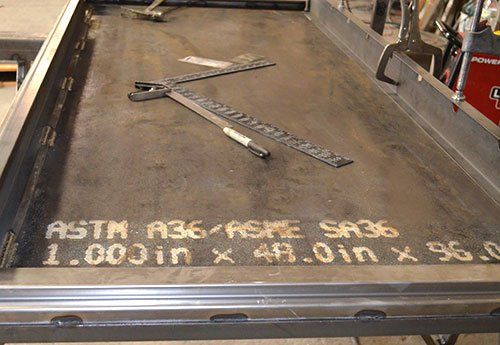

1" Solid Steel Raw Material ready to become a 2" Step Door with 1" Solid Steel front plate.
A Vault Pro Door is made of quality materials and assembled by American craftsman here in the USA.
After close inspection to ensure that cut dimensions are correct and that the steel is straight and true, our 1" solid steel door gets reinforced with the steel step system and bolt guide rails making it a 2" Step Door.
After the installation of the Ceramic (2300 degree) Fireproofing, standard fire-board, 60+ Rockwell hard plate, relockers and locking bolt system, the door gets hinged to a Stepped Frame that is built to match the exacting dimensions of the door to within 1/16". The end result is a door that fits snug and tight against dual Palusol® gaskets.
Vault Doors Worth the Wait
With Vault Pro YOU call out every detail of your safe, vault door or walk-in vault: the security level, size, hinge side, lock, color, and any accessories. Your order is then set in the queue and produced first come... first served. We also offer a rush service at the time of check out. Please call for details.
We do not stock vault doors or walk-in vaults because each one is made custom to your specifications. It is very unlikely that there is a stock vault door or walk-in vault matching your exact specifications available for immediate shipment.
Our production process is second to none in the industry and every attention to detail is addressed. Remember... when you deal with us you are dealing with American craftsmanship with artisans who make and handle every single safe, vault door and walk-in vault that leaves our shop from beginning to end. All our vault doors are manufactured in the USA.
Vault Pro USA manufactures the finest American Made Custom Vault Doors for virtually any installation.
Call us about Vault Room Doors, Storm Shelter Doors, Panic Room and Safe Room Doors.
Custom Vault Door Art Design and Pinstriping
Click images to enlarge.
We are Custom Vault Door Specialists. Custom Vault Door Art and Pinstriping.
*Door weights may vary due to frame depth, options and finished dimensions as ordered.
